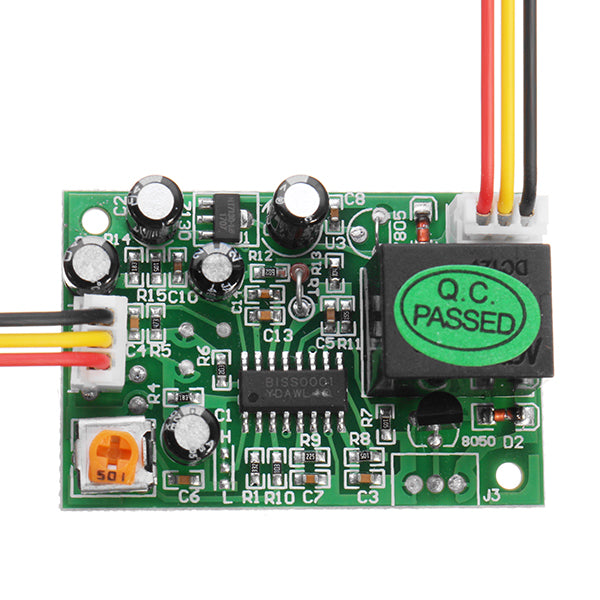

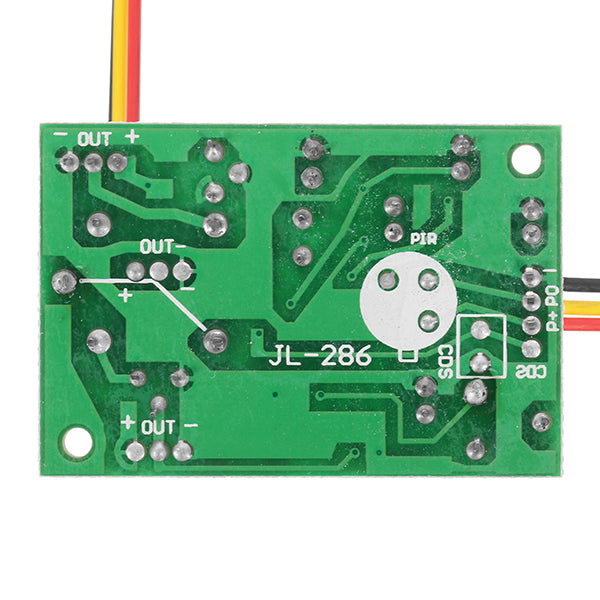

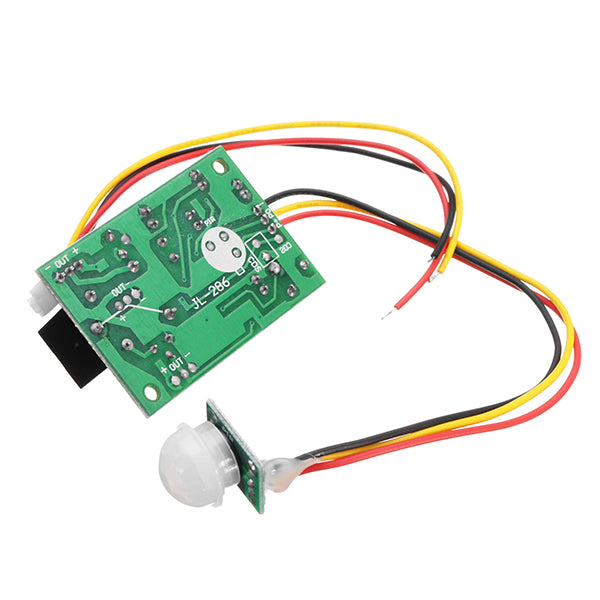

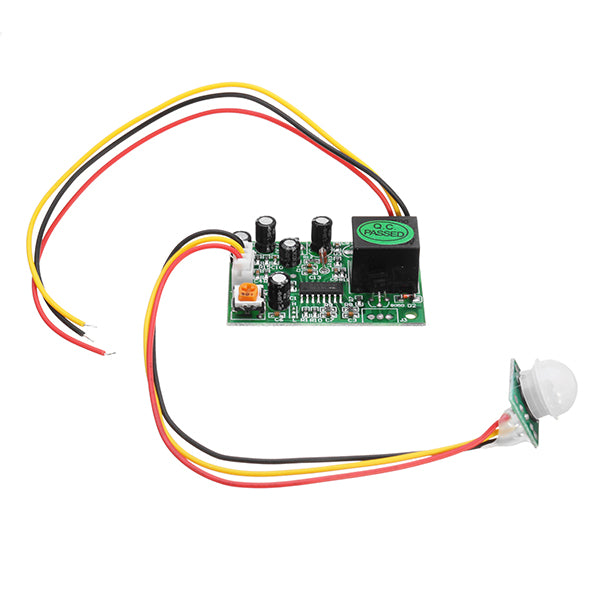

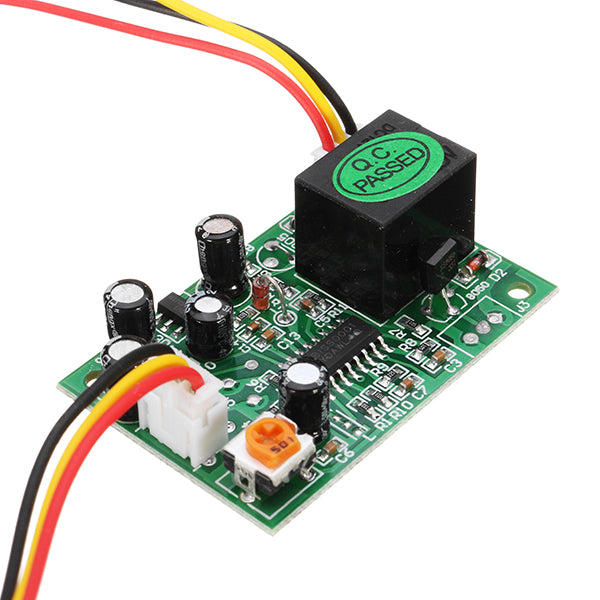

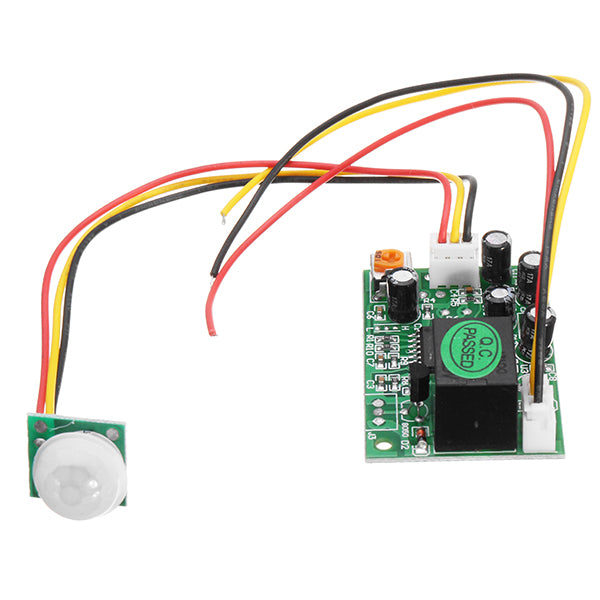

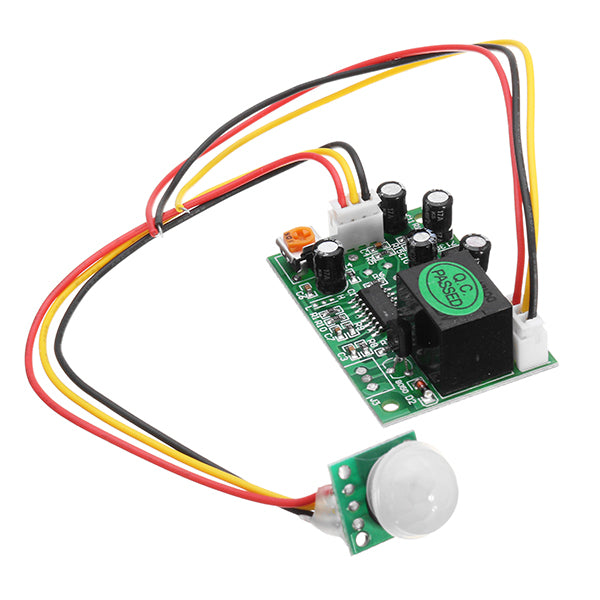

DC 12V 50uA 3-Wire Human Body Induction PIR IR Pyroelectric Infrared Sensor Module Relay Control Out
Save 0
SKU: U2I-BG-1212967
Share this product
Description
Features:
Based on infrared technology, automatic control products, when someone enters switch sensing range, special sensors to detect changes in the human body infrared spectrum, switch automatically switches the load, do not leave the sensing range (who are active), the switch will continue to turn; person left, switch off automatically load delay. People to light, people from the lights out, kind convenient, safe energy.
Specifications:
1. Bipolar design: three-wire connection, and the load capacity 100W
2. Automatic sensors: one to switch immediately turned (one event will last turn), who left after the delay off automatically.
3. Relay switch: can withstand high current output, high power load.
4. Automatic random delay (continuous delayed mode): People in the induction scope activity, the switch is always turned off automatically lose if the stationary switch off automatically.
5. Adjustable delay time: 10 seconds -350 seconds
6. Ultra Low Power: Switch own power <0.0088W/h (annual power consumption of <0.077 degrees) than other brands of similar products more energy-saving.
7. Lightning Features: Special lightning protection devices, can effectively prevent lightning and other transient high pressure on the switch damage.
8. Induction: Passive
9. Operating Voltage: DC 12V
10. Inductive mode: passive infrared pyroelectric
11. Quiescent Current: 50uA
12. Sensing Distance: 3 to 5m
13. Load Capacity: Maximum: 100W, inductive loads require half the power usage down
14. Induction Angle: About 120°, 100 ° up and down
15. Load Range: Various types of DC LED lamps, load
16. Ambient Temperature: -20 to +50℃
17. Output Mode: Relay control output DC 12V high level / low level

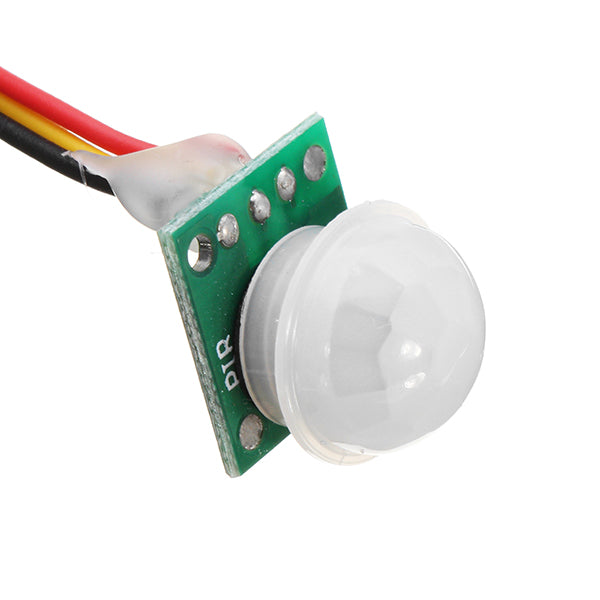

18. Size: 45 x 30mm, PIR lens diameter: 12mm
Wiring instructions:
Red wire: Power input + 12V Black wire: Power output -12V Yellow wire: OUT + 12V power output
Package included:
1 x Human body induction PIR IR pyroelectric infrared sensor module
