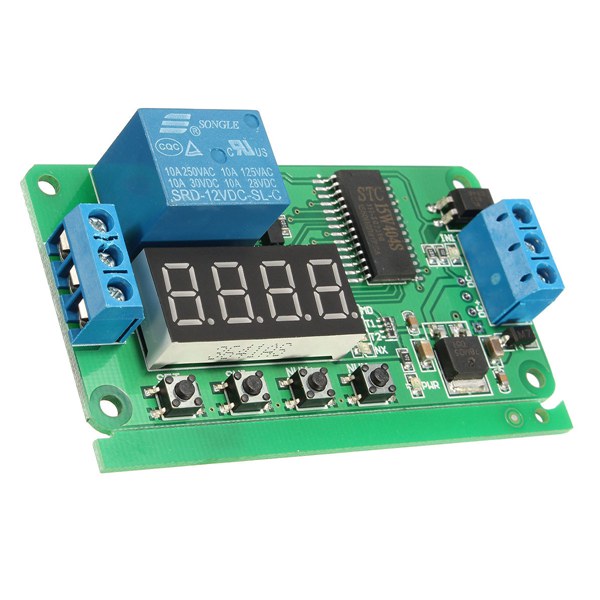

118 kinds of module functions to meet the needs of more application. Low level triggered, opto-isolated inputs. Increasing the supply anti-reverse feature, power will not damage the module. Using high-quality power supple modules, discrete power supply before replacing the system is more stable and reliable. Increasing in automatic power saving feature, users can independently set.
Specification:
Dimension: 75 x 44 x 16mm Voltage: DC 12V Applications: Home lighting system, remote control switch, remote locking, smart home / home automation, DC 12V LED lighting, fluorescent lamp, 12V DC motor, fluorescent lamp, automotive electronics, industrial automation and control
Connections:

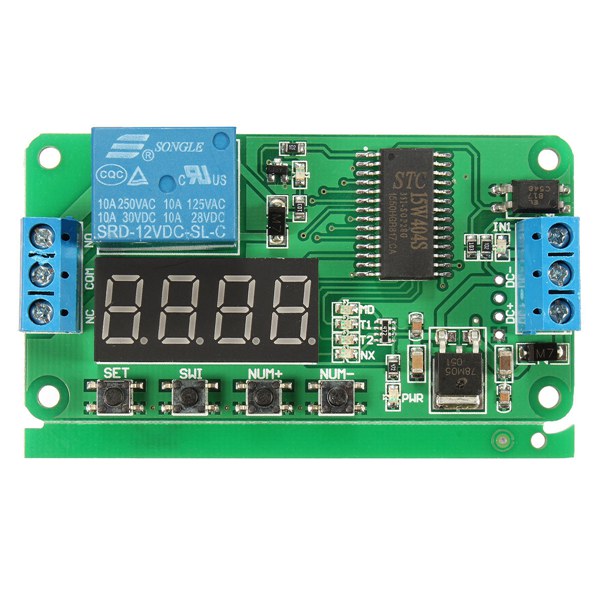

Module control side: there are 3-wire interface, all interfaces are terminal 1. DC+: 12V positive 2. DC-: power in negative 3. CH1: Input detection interface

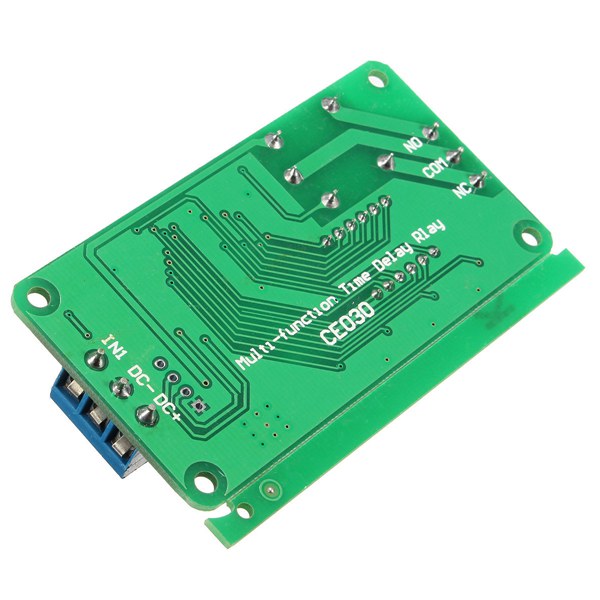

Relay outputs: there are 3-wire interface, all interfaces are terminal 1. NO: Normal open (before relay closes, this pin is not connected, after relay closes, the pin short-connects with COM) 2. COM: Relay common interface 3. NC: Normal closed (before relay closes, this pin short-connect with COM, after relay closes, the pin is not connected )
Package includes:
1 x Multi-function Time Delay Relay
