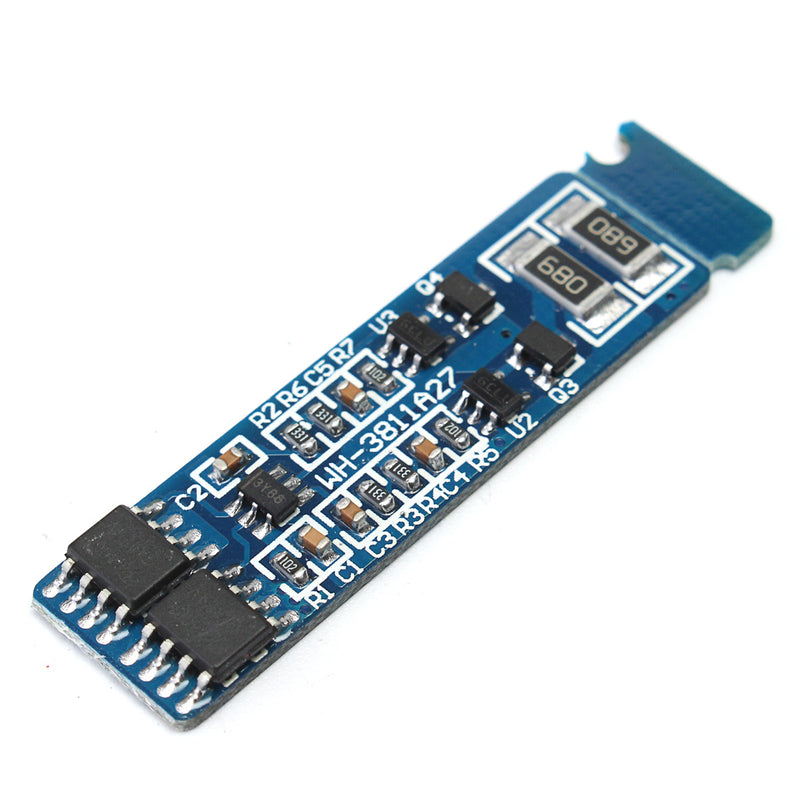

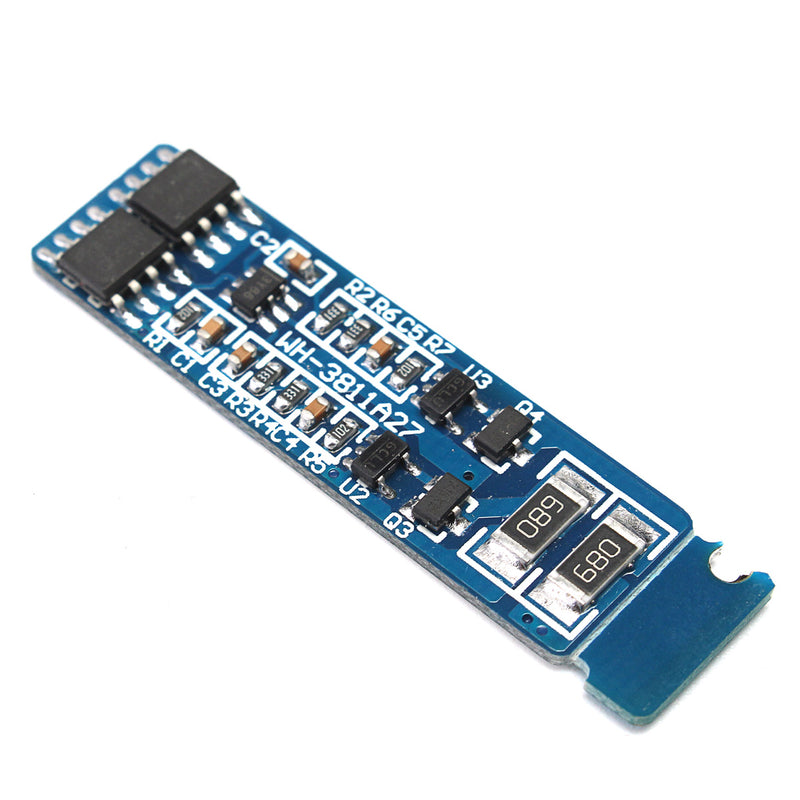

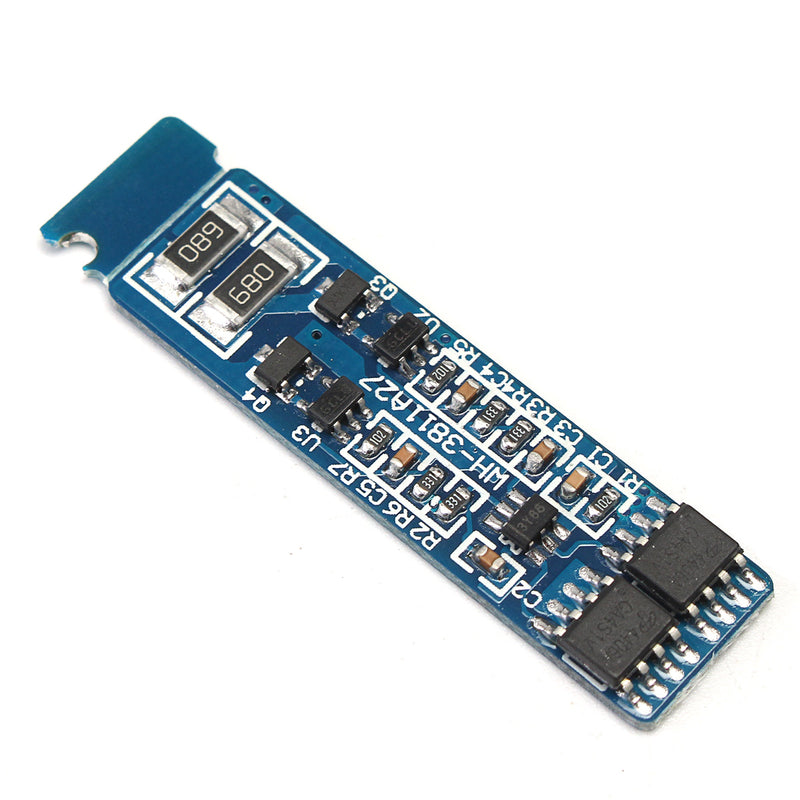

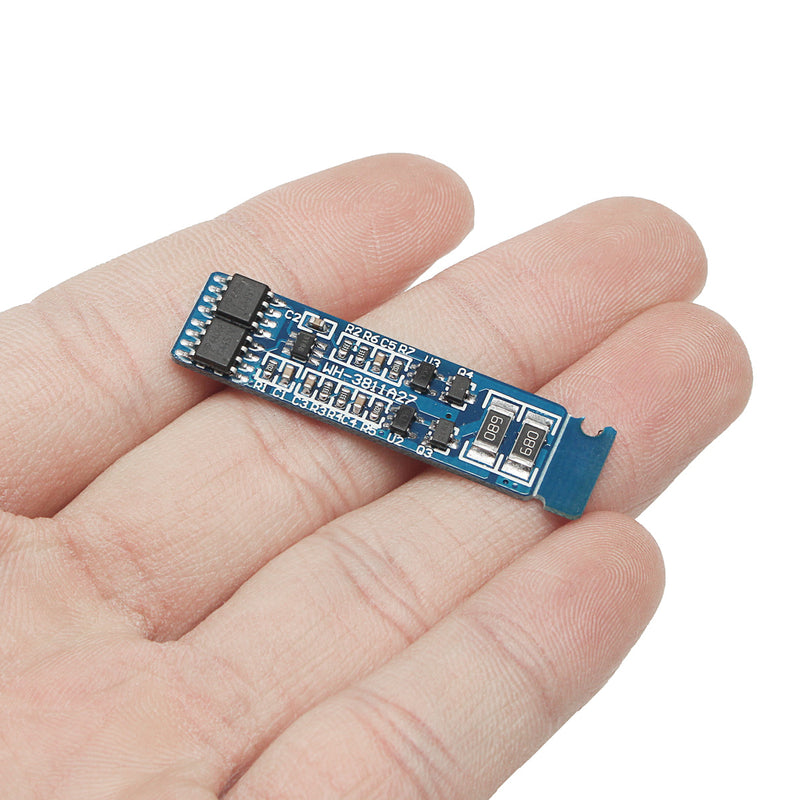

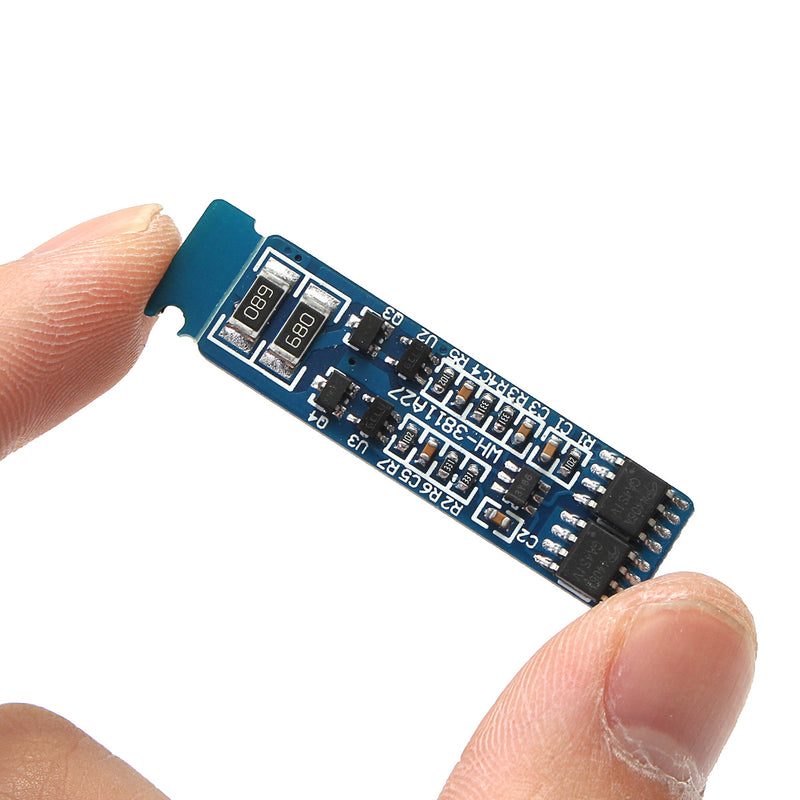

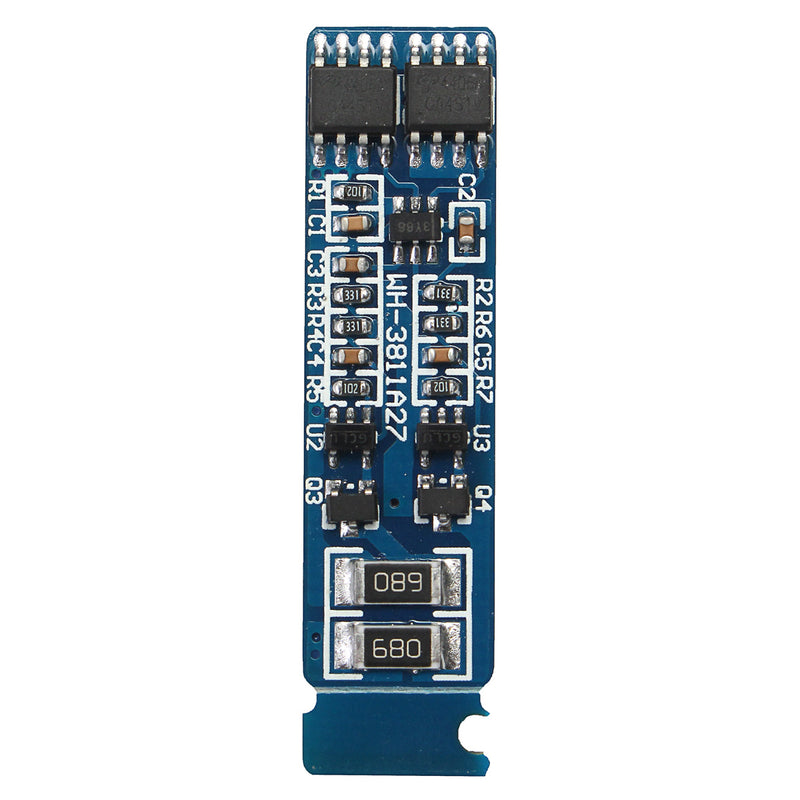

DC 9V 4A 2S Lithium Battery Protection Board Li-ion Cell With Balanced Charging
Save 0
SKU: U2I-BG-1163824
Share this product
Description
Specifications:
Size: 43*10*2.5mm Charging voltage: DC 9V Current: 4A Balance: YES
Features:
Built-in high-precision voltage detection circuit. Connect the terminals of the charger with high withstand voltage devices. Built-in three overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit). Through the MOS tube can control the current charge and discharge. Wide operating temperature range: -40 ℃ ~ +50 ℃. Low current consumption.

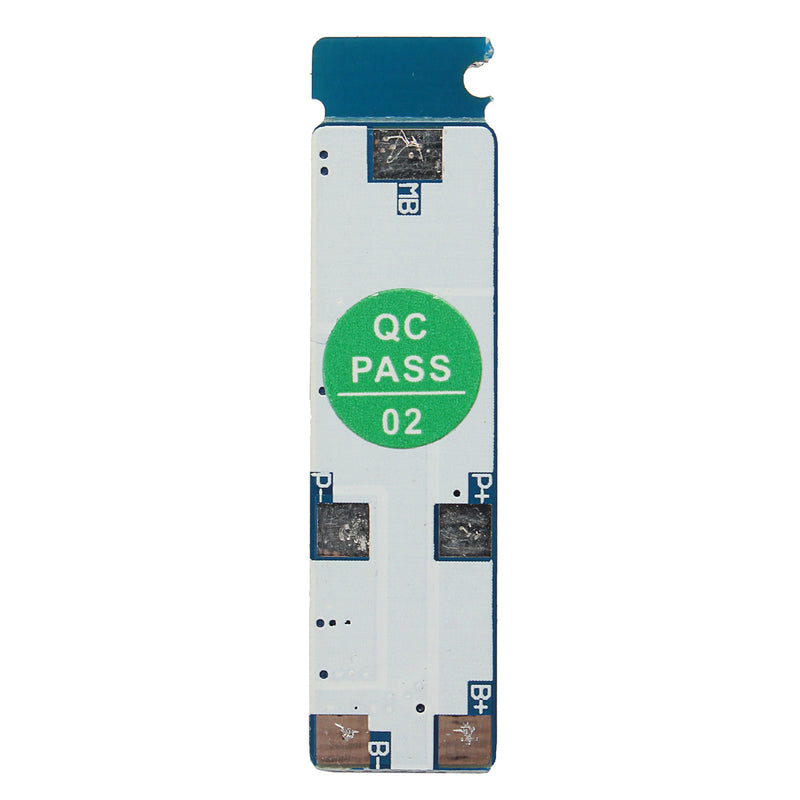

Description Of Welding Points:
B+: Connect the battery positive B-: Connect the battery negative MB: Connect the contacts in Battery 1 and Battery 2 P+: Connect / discharge side positive (shared with the charging side and the discharge side) P-: Receiver / Discharge terminal negative (shared with the charging side and the discharge side)
Note: Due to the manual measurement, there might be some errors, please understand.
Package included:
1 x lithium battery protection board
