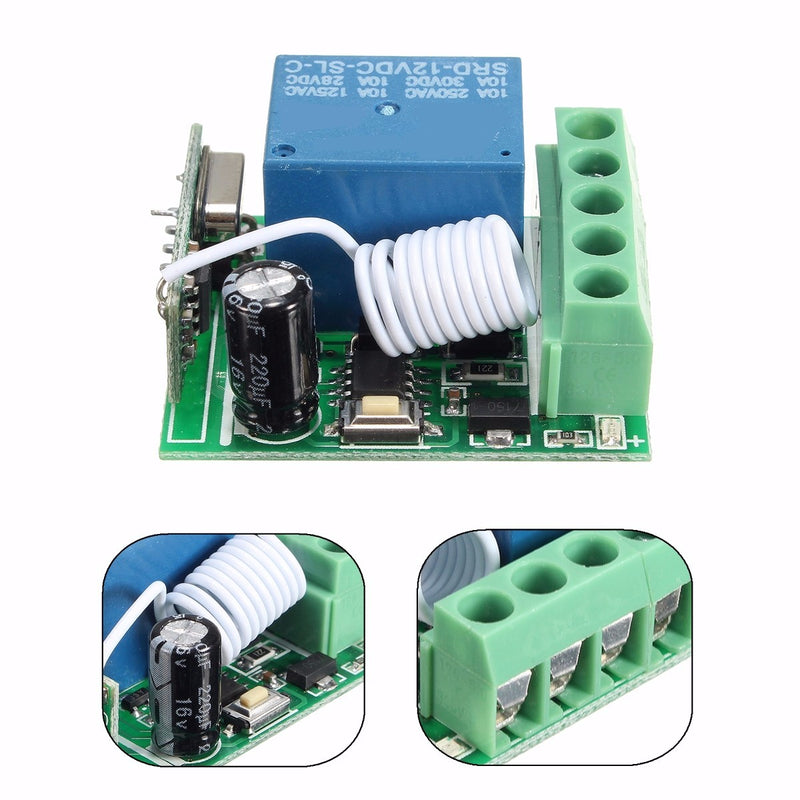

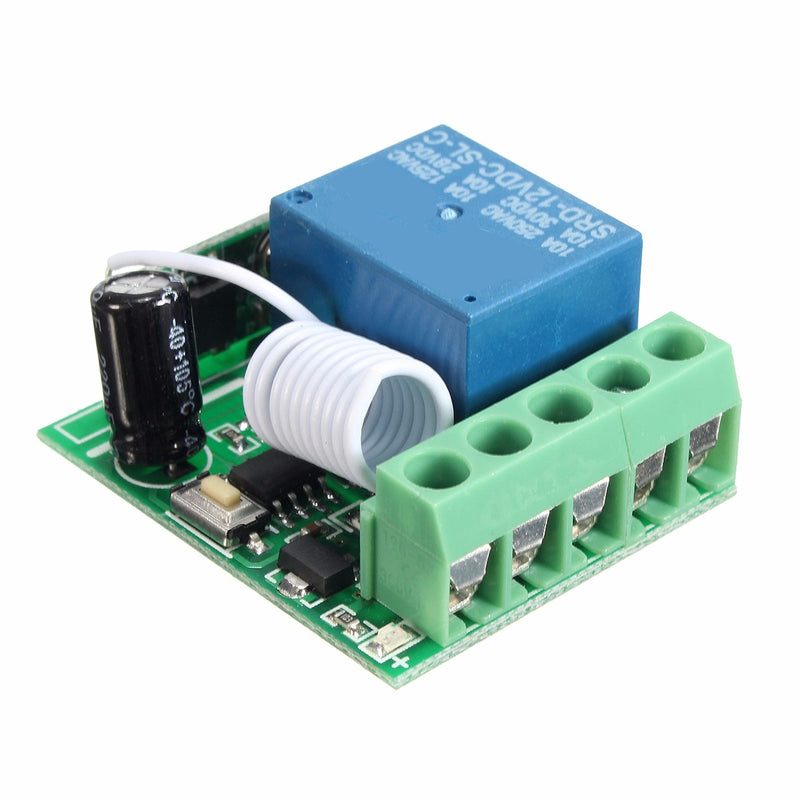

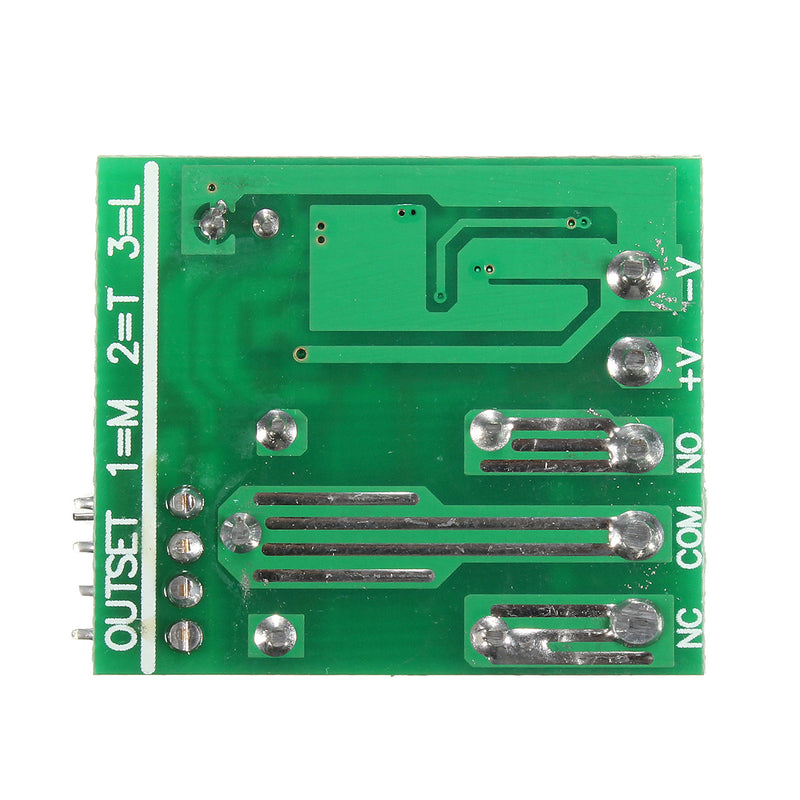

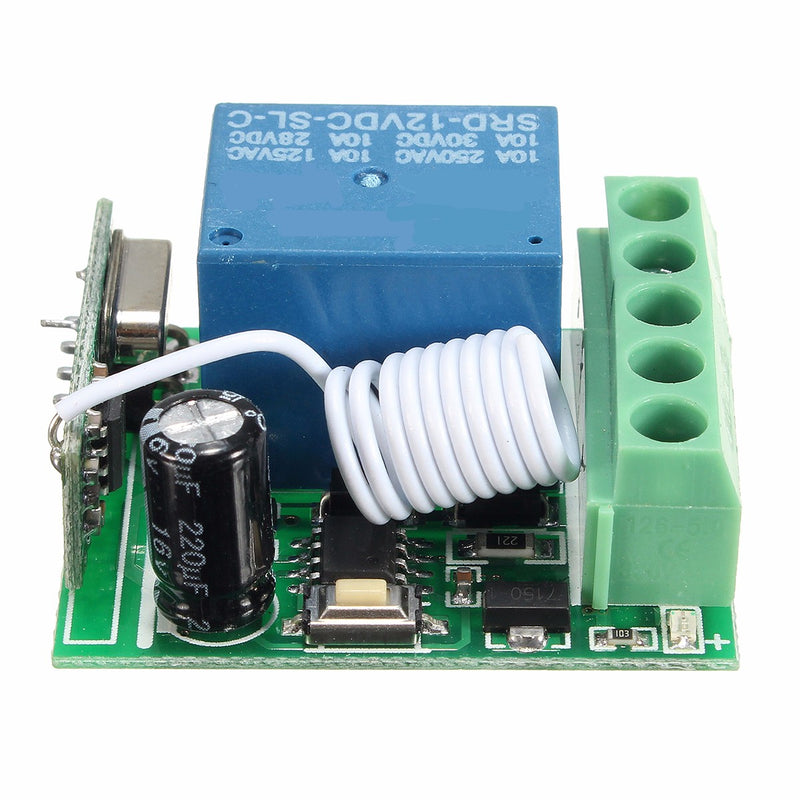

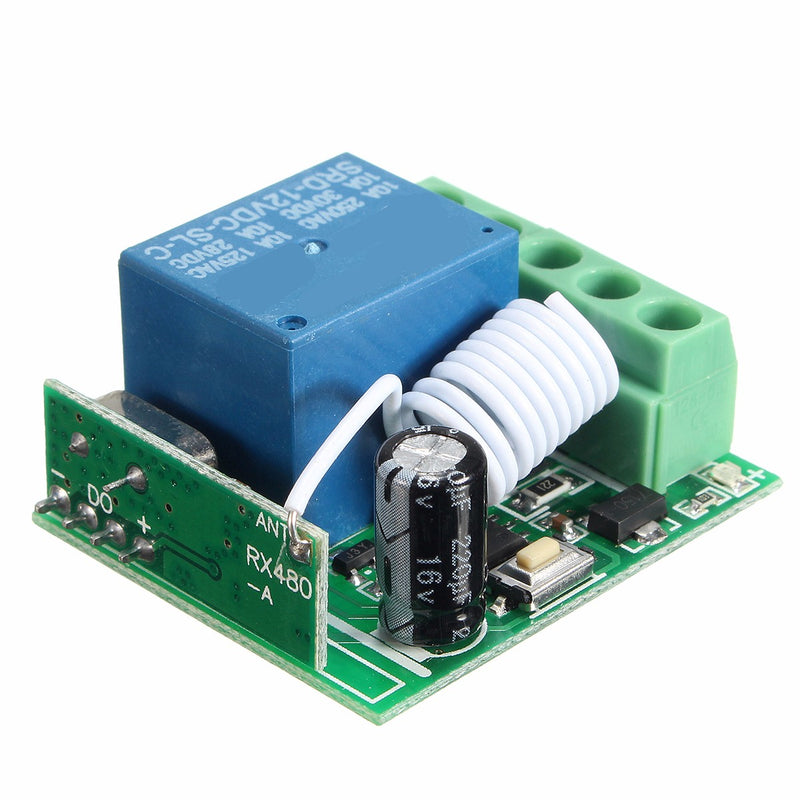

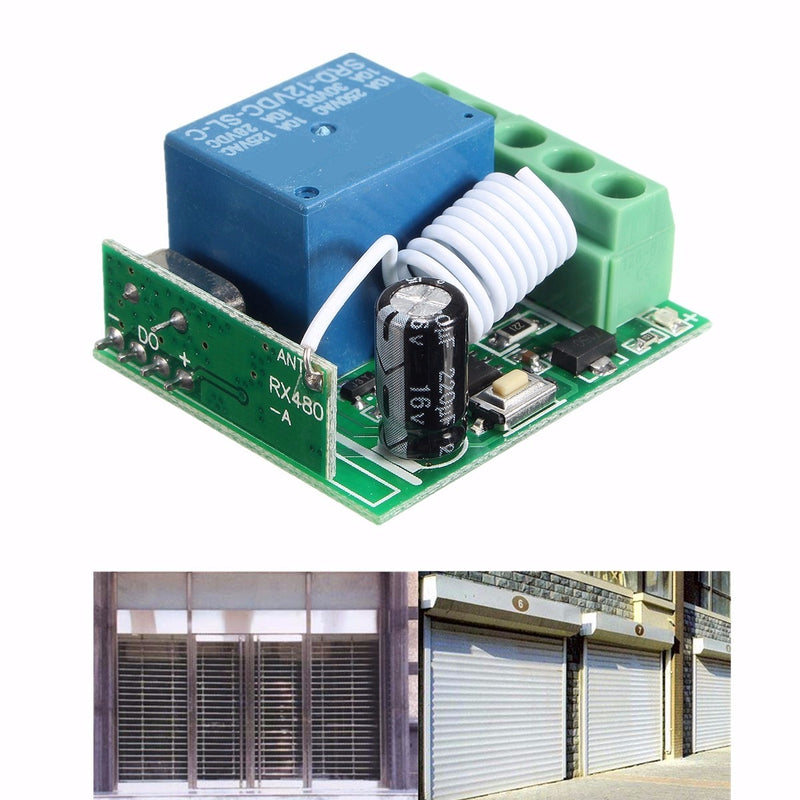

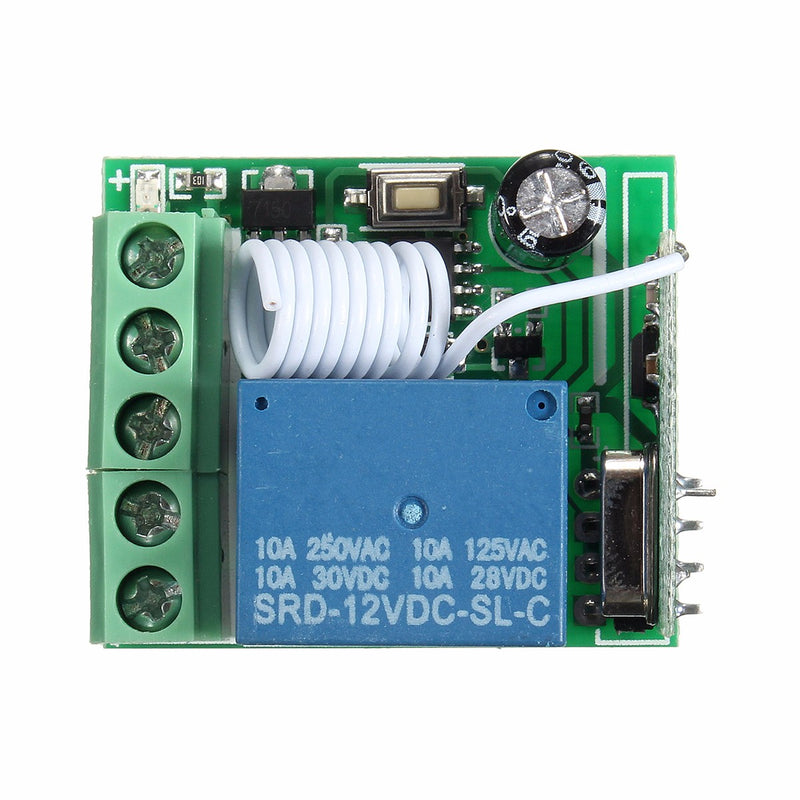

1. Input Voltage: DC10-14V 2. Standby Current: <5MA 3. RF Frequency: 433MHZ 4. RF Working mode:Super heterodyne receiver 5. Receiver Sensitivity: >90dBm 6. Remote Control Distance: >100 meter(In open environment) 7. Decoding Way: MCU Software decoding 8. Can store the number of remote control:50 9. Support remote control type: Fixed code, learning code 10. Channel: 1CH 11. Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off) 12. Wiring Method:Fixed wiring terminal 13. Working Voltage: DC12V 14. Output Current: 10A 15. Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC 16. Output:Normally open,Common,Normally closed 17. Dimension:3.5cm*3cm*1.6cm
Working/output way:
1.Jog: Press the learning button then release, set the mode from the system automatically working mode to action mode, wait for a while, when the board LED off, said it is into the learning state, press the remote control, the system received the signal. The LED flashes 5 times and goes off again. After 3S delay, LED light marked learning success, the system automatically withdraw from the learning state. 2.Self-locking: Press the learning button, then release, press 2 times, the system automatically set to self-locking mode, wait for a while, LED off, it is into the learning state, press the remote control, LED flash 5 times Off. 3S after the delay, LED light learning success. 3.Interlock: press the learning button, then release, press 3 times in succession, the system is set to interlock mode. 4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay
Description:
1. Press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control the indicator flash 2 times and off .it mean you learn it successfully . 2. It can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control 3. Remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .
Package included:
1 x 12V 1CH 433MHz Wireless Relay Switch Receiver ,,,,,,,
