Features:
Supply voltage: DC 8-26V (Do not overvoltage, overvoltage will burn IC)

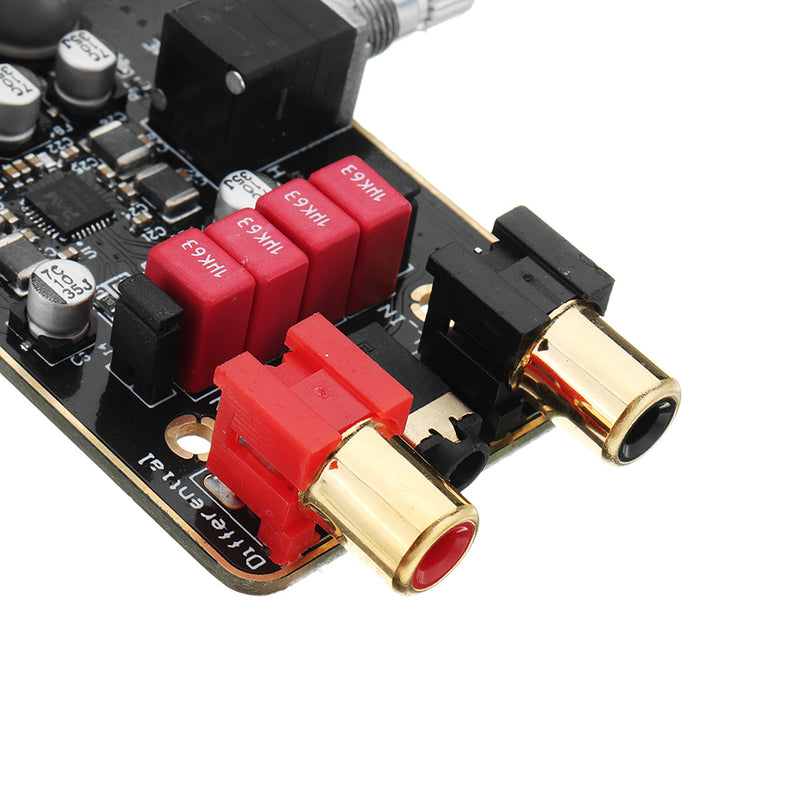

Input method: single-ended (factory default)
Output power: 15W Stereo (24V 8 Ohm), 10W Stereo (12V 8 Ohm), if connected to 4 Ohm or 2 Ohm speakers,
the power will be automatically limited to 15W)
Impedance: 8Ω

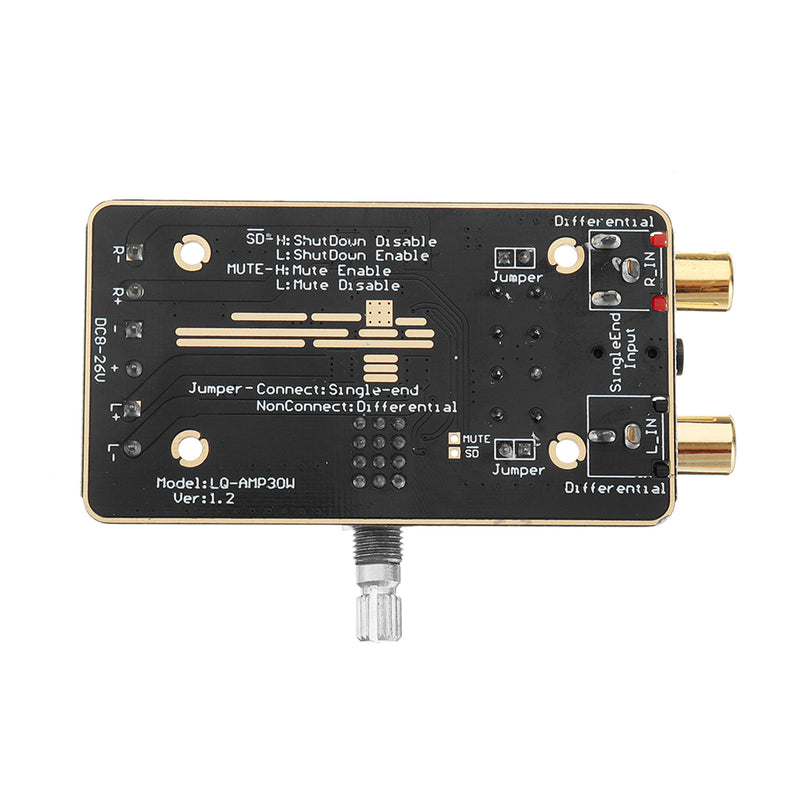

Difference: Select by jumper
Size: 75.69mm*41.96mm
Product weight: 35g
Performance:
Efficiency: >90%
Total Harmonic Distortion plus Noise: <0.2%
Low quiescent current
Noise suppression
Protection: reverse power supply input protection, short circuit, over current, overheat, overvoltage, low voltage, over EMI
Additional features:
External mute function (MUTE: high level mute, factory default low level)
External Shutdown Function (SD: Low-Level Chip Shutdown, Factory Default High level)

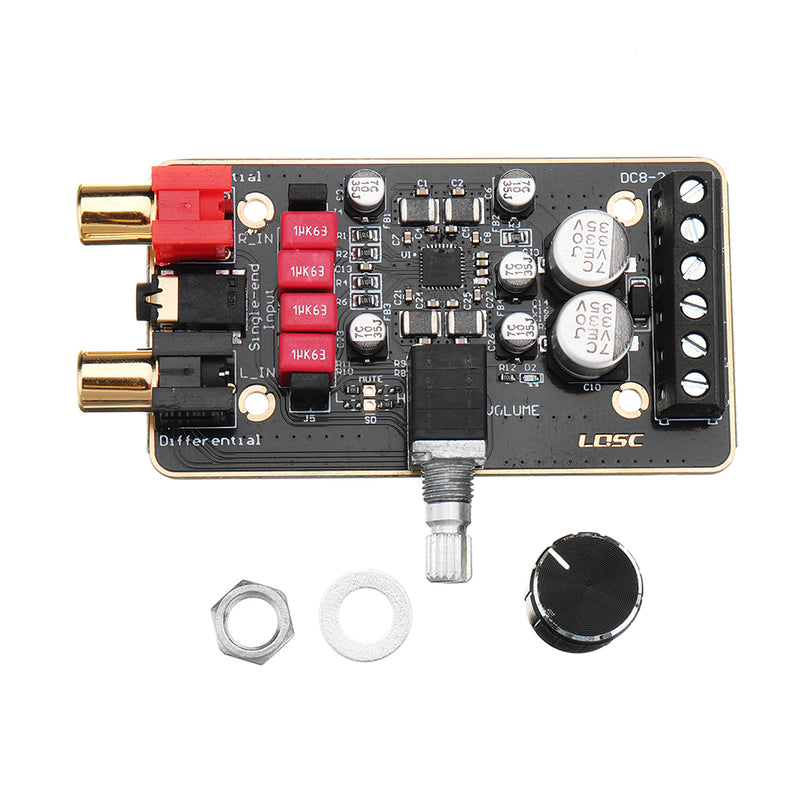

Package included:

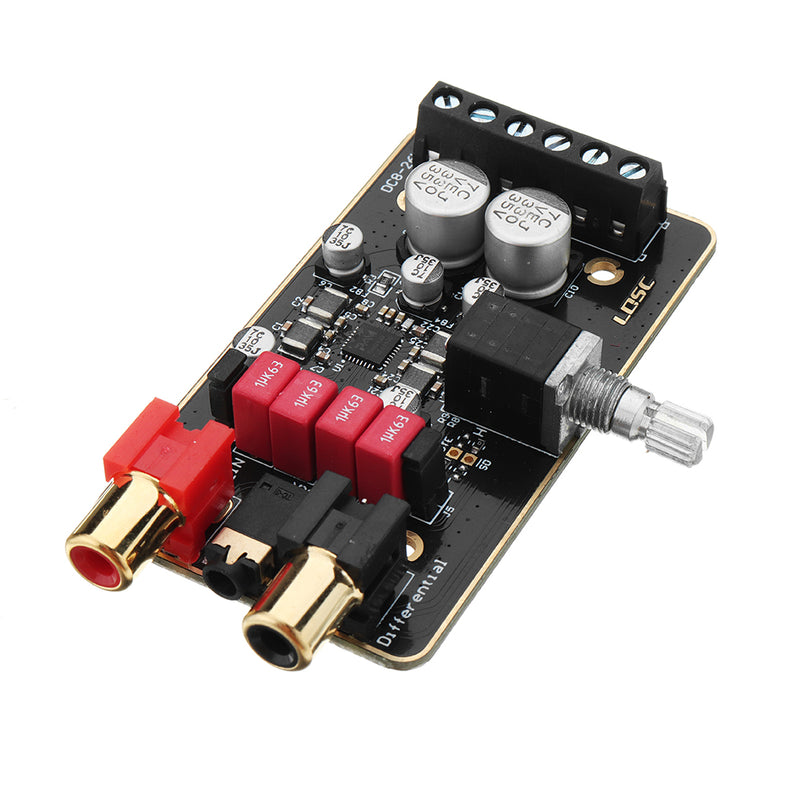

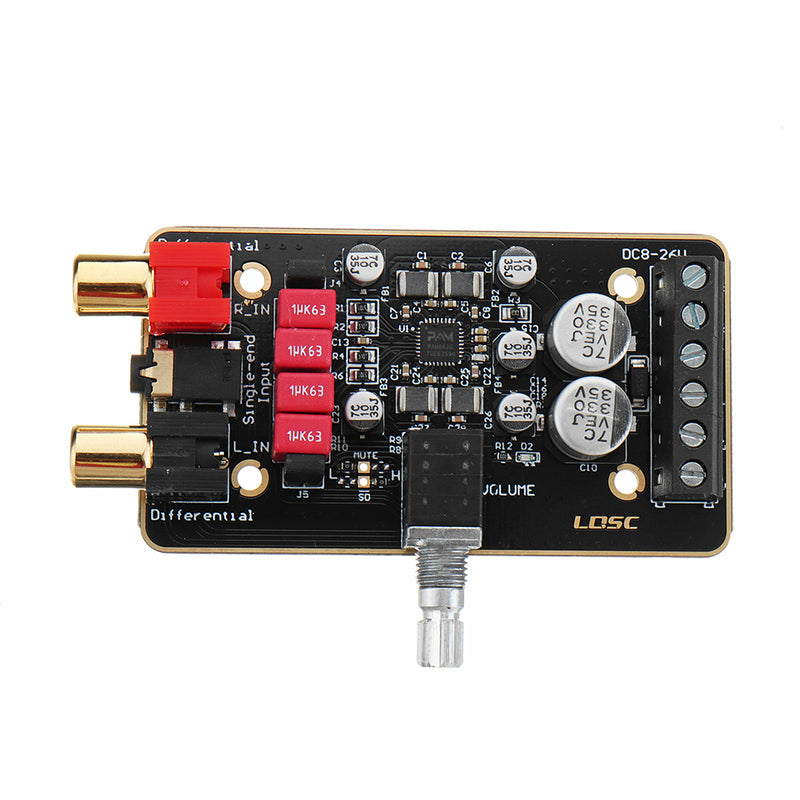

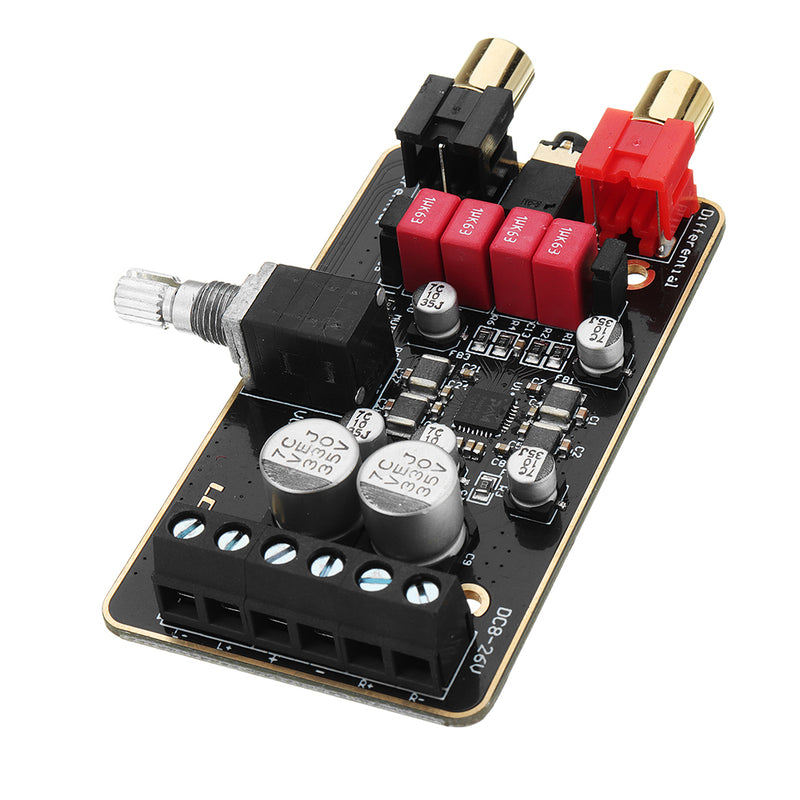

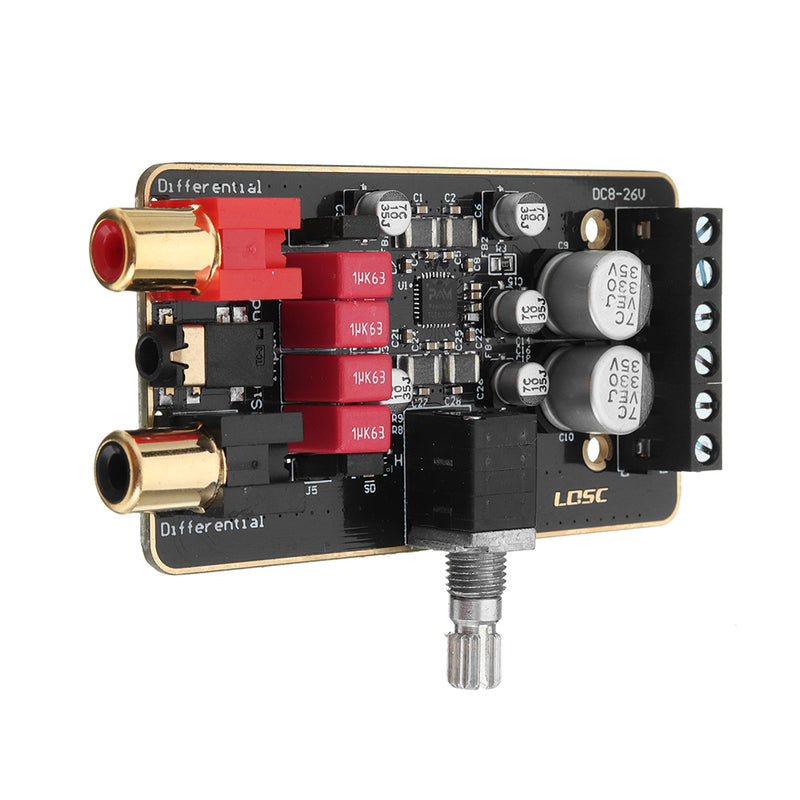

1 x DC12V-24V 15Wx2 Dual Channel Digital Amplifier Board
