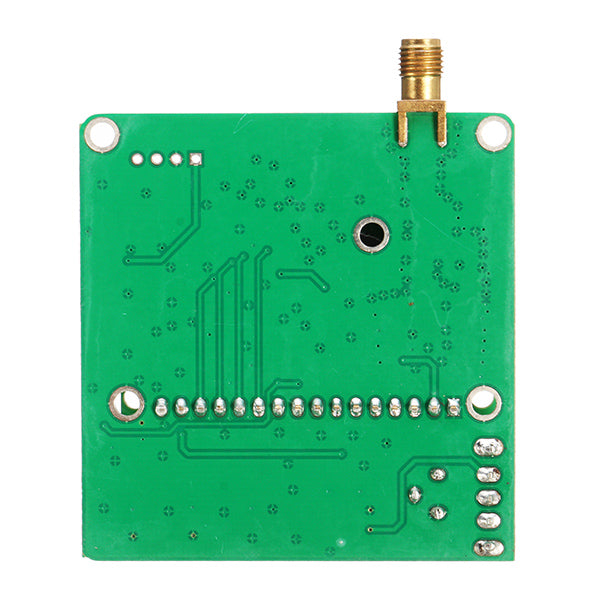

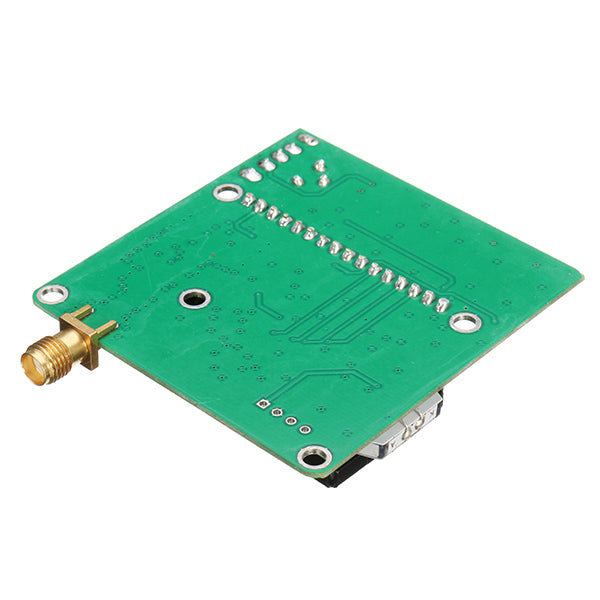

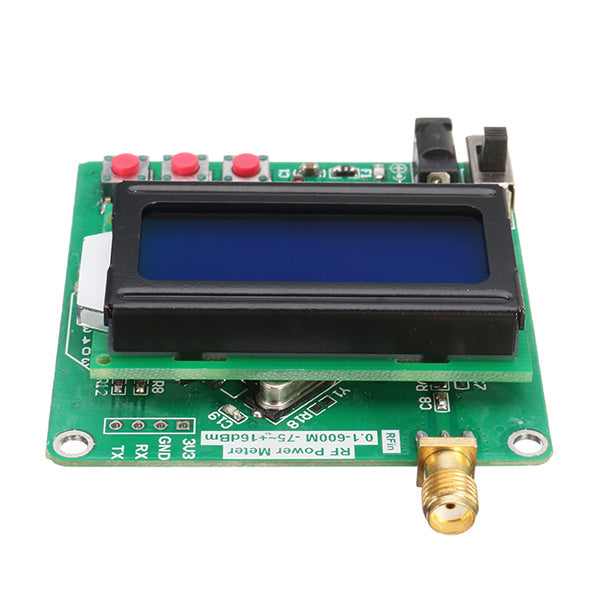

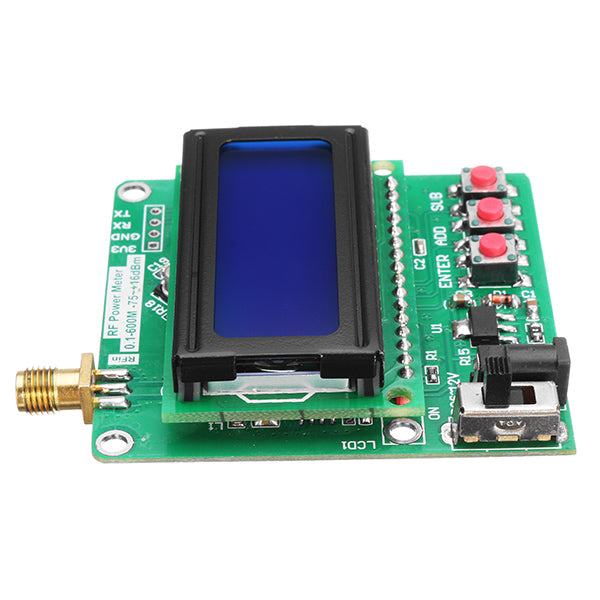

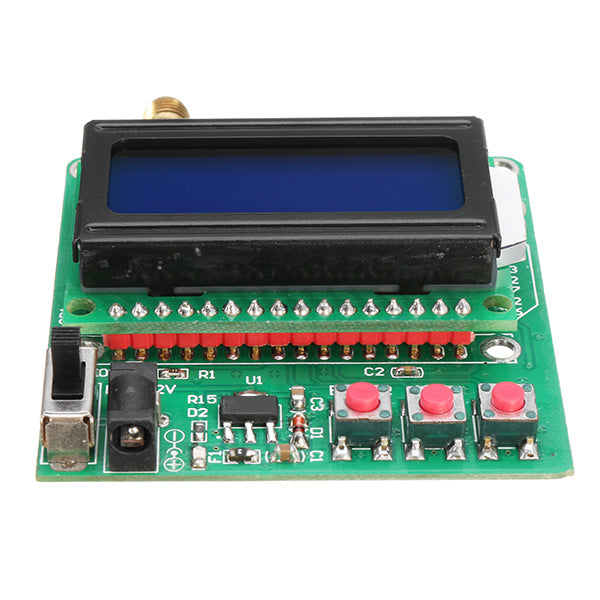

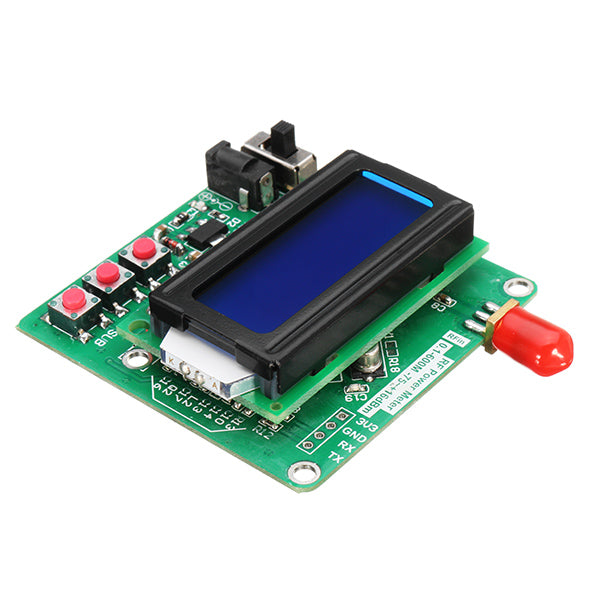

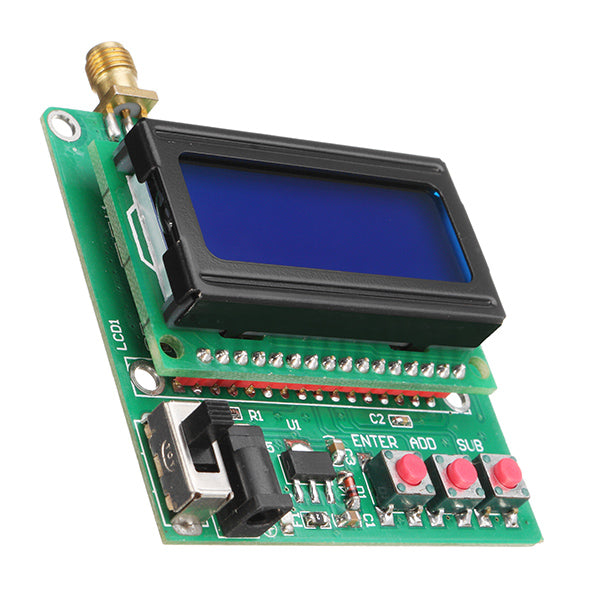

Digital Radio Frequency Power Meter -75~+16dBm Power Attenuation Can Be Set
Save 0
SKU: U2I-BG-1221705
Share this product
Description
Technical Data Sheet:

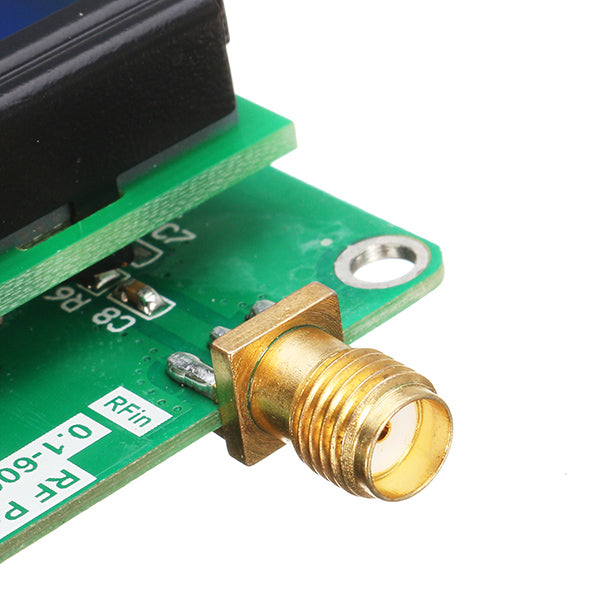

1. Measurement power range: -75 ~ +16 dBm (external RF attenuator can be extended to 100dBm) 2. Measurement power resolution: 0.1 dBm 3. Measurement frequency range: 1 ~ 600 MHz 4. output interface: SMA_K 5. Operating voltage: 6 ~ 12 VDC 6. Operating current: <45 mA (backlight on) 7. working temperature: -40 ℃ ~ 65 ℃ 8. Storage temperature: -40 ℃ ~ 65 ℃ 9. Size: 57 * 58 * 14 mm (length * width * height)
Interface display and operating instructions:

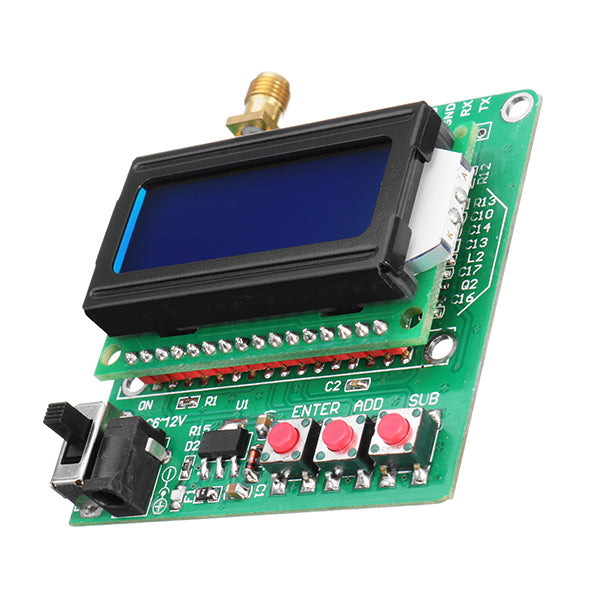

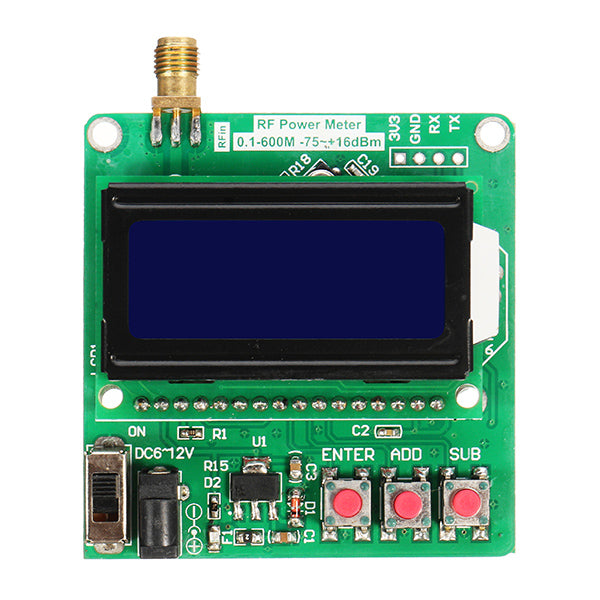

1. Main display, the first line display shows the RF Power Meter The second line shows the P:power dBm; AT: attenuation dB The main menu is measurement results, can not be adjusted.
2. Function menu A. Attenuation setting menu,the first line shows Attenuation Menu The second line shows ATTN: XXdB Enter the menu function key: Long press ENTER and press again exit, ADD SUB to execute +, - operation B. internal compensation set, the first line is ADC Offset Menu The second line is Offset: +/- xx Enter the menu function key: press ADD+SUB and ENTER at the same time to exit, ADD SUB to execute +, - operation C. automatic backlighting function: when it is no backlight, press any key to open the backlight
Package included:
1 x Digital Radio Frequency Power Meter
