Feature:
The kit includes 4 TDA2030A chips, 2 of them work for the left and right channels, the other 2 are wired to BLT for MEGA Bass.

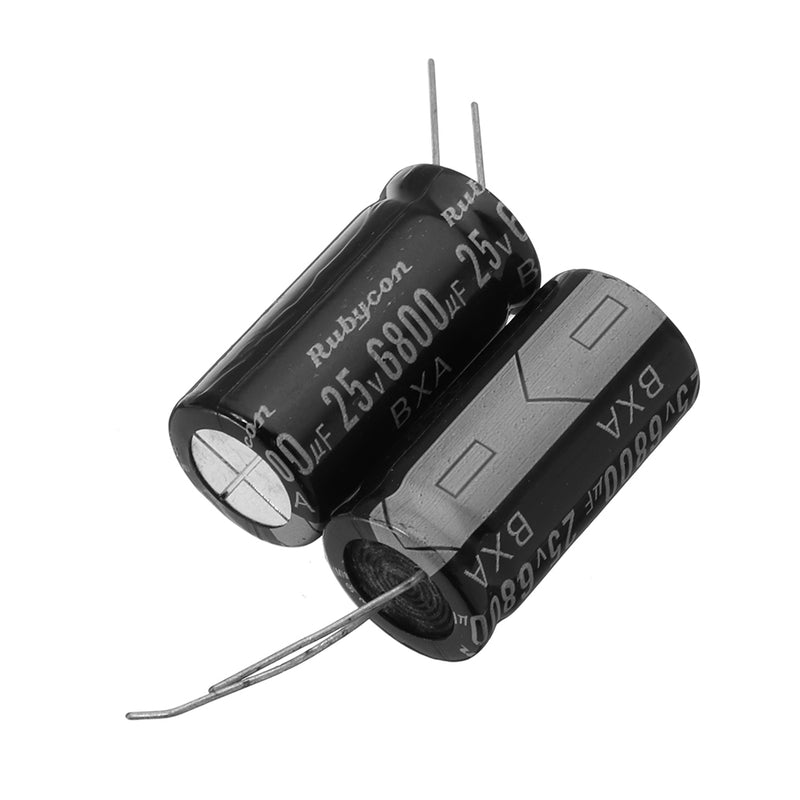

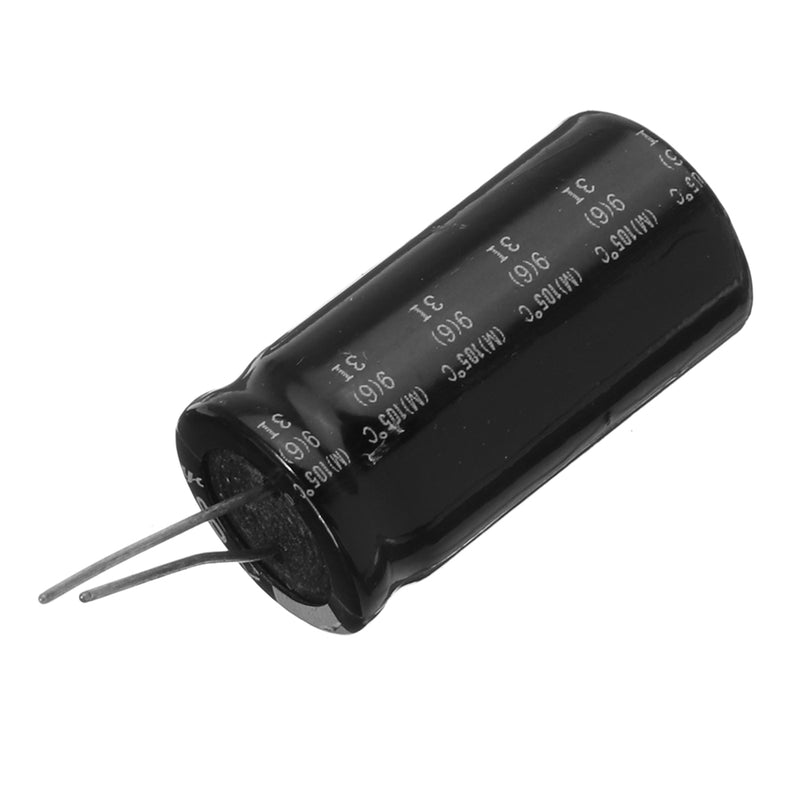

Components: 1% tolerance metal film resistors, NCC, capacitors, 2 x 6800uf/25v filter capacitors

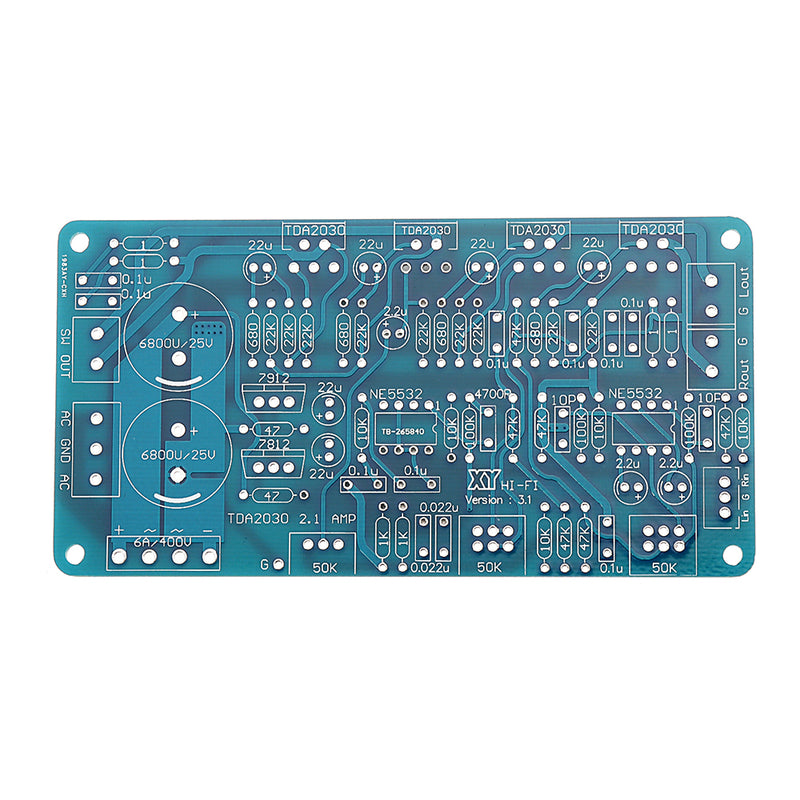

Excellent layout design, low noise, good choice for beginners
Controls (from left to right): Mega bass, treble, volume
Operating Voltage: Dual 12V AC
Max Output: 18w for left & right channel, 36watt for mega bass channel
Output Resistance: 4-8 Ohms
Dimension: 60mm(Length) x 117mm (Width) x 35mm (overall thickness after assembled)
Notice:
1. The DIY kits need professional experiences, the final result depends on your operation, and it may cause a failure, we'll not responsible for components damaged during installation.
2. The components you can see in the photos may be slightly different from the one you'll get because they may not from the same batch, but we gurantee they have the same or better quality.
3. A matched heat sink will be needed for the kit. (package does not includes)
Package includes:

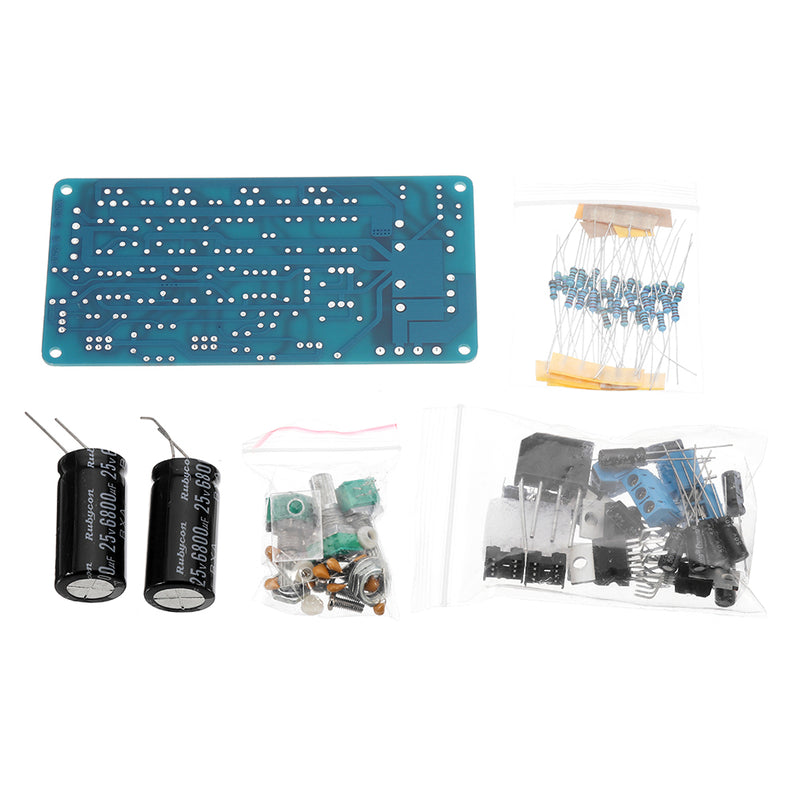

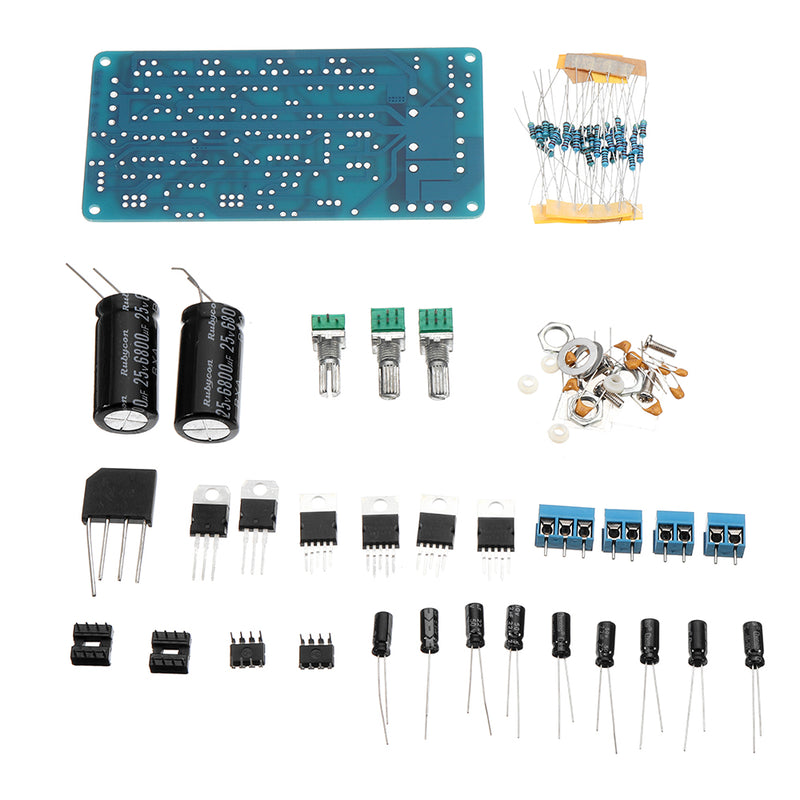

1 x DIY TDA2030A Digital Amplifier kit
