Description:

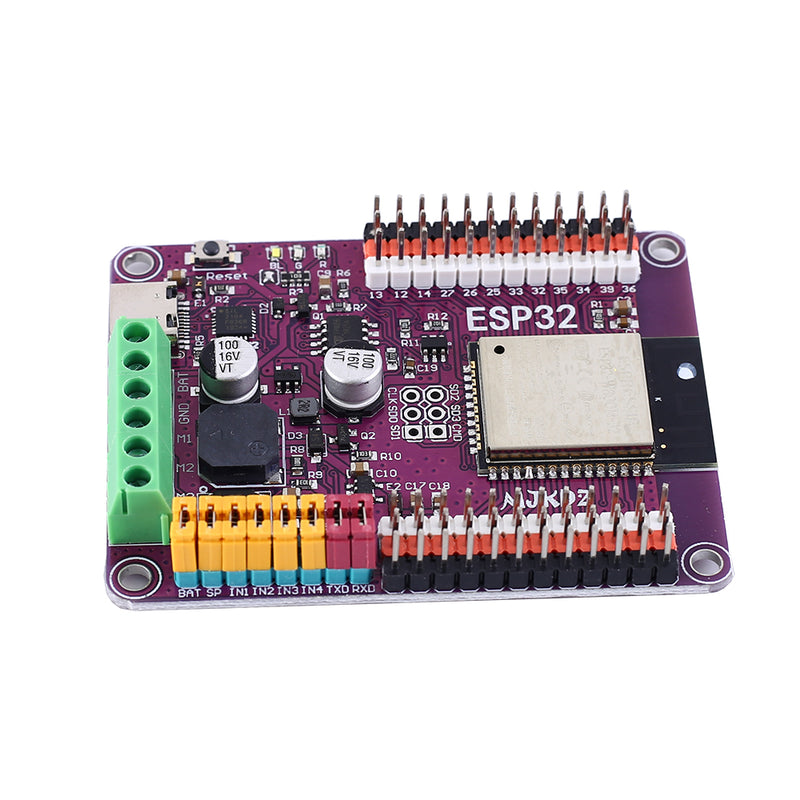

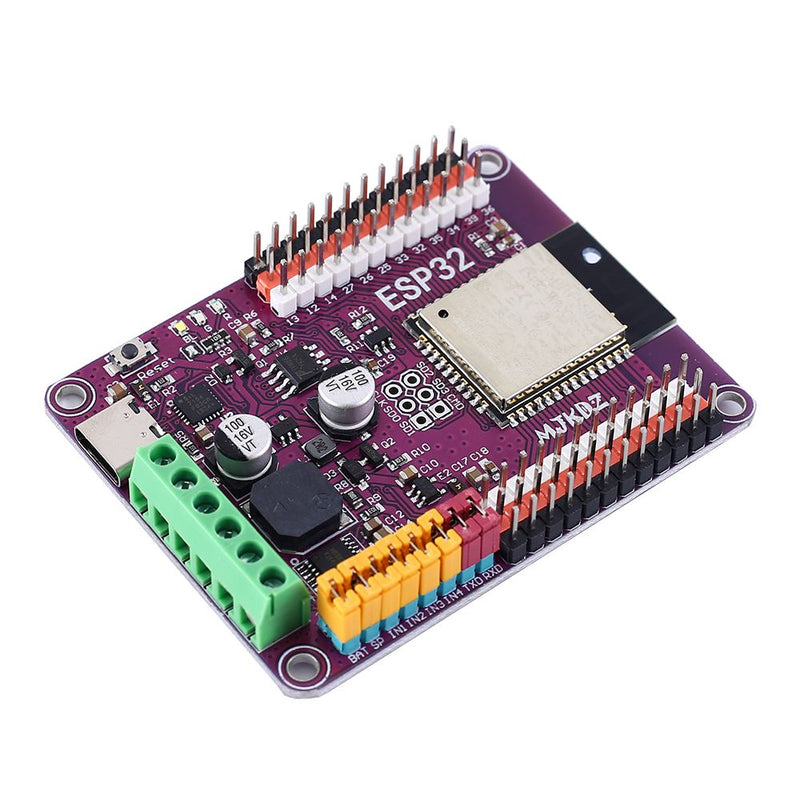

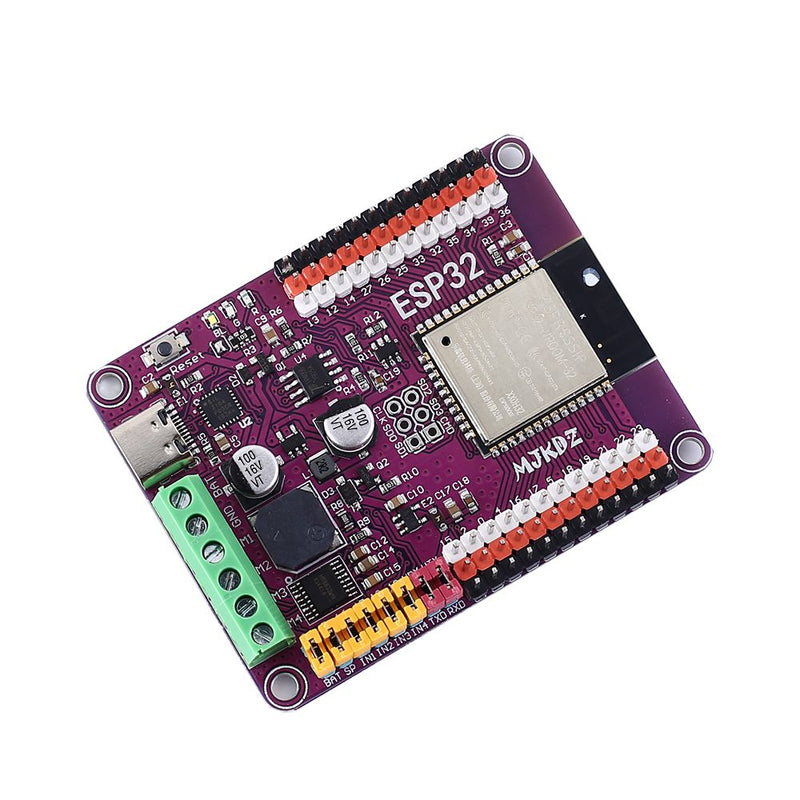

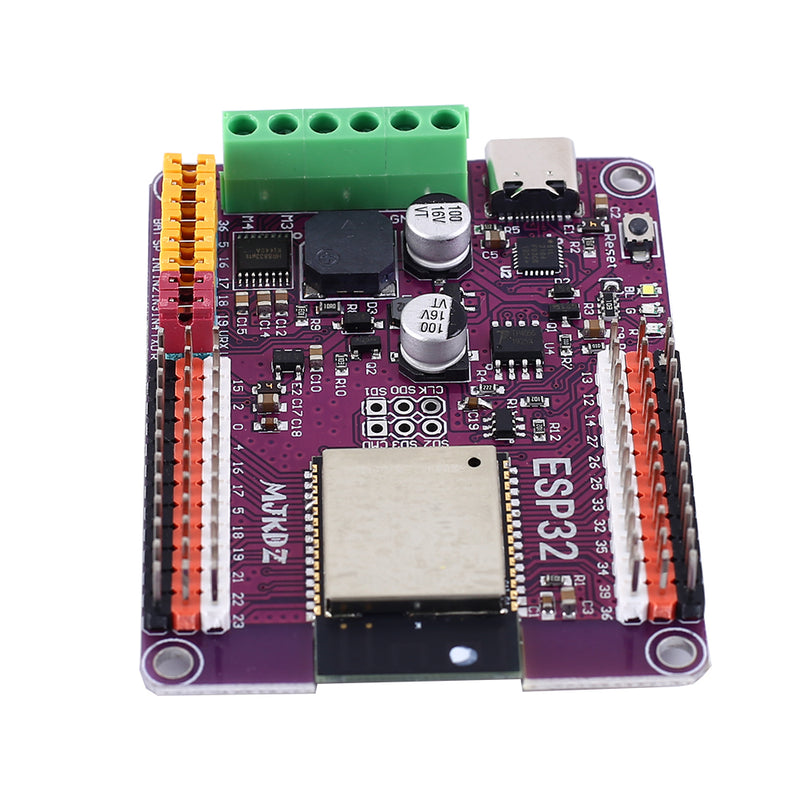

This board uses the ESP32 module which can be developed using the Arduino compiler. The Arduino has a simple compiler interface, one-click download code, a rich library of functions, and a free open source environment. ESP32 module has built-in Hall sensor, the development board integrates 2 DC motor drive circuit, voltage measurement circuit, buzzer circuit, charging circuit, USB to serial port circuit, automatic code download circuit, dual power supply circuit
Features:
1.Dual power supply
2.Integrated motor drive chip
3.Compatible with arduino
Specifications:
Work Voltage:DC 3.3V~6V
Stand-by current:20mA
Charging:Support 1pcs Li-ion battery charging
Output voltage:3.3V
Output current:600mA(Max)
USB type:USB Type-C
GPIO:32
WIFI:Standard 802.11 WIFI module
Bluetooth:4.2
System clock:80MHz
External flash:4M
Micro controller:32bit
GPIO output current:6mA
Output resource:15 ADC; 3 SPI; 3 UART; 2 IIC; 16 PWM; 2 IIS
Work Temperature:-25℃~85℃
Work Humidity:5%~95%RH
Size:65*51*11mm
Package Included:
1 x ESP-WROOM-32 IoT Wireless Controller
1 x 1meter Type-C USB Cable
1 x 2mm Screwdriver
