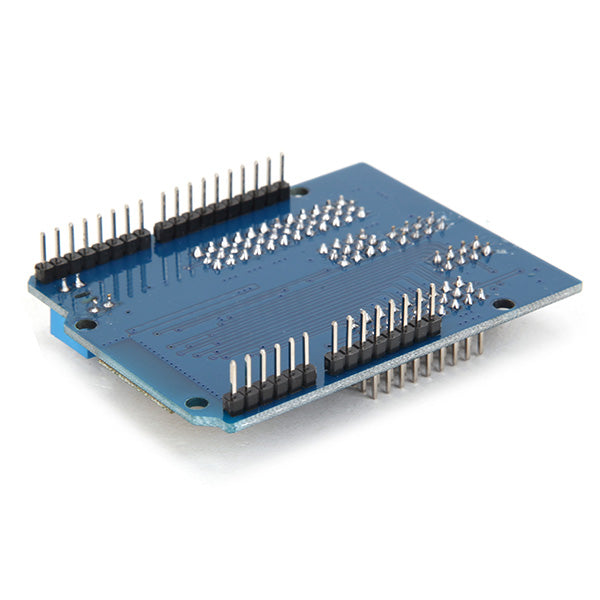

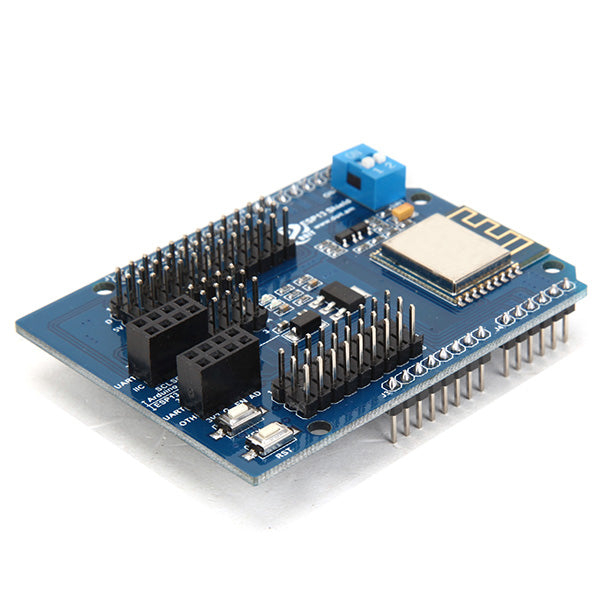

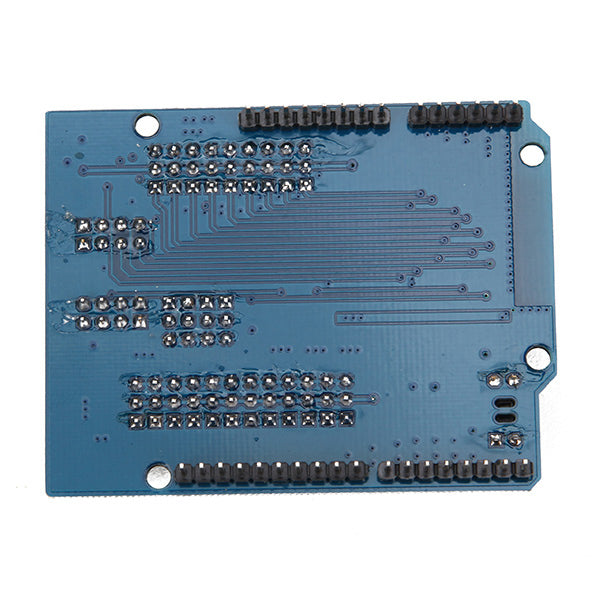

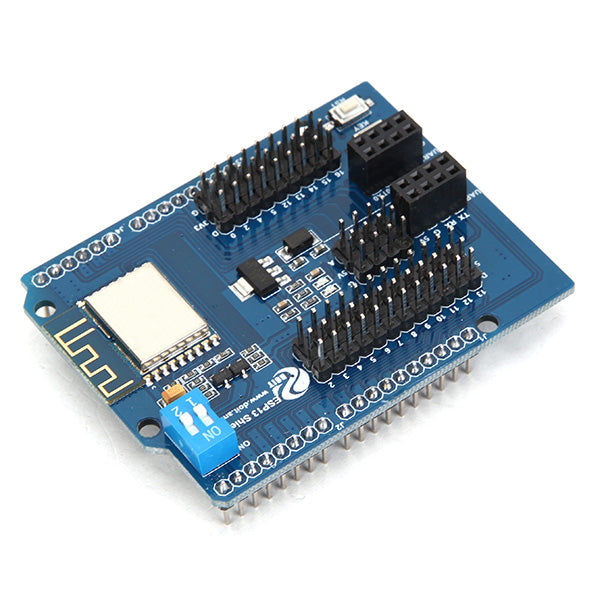

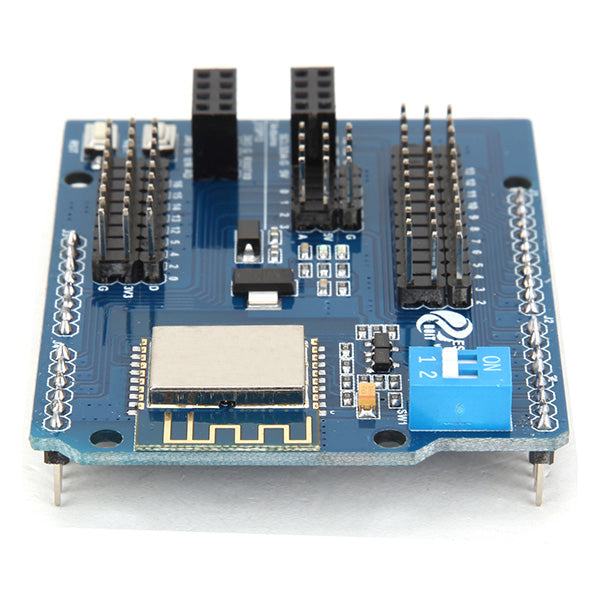

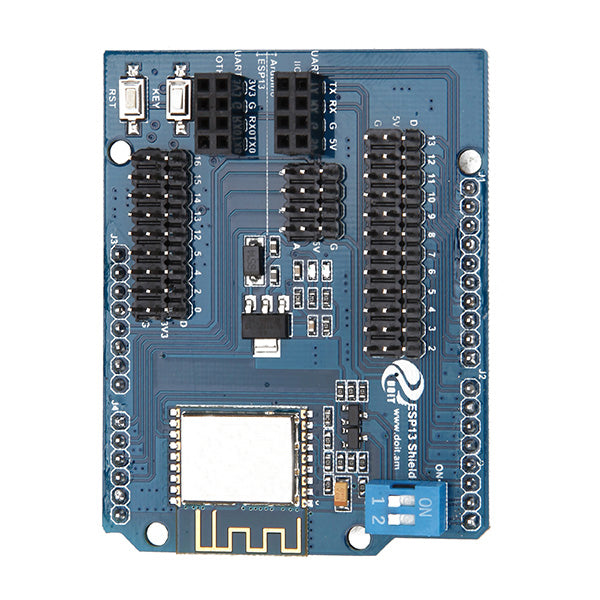

ESP8266 Web Server Port WiFi Expansion Board ESP-13 Compatible With Uno Mega 2560
Description: 1, WiFi using industrial-grade chips ESP8266, modules for the ESP-13 with metal shield, anti-jamming;
2. Standard pin-compatible Uno, Mega2560 and other control board, UNO connection with the use of a voltage converter chip, so 3.3V and 5V are compatible;
3. Serial port DIP switch with dual control, so the expansion board can be used alone as an Uno expansion boards, it can also be used as ESP8266 expansion board use;
4, Real serial WiFi, program without any configuration;
5, Based on WiFi Web Server configuration parameters and serial port parameters;
6, Can be used as an independent ESP8266 development board, download the official AT commands firmware, NodeMCU open source firmware;
7, can be used as stand-alone expansion board Uno use, pin all leads.
More information:
User Manual: https://fineshang.gitbooks.io/esp8266-based-serial-wifi-shield-for--user/content/ Technical Specifications:
DC 3.3V-5V 1, Wireless 802.11 b / g / n standards;
2, Support for STA / AP two modes of operation;
3, Built-in TCP / IP protocol stack, you can configure a socket;
4, Supports standard TCP / UDP Server and Client;
5, The serial port baud rate support: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 74800 / 115200 bps;
6, Serial data bits: 5 / 6 / 7 / 8 bits;
7, Serial Parity: None;
8, Serial port stop bits: 1/2 bit;
9, The standard UNO, Mega pitch;
10, Leads out Pin 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13;
11, Leads out ESP8266 GPIO 0 / 2 / 4 / 5 / 9 / 10 / 12 / 13 / 14 / 15 / 16 / ADC / EN / UART TX / UART RX;
12, RESET reset;
13, KEY multiplex configuration function keys;
14, Two DIP switches enable switching and ESP8266 serial port expansion;
15, WiFi current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA;
16, Wireless transmission rate: 110-460800bps;
17, The working temperature: -40 ℃ ~ + 125 ℃
Package included:
1 x ESP8266 Web Server Port WiFi Expansion Board ESP-13
