Working principle:
Fingerprint processing includes two processes: fingerprint registration process and fingerprint matching process (fingerprint matching which is divided into fingerprint matching (1: 1) and fingerprint search (1: N) in two ways]. When the fingerprint is registered, entry twice for each fingerprint, and processed the image, composite template is stored in the module. Fingerprint matching, through the fingerprint sensor, entry the fingerprint image and processing, and then matching comparison with the module fingerprint template (if it is matched a template specified in the module, known as fingerprint matching, that is 1: 1 mode. If it is matched with multiple templates, it is called fingerprint search mode (1: N mode). The module gives the result of matching (pass or fail).

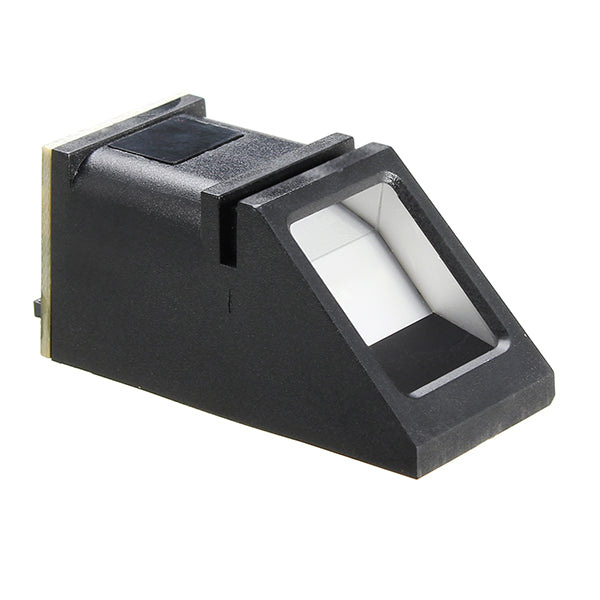

Feature:
Profile: 256 bytes Template file: 512 bytes Power supply voltage: DC 5V Operating current: <120mA Peak current: <130mA Fingerprint image input time: <0.5 seconds Window area: 18.5 mm x 14.6 mm Matching mode (1: 1) Search method (1: N) Storage capacity: 200 pieces Security level: Five (from low to high: 1,2,3,4,5) system default 3 FAR: <0.001% (security level is 3) Rejection rate (FRR): <1.0% (security level 3) Search time: <1.0 seconds (1: 500 average) Resolution: 500ppi Host computer interface: UART (TTL logic level) Communication baud rate (UART): (9600XN) bps Where N = 1 ~ 6 (default value N = 6, namely 57600bps) Temperature: -25 °C to +55 °C Relative humidity: 40% RH-85% RH (no condensation) Storage temperature: -40 °C to +85 °C Relative humidity: <90% H (no condensation) Optical module (C3) overall dimensions (L × W × H): 47.65mm x 20.50mm x 21.20mm Capacitive module dimensions: Main control board (L × W × H): 35mm x 28mm x 7mm Sensors (L × W): 33.4mm x 20.4mm Scratch-type module dimensions: Main control board (L × W × H): 35mm x 28mm x 7mm Sensor board (L × W × H): 24mm x 20mm x 5mm

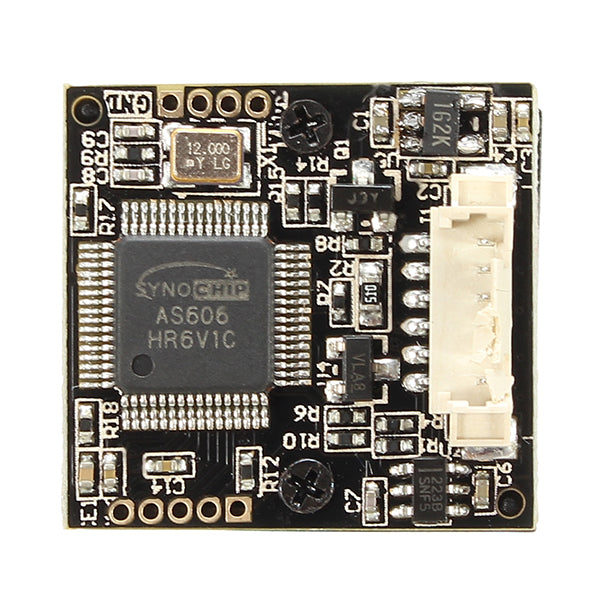

Host computer interface, the pins are defined as follows:
Num.
Pin Description
Remarks
1
Finger detection power +
3.6-5V
2
Finger detection signal output
The standard output is active high
3
Power supply +
Power + 5V
4
Transmit
TX
5
Receive
RX
6
Power supply -
Power -
Module requires 2 groups of power supply, a group for serial power supply, a group for power chip power, common ground. 1,6 for the sensor chip power supply, need to be power all the time; 3,6 for the module serial power supply. When the finger near the fingerprint window, pin 2 produces a high level, when MCU receive this level, through the module serial power control circuit (transistor or MOS tube) power the module 3,4 feet.

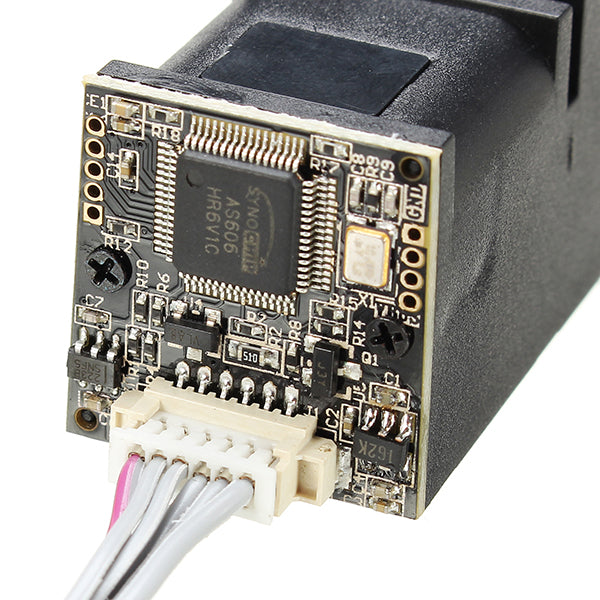

Module and the user equipment serial communication, the interface J1 pin is defined as follows:
Pin number
Name
Type
Function
1
+3.3V_ON
IN
Finger detection power supply positive input
2
TOUCH
OUT
Finger detection signal output terminal
3
VUSB
IN
Positive power input. (Line color: red)
4
TX
OUT
Serial data output. TTL logic level. (Line color: green)
5
RX
IN
Serial data input. TTL logic level. (Line color: white)
6
GND
-
Signal ground. Connected internally to the power ground. (Line color: black)
Note: In the Type field, IN means input to the module and OUT means output from the module.
Hardware connection:
Module through the serial communication interface, can be used directly with the 3.3V or 5V microcontroller to communicate: Module data transmission pin (4-pin TX) connected to the host computer data receiver (RXD), module data receiving pin (5 feet RX) connect on the position machine data transmission terminal (TXD). To communicate with the host computer of the RS-232 level (eg PC), please add a level-shifting circuit between the module and the host computer (eg MAX232 circuit).
Serial protocol:
Using half-duplex asynchronous serial communication. The default baud rate is 57600bps and can be set to 9600 ~ 115200bps by command. The transmitted frame format is 10 bits, a 0-level start bit, 8-bit data (LSB first) and a stop bit without parity bit.
Power-up delay time:
After the module is powered on, it takes about 200mS to initialize. During this time, the module can not respond to the host command.
Electrical parameters (all levels referenced to power / ground GND): 1. Power input:
Item
Parameter
Unit
Remarks
Min
Typical
Max
Supply voltage (Vin)
3.8
5
6
V
Normal operating value
Limit voltage (Vinmax)
-0.3
6
V
Exceeding this range may cause permanent damage
Operating current (Icc)
90
100
110
mA
Peak current (Ipeak)
150
mA
2.TXD (output, TTL logic level)
Item
Condition
Min
Max
Unit
Remarks
VOL
IOL=-4mA
0.4
V
Logic 0
VOH
IOH= 4mA
2.4
3.3
V
Logic 1

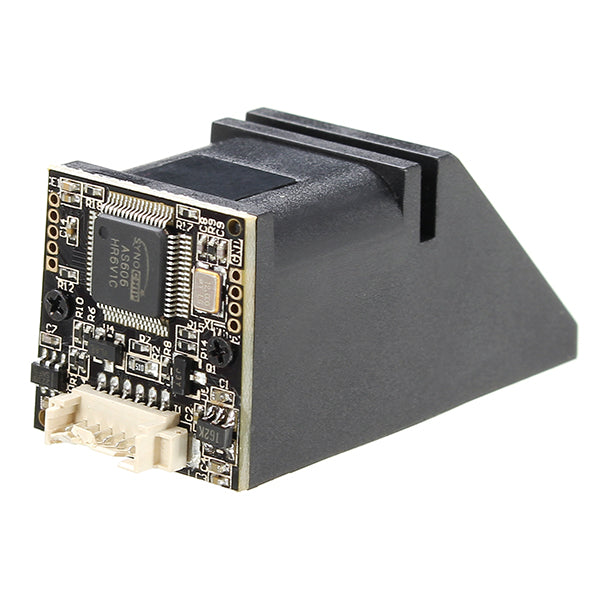

Package includes:

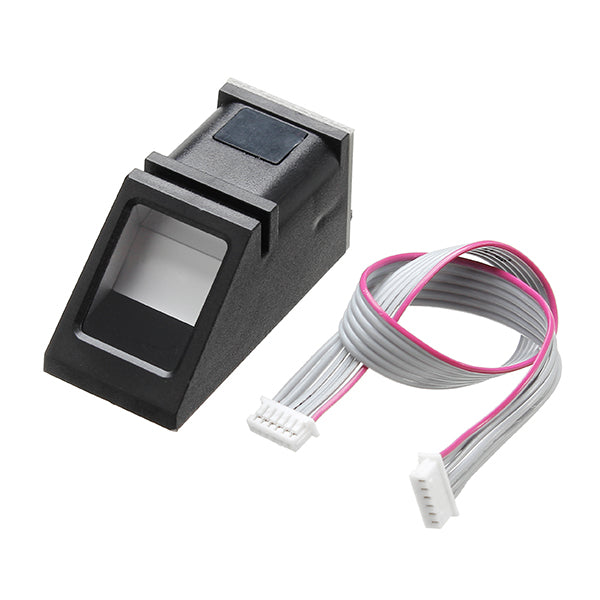

1 x Fingerprint Recognition Module with cable
,,,,
