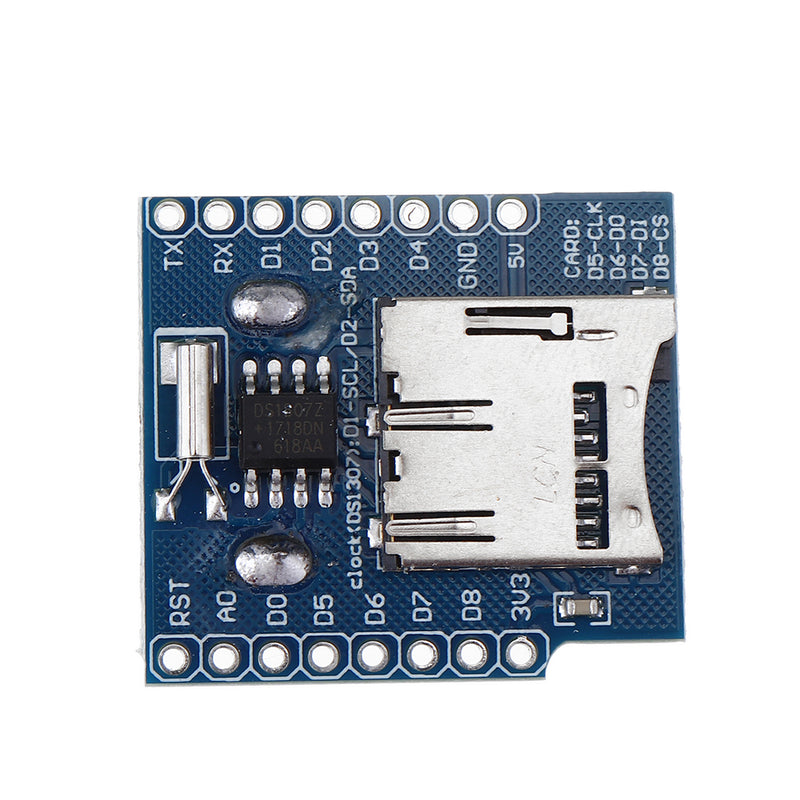

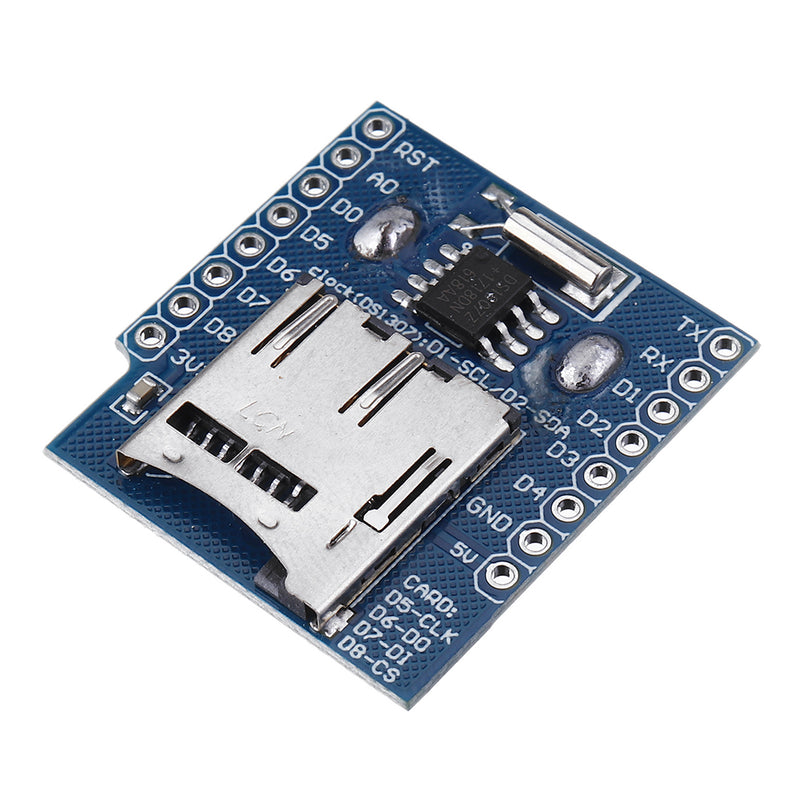

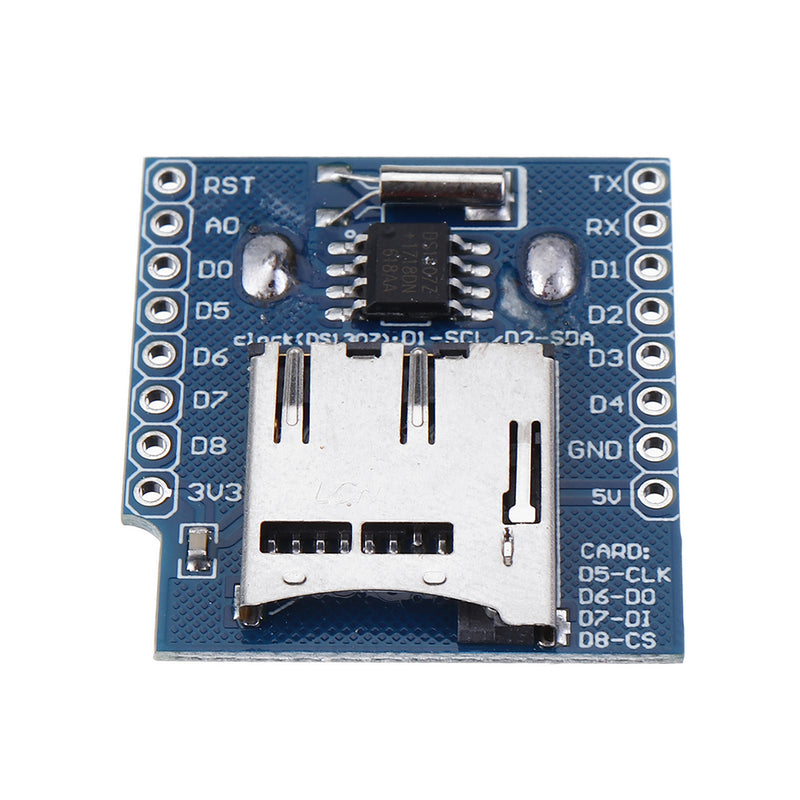

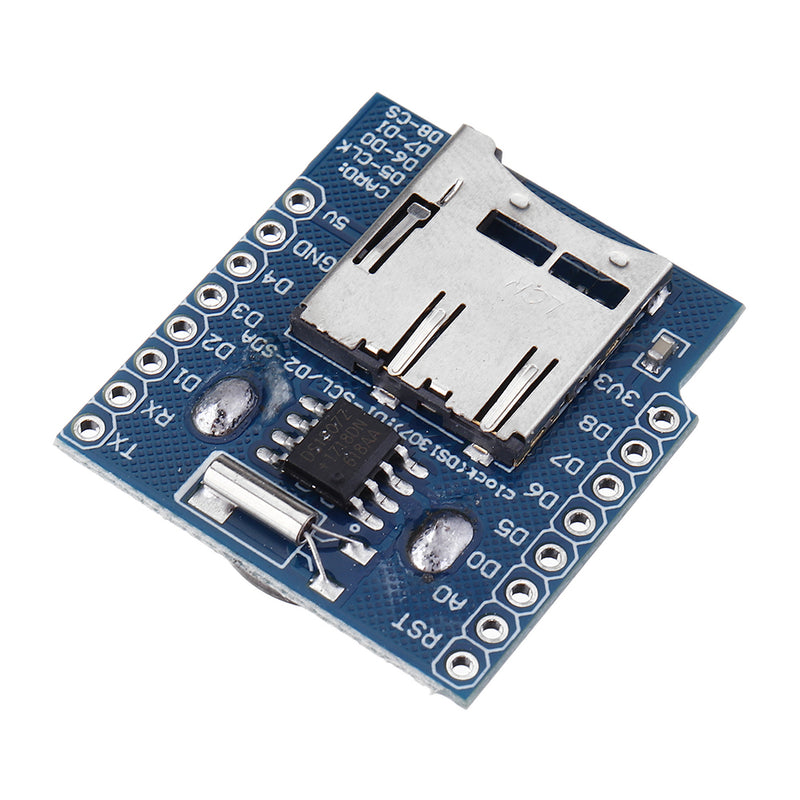

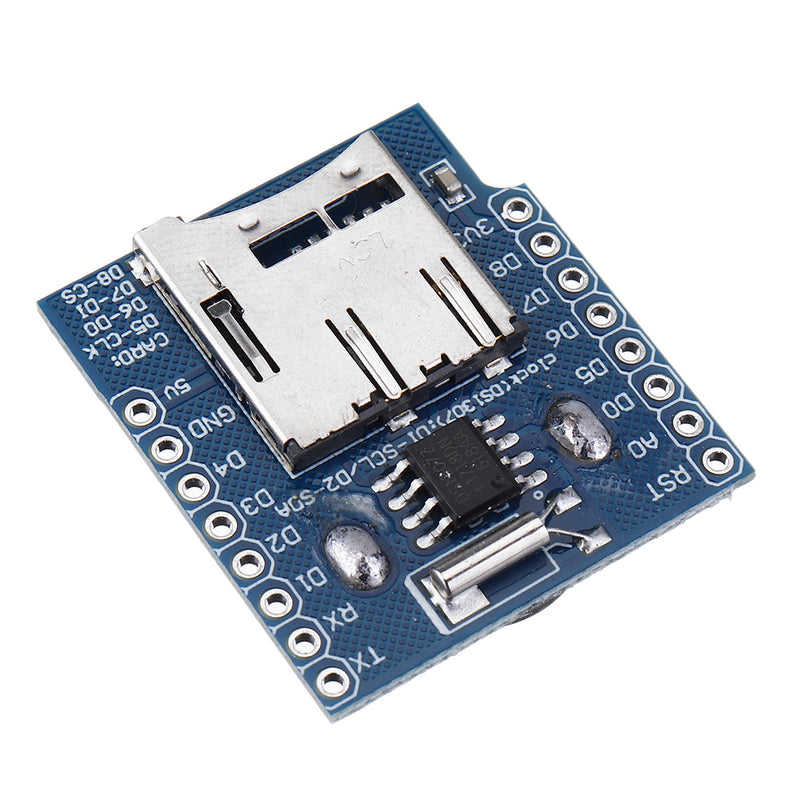

Geekcreit DataLog Shield For WeMos D1 Mini RTC DS1307 Micro SD with Pin Headers

Geekcreit DataLog Shield For WeMos D1 Mini RTC DS1307 Micro SD with Pin Headers

Name: Geekcreit DataLog Shield For WeMos D1 Mini RTC DS1307 Micro SD with Pin Headers
Brand: Banggood
SKU: U2I-BG-1185789
Price: 1,540.00 INR
Availability: InStock

SKU: U2I-BG-1185789

Share this product

Description:

With this Data Log Shield for WiFi D1 Mini board, can saving data to files on any FAT16 or FAT32 formatted MicroSD card.
The included RTC (Real Time Clock) can be used to timestamp all your data with the current time, so that you know precisely what happened when.
SD card interface works with FAT16 or FAT32 formatted cards.
Real time clock (RTC) keeps the time going even when the power disconnected.
RTC protected from wrong connecting of battery.

Pinout:

RTC:
D1 - SCL
D2 - SDA
CD card:
D5 - CLK
D6 - DO
D7 - DI
D8 - CS

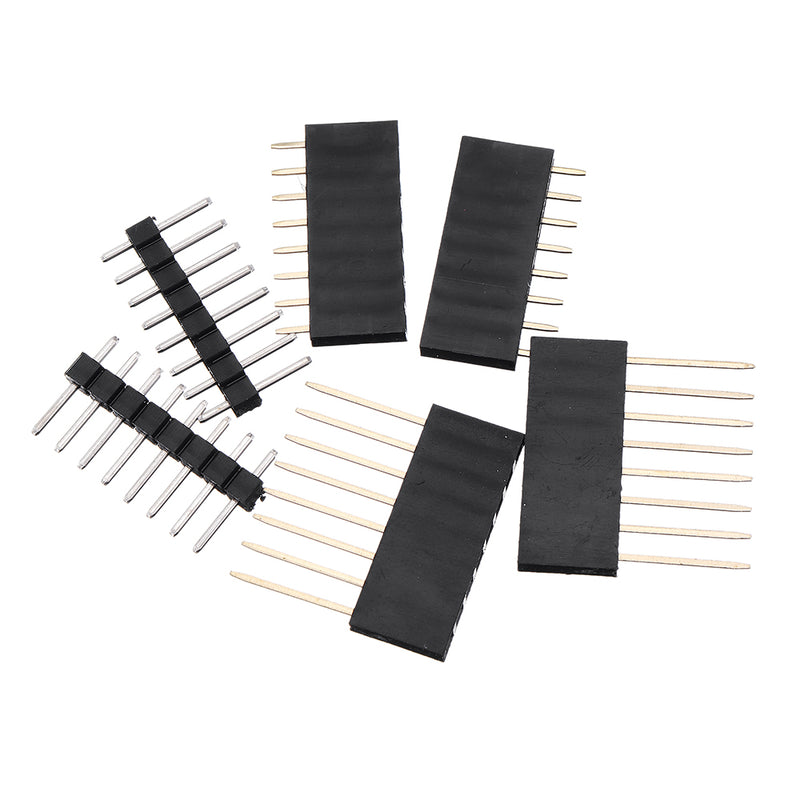

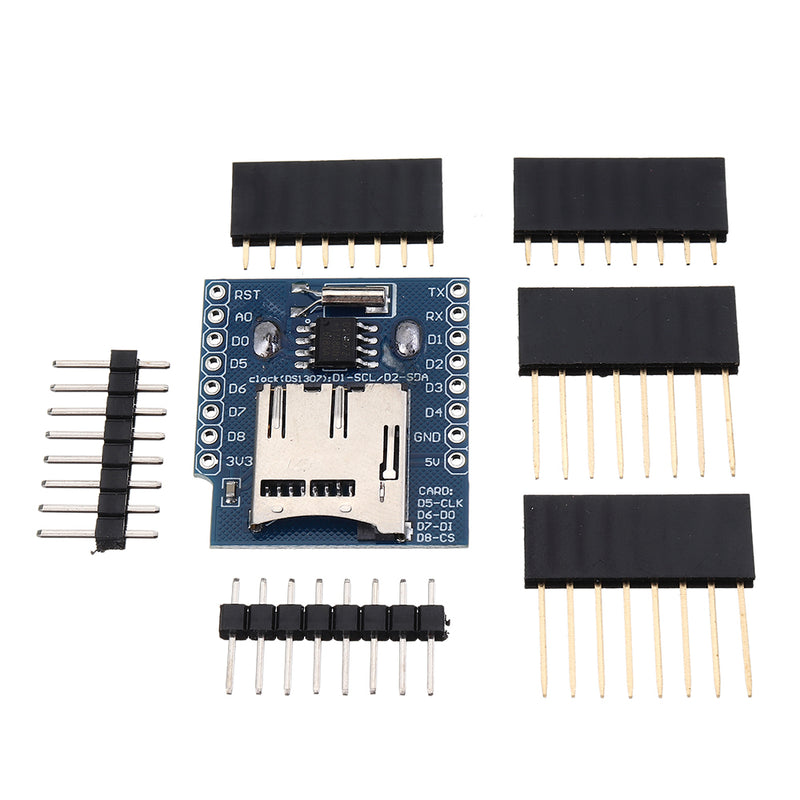

Package included:

1 x DataLog Shield (no battery includes)
2 x Male Pin Header
2 x Female Pin Header
2 x Stackable Header
