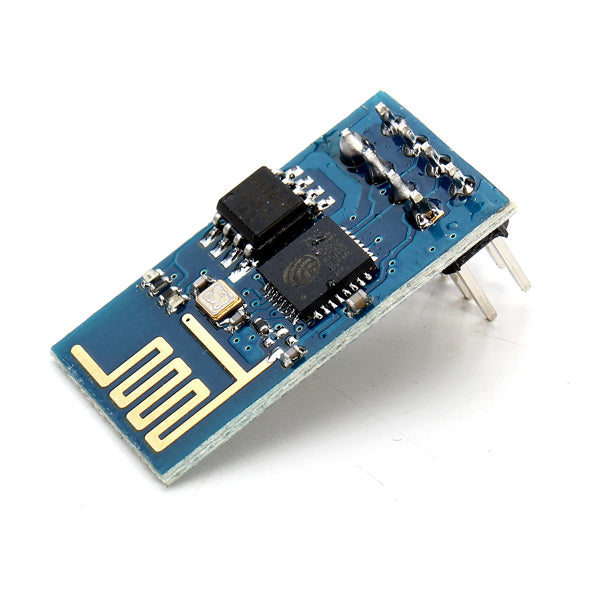

Description: Transceiver Wireless Module:
It run LWIP
802.11 bgn
WIFI Direct (P2P),SOFT-AP
Built-in TCP/IP
The AT command is perfect,efficient,concise
Support three modes: AP, STA and AP+STA coexistence mode
A stable power supply was pure, battery-powered can solve everything
ESP8266 start, you need to GPIO15 pull-down (if the module pin bitmap
Without this pin, the internal representatives have pulled down without any treatment),
GPIO0 GPIO2 pull-high (The default is two feet high, so not Do any processing)! CH_PD This pin must be pulled-high!
Our all modules meet the above two conditions to work properly!

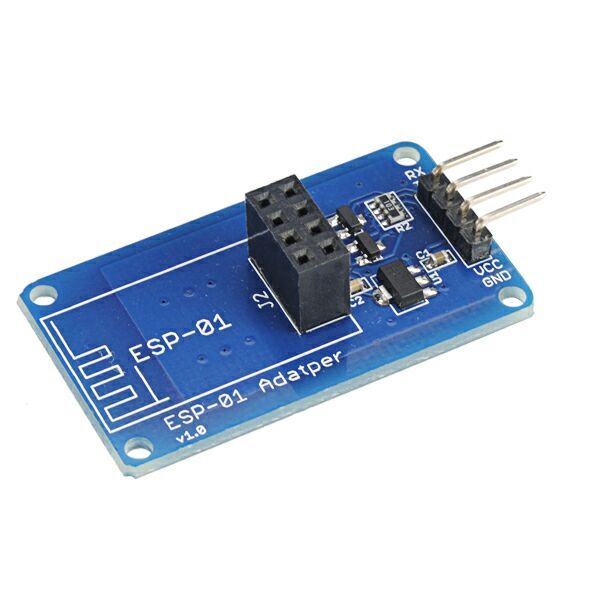

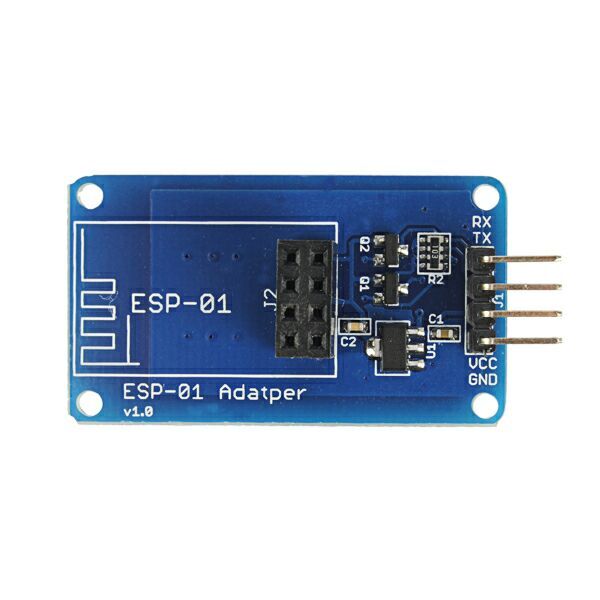

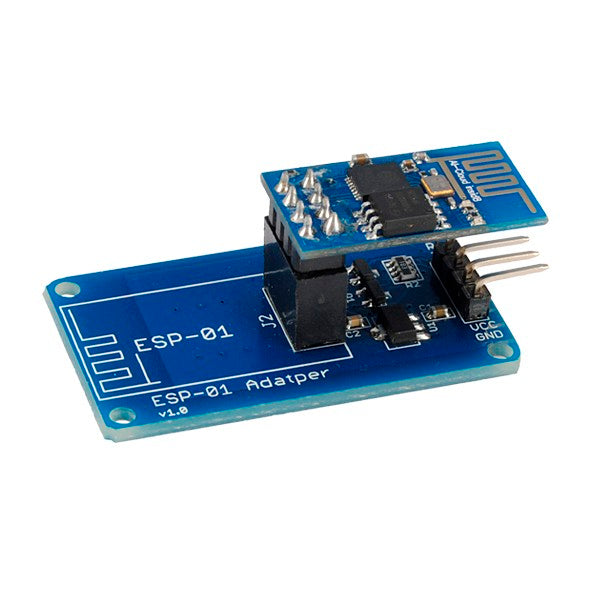

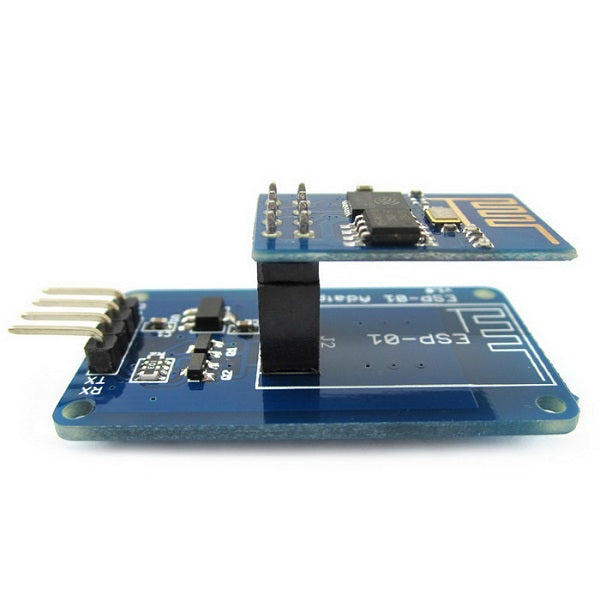

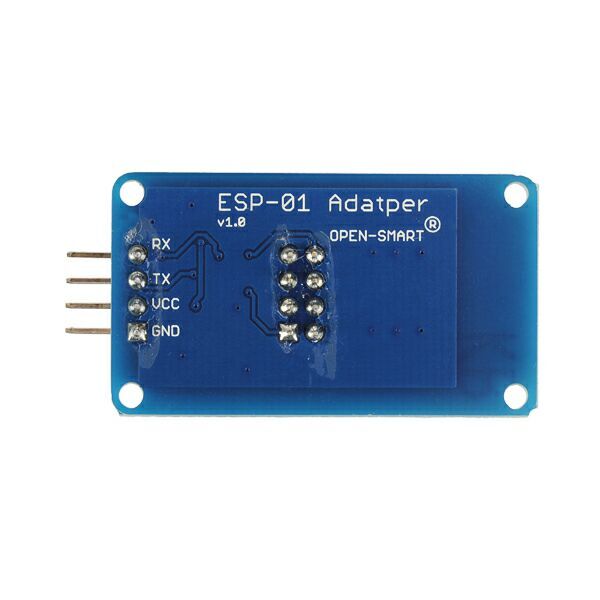

Adapter Module:
A adapter module for ESP-01 Wi-Fi module. 3.3V voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wi-Fi module.
Also, the item can be used with UNO R3 or compatible board.
Features:
Working voltage: 4.5~5.5V (On-board 3.3V LDO Regulator)
Working current: 0-240mA
Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit)

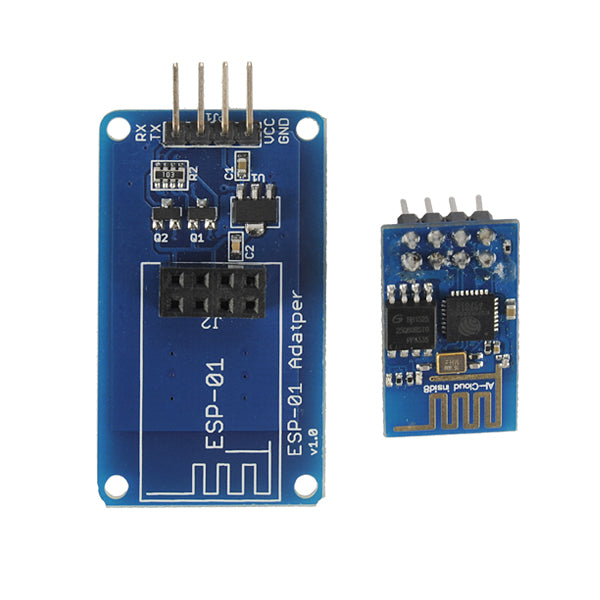

Package included:
1 x ESP-01 Wireless module
1 x ESP-01 Adapter module
