Geekcreit Ethernet Shield W5100 With Mega 2560 For

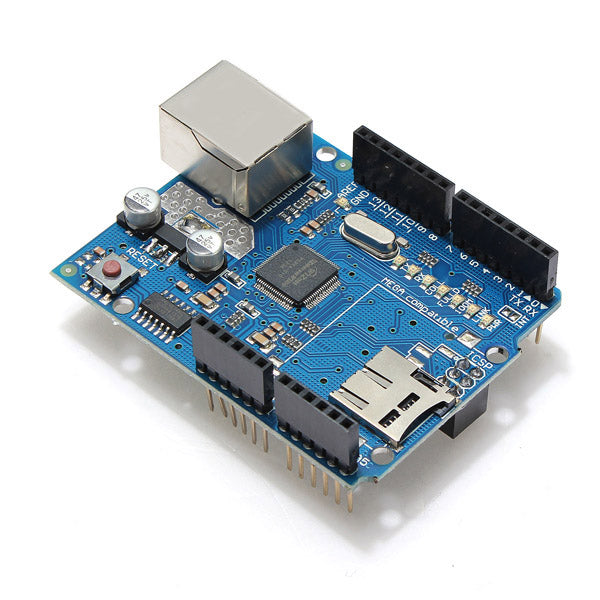

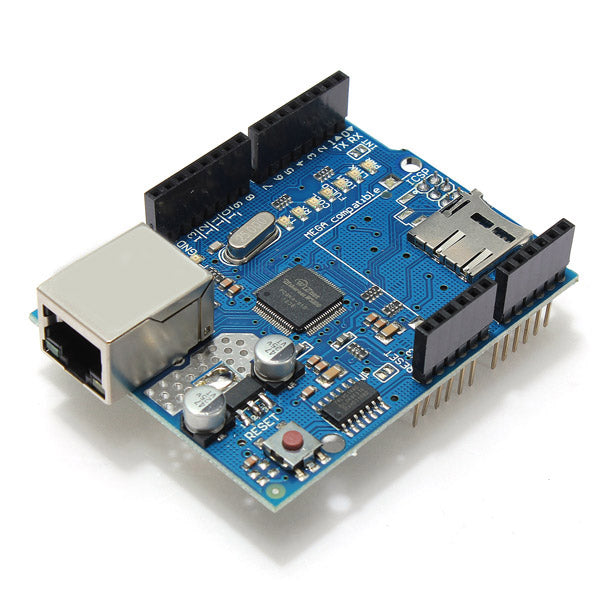

Ethernet Shield W5100:

It is directly supported by official Ethernet Library.
It adds a micro-SD card slot, which can be used to store files for serving over the network.
It is compatible with the Duemilanove (168 or 328), UNO as well as Mega (1280/2560) and can be accessed using the SD library.
The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP.
It supports up to four simultaneous socket connections.
Use the Ethernet library to write sketches which connect to the internet using the shield.
MAC address: 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED }

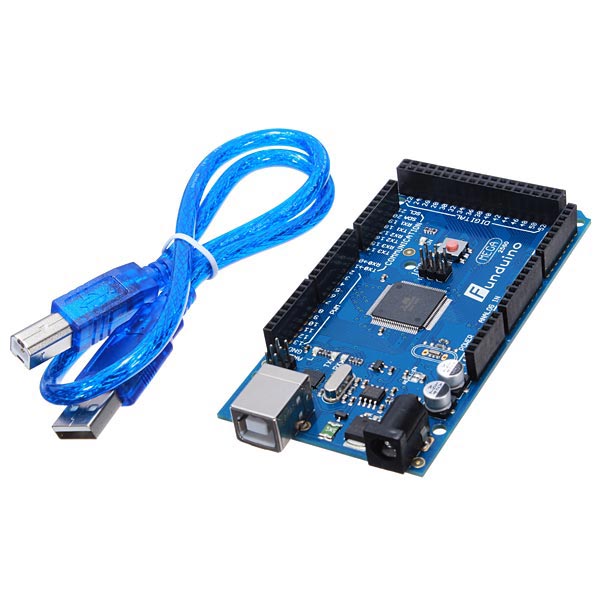

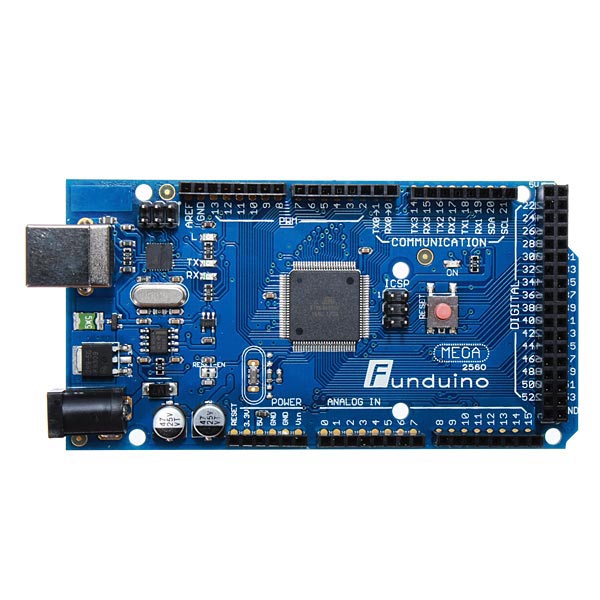

Mega 2560:

Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage(recommended): 7V ~ 12V
Input Voltage(limits): 6V ~ 20V
Digital I/O Pins: 54 ( of which 14 provide PWM output )
Analog Input Pins: 16
DC Current per I/O Pin: 40mA
AC Current for 3.3V Pin: 50mA
Flash Memory: 256KB ( of which 4KB used by bootloader )
SRAM: 8KB
EEPROM: 4KB
Clock Speed: 16MHz

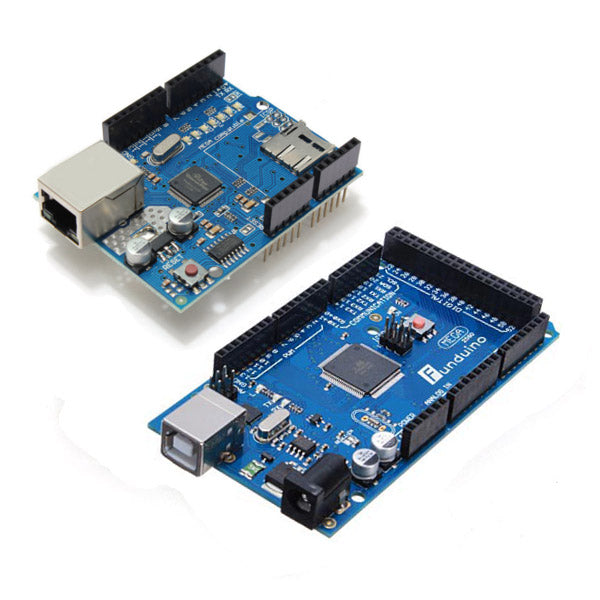

Package included:

1 x Ethernet Shield W5100
1 x Mega 2560 with usb cable







,,,
