Note: This version of UNO R3 can not compatible with OS system

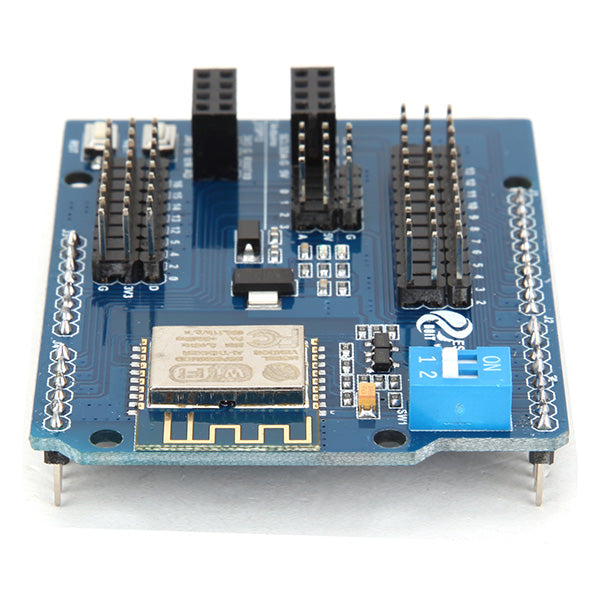

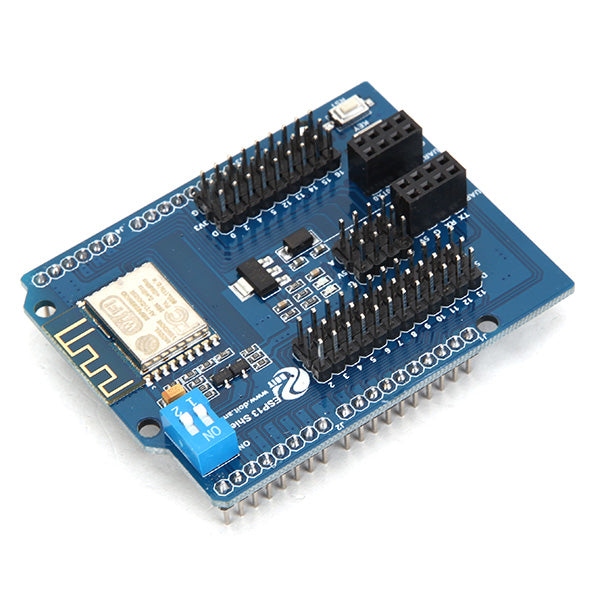

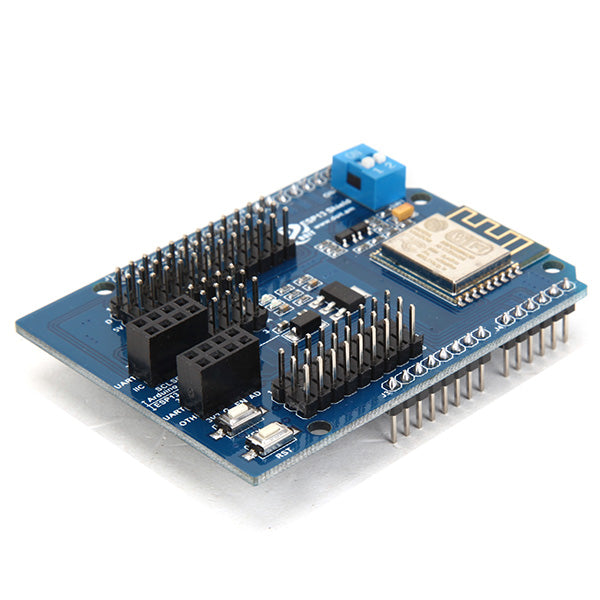

Introduction: ESP8266-Based Serial WiFi Shield for is designed and developed by Shenzhen Doctors of Intelligence & Technology (SZDOIT). The shield is designed based on esp8266 by Espress if Systems, pin-compatible with UNO/Mega2560 Development Board.
Features: WiFi module is industrial-grade chips ESP8266, which is ESP-12E with metal shield, strong anti-interference ability
Shield is pin-compatible with Uno, Mega2560 and other control board. A voltage converter chip is used to deal with 3.3V (Esp8266) and 5V ();
Dual DIP switches is used for serial ports so that this module shield can be used alone as an Uno expansion board, and also be used as ESP8266 expansion board;
Serial data is transported to WiFi device transparently, and vice versa. program does not need any configuration;
Web Server is developed to configure WiFi parameters and serial port parameters
The module shield can be used as an independent ESP8266 development board. for instance downloading the official AT commands firmware NodeMCU open source firmware can be used
The module shield also can be used as stand-alone expansion board for Uno.
For more references about Doit serial WiFi module expansion board, driver board information, please refer to: http://www.doit.am
Technical Specifications: 802.11 b / g / n wireless standard
STA / AP modes support
TCP / IP protocol stack One socket
Supports standard TCP / UDP Server and Client
Supports serial port baud rate configuration:
1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
Supports serial data bits: 5/6/7/8 bits
Supports serial parity: none
Supports serial stop bits: 1/2 bit
Pin-compatible with UNO, Mega
Pin-out 2/3/4/5/6/7/8/9/10/11/12/13
ESP8266 GPIO Pin-out 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / UART TX / UART RX
KEY button: modes configuration
Dual-Ports DIP switches: switching and ESP8266
WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), idle mode:<200ua;< span="">
Serial WiFi transmission rate: 110-460800bps
Temperature: -40℃ ~ + 125 ℃
Humidity: 10%-90% non-condensing
Weight: about 20g
ESP8266 WiFi Shield More information:

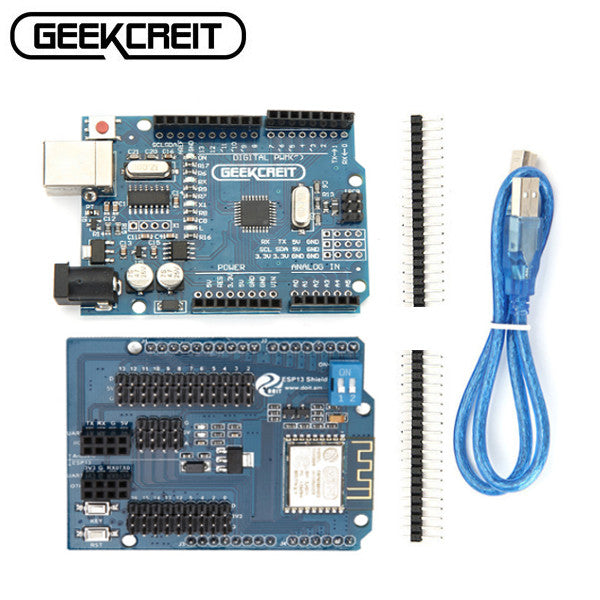

User Manual: https://fineshang.gitbooks.io/esp8266-based-serial-wifi-shield-for--user/content/ Package includes: 1 x ESP8266 WiFi shield

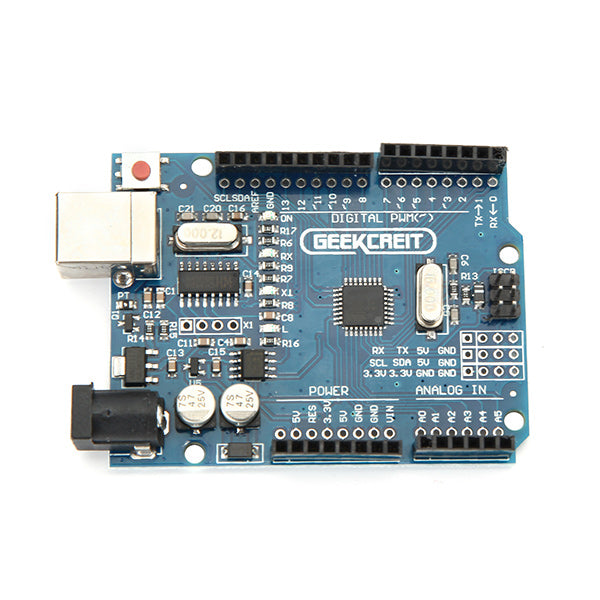

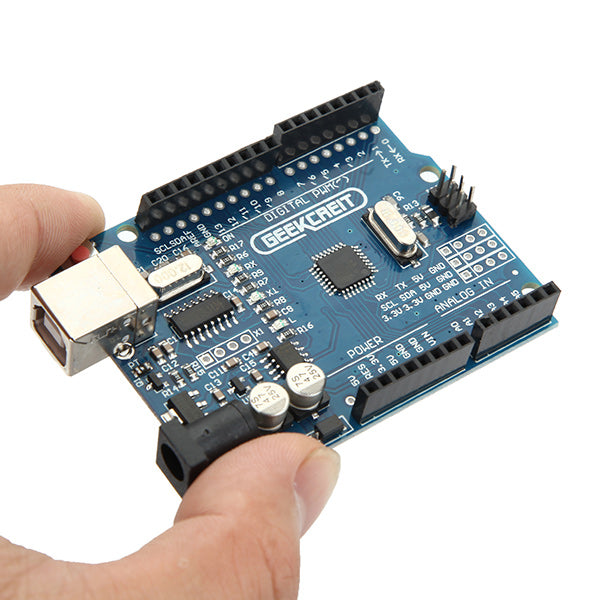

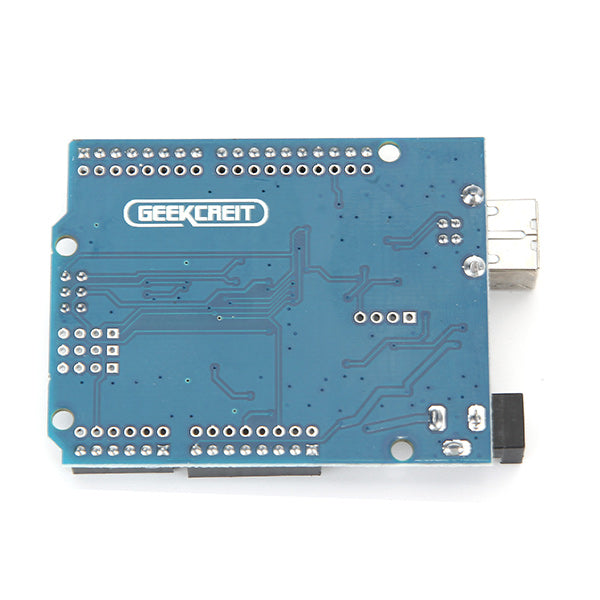

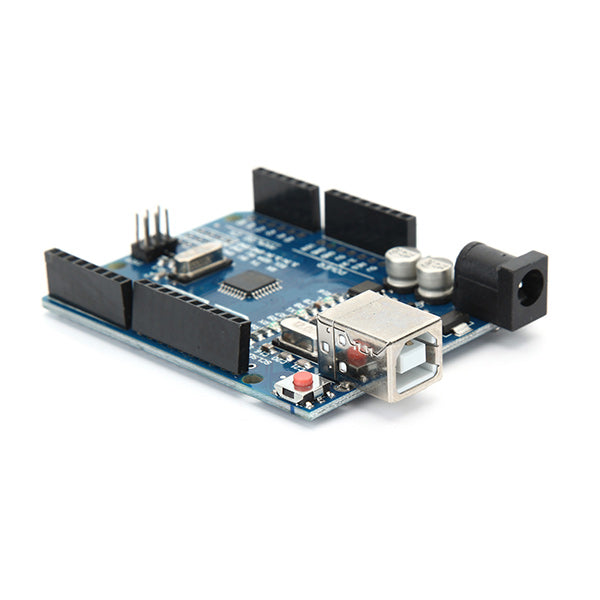

1 x Compatible UNO R3 board
1 x USB Cable
,,,,,
