More document to download: VEML6070Description:
1. VEML6070 is an advanced ultraviolet (UV) light sensor with I2C protocol interface and designed by the CMOS process.
2. It is easily operated via a simple I2C command. The active acknowledge (ACK) feature with threshold windows setting allows the UV sensor to send out a UVI alert message.
3. Under a strong solar UVI condition, the smart ACK signal can be easily implemented by the software programming.
VEML6070 incorporates a photodiode, amplifiers, and analog / digital circuits into a single chip. VEML6070’s adoption of FiltronTM UV technology provides the best.spectral sensitivity to cover UV spectrum sensing.
4. It has an excellent temperature compensation and a robust refresh rate setting that does not use an external RC low pass filter.
5. VEML6070 has linear sensitivity to solar UV light and is easily adjusted by an external resistor.
6. Software shutdown mode is provided, which reduces power consumption to be less than 1 μA.
Features:
• Operation voltage: 2.7 V to 5.5 V
• Integrated modules: ultraviolet sensor (UV), and
signal conditioning IC
• Converts solar UV light intensity to digital data
• Excellent UV sensitivity and linearity via FiltronTM
technology
• Excellent performance of UV radiation
measurement under long time solar UV exposure
• Excellent temperature compensation
• High dynamic detection resolution
• Standard I2C protocol interface
• Support acknowledge feature (ACK)
• Immunity on fluorescent light flicker software shutdown
mode control
• Package: OPLGA
• Temperature compensation: -40 °C to +85 °C
• Floor life: 168 h, MSL 3, according to J-STD-020
• Output type: I2C bus

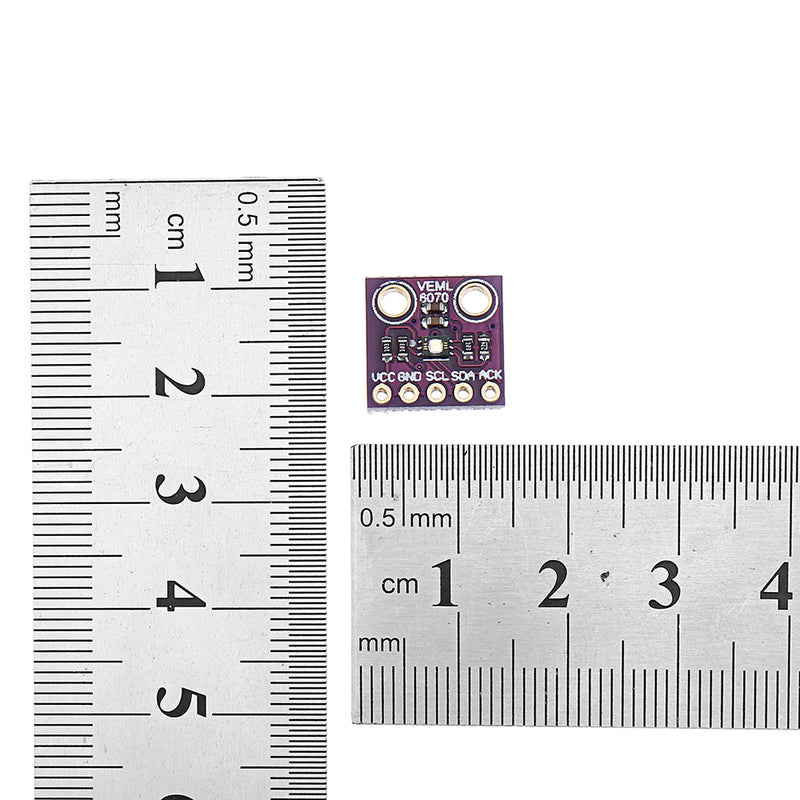

• Dimensions (L x W x H in mm): 2.35 x 1.8 x 1.0
Package Included:

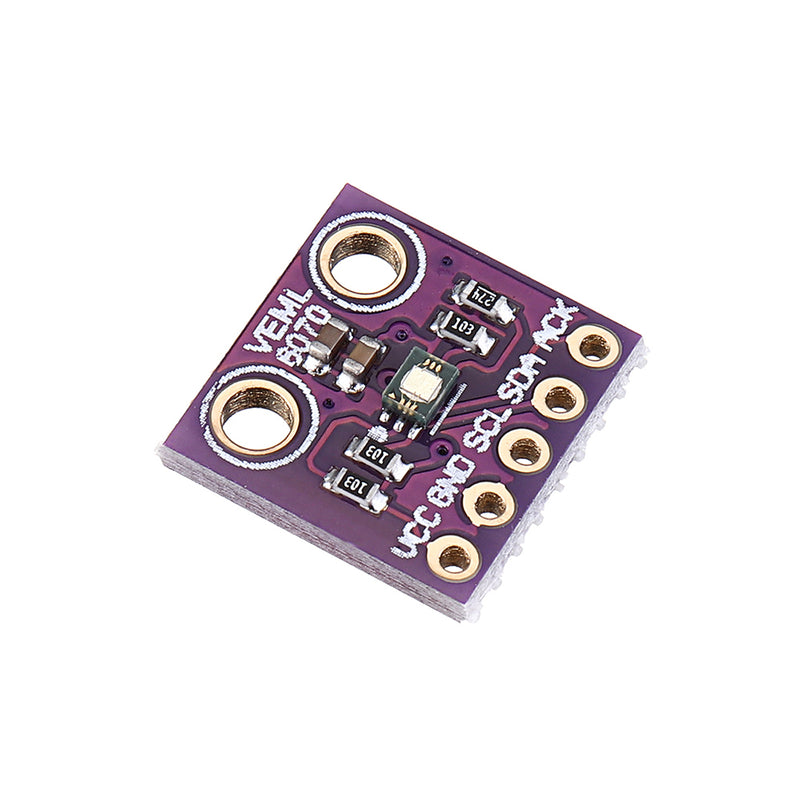

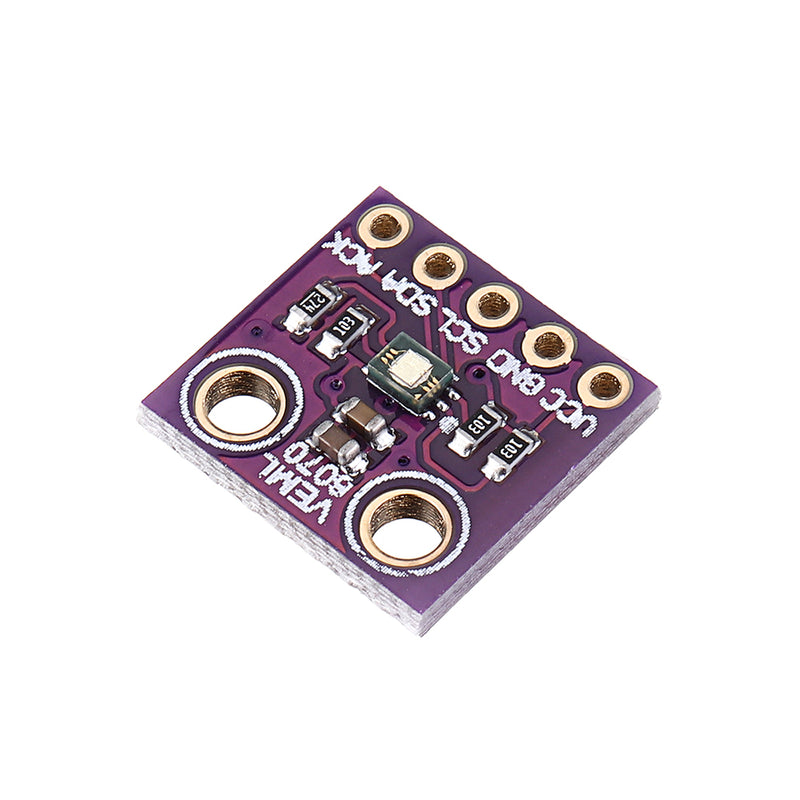

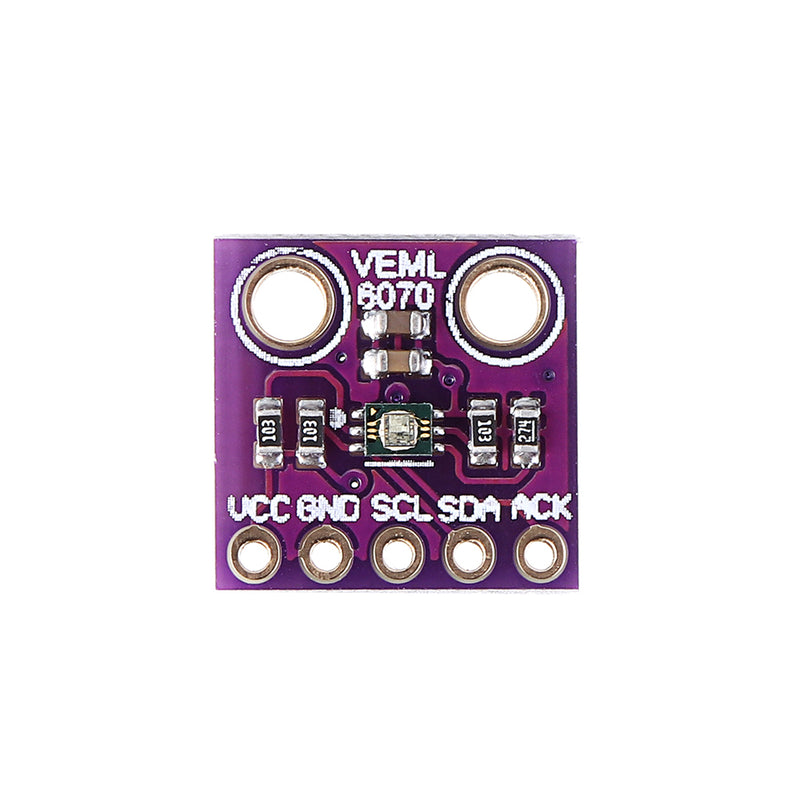

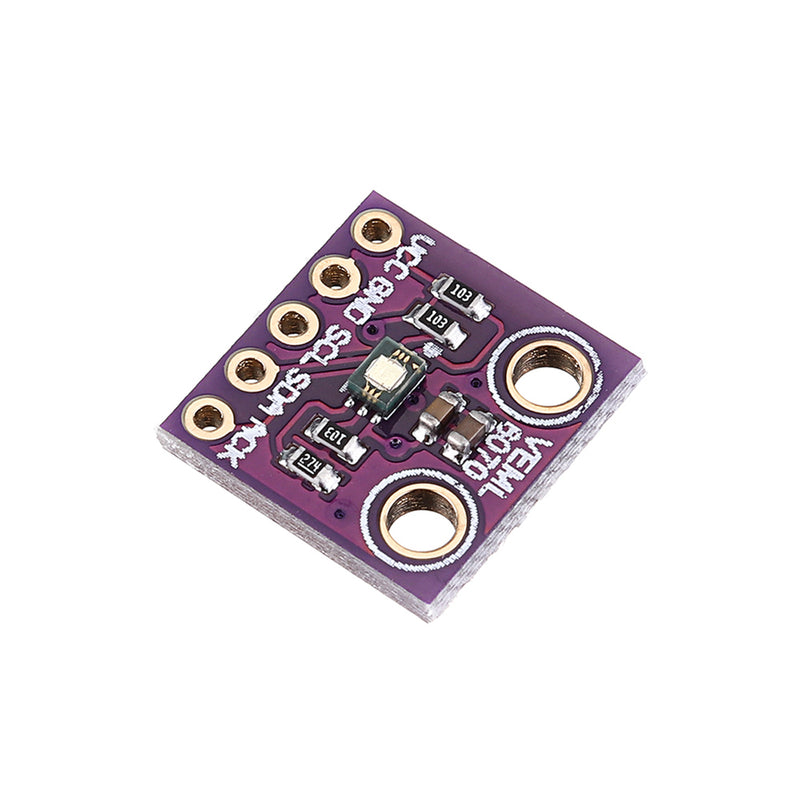

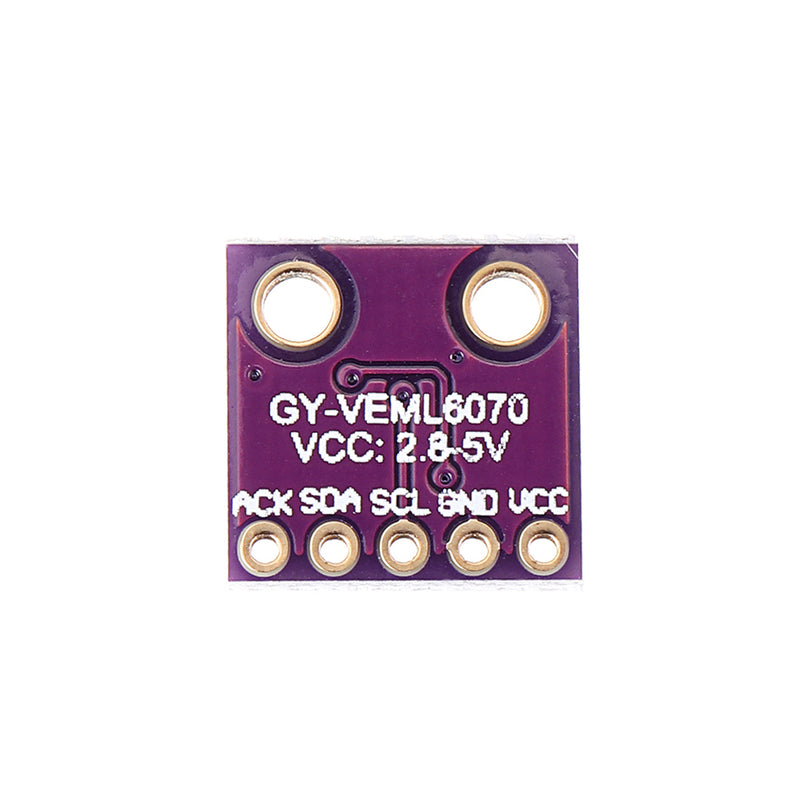

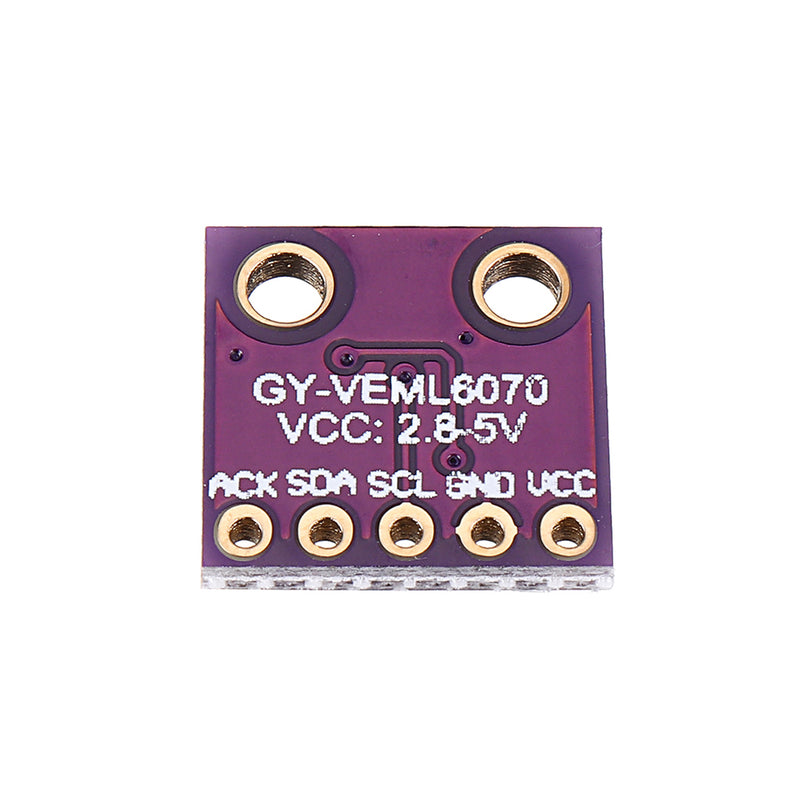

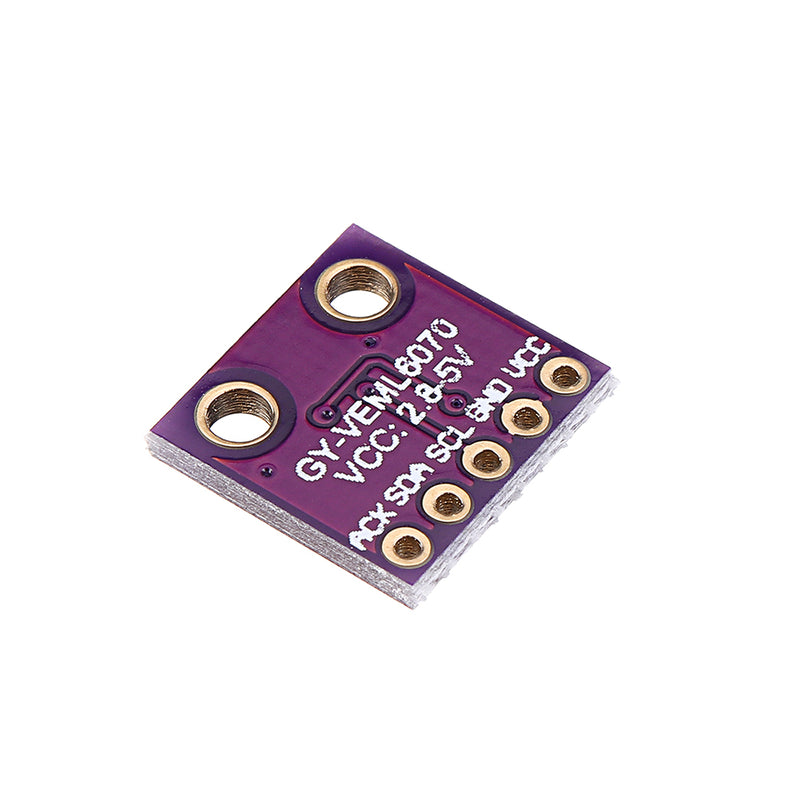

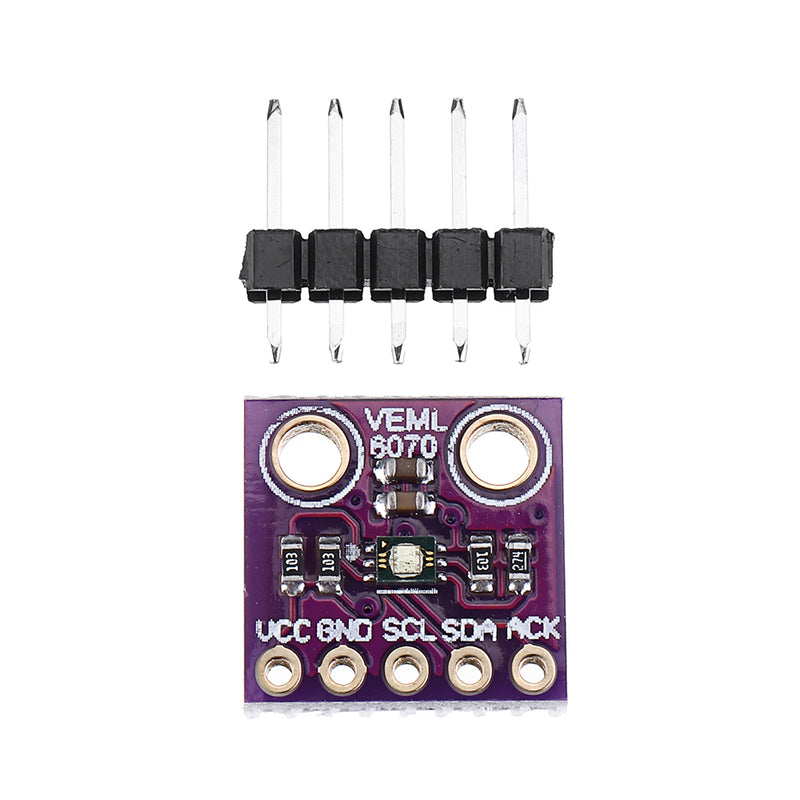

1 x GY-VEML6070 UV Light Sensor Module
