Primary measurement ratings: 6A, 15A, 25A
Output:2.5±0.625V
Supply voltage: 5V
Frequency range: 0-200KHZ
Temperature range: -40--+85
Response time: ≤100nS
Features:
- High-precision
- Good linearity
- Able to install PCB
- Low power consumption
- Current overload capability
Application area:
1. Drive control of frequency conversion appliance
2. Variable speed drive applications
3. Current monitoring
4. UPS uninterruptible power management system
5. Inverter power supply and solar power supply
Instructions:
If the cable perforation is 1 turns, the rated current is 6A, if the cable is 2 or 3 turns turn perforation when the rated current is 3A or 2A, if the input mode, please do not use the PCB input mode at the same time, for the PCB input mode, the input current parameters to determine the number of turns and according to the rated input connection input PIN, input connection PIN three are 1T, 2T, 3T, corresponding to the rated input current: 6A, 3A, 2A.
Note:
Do not use punch input at the same time.
Package Include:

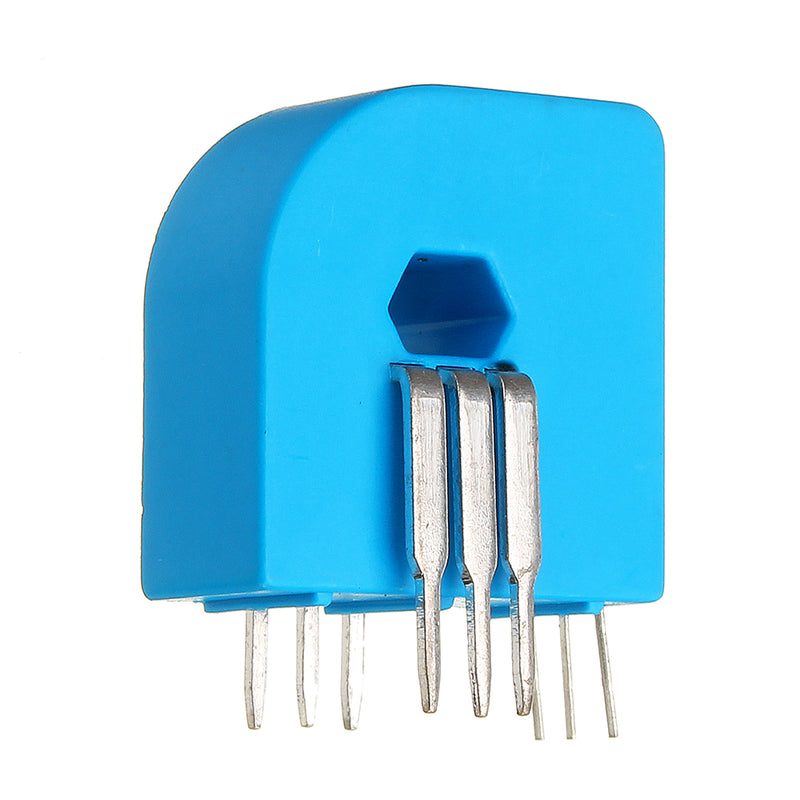

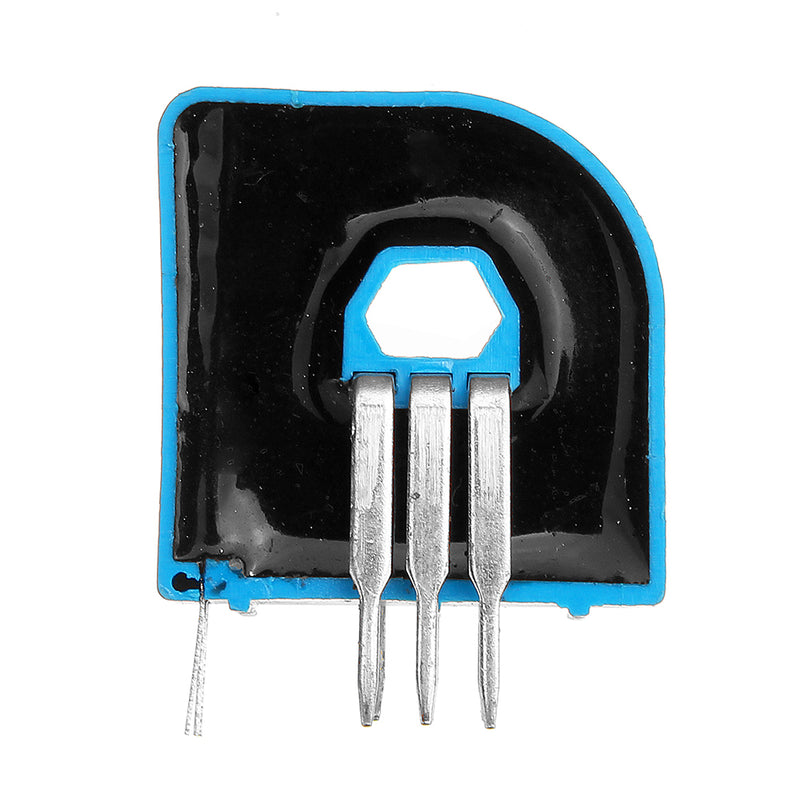

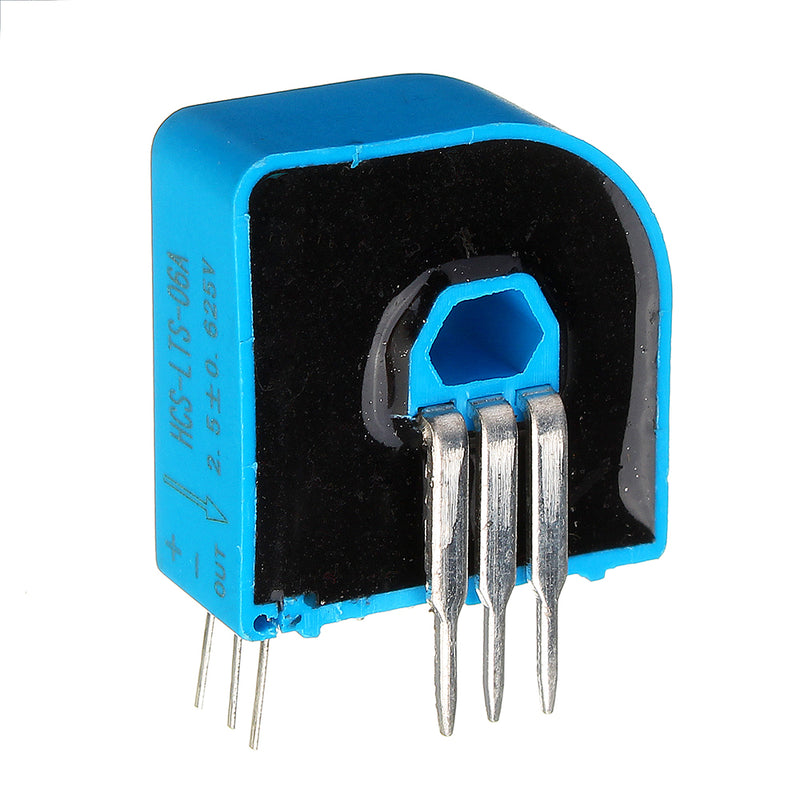

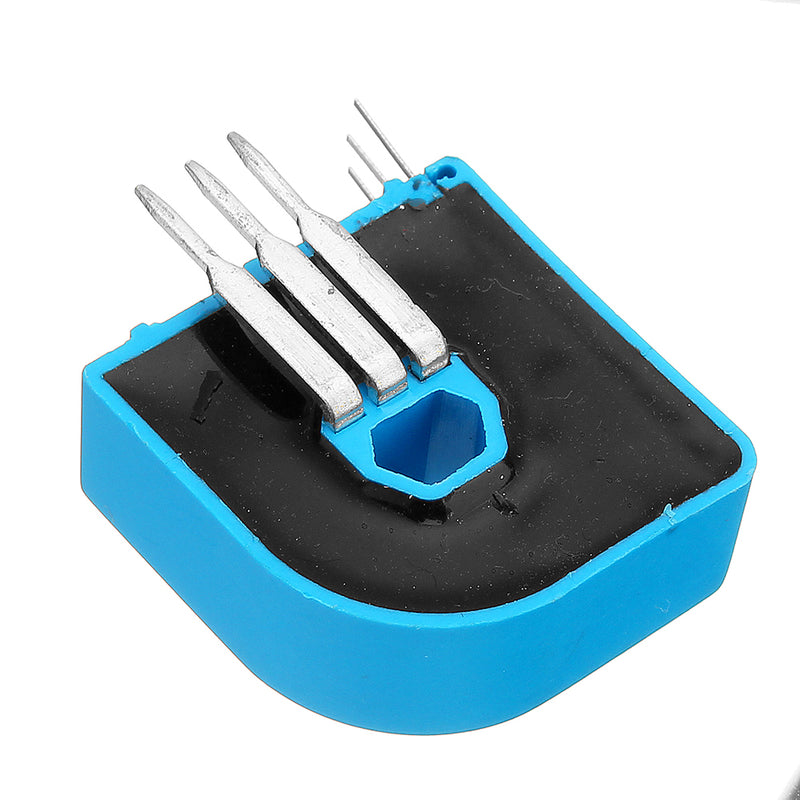

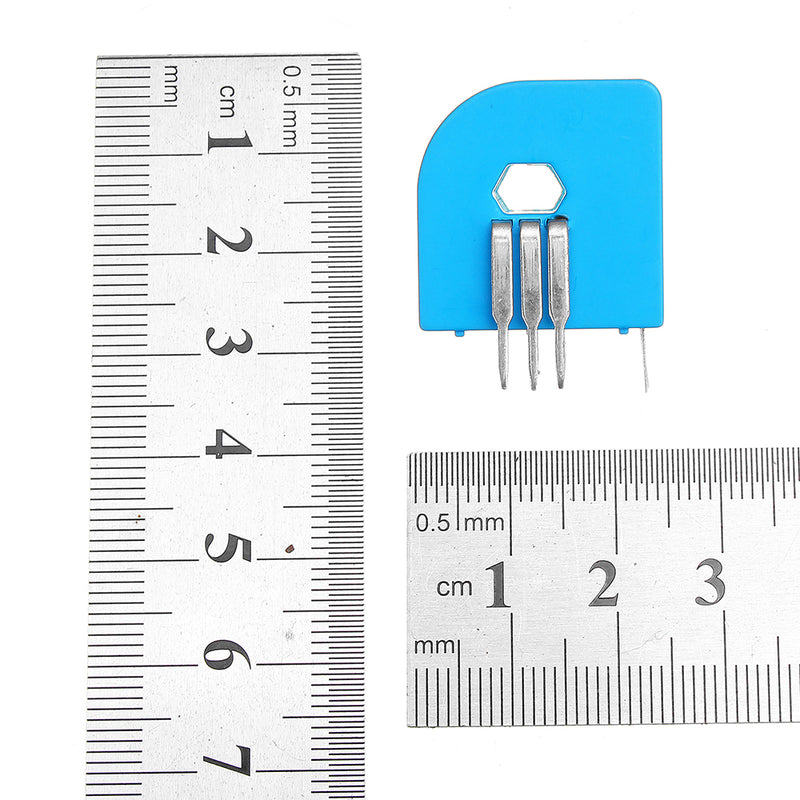

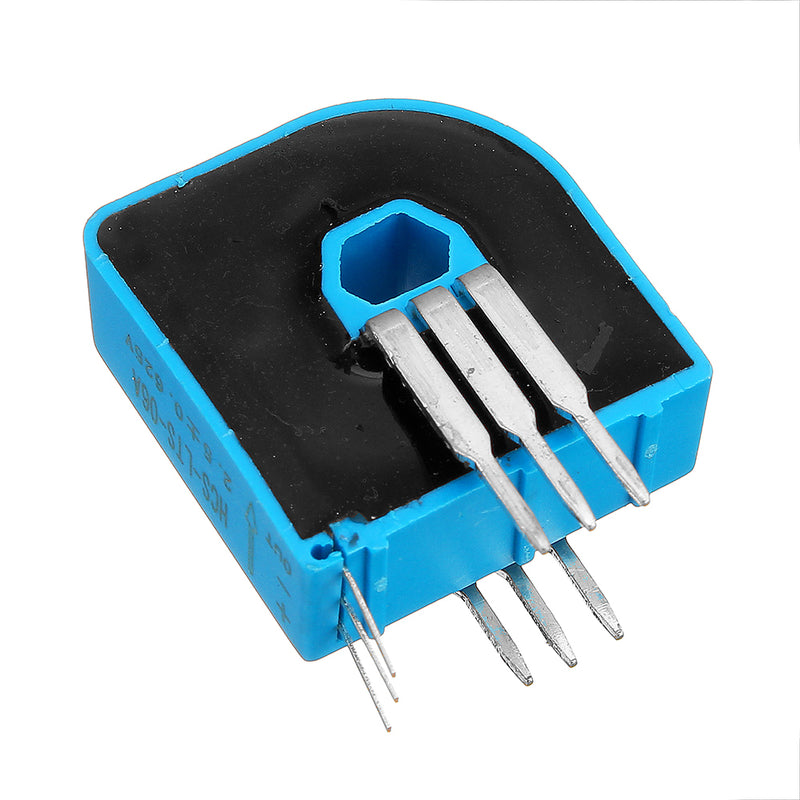

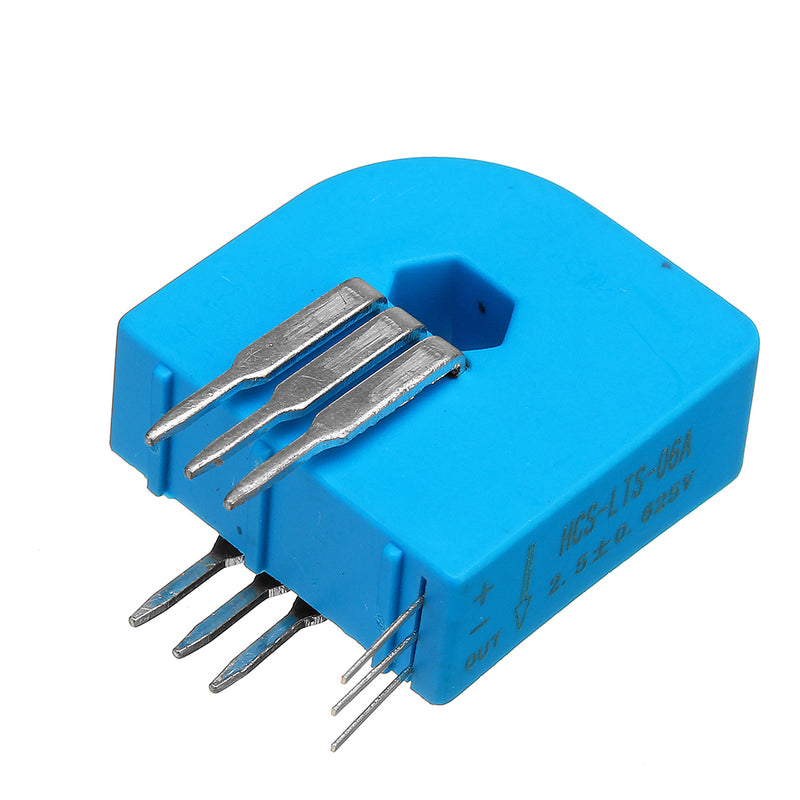

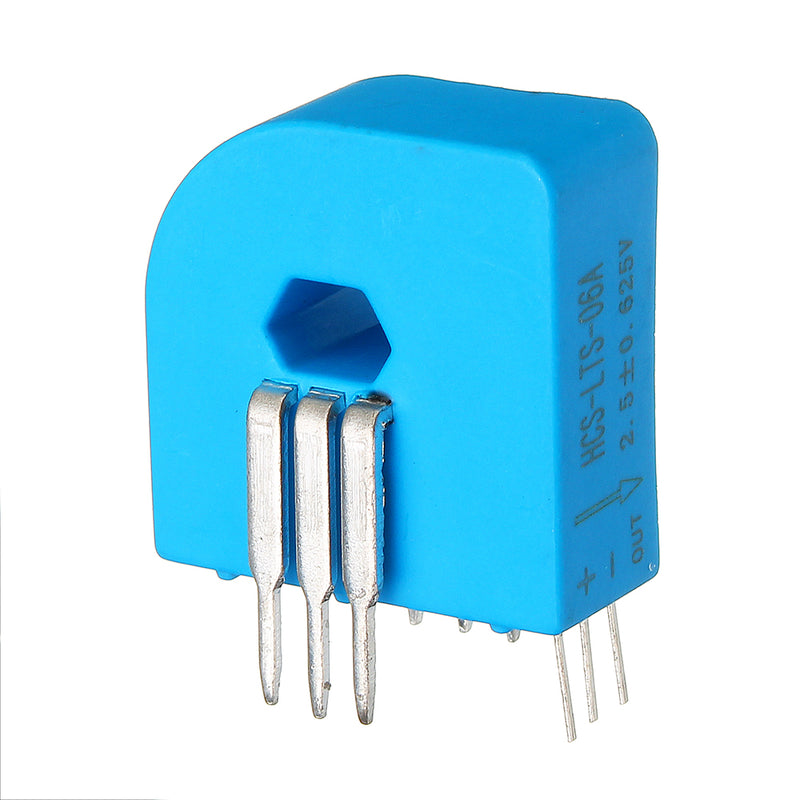

1 x Hall Current Sensor
