Features:
- It also can works with standard DVR, Just push the "left" button for 5 seconds and it switches to standard DVR mode.
- Push the "right" button for 5 seconds and it switches to AHD DVR mode.
- PAL/NTSC in one: Set on OSD menu
- 1/2.9" AHD SO NY IMX323 +NVP2441 CMOS Senor module;
- Video Resolution:1920*1080;
- Shutter 1/50(1/60) seconds to 1/10,000 seconds
- Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology;
- Support the photosensitive resistor input signal and image,
IR-CUT, infrared lamp linkage
- NTSC&PAL in one, AHD mode, CVBs 960H mode, Switch freely;
- Size: 38*38mm
Specifications:
Sensor: 1/2.9 inch So ny IMX323 sensor
Video Resolution PAL/NTSC: 1920*1080
Minimum Illumination Color:0.0001Lux@(F1.2,AGC ON),0Lux with IR
Black&White:0.0001Lux@(F1.2,AGC ON),0Lux with IR
Photosensitive Resistance 1 photosensitive resistance interface,
Day and Night Function: Support IR-CUT
Lens Parameters: C/CS interface, M12 lens optional
Synchronous Mode:inter-sync
Noise-signal Ratio:>58dB
Temperature and Humidity: -10℃~60℃, humidity is less than 90% (no condensation)
Powe: DC12V±10%
Consumption: <5W
Size Standard 32*32 positioning hole, compatible with 38*38 hole
Packaging Included:

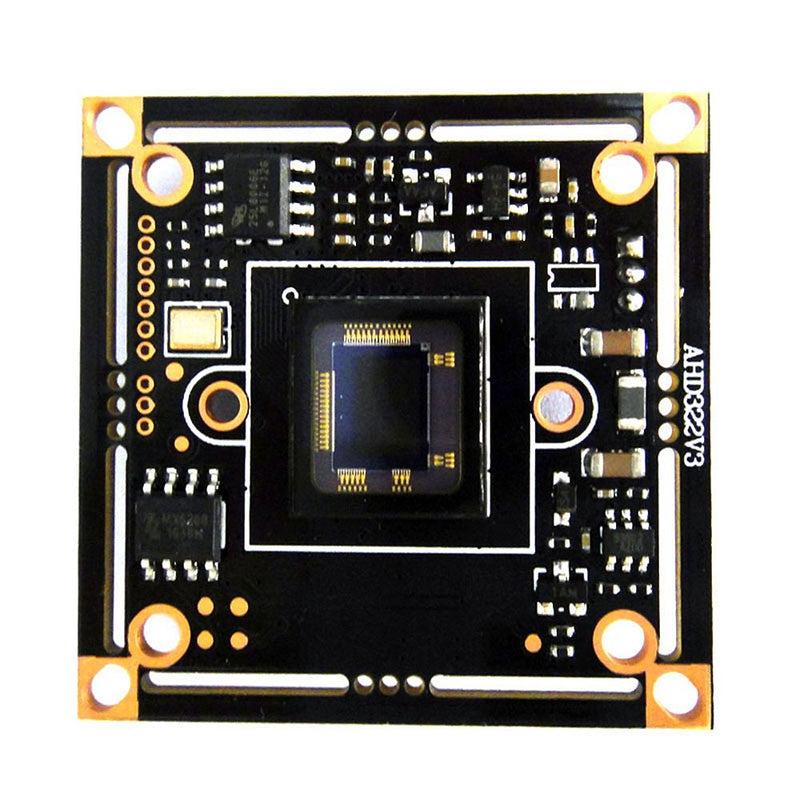

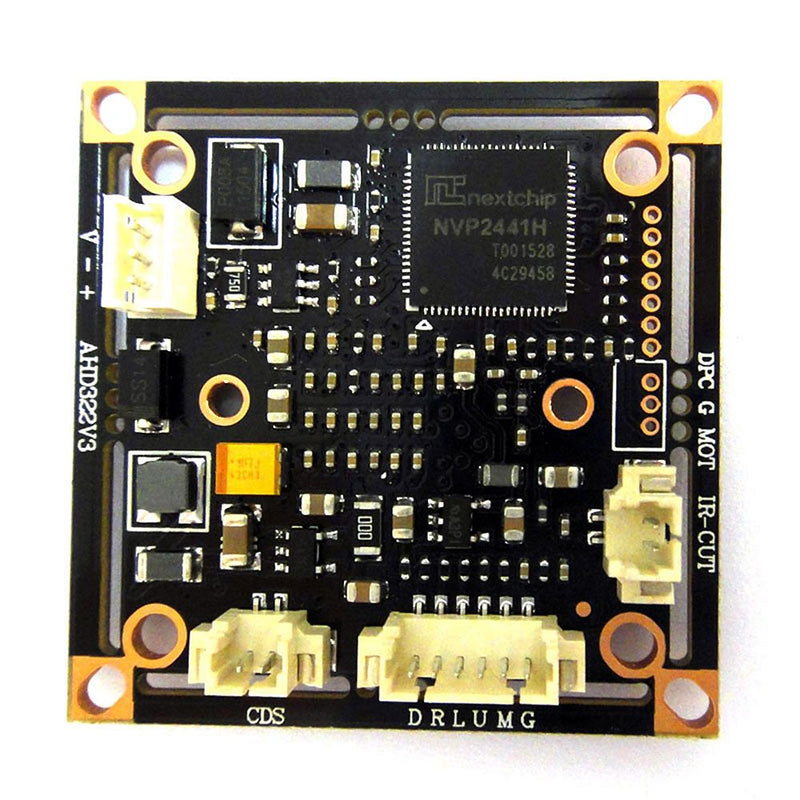

1 x HD 1080P AHD 1/2.9"IMX323 + NVP2441 Camera Module
