Specification:

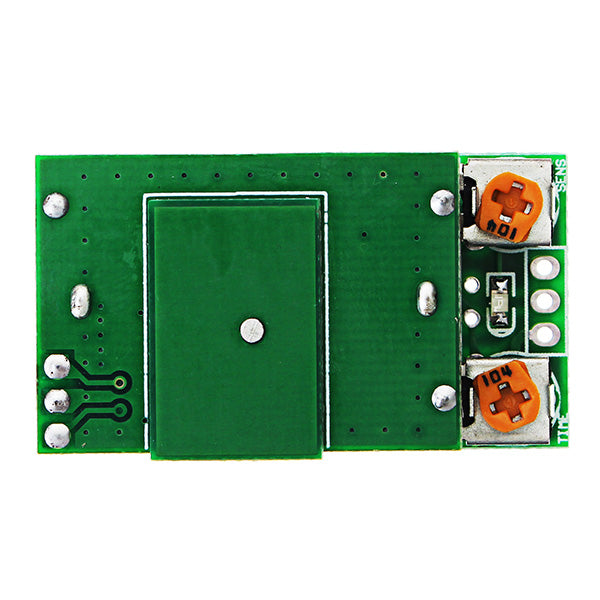

Model: HFS - DC06
Frequency: 5.8 G
Band: ISM band
Appearance size: 39 x 22 x 11mm
Input voltage: DC12V
Minimum input current: 30mA
Output mode: 5V level signal (high level output when triggered)

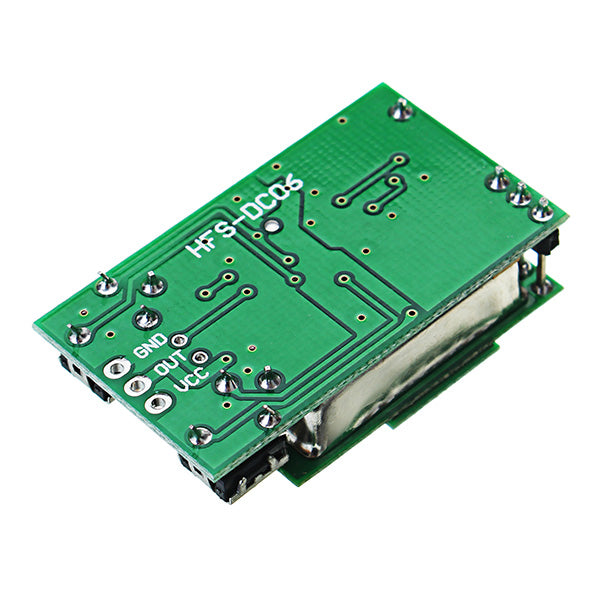

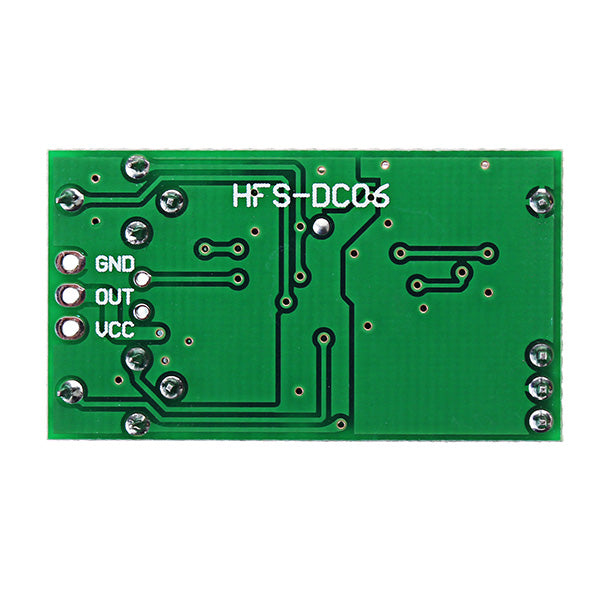

Connection mode: VCC power supply anode, GND power supply negative pole
GND and OUT receive level signal output
Installation height: 2-6M
Induction distance: 12 meters ahead
Induction Angle: the front conical 360 degrees
Induction time: for the convenience of testing, the induction delay time is set for 2S
Features:
5.8G frequency, normal installation and use without mutual interference, high stability, anti-interference ability, small size, suitable for a variety of products that require DC microwave module
Precautions:
1. The supply current should be greater than 30mA to drive the module, the voltage should be stable and can not have large fluctuations, otherwise it will trigger a continuous trigger (load lamp may continuous self-trigger or not extinguished)
2. The product should not be installed next to a large area of the metal body, can not be placed in a fully enclosed metal shell, which will affect the performance of this product or can not be used normally
Package includes:
1 x Microwave Radar Sensor Module
