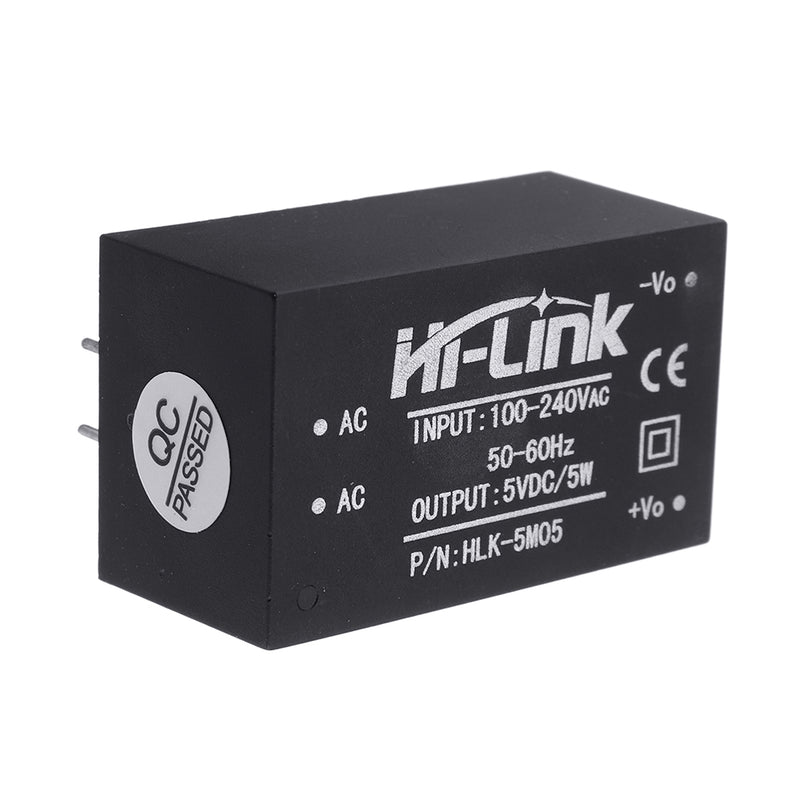

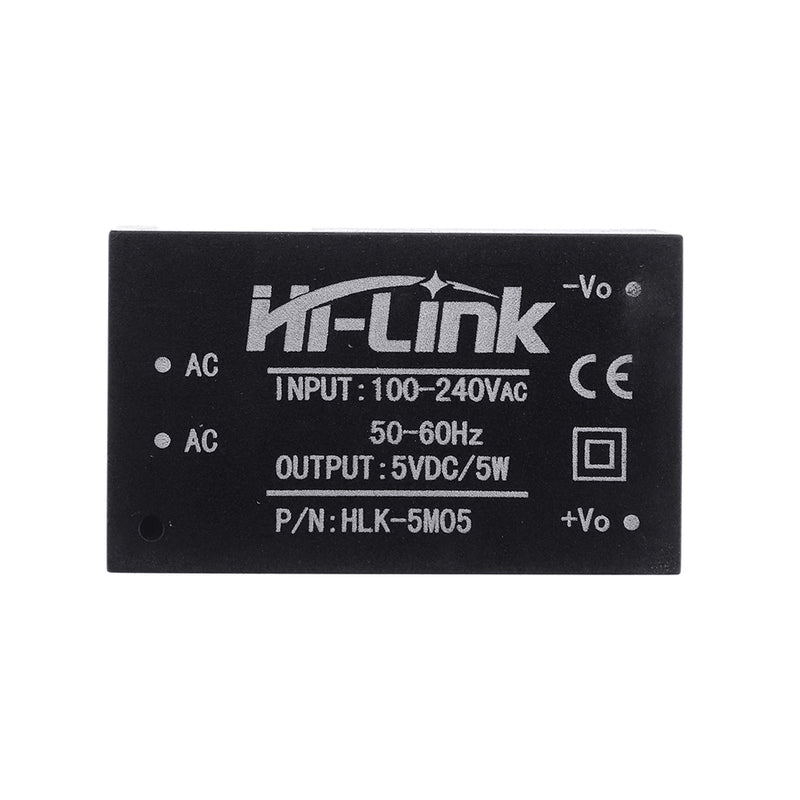

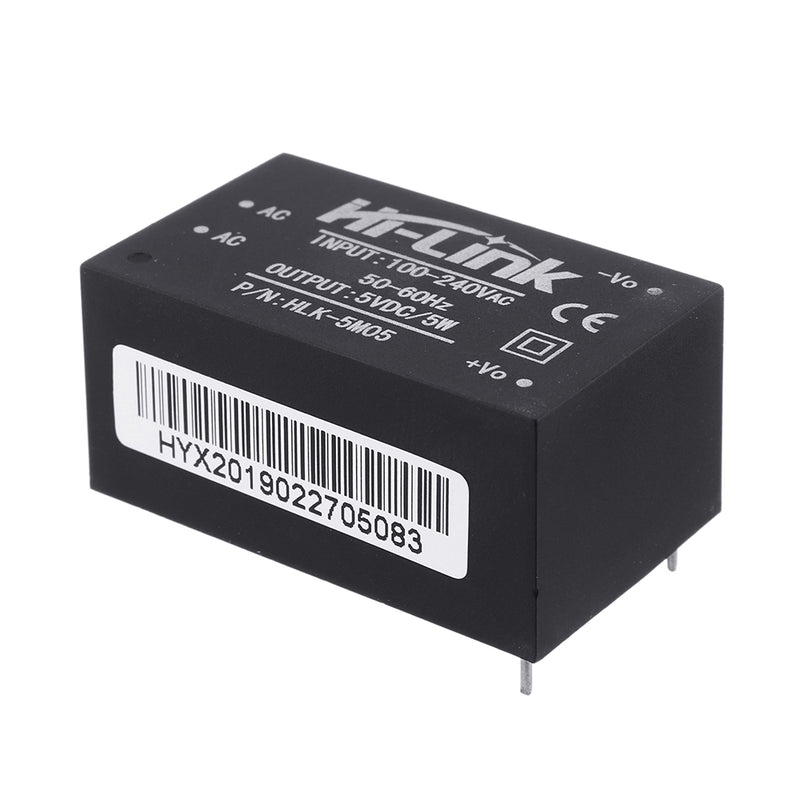

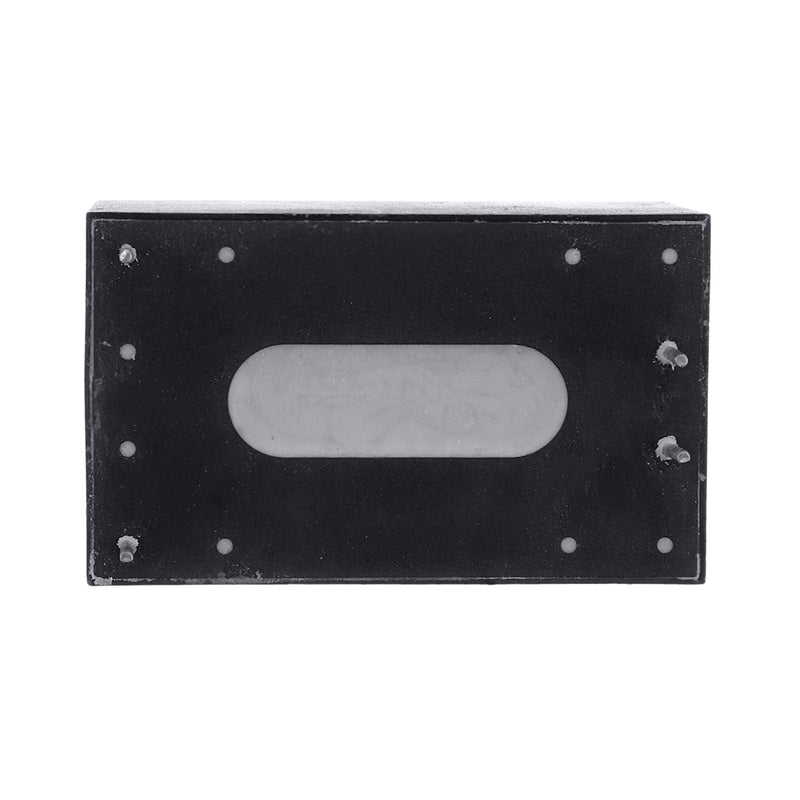

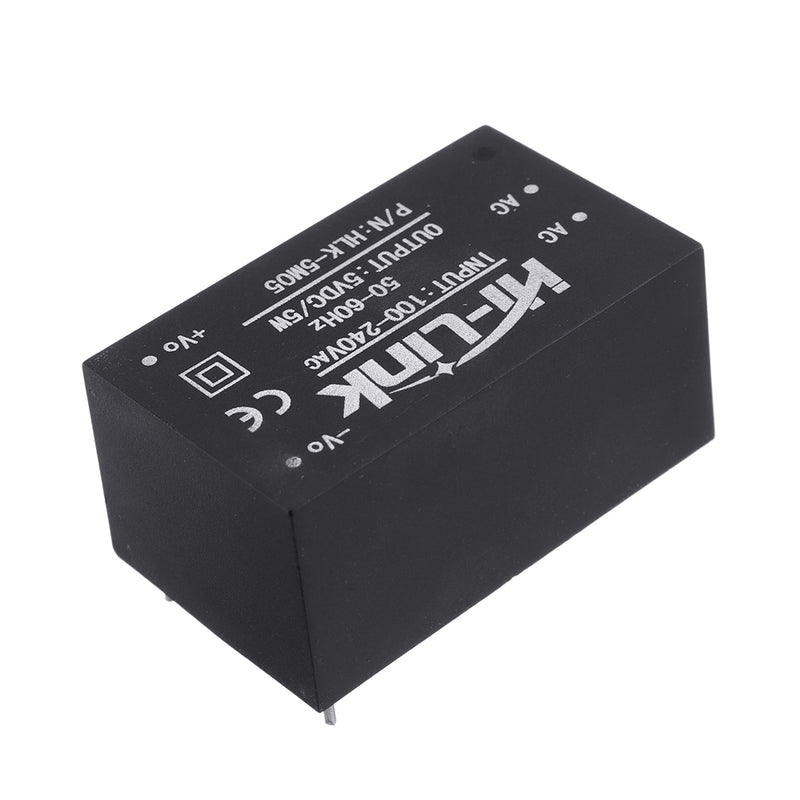

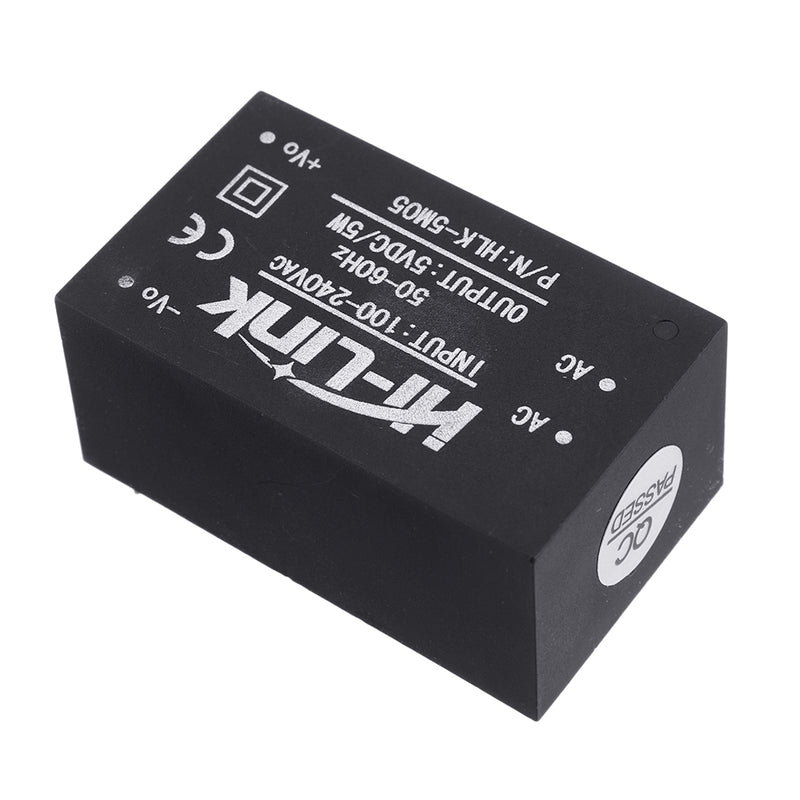

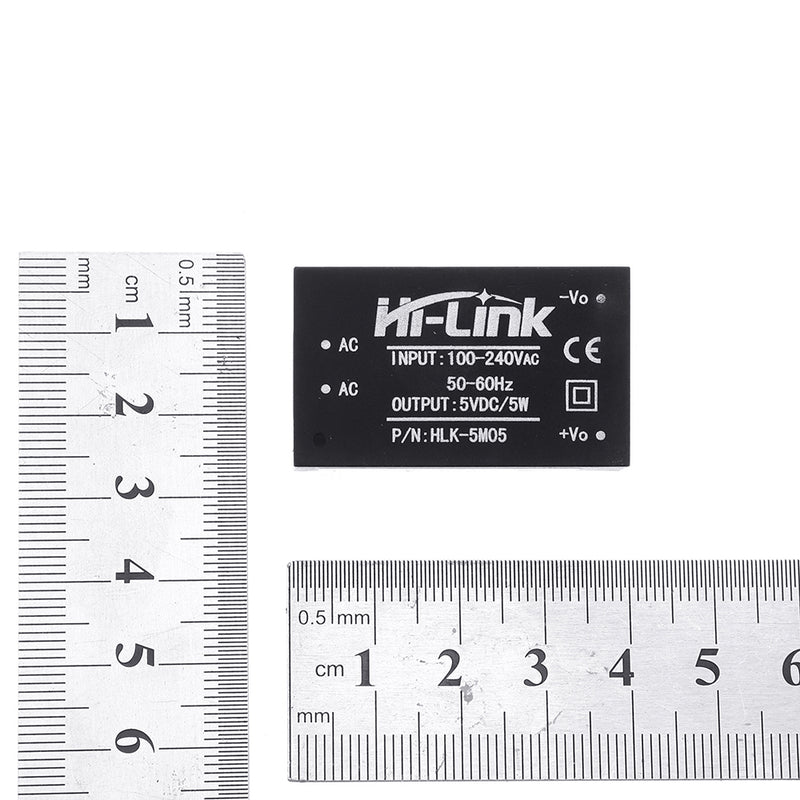

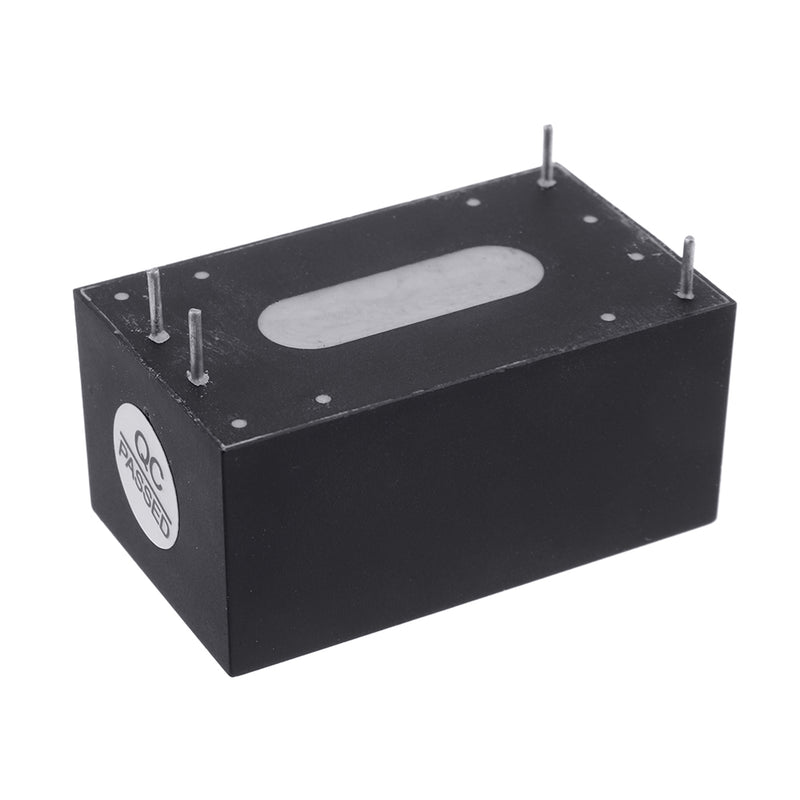

Features:
1. Meet UL, CE requirements,
2. Ultra-thin, ultra-small
3. All voltage input (AC: 90 ~ 240V)
4. Low ripple and low noise
5. Output overload and short circuit protection
6. High efficiency, high power density
7. The product is designed to meet the requirements of EMC and Safety Test
8. Low power consumption, environmental protection, no-load loss <0.1W
9.100% load aging and testing
Environment Condition:
Item Name |
Technical Criteria |
Unit |
Operation Temperature |
-20—+60 |
Centigrade |
Store Temperature |
-40—+80 |
Centigrade |
Relative humidity |
5—95 |
% |
Cooling way |
Cooling by radiation |
|
Atmospheric pressure |
80—106 |
Kpa |
Sea level elevation |
≤2000 |
m |
Vibration |
Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes |
|
Electrical Characteristic:
Input characteristics (test at room temperature 20 ℃).
| Item Name |
Technical Criteria |
Unit |
| Rated input voltage |
100-240 |
VAc |
| Input voltage range |
90-240 |
VAc |
| Maximum input current |
≤0.2 |
A |
| Input current surge |
≤10 |
A |
| maximum input voltage |
≤270 |
VAc |
| Enter slow start |
≤50 |
mS |
| Input Low Voltage Efficiency |
Vin=110VAc,Output full-load≥69 |
% |
| Input High Voltage Efficiency |
Vin=220VAc,output full-load≥70 |
% |
| Long-term reliability |
MTBF≥100,000 |
h |
| Load rated output voltage |
+5±0.1 |
VDc |
| Full rated output voltage |
+5±0.2 |
VDc |
| Short-term maximum output current |
≥1200 |
mA |
| The maximum output current for a long time |
≥1000 |
mA |
| Voltage Regulation |
±0.2 |
% |
| Load Regulation |
±0.5 |
% |
| Output ripple and noise |
≤70 |
mV |
| (mVp-p) |
Rated input voltage, full load. Using 20MHz of bandwidth, |
| |
The load side 10uF and 0.1uF capacitor to be tested. |
| Switch overshoot amplitude |
(Rated input voltage and output load plus 10%)≤5 |
%VO |
| Output over-current protection |
150-200% of the output maximum load |
A |
| Output short circuit protection |
Direct short circuit at the normal output, automatically resume normal operation after a short circuit removal |
|
Package Included:

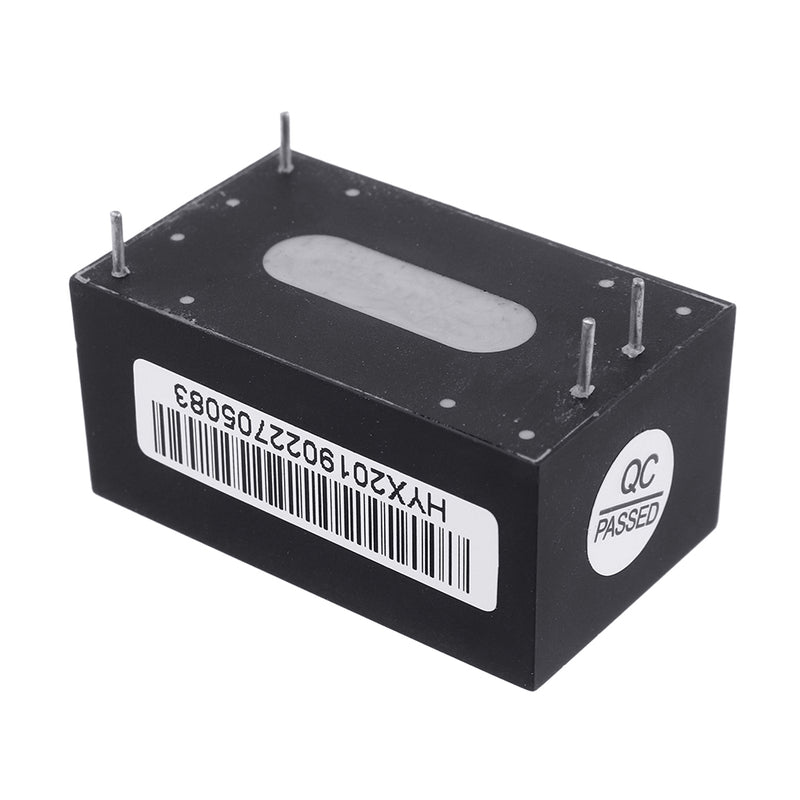

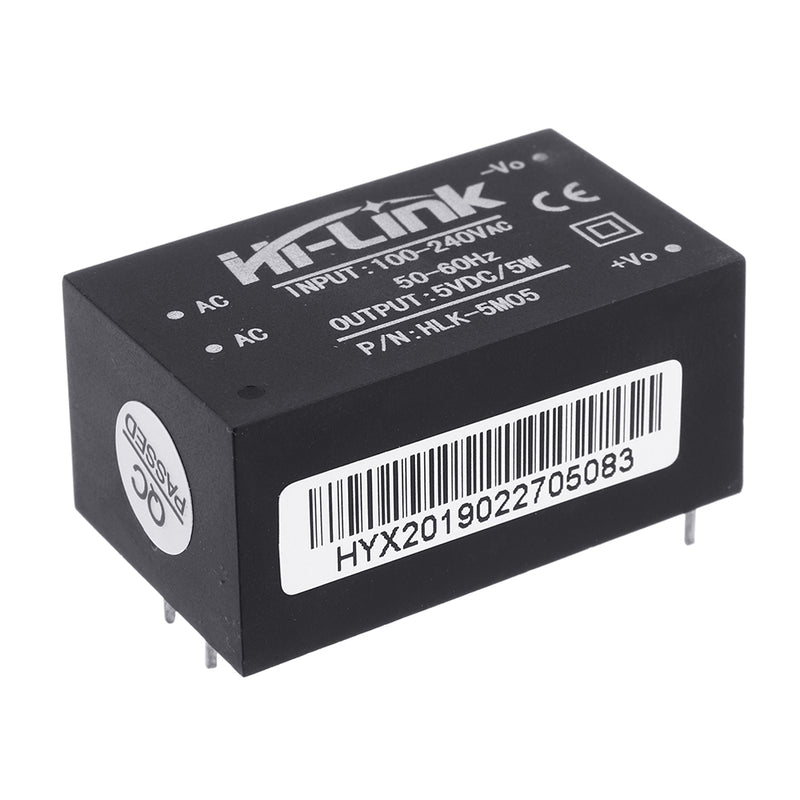

1 x HLK-5M05 AC 100-240V to DC 5V 5W AC-DC Switching Power Supply
