Chip parameters and features:
Passive double balanced mixer in an 8-pin surface mount plastic package (MsOP).
The passive MMiC mixer uses a GaAs Schottky diode and a novel planar transformer on-chip balun structure.
This type of device can be used as an upconverter, downconverter, biphase modulator and demodulator or phase comparator.

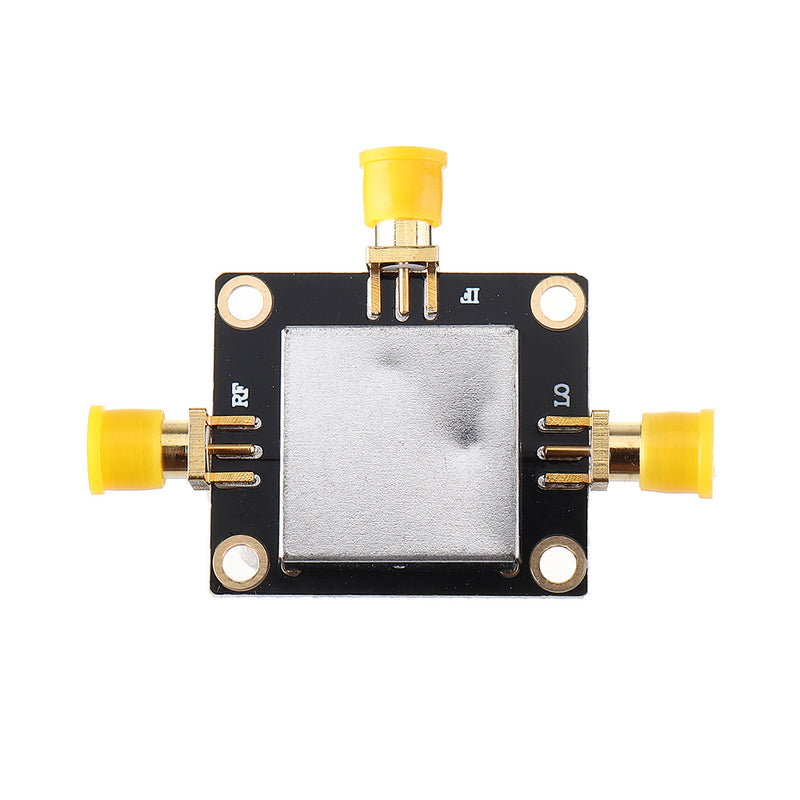

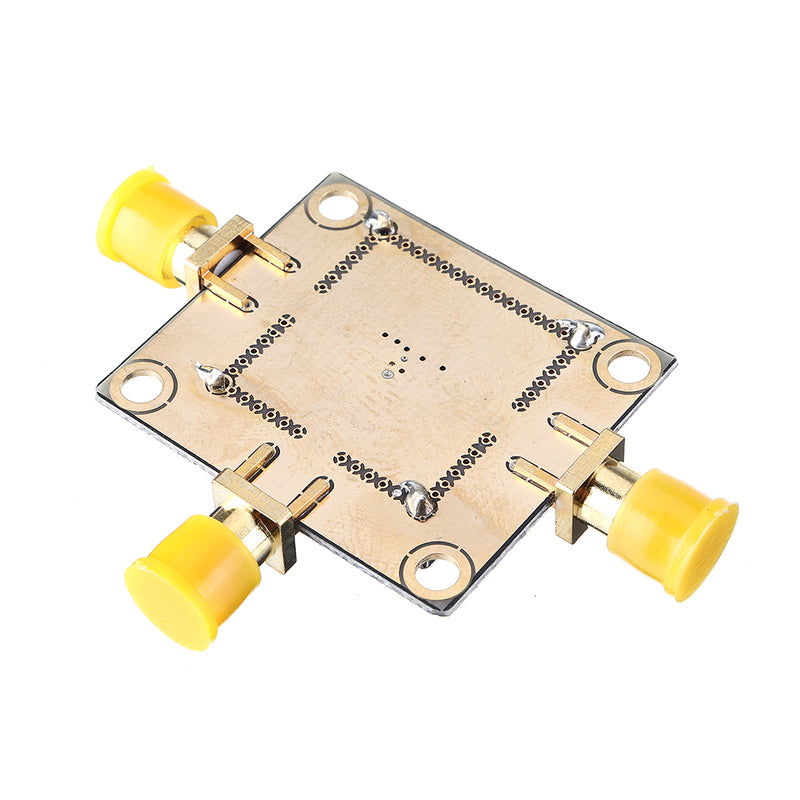

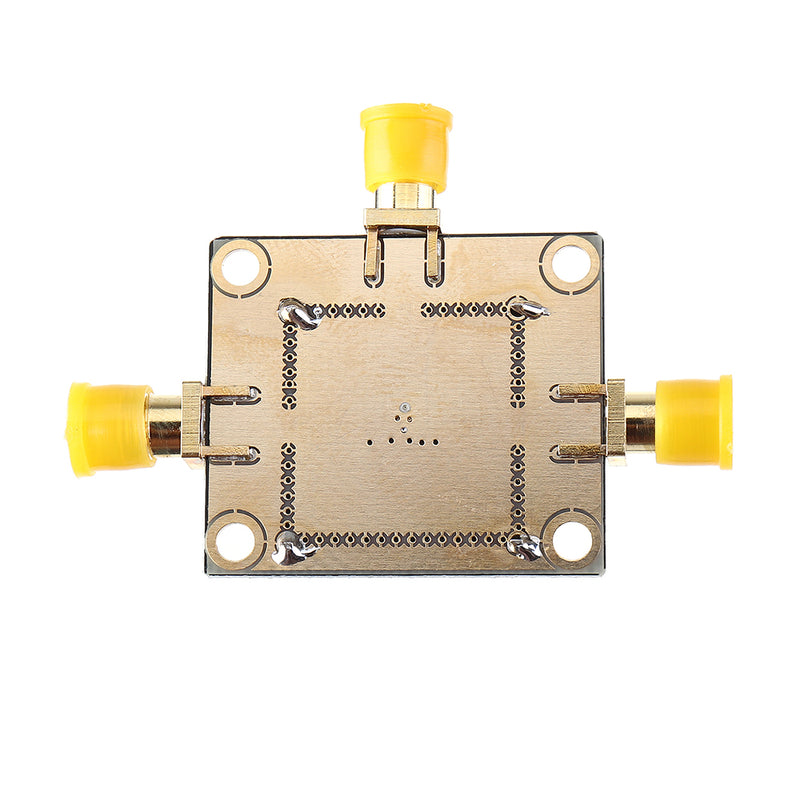

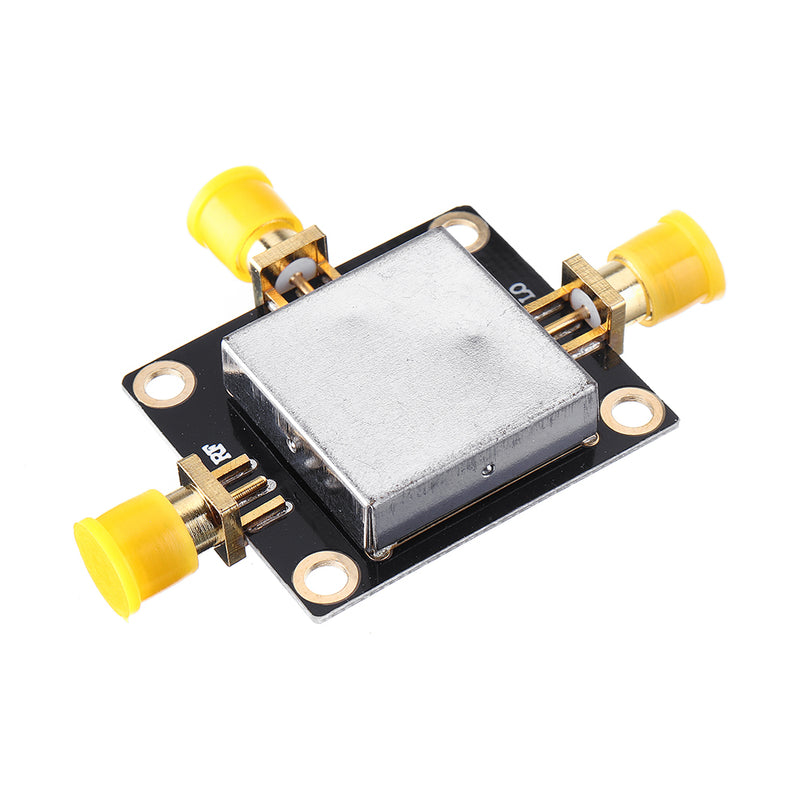

Module features:
Conversion Loss: 8 dB
LO to RF Isolation: 25 dB
LO to IF Isolation: 25dB
Frequency Range, RF & LO: 9-15G
Frequency Range, IF: DC-2.5G
Noise Figure (SSB): 8dB
1 dB Gain Compression (Input): 9.5dBm
IP3 (Input): 17dBm
| Parameter |
IF=1.45 GHz
LO=+13dBm |
Units |
| Min. |
Typ. |
Max. |
| Frequency range, RF&LO |
9.0-15.0 |
GHz |
| Frequency range, IF |
DC-2.5 |
GHz |
| Conversion Loss |
|
8 |
11 |
dB |
| Noise Figure(SSB) |
|
8 |
11 |
dB |
| LO to RF Isolation |
30 |
40-50 |
|
dB |
| LO to IF Isolation |
33 |
40-50 |
|
dB |
| RF to IF Isolation |
8 |
17 |
|
dB |
| IP3 (Input) |
14 |
17 |
|
dBm |
| 1dB Compression (Input) |
7 |
9.5 |
|
dBm |
| RF/IF Input (Vdd=+3V) |
+27dBm |
| LO Drive (Vdd=+3V) |
+27dBm |
| IF DC Current |
+-4mA |
| Storage Temperature |
-65 to +150°C |
| Operating Temperature |
-55 to +85°C |
Package includes:
1 x Mixer
