Feature:Bracket diameter: 10cm (tray diameter)
Operating voltage: DC 5V or 3.3V (5V recommended)
Maximum range: 5kg
Appearance height: 3.5cm (including pillars)
Complete weight: 100g
AD module: HX711 (24-bit AD replacement)
Accuracy after calibration: within 1g
Output signal: digital signal (the pressure sensor is analog voltage signal and then converted to digital signal by AD module. It is not serial output. If you want serial output, you need to convert it by single chip, send serial output 51 single-chip driver)
Signal output bus: It only takes 2 ordinary IOs (similar to I2C communication), and can be read according to AD timing.
Package includes:

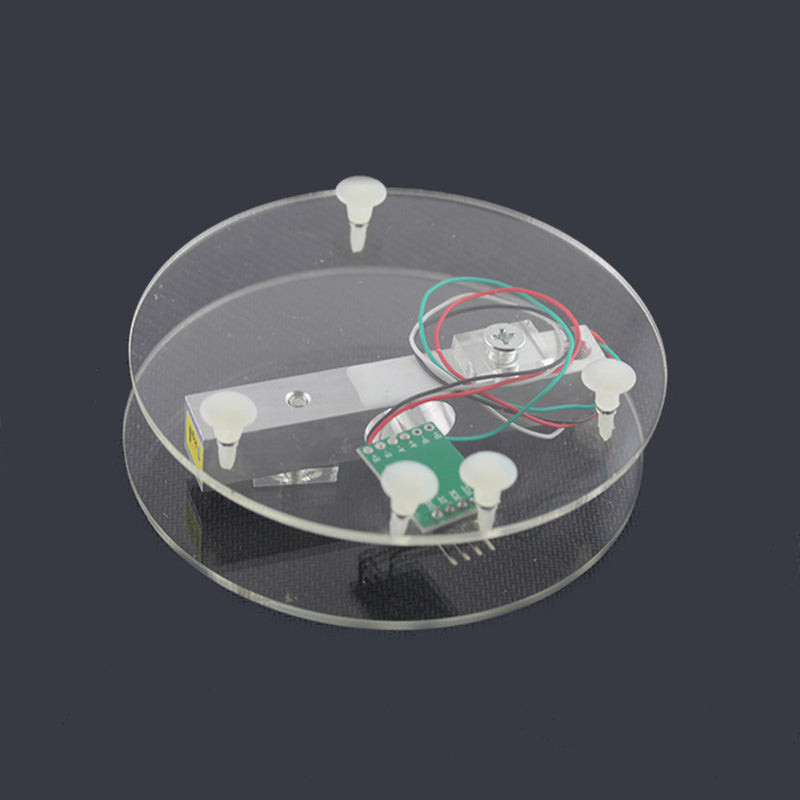

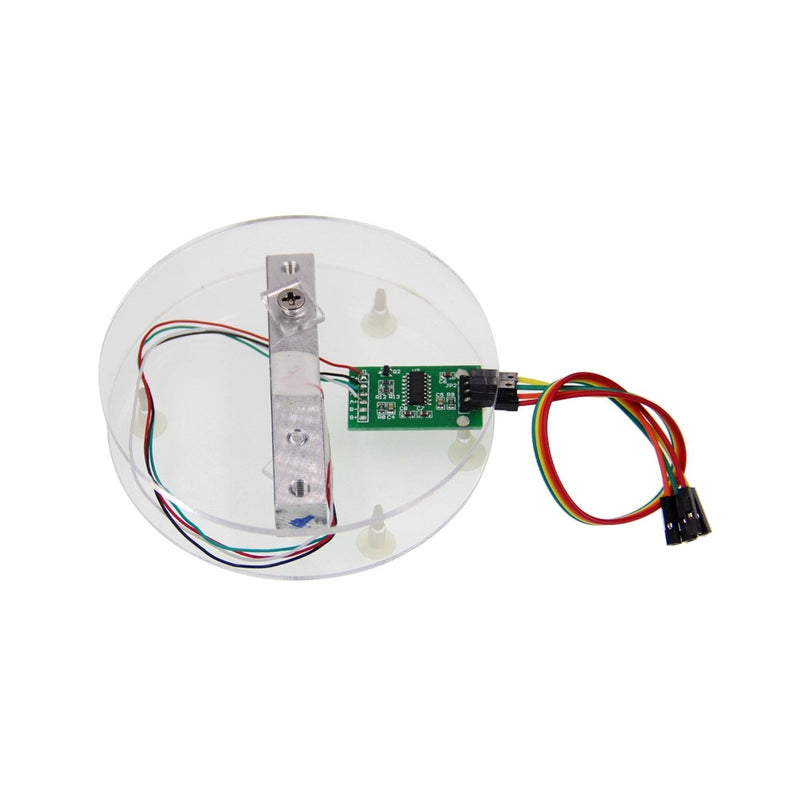

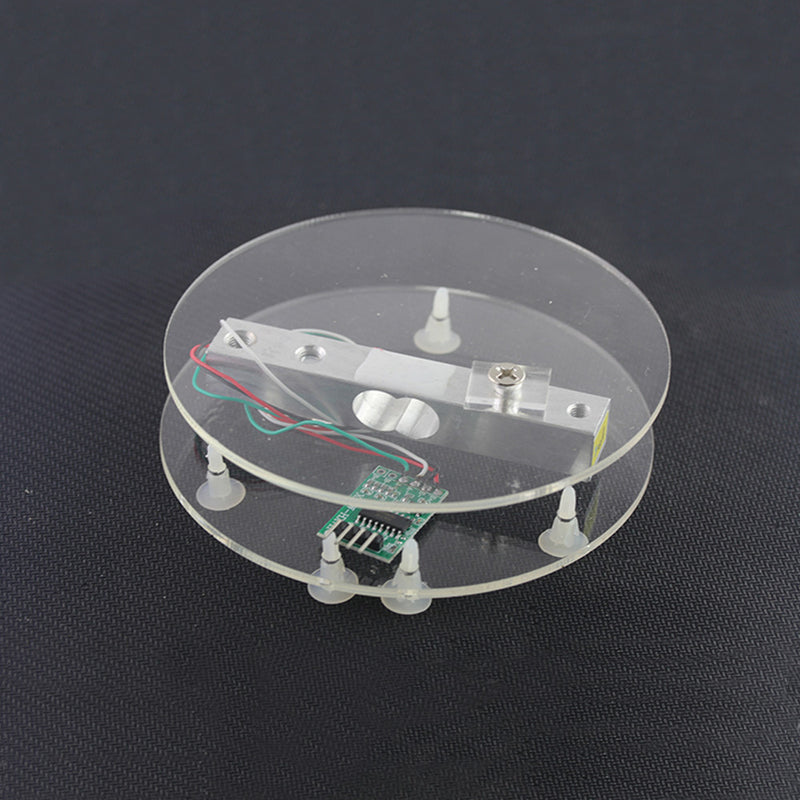

1 x Weighing sensor kit
