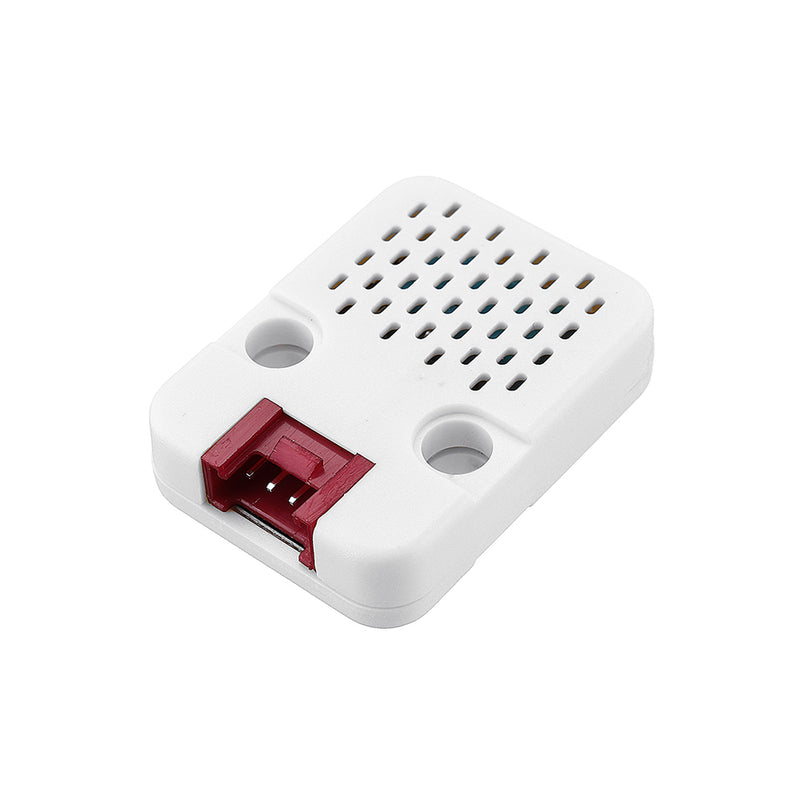

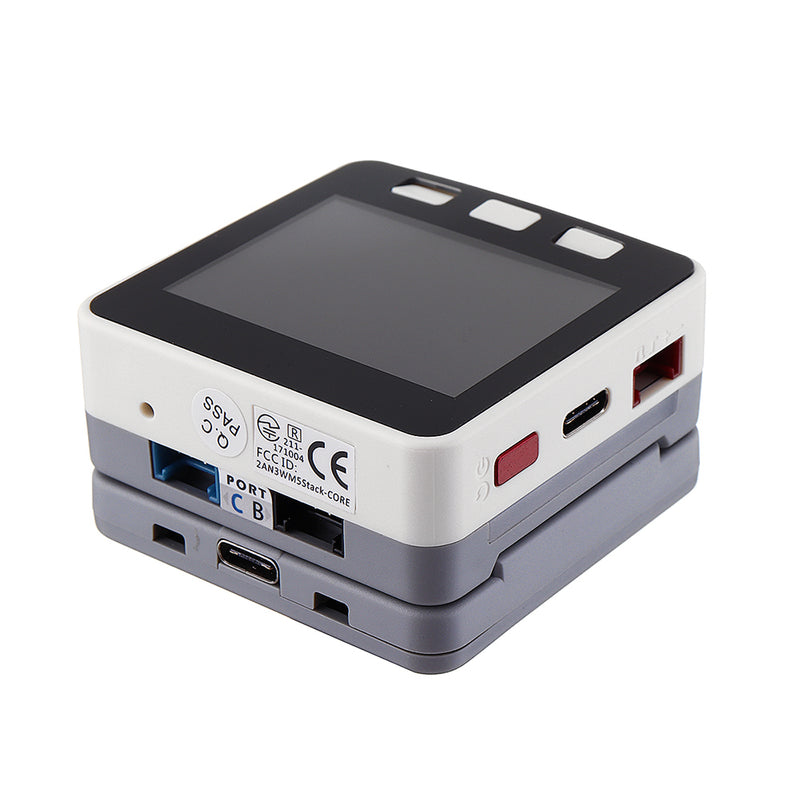

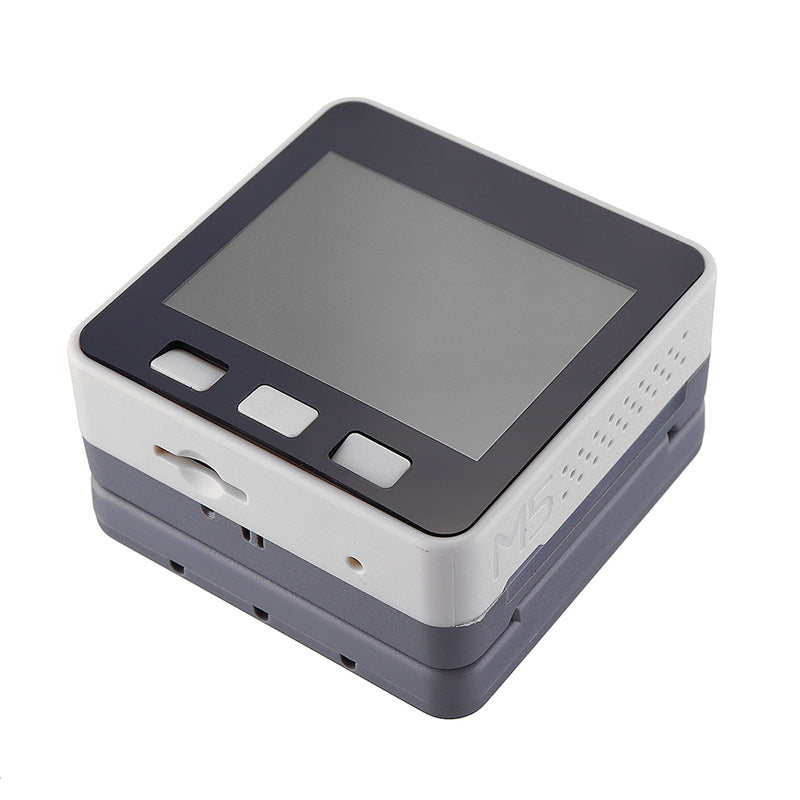

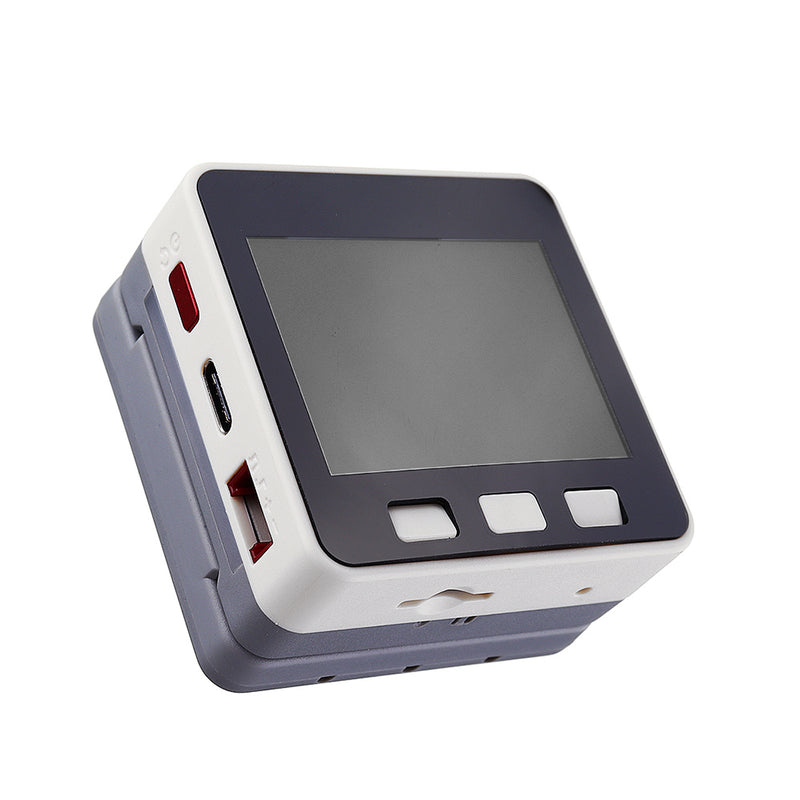

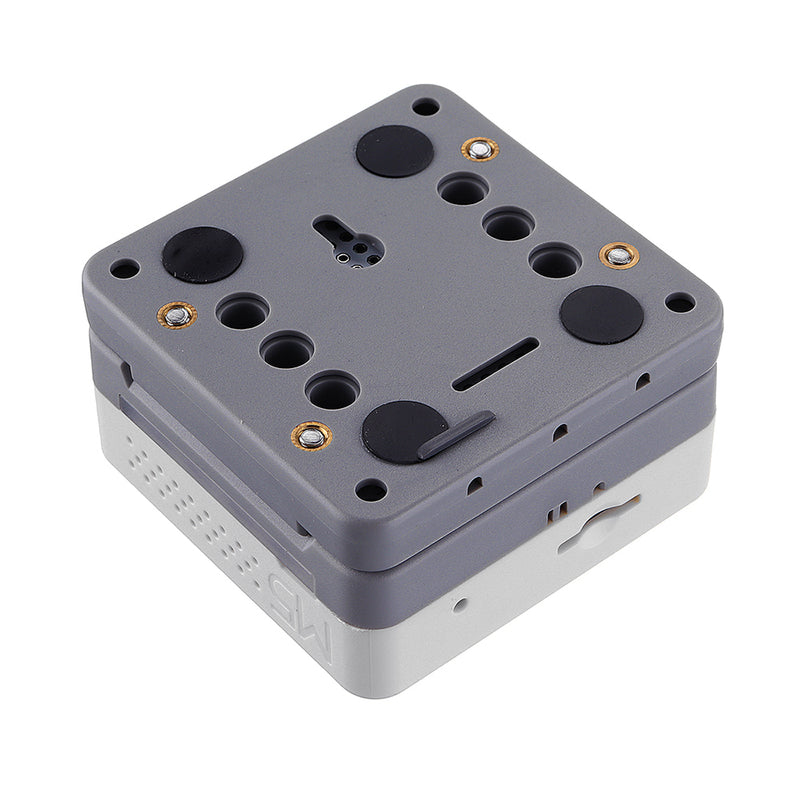

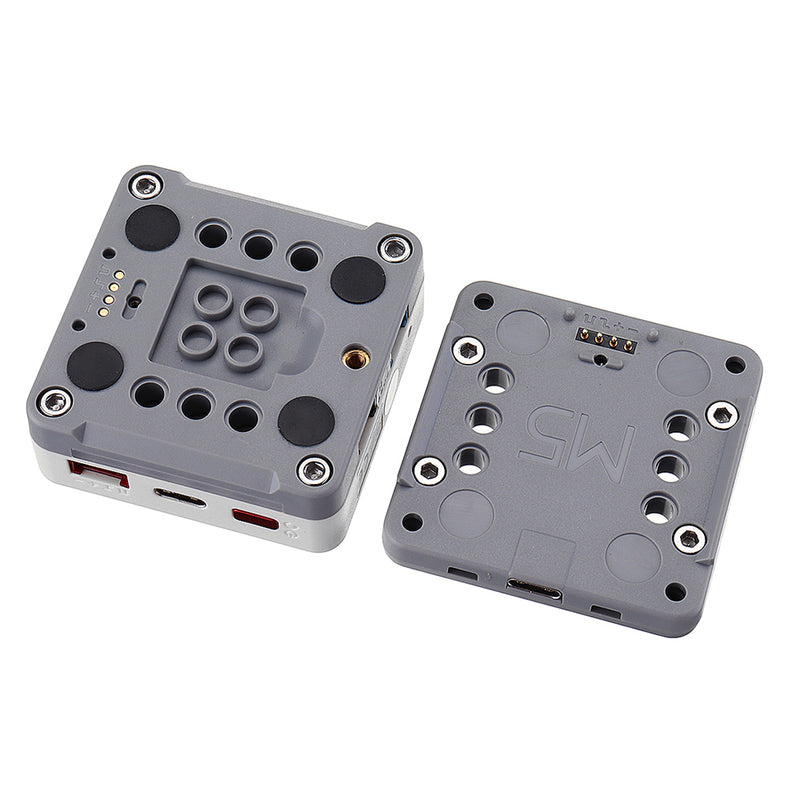

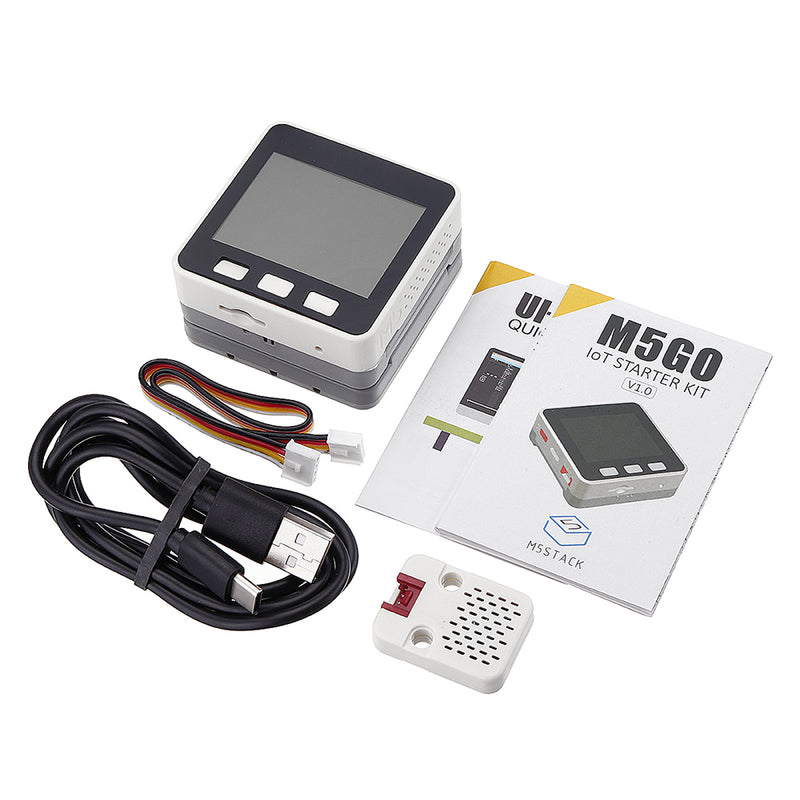

M5GO Lite is a light pack of M5GO kit, instead of having 6 M5units, M5Go-Lite provides 1 ENV + accessories and the same M5 controller as M5GO. M5Go-Lite is also designed for STEM education. M5GO controller itself is already a full-feathered, highly integrated, upgraded development board provides plenty of hardware resources, such as LCD screen, speaker, Led bar, 16M flash, microphone and more. Light but not least.
All M5stack development board can be programmed through IDE, WebIDE UIFlow, Micropython, and Blockly, simplifying the development process for those requiring a joint hardware and software solution. Not only does M5stack have far-reaching IoT applications in industry, agriculture, and home, but it also empowers students to learn to code in STEM classrooms.
Product Features: - 5V DC power supply
- USB Type-C
- ESP32-based
- 16 MByte flash
- MPU9250
- Speaker, 3 Buttons, LCD(320*240), 1 Reset
- 2.4G Antenna: Proant 440
- TF card slot (16G Maximum size)
- Battery Socket & 150 mAh Lipo Battery
- Extendable Pins & Holes
- Grove Port
- M-Bus Socket & Pins
- Development Platform UIFlow, MicroPython, For
ESP32 Features: - 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
- Integrated 520 KB SRAM
- Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
- Integrated dual mode Bluetooth
- Hall sensor
- 10x capactive touch interface
- 32 kHz crystal oscillator
- PWM/timer input/output available on every GPIO pin
- SDIO master/salve 50MHz
- SD-card interface support
PinMap: LCD & TF card
LCD:320x240 TF card Maximum size 16GB
| ESP32 Chip | GPIO23 | GPIO19 | GPIO18 | GPIO14 | GPIO27 | GPIO33 | GPIO32 | GPIO4 |
| ILI9341 | MOSI | / | CLK | CS | DC | RST | BL | |
| TF Card | MOSI | MISO | CLK | | | | | CS |
Button & Speaker
| ESP32 Chip | GPIO39 | GPIO38 | GPIO37 | GPIO25 |
| Button Pin | BUTTON A | BUTTON B | BUTTON C |
| Speaker | | | | Speaker Pin |
GROVE Port A & IP5306
We’ve use the customized I2C version of IP5306, on power management.
Its I2C address is 0x75. Click here to check its datasheet
| ESP32 Chip | GPIO22 | GPIO21 | 5V | GND |
| GROVE A | SCL | SDA | 5V | GND |
| IP5306 | SCL | SDA | 5V | GND |
9-Axle Posture Sensor MPU9250
