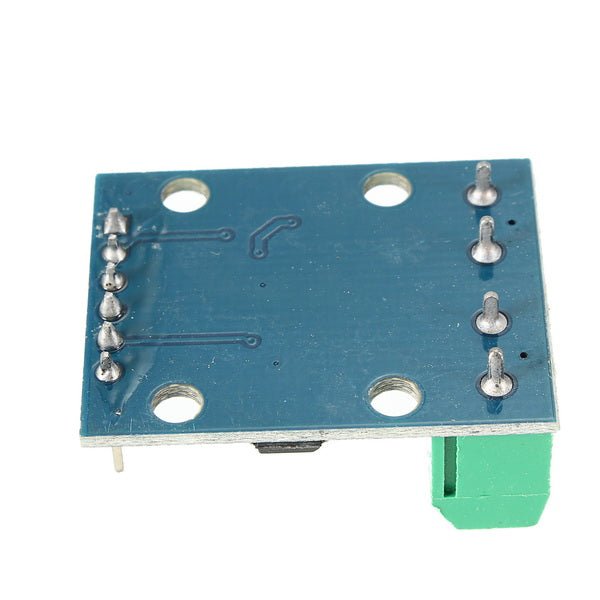

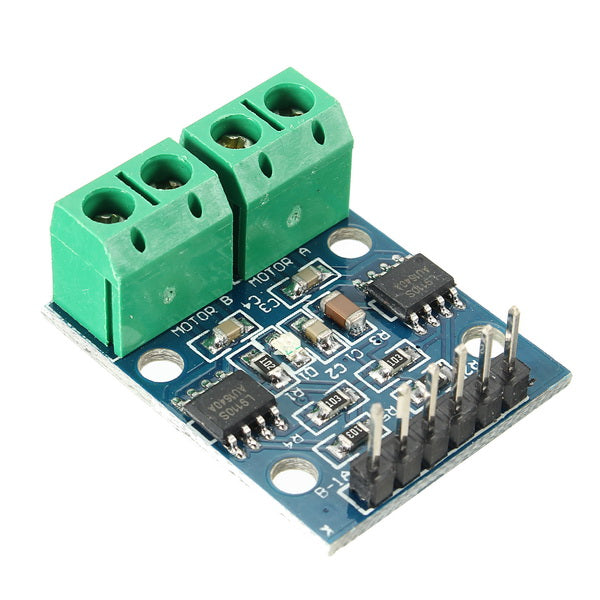

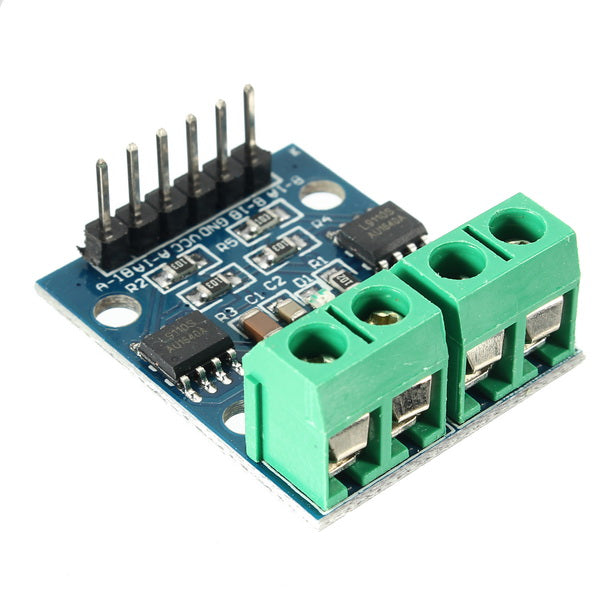

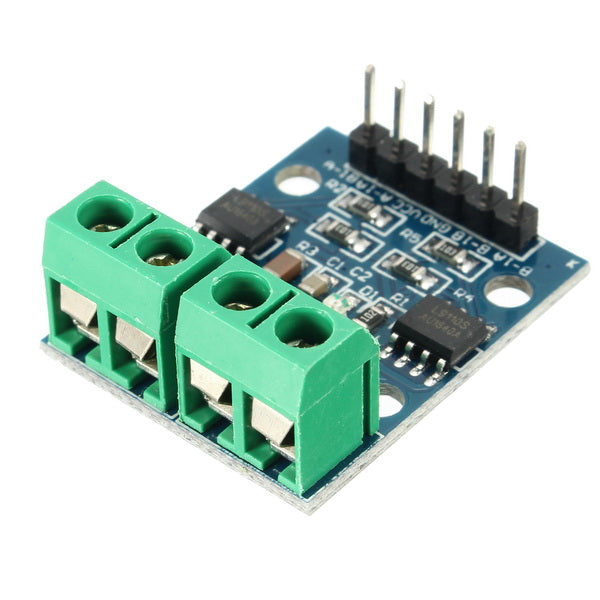

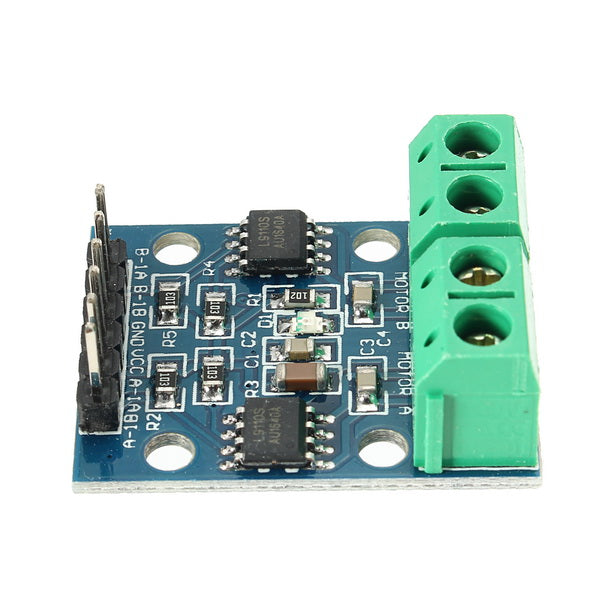

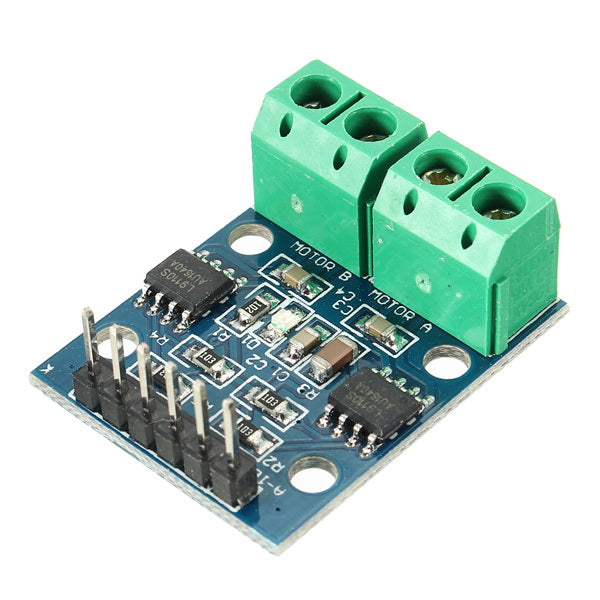

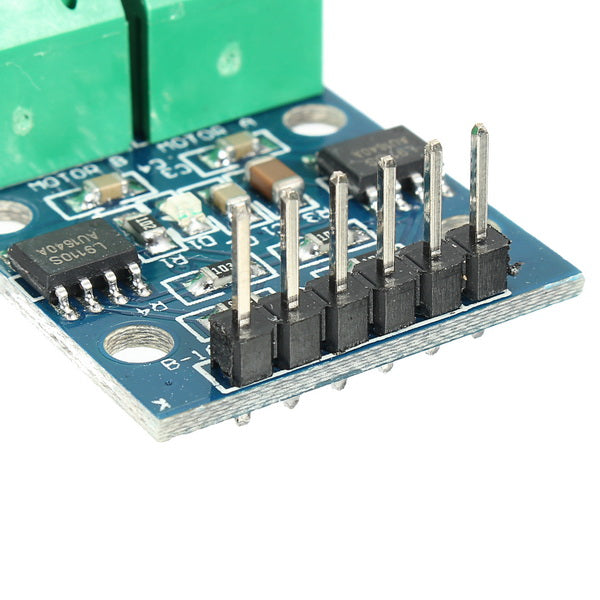

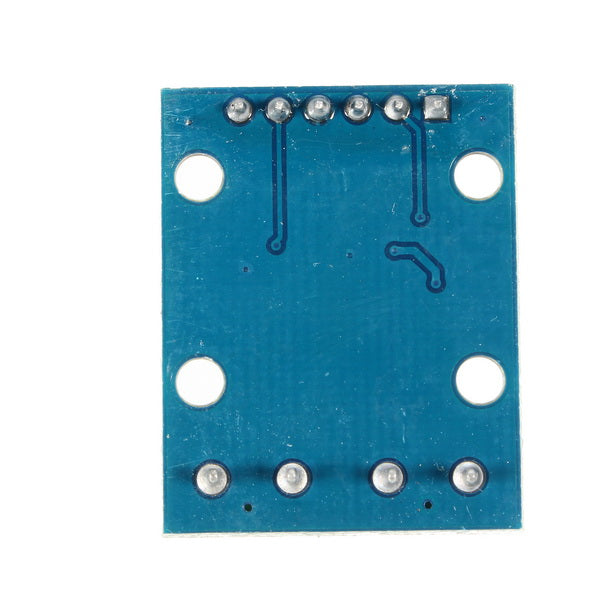

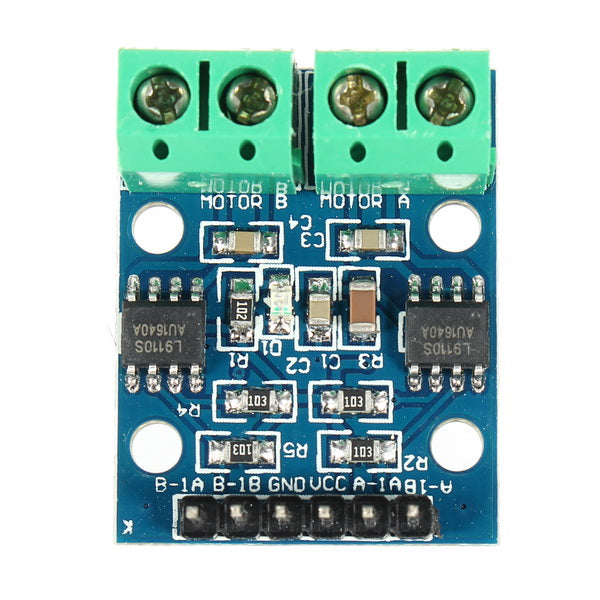

Description:
There are two L9110S motor control chip onboard
This module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
Feature:
Work under low static current
Power supply voltage: DC 2.5V - 12V
Each channel has 800mA continuous current output
Low saturation pressure drop
TTL / CMOS output level compatible, can be connected directly to the CPU
Output built-in clamping diode, apply to the perceptual load
Control and drive integrate in IC
Pin high pressure protection function
Working temperature: 0°C - 80°C
Size: 29 x 21mm(L x W)
Circuit diagram:
Package included:
1 x L9110S stepper motor driver
,,,,,
