Features:
Development platform: ESP-IDF (native SDK), , Lua, MicroPython, Scratch
Support SIM card mobile communication function
Support microphone
Support voice
Support for scalable module use
Code: Click here to open
| ESP32 |
Characteristic |
Description |
| GPIO05 |
CS |
Screen, TFT_CS |
| GPIO18 |
SCLK |
Screen, TFT_SCLK |
| GPIO19 |
MOSI |
Screen, TFT_MOSI |
| GPIO27 |
DC |
Screen, TFT_DC |
| GPIO12 |
BL |
Screen, TFT_BL |
| ESP32 |
Characteristic |
Description |
| GPIO33 |
TX |
SIM Card, UART_SIM_TX |
| GPIO34 |
RX |
SIM Card, UART_SIM_RX |
| GPIO14 |
RST |
SIM Card, SIM_RST |
| GPIO15 |
PWKEY |
SIM Card, SIM_PWKEY |
| GPIO04 |
BOOST |
SIM Card, SIM_BOOST_CTRL |
Package includes:

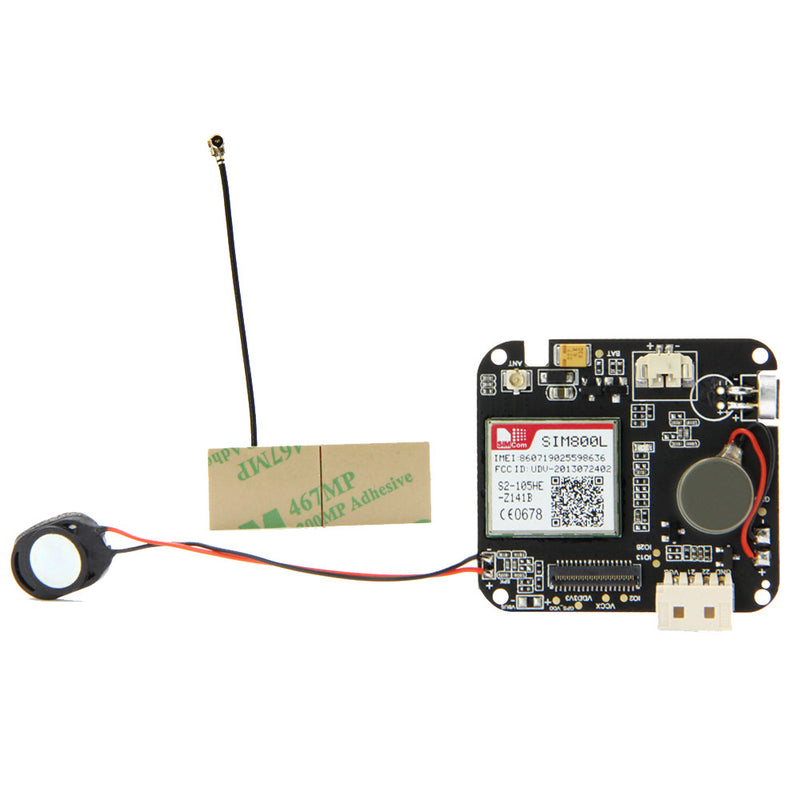

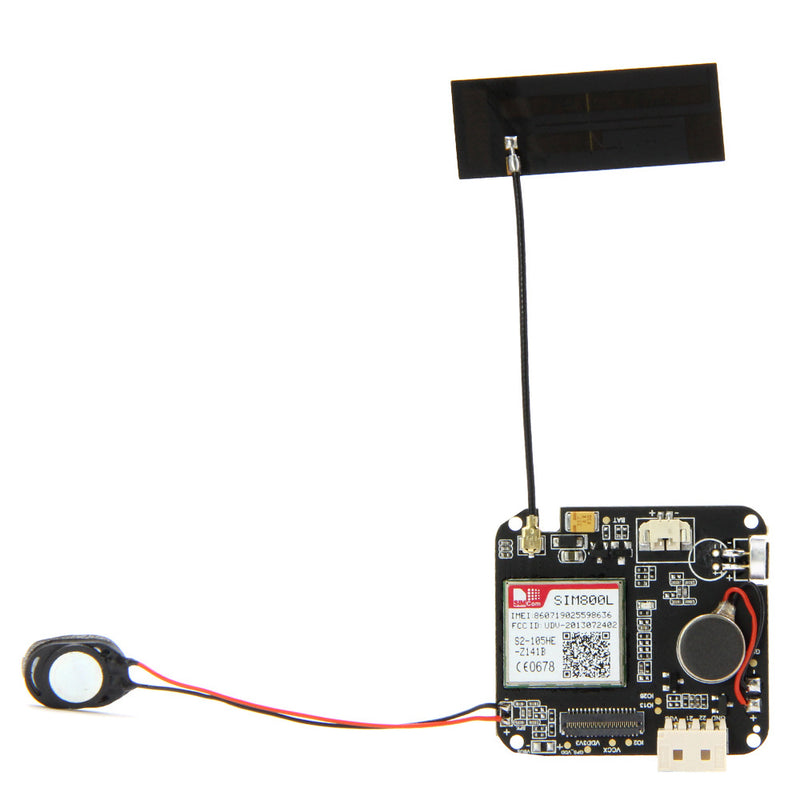

1 x T-Watch SIM800L PCB backplane
1 x Antenna
Wiring with the T-watch box, for reference only, the T-watch does not includes:
