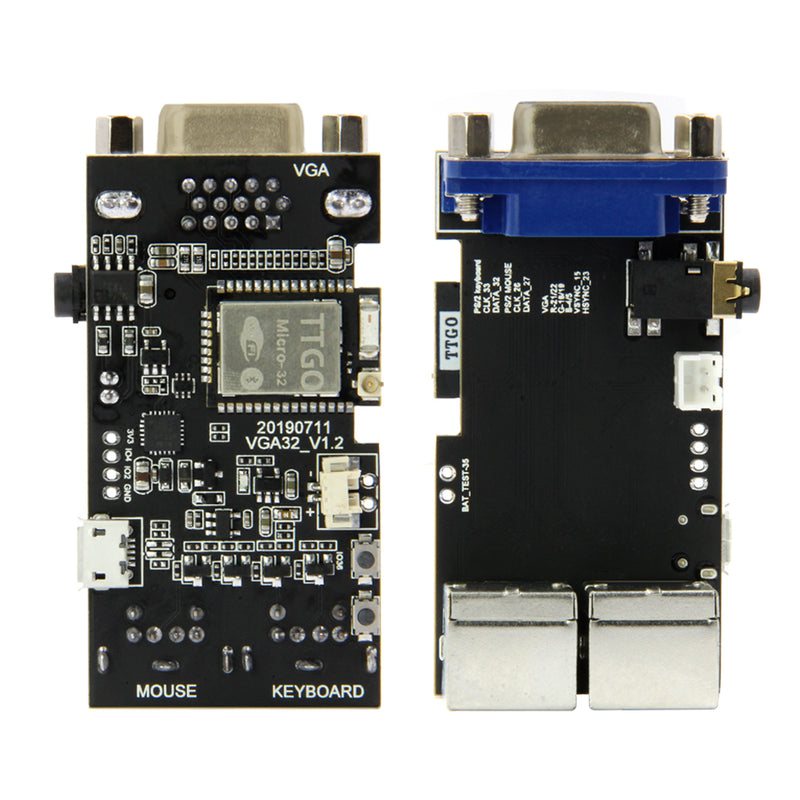

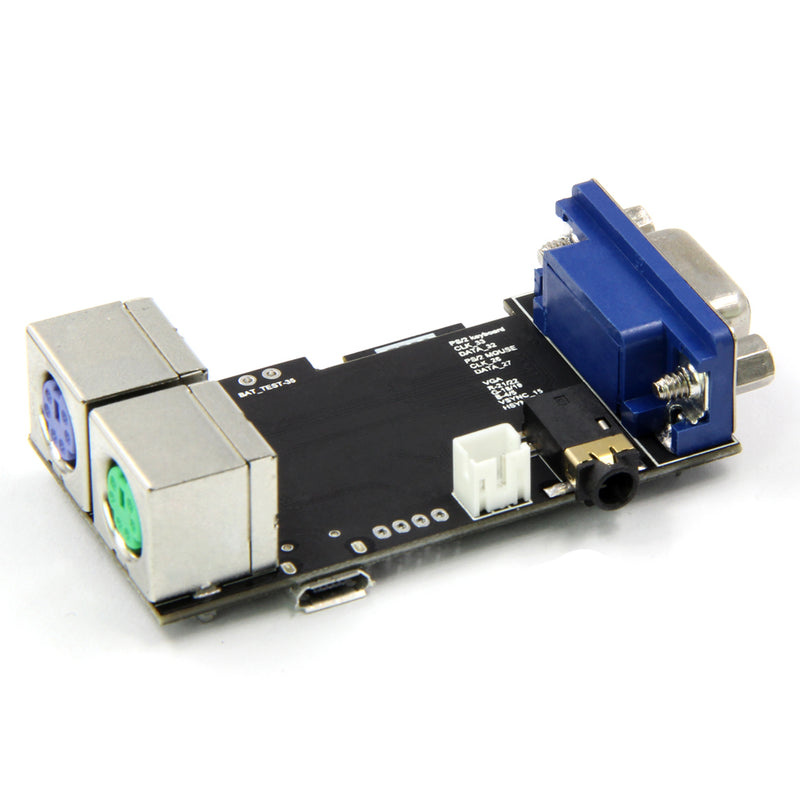

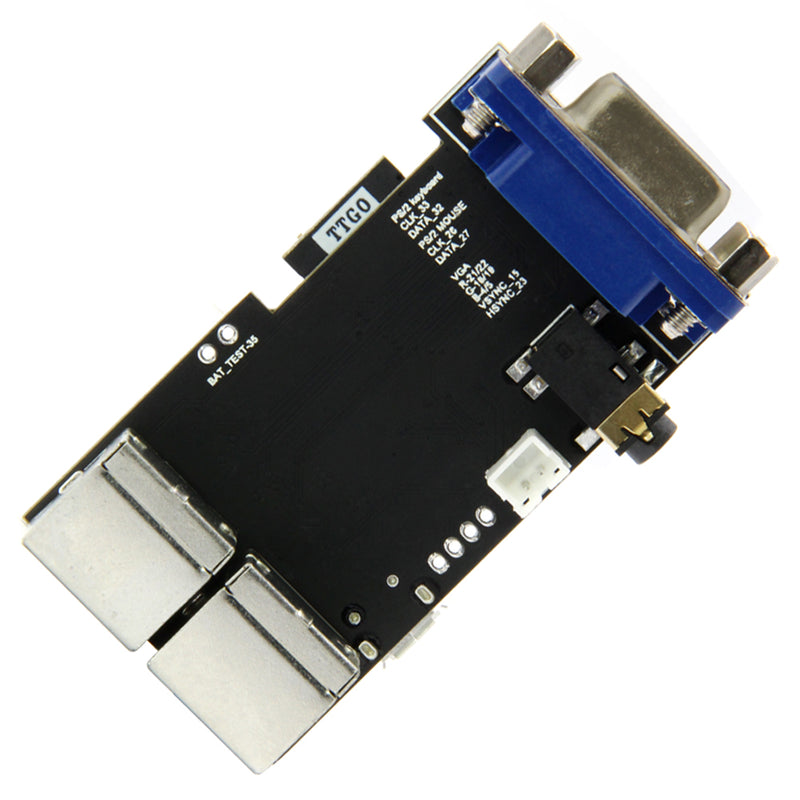

Name: LILYGO TTGO VGA32 V1.1 Controller PS/2 Mouse And Keyboard Controller Graphics Library Game Engine ANSI/VT Terminal For ESP32
Brand: Banggood
SKU: U2I-BG-1501189
Price: 3,292.00 INR
Availability: InStock

SKU: U2I-BG-1501189

Share this product

Feature:

Update information: Add audio output interface 3.5mm interface, and speaker output JST 2.0 PH 2-Pin interface

Hardware	Specifications
Chipset	TTGO Micro32
FLASH	QSPI flash 4MB / PSRAM 8MB
SRAM	520 kB SRAM
Button	Reset, IO36
Extended function	VGA, PS/2
USB to TTL	CP2104
Modular interface	UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
On-board clock	40MHz crystal oscillator
Working voltage	2.7V-3.6V
Working current	about 30mA
Sleep current	230uA
Working temperature range	-40℃ ~ +85℃
Size & Weight	without VGA: 60.99mm32.06mm16.79mm with VGA: 66.70mm32.06mm16.79mm 21.25g
Power Supply	Specifications
Power Supply	USB 5V/1A
Charging current	500mA
Battery	3.7V lithium battery
Wi-Fi	Description
Standard	FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Protocol	802.11 b/g/n(802.11n, speed up to150Mbps)A-MPDU and A-MSDU polymerization, support 0.4μS Protection interval
Frequency range	2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power	22dBm
Communication distance	300m
Bluetooth	Description
Protocol	meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency	with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH
Audio frequency	CVSD&SBC audio frequency
Software specification	Description
Wi-Fi Mode	Station/SoftAP/SoftAP+Station/P2P
Security mechanism	WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type	AES/RSA/ECC/SHA
Firmware upgrade	UART download/OTA (Through network/host to download and write firmware)
Software Development	Support cloud server development /SDK for user firmware development
Networking protocol	IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
User Configuration	AT + Instruction set, cloud server, android/iOSapp
OS	FreeRTOS

Package includes:

1 x Controller
