Specifications:

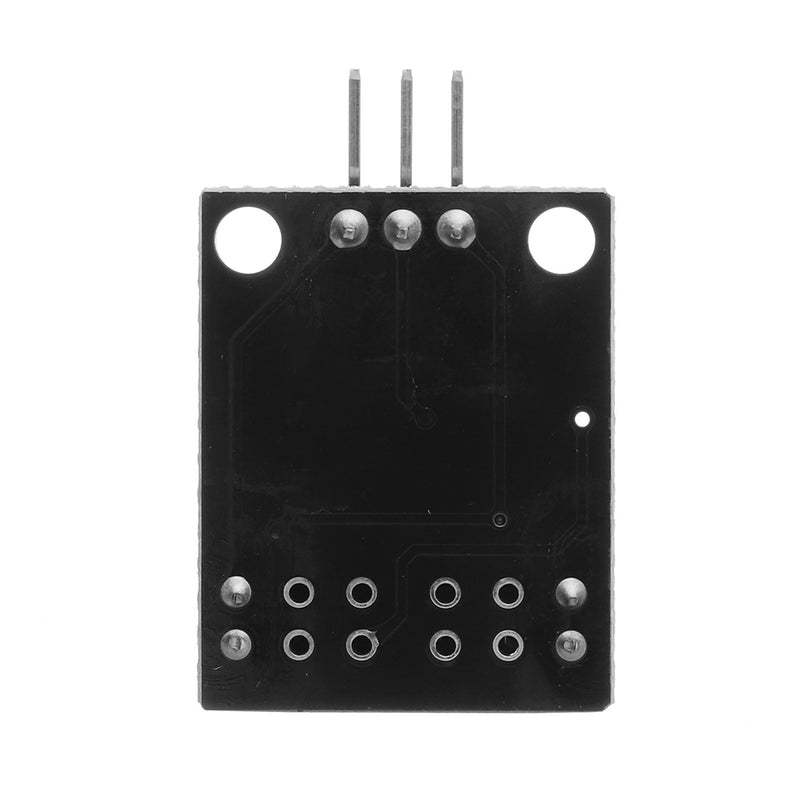

The distance between PCB two circular hole (point to point center) is 1.5cm, and the aperture is 0.3cm.

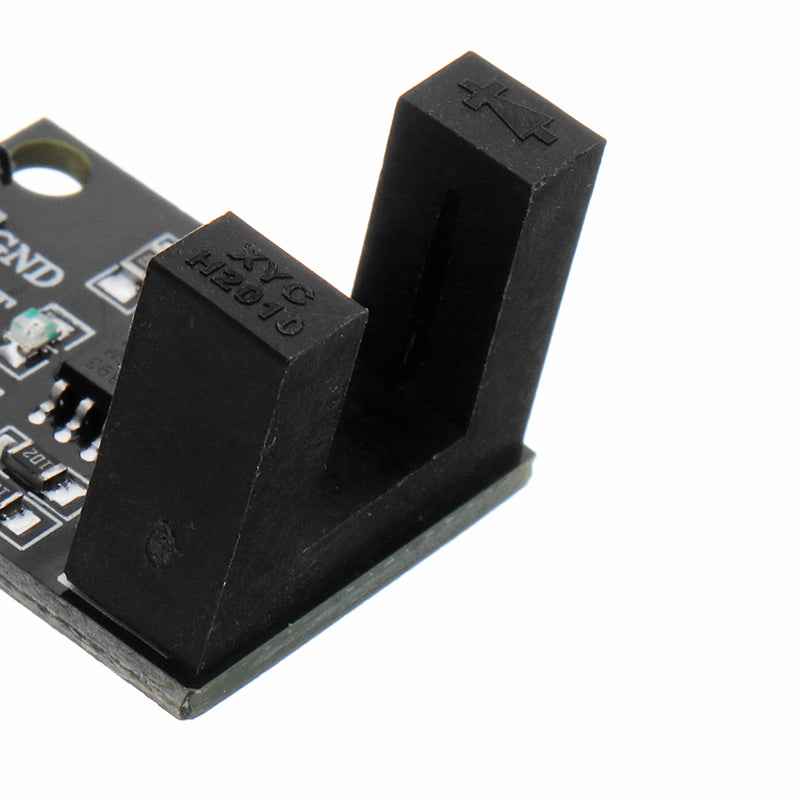

Slot type optocoupler slot width : 10mm

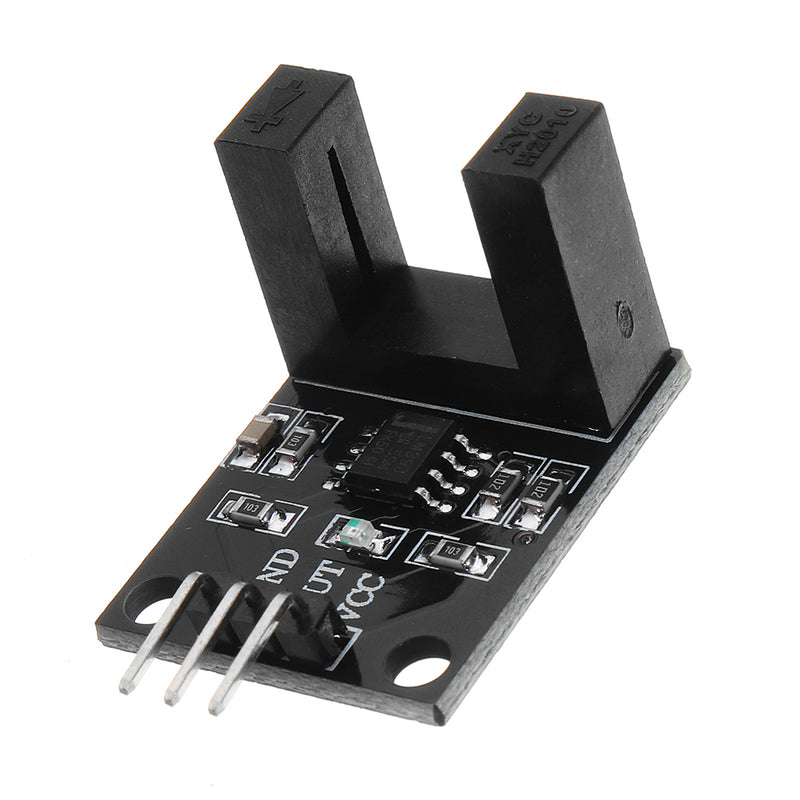

Main chip: LM393, slot type optocoupler H2010
Working voltage: DC 5V
Size: 32mm x11mm x 20mm
Characteristic:
1. There is a signal output indication.
2. Single signal output.
3. When the object is blocked, the output is high level (LED lights out), and the output is low when there is no shelter. (LED lights).
4. The sensitivity is not adjustable.
5 It can be used for workpiece counting and motor speed measurement.
6. Circuit board output switch quantity
Package Included:
1x Optoelectronic PIR Sensor Module
