M5Stack 8-Way Servo HAT STM32F030F4 Microcontroller Control Board for M5StickC ESP32 IoT Development Board

Description:

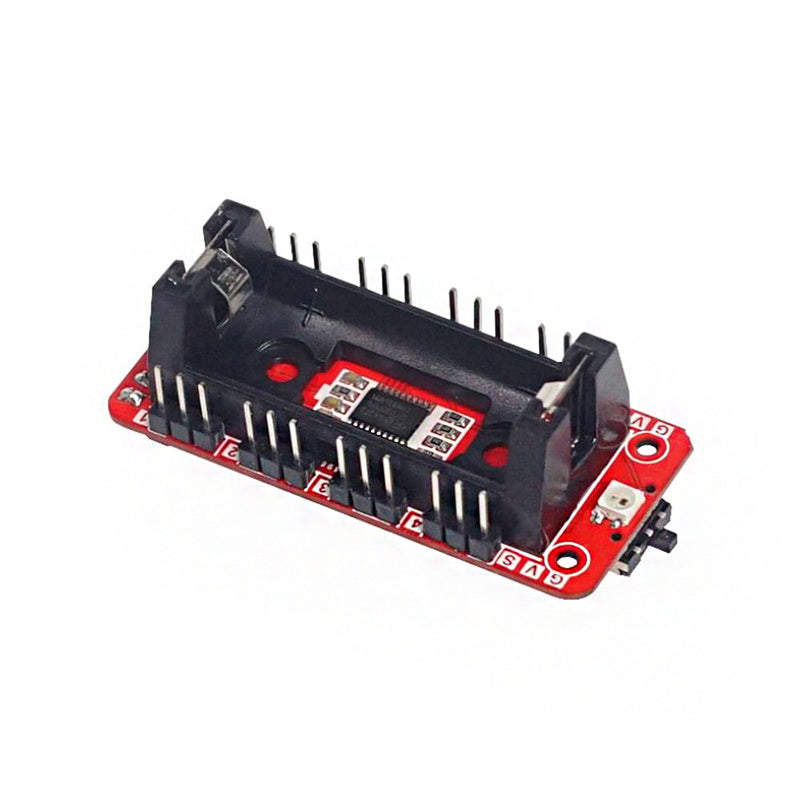

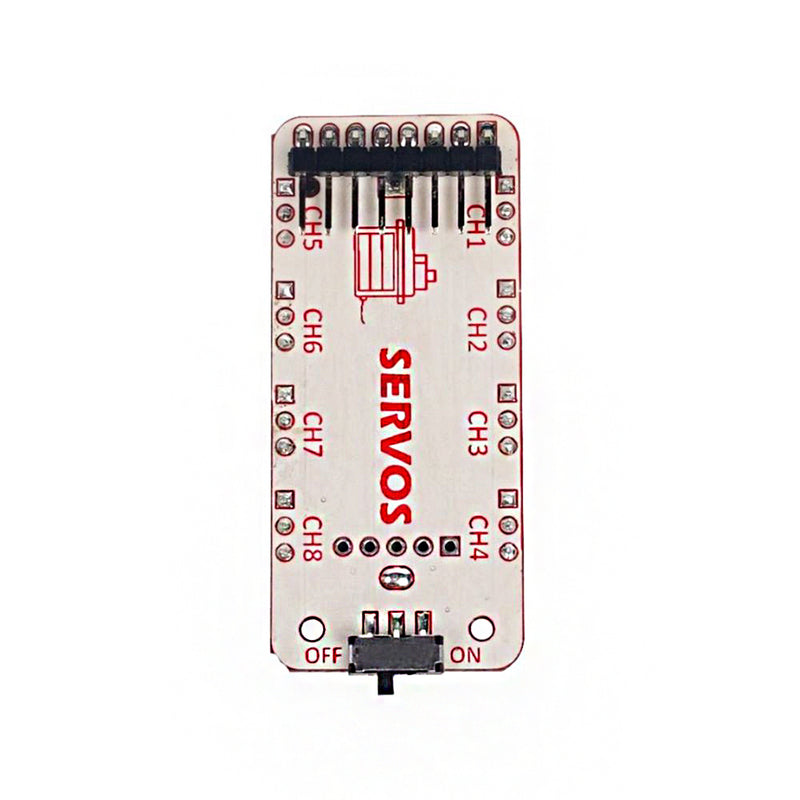

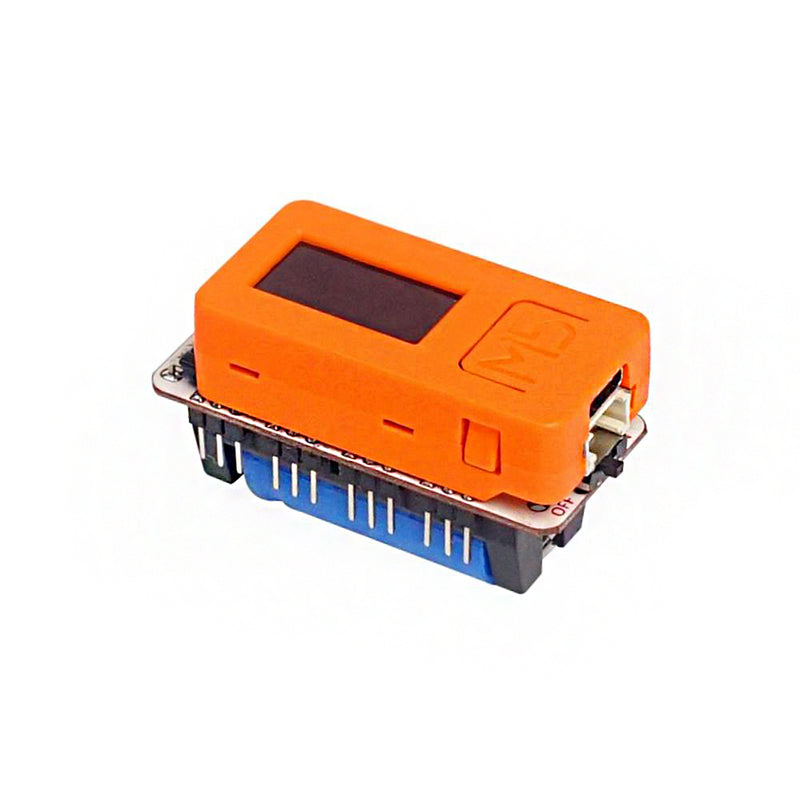

8Servos HAT is an 8-way servo control board compatible with M5StickC. The brains of the borad is the STM32F030F4 microcontroller which communicates with M5StickC through I2C. In order to ensure that multiple servos can work at the same time, the HAT is equipped with a separate 16340 battery base for an external and independent power supply. A control switch and an RGB LED are also integrated with the HAT. The SG90 servos are a perfect fit for this HAT.

Product Features:

• 8-way servo control
• onboard RGB LED

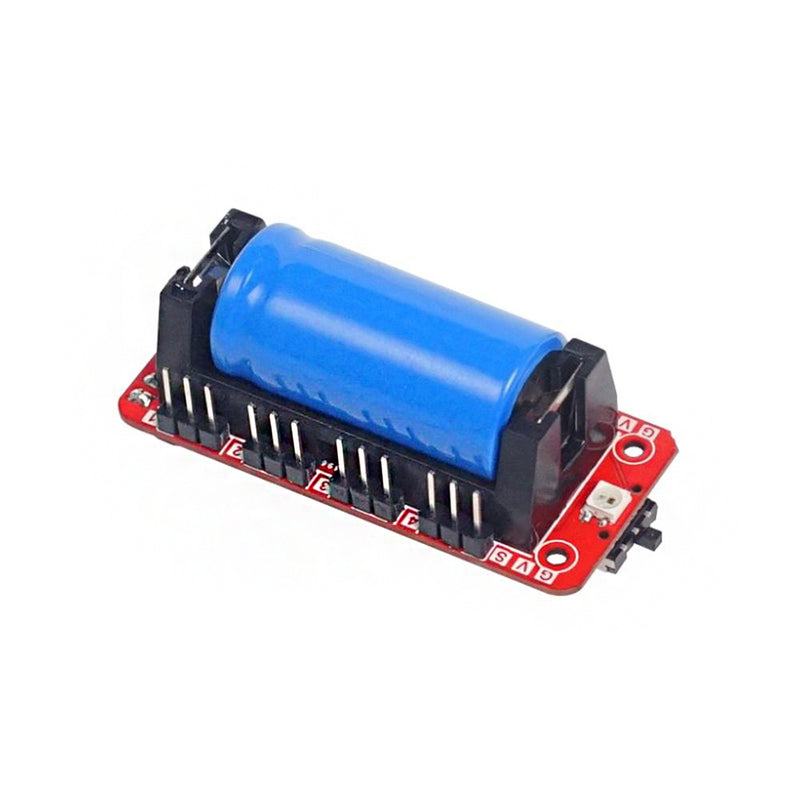

• 16340 battery base
• I2C protocol for comunication and control

Weight and Size:

• Size: 55mm * 25mm * 20mm
• weight: 33g(include battery)

Applications:

• Multiple servo control
• Robotic Arm
• Biomimetic Robots
• Smart and cognitive toys

Package Included:

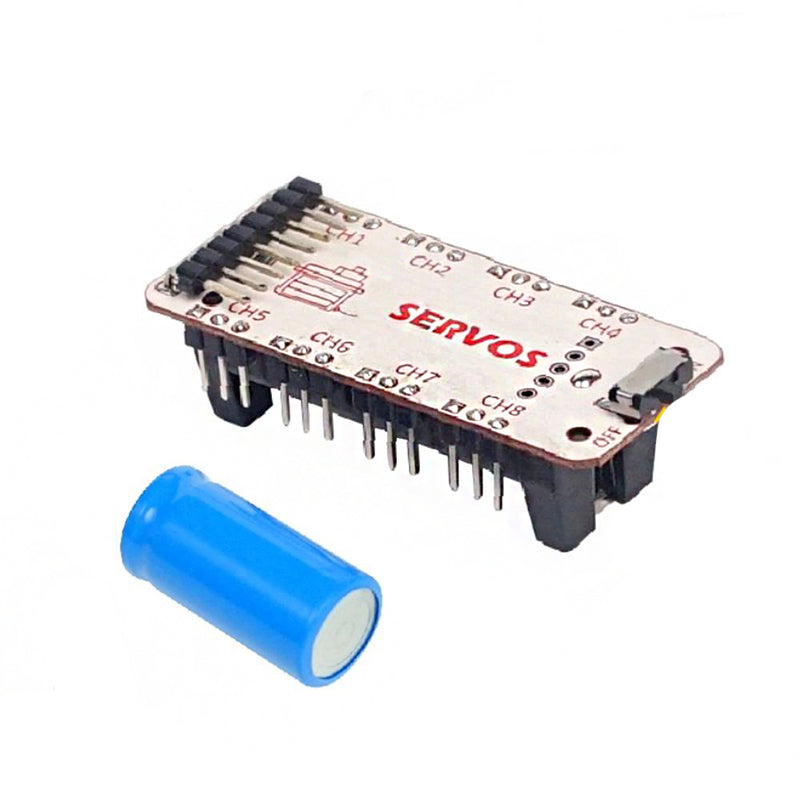

• 1x 8Servos-HAT
• 1x 16340 battery

EasyLoader:

Download EasyLoader

1. EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. This can be burned to the M5 device through simple steps, and a series of function verifications can be performed.

2. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to burn the program (For M5StickC, set the baud rate to 115200 or 750000)

Code:

1. for IDE

To get complete code, please click here

8Servos HAT Instructions:

1. Function Description

  (1)Eight-way servo control    (2)Onboard sk6812 LED controlCopy to clipboardErrorCopied

2. Communication Method

  I2C,bitrate 400HZ,address support self-addition    address:0x38    register      value        description    00H            0X00       CH1 angle out    01H            0X00       CH2 angle out    02H            0X00       CH3 angle out    03H            0X00       CH4 angle out    04H            0X00       CH5 angle out    05H            0X00       CH6 angle out    06H            0X00       CH7 angle out    07H            0X00       CH8 angle outCopy to clipboardErrorCopied

3. I2C address description

   00H(R/W)servo register address

   description:

   (1)Data can be read and written continuously

   (2)Each register value indicates the degree can be written to 0-180

10H(R/W)servo pulse width register

  address    value    description    10H        0X00    CH1_WIDTH[8:15]    11H        0X00    CH1_WIDTH[0:7]    12H        0X00    CH2_WIDTH[8:15]    13H        0X00    CH2_WIDTH[0:7]    14H        0X00    CH3_WIDTH[8:15]    15H        0X00    CH3_WIDTH[0:7]    16H        0X00    CH4_WIDTH[8:15]    17H        0X00    CH4_WIDTH[0:7]    18H        0X00    CH5_WIDTH[8:15]    19H        0X00    CH5_WIDTH[0:7]    1AH        0X00    CH6_WIDTH[8:15]    1BH        0X00    CH6_WIDTH[0:7]    1CH        0X00    CH7_WIDTH[8:15]    1DH        0X00    CH7_WIDTH[0:7]    1EH        0X00    CH8_WIDTH[8:15]    1FH        0X00    CH8_WIDTH[0:7]    description:    (1)Data can be read and written continuouslyCopy to clipboardErrorCopied

20H(R/W)LED_RGB register

  address    value    description    20H        0X00     G[0:7]    21H        0X00     R[0:7]    22H        0X00     B[0:7]    description:    (1)Data can be read and written continuously    (2)RGB888
