Description:
Base15 Base26 is a highly customizable bottom for industrial purpose. Similar to PLC Base but higher customized level.

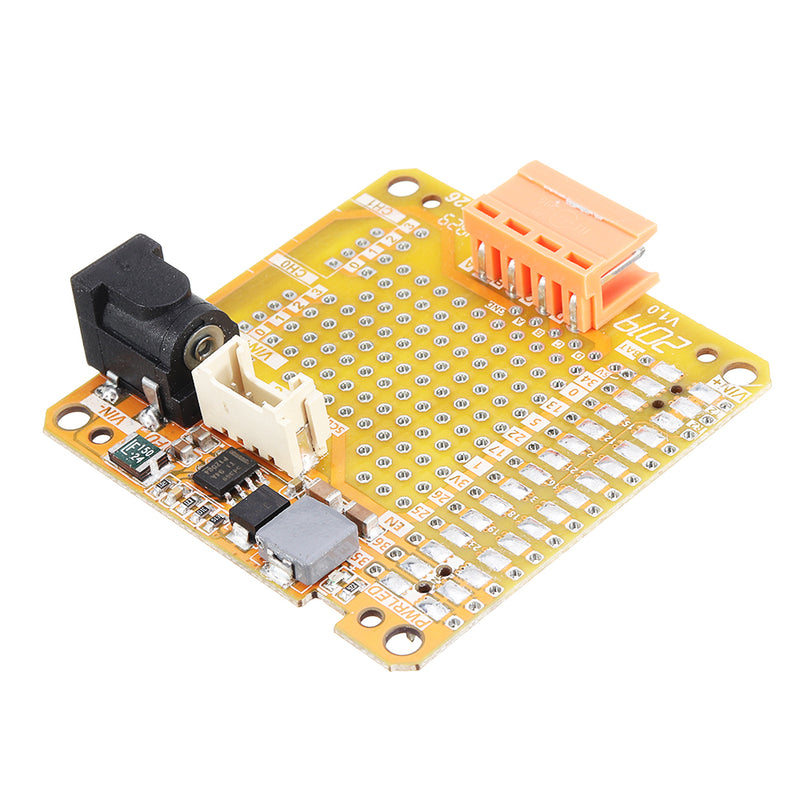

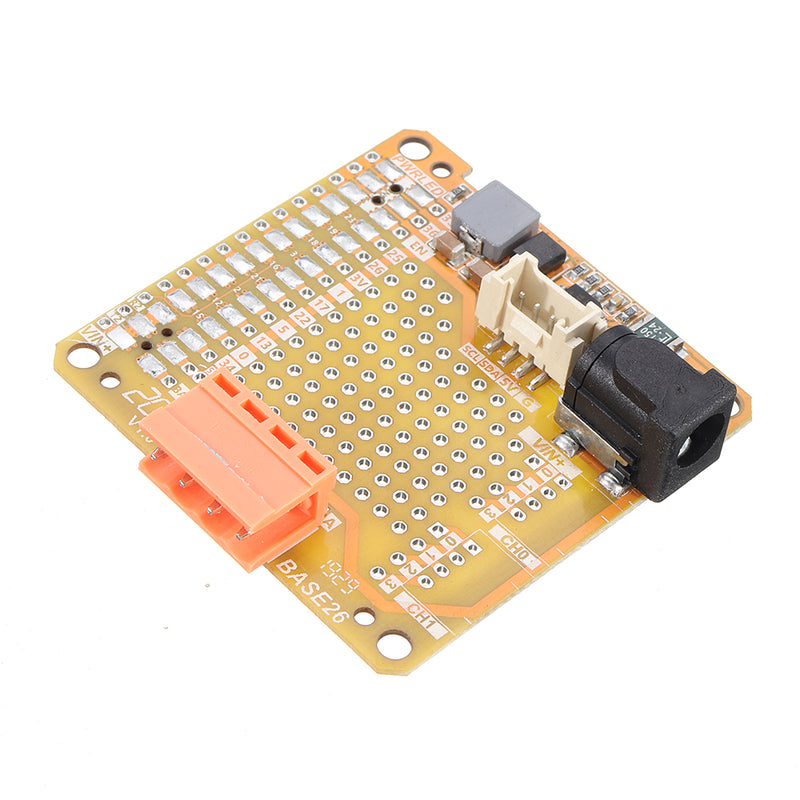

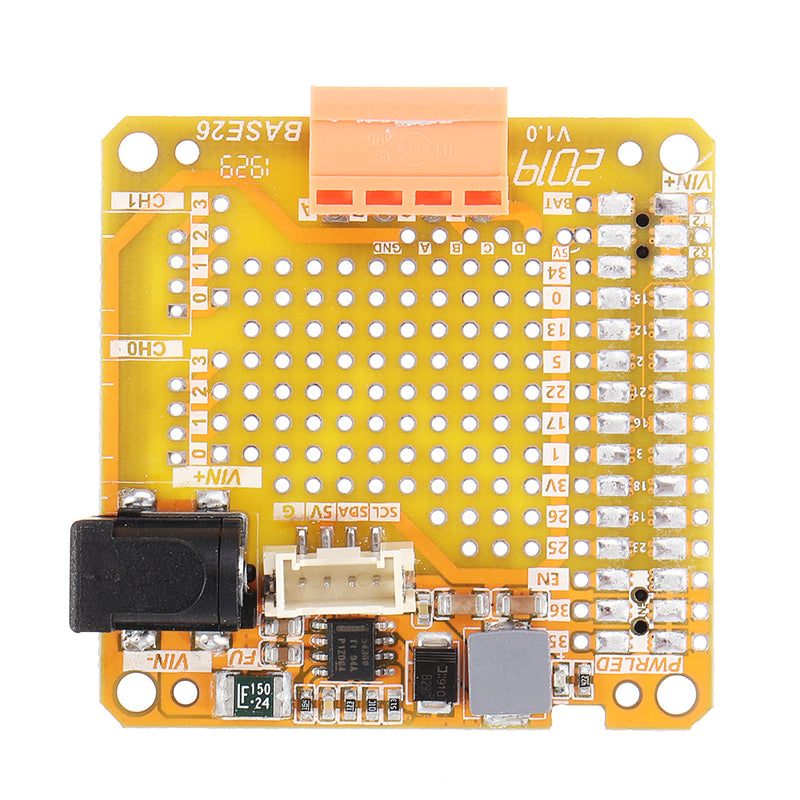

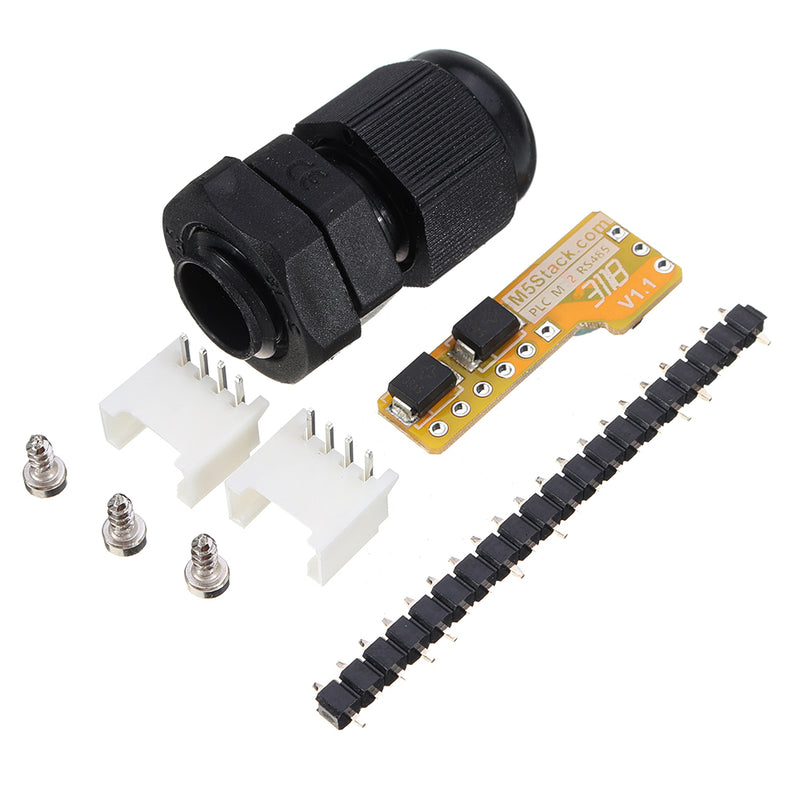

Package includes pro toboard which allows you to add up your own circuit design. On the board, two Grove bonding pads are reserved. Other components come with the package is an M type waterproof joint and a TTL-to_RS485 converter board. The M type waterproof joint (M12*15)can be assembled on the side and the bottom of the Base.
'26' comes from the hight of the bottom which is 26 cm. and each side on the Base is movable, cuttable and can be customized into different Interface. With regards to the customization of the side, we have offered plenty of structural components alternative and it is totally opensource. You can 3D print the parts and replace the side as you like.

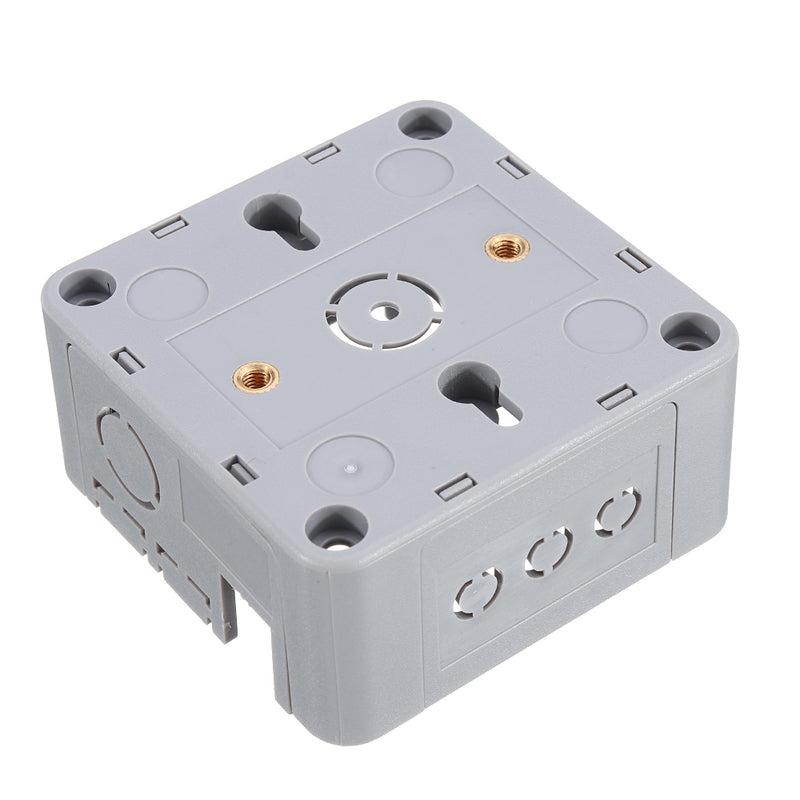

At the bottom side of the product, we have offered 2 different fitting ways: Din-Rail, Hunger.
Of course, it is absolutely compatible with the stackable M5module and extendable M5Units. This base gives you an unlimited of combinations, it is powerful, flexible, and covered with an industrial-grade case. If you happen to work in an industrial field, We especially recommend this Base to you which will surely give you the best and the fastest way to resolve your requirement..
Feature:
- Highly Customizable
- Alternative parts
- M-BUS extension
- 2 Fitting ways
Package Included:
- 1x PLC-Pro to Broad

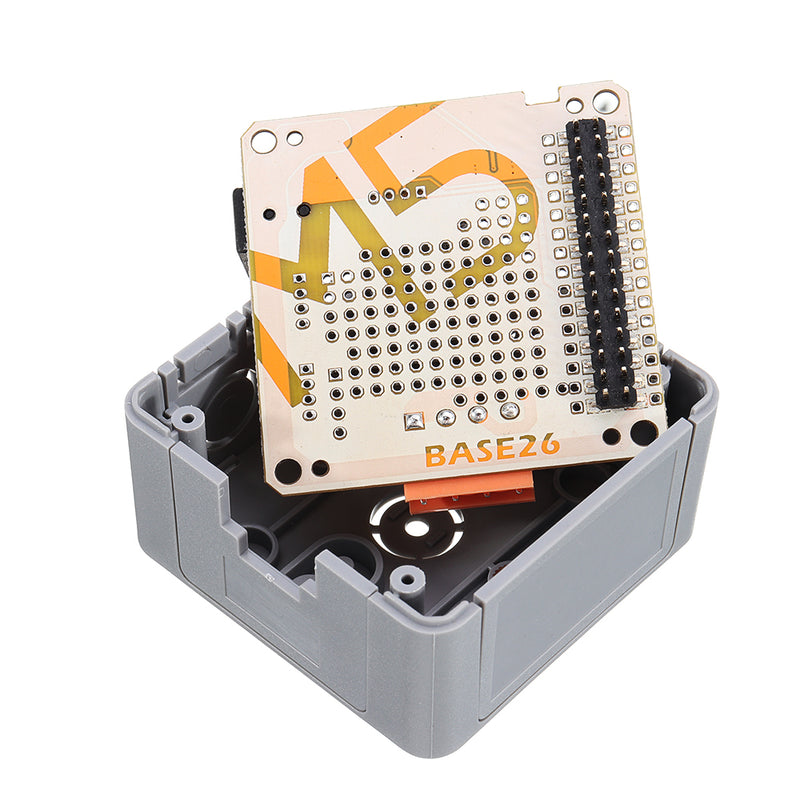

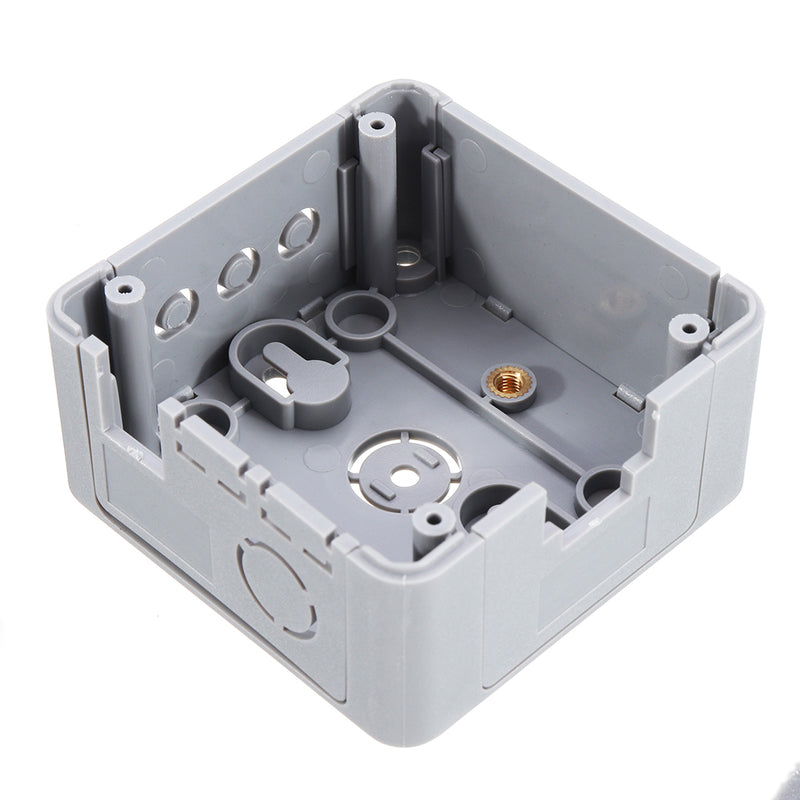

- 1x Base15 Plastic Enclosure
- 1x TTL-to-RS485 board
- 1x Slide Guide

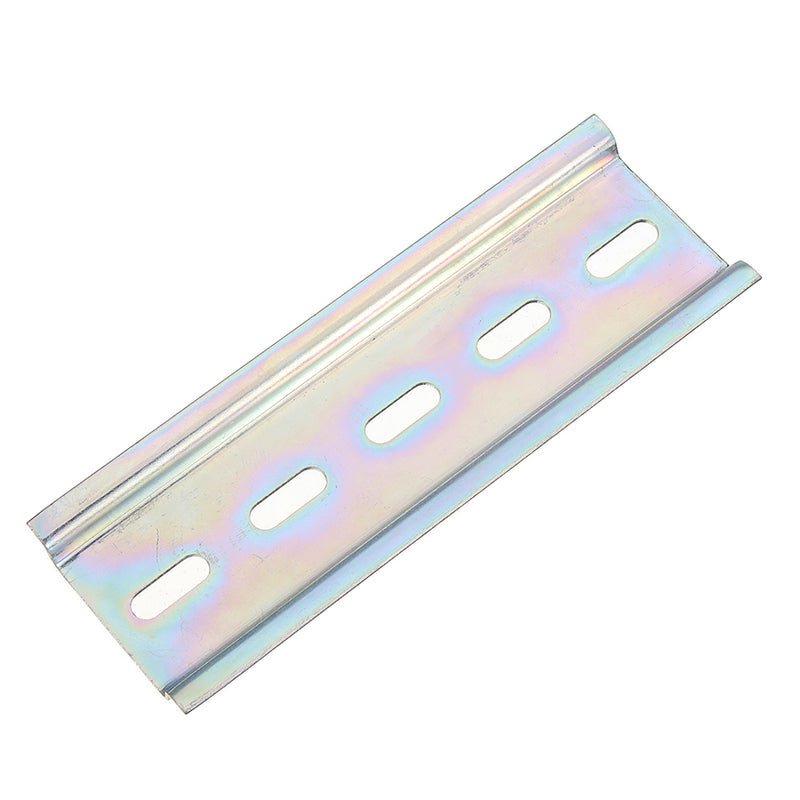

- 1x Din-Rail
- 2x Grove Port
- 1x M12*1.5
- 1x 4 Pin 3.96 Pitch Terminal
- 1x hexagonal wrench
- 10x Screw (3 types: M322, M312, M2*5)
- 2x M3 Nut
- 1x 2.45mm pin set
- 1x Sticker
structural-design-file:
click here for open source architecture design files
Schematic:
