Are you worried about the piles of DuPont lines, wires, breadboards, resistors, etc. when you are experimenting!
The multi-function expansion board is a simple i/o platform with base and open source code, and has a development environment similar to Java and C. Allows you to quickly use the language and software such as Flash or Processing... to make interactive works. Developed electronic components such as Switch or Sensors or other controllers, LEDs, stepper motors or other output devices can be used. It can also be operated independently to become a platform that can communicate with software, for example: flash processing Max/MSP VVVV or other interactive software..., the development of the IDE interface is based on the open source code principle, allowing you to download and use it for free. Interactive work.
Features:
1. Can be seamlessly connected with mainstream controllers such as 2009 UNO 2560
2. 4-channel LED indicator (To know the importance of the LED indicator, when you actually do the project, you can use this indicator to directly indicate the working status of the program, which is convenient for program debugging.
3. DS18B20 temperature sensor interface, can do temperature measurement experiments, this price does not include DS18B20, if necessary, take another shot.
4. LM35 temperature sensor interface, can do temperature measurement experiments, this price does not include LM35, if necessary, take another shot.
5. 3296 precision adjustable potentiometer, providing analog port input (can control LED brightness, turn servo angle, digital voltage, etc.)
6. Infrared integrated receiving head, can be suitable for any infrared remote control experiment, this price does not include the integrated receiving head, if necessary, take another shot.
7. Four digital tube (using 74HC595 to drive IO learning SPI), can do digital tube display experiment (can display temperature, voltage, count value, etc.).

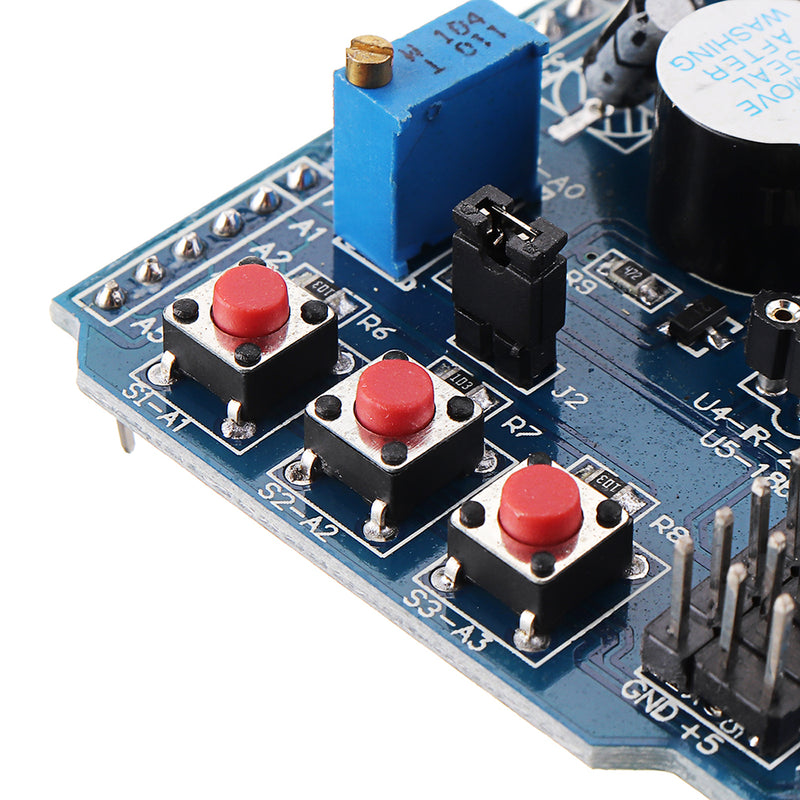

8. Three independent buttons, one reset button, can be used for button experiment (human machine interface).
9. The buzzer can be used for vocal experiments. (can alarm, pronounce, etc.)
10. Bluetooth, wireless interface, voice module, voice recognition module, can be used for wireless communication experiments
11. Servo interface for easy drive steering
12. Infrared detection interface, convenient and infrared docking, realizing traffic statistics, etc.
Package Included:

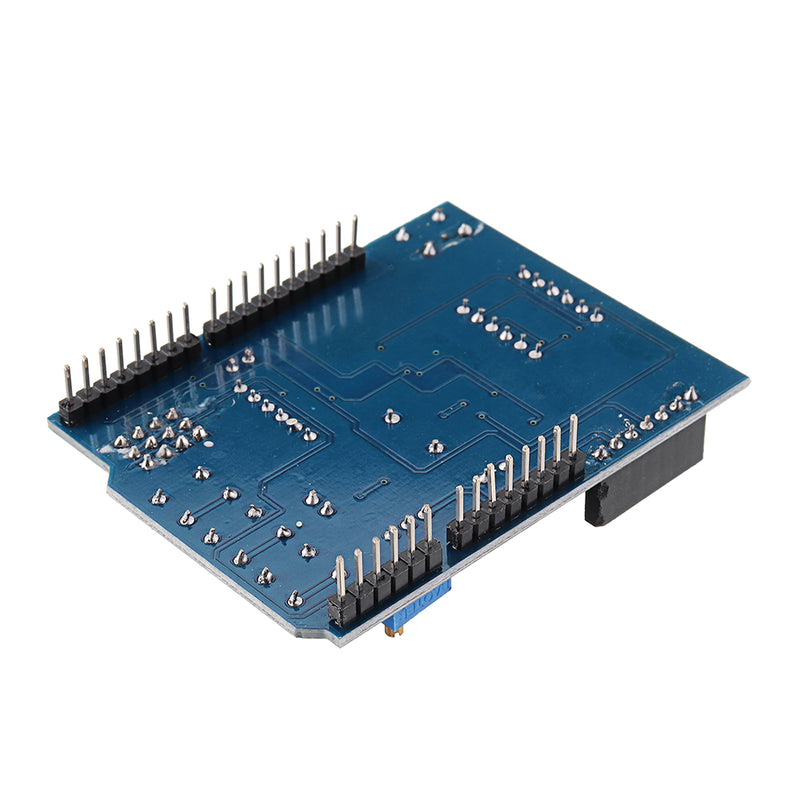

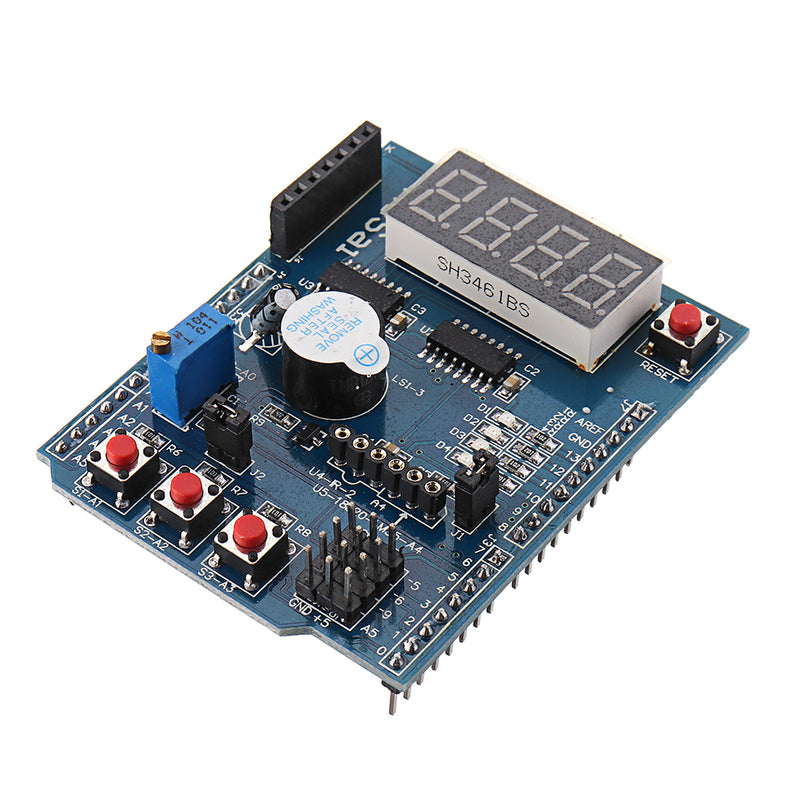

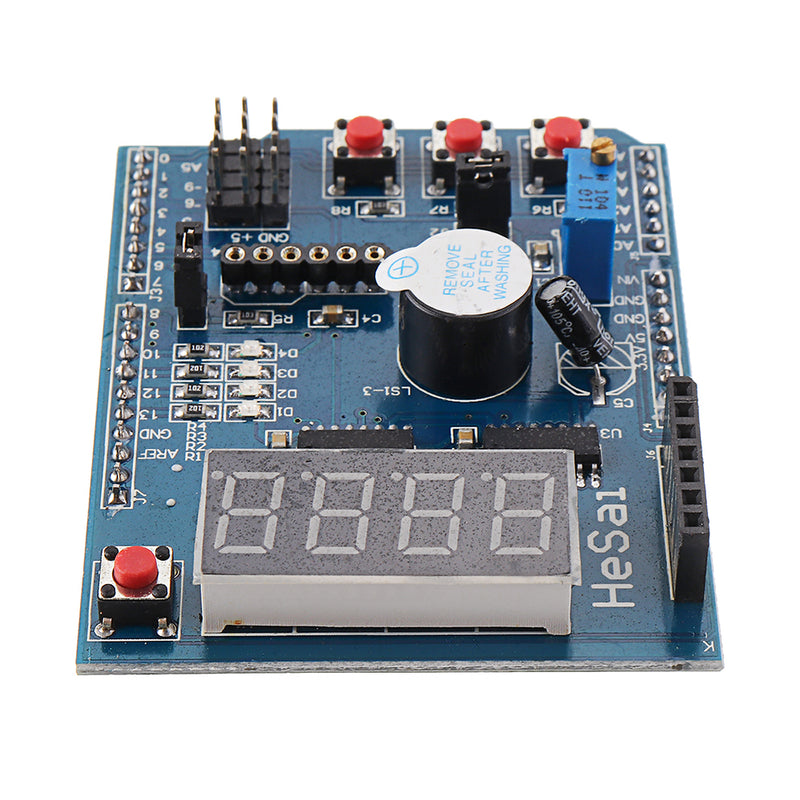

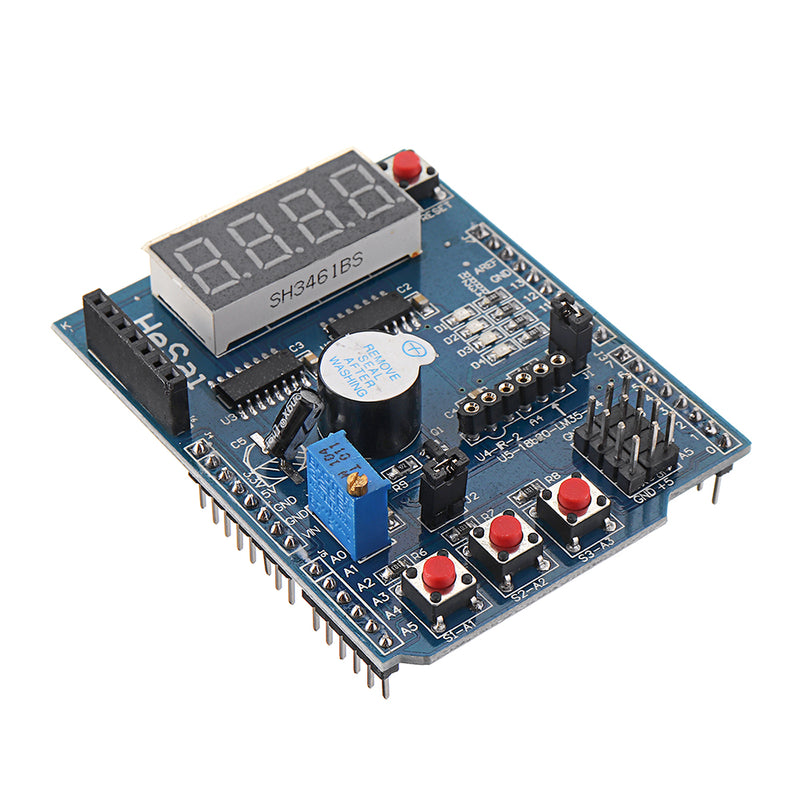

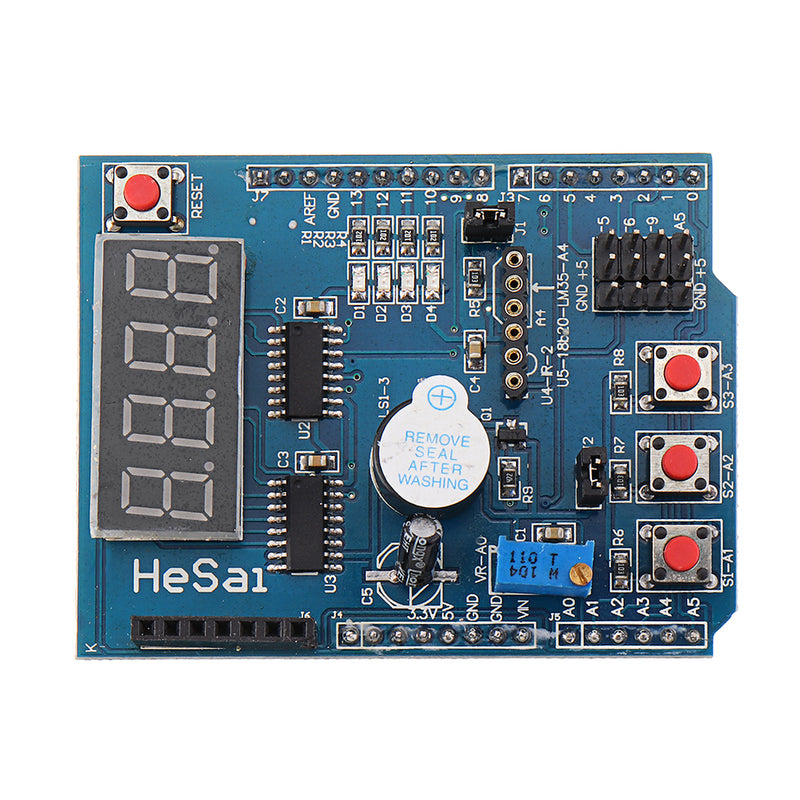

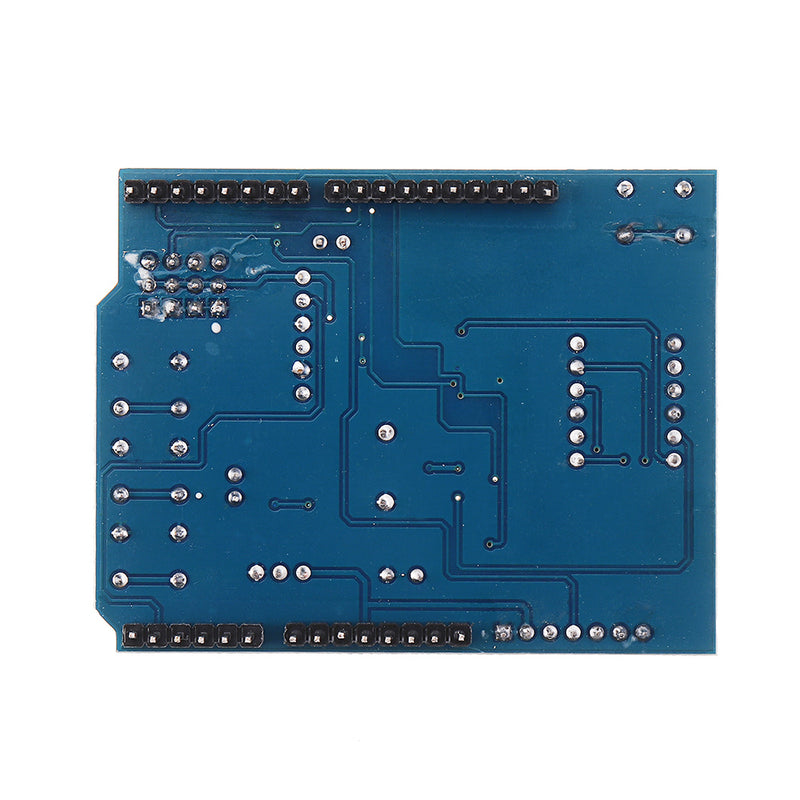

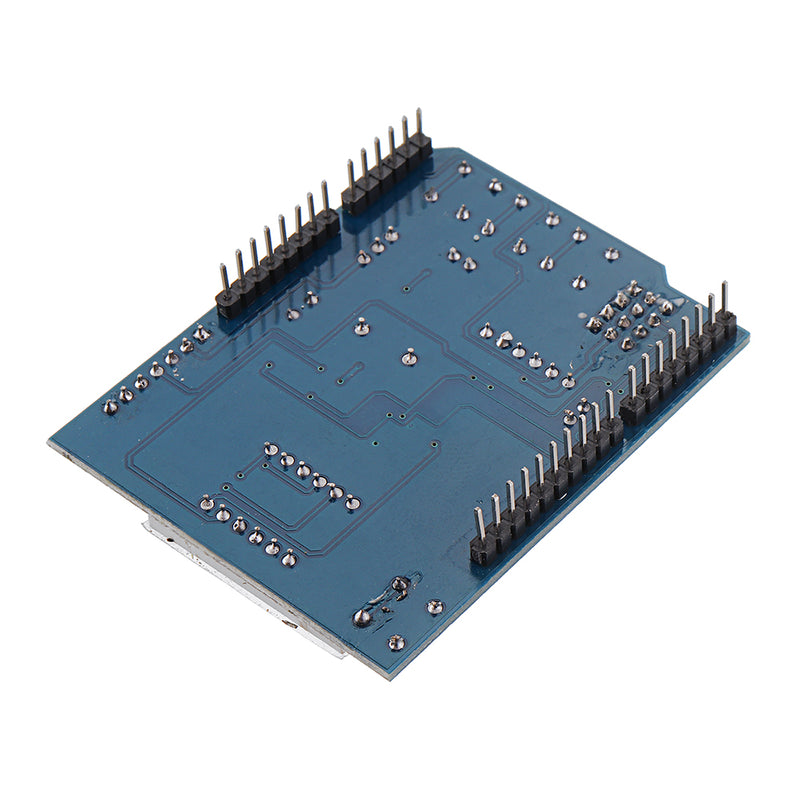

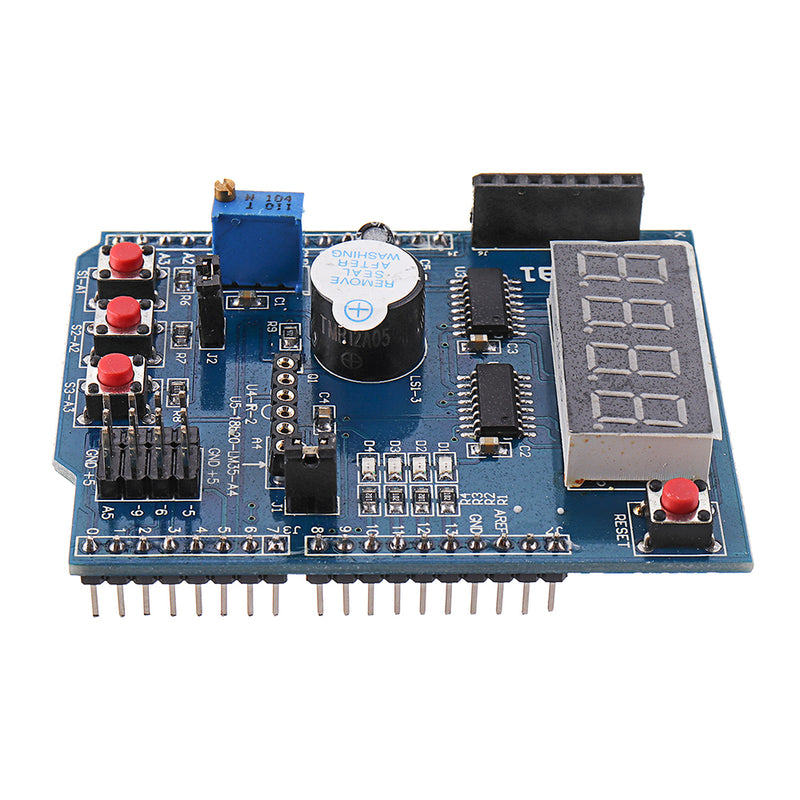

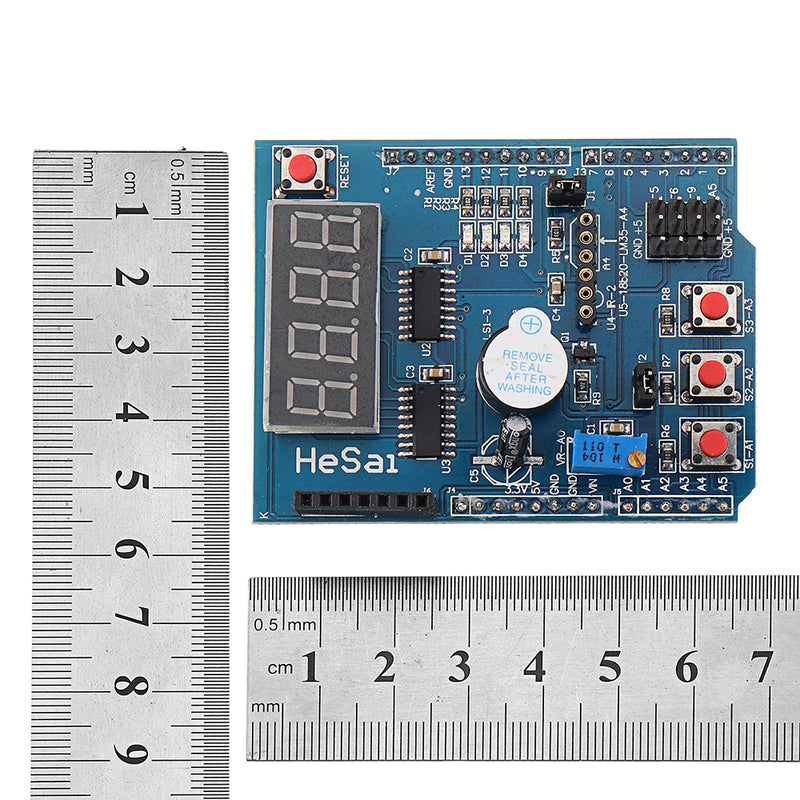

1 x Multi-Function Shield ProtoShield Multi-functional Expansion Board
