Overview:

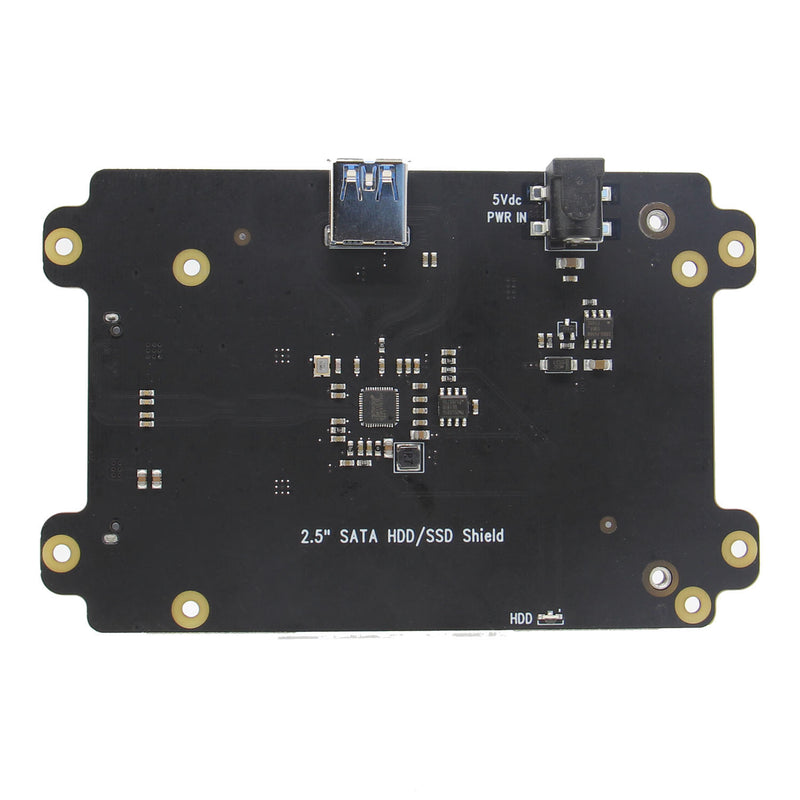

This is an expansion board designed specifically for NVIDIA Jetson nano developer kit that supports up to 4TB 2.5-inch SSD/hard drives by Geekworm and Suptronics, it allowing you to expand your storage with high-speed SSD drives on NVIDIA Jetson nano developer kit.
| ITEM |
DESCRIPTION |
| FOR USE WITH |
Jetson Nano |
| OPERATING SYSTEM |
All operating systems |
| KEY FEATURES |
· Ideal storage solution for Jetson Nano - 2.5" SATA HDD/SSD Shield
· Supports up to 4TB 2.5-inch SATA hard disk drives (HDD) / solid-state drive (SSD)
· USB 3.1 Gen1 to SATA 6Gb/s bridge controller
· USB 3.1 Gen1 connectivity offers plug-and-play functionality on your Jetson Nano
· Quick file transfer with high-speed USB3.1 Gen1 connectivity from a PC or a Mac
· Specially-made USB3.1 bridge to connect with Jetson Nano - no additional cables needed
· On-board DC power jack allows to provide enough power to HDD/SSD
· Intelligent power management - Automatic powering off when system shutdown
· With 1 Female to 2 Male DC cable supplied to power both T300 and Jetson Nano
· USB bus-powered or powered by external power adapter
· LED blue indicator indicates drive status |
| POWER SUPPLY |
· Power supply via DC jack : 5VDC ±5%.
· A good quality power supply is required, otherwise the hard disk will not be recognized or the system will automatically shut down.THIS IS VERY IMPORTANT!! |
| I/O PORTS |
· USB Type-A socket x 1
· DC Jack 5.5x2.1mm x 1
· 22Pin SATA socket x 1 |
| DIMENSION |
PCB Size: 123mm x 79mm |
Package inlcudes:

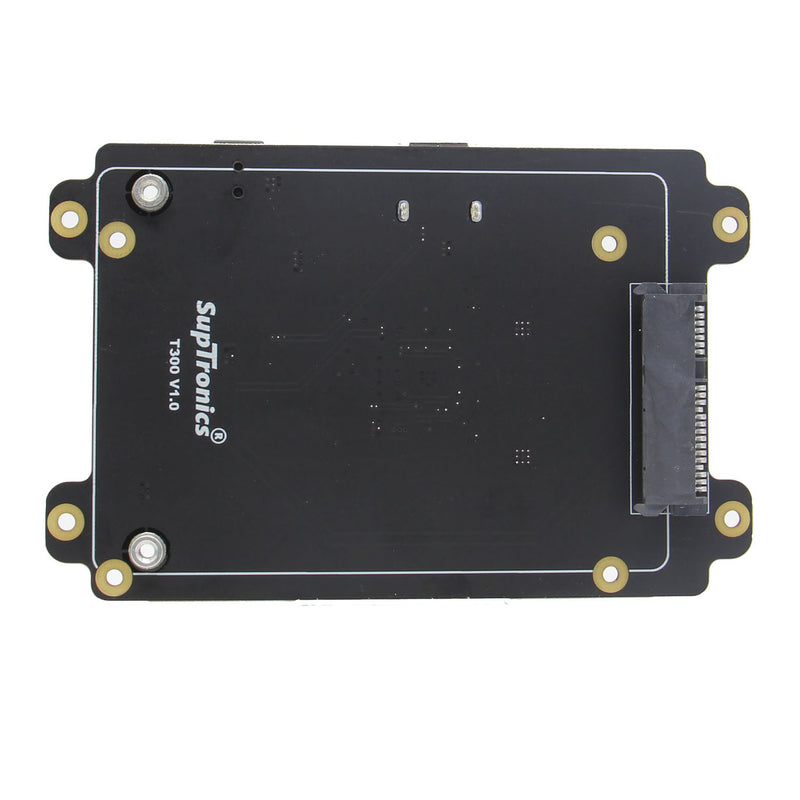

1 x T300 V1.0 2.5 inch SATA SSD/HDD Shield
1 x USB 3.0 Bridge
1 x 1 Female to 2 Male DC cable (length: 15cm)
1 x Installaton screw pack
There are 3 power supply methods:
1. Directly power the motherboard is acceptable if use a good quality DC 5V 4A power adapter. (otherwise, the current is not enough to 2.5 inch SATA SSD)
2. Power the jetson nano and T300 with 1 female to 2 male DC cable, require a good quality DC 5V 4A power supply, otherwise, jetson nano will be automatically shut down.
3. Can power the T300 separately, but will lose the power management function.
For reference only:
