PIR Human Body Induction Sensor Module Compatible M5StickC Auto Security

Description:

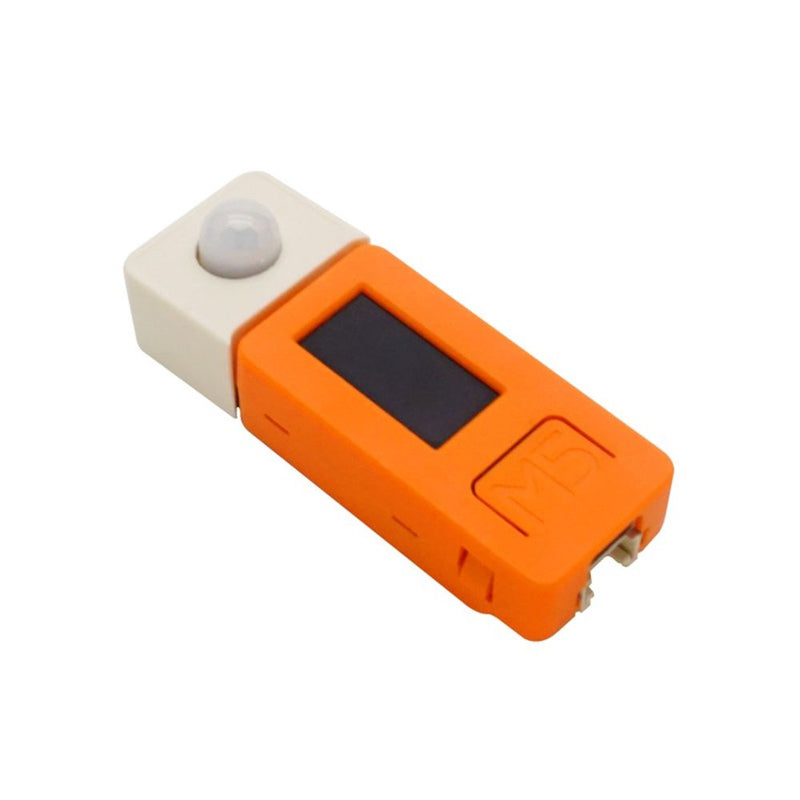

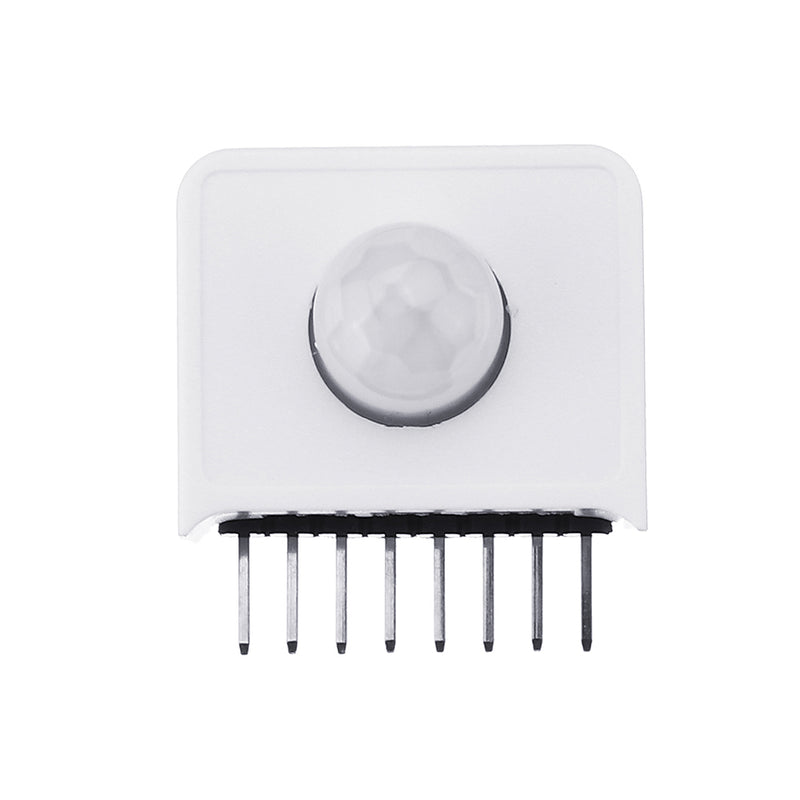

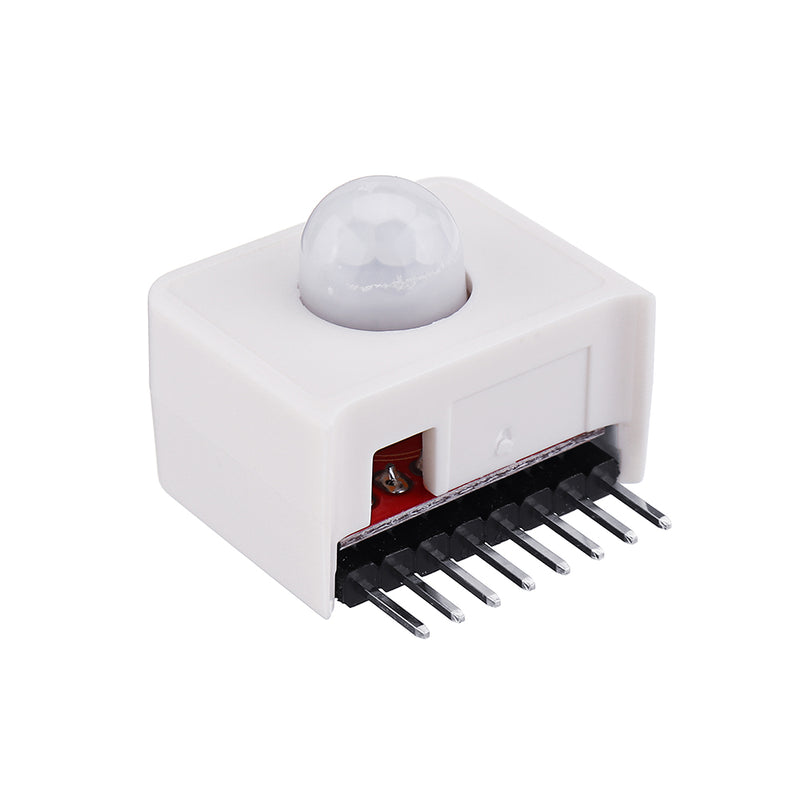

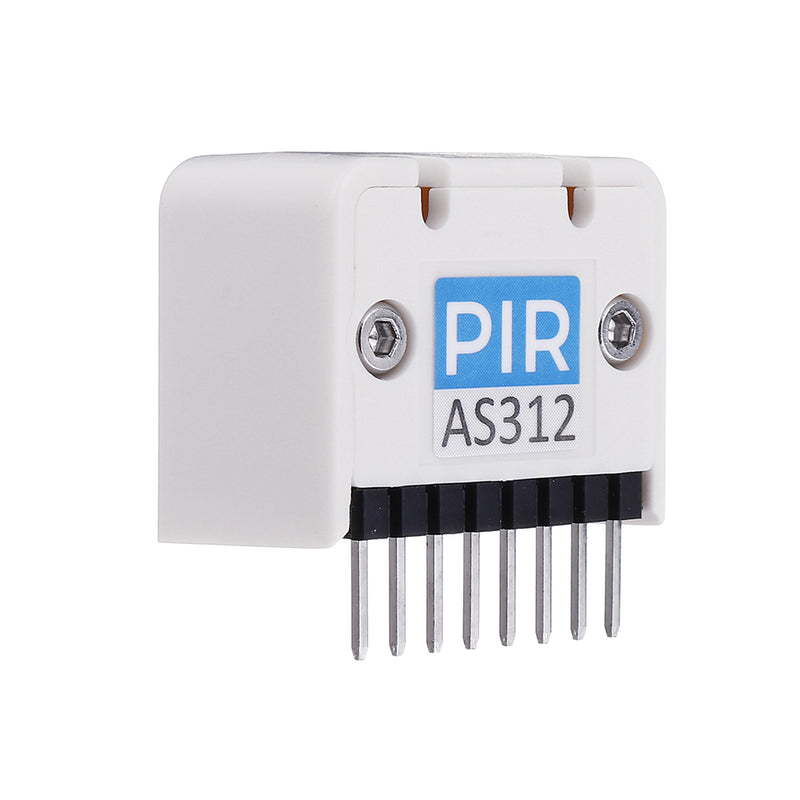

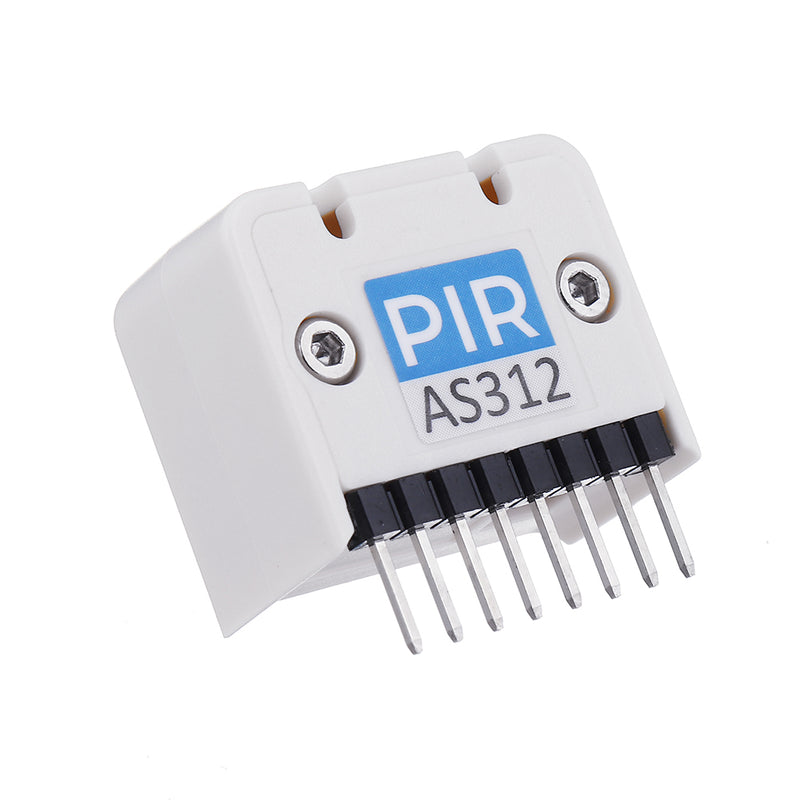

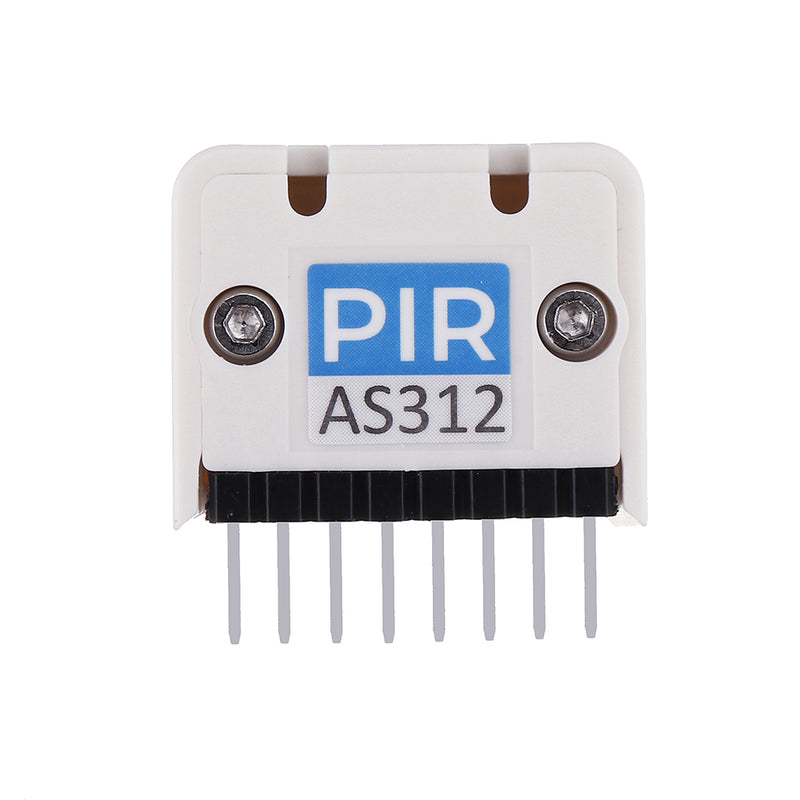

Hat PIR is an M5StickC compatible human body induction sensor, it belongs to "Passive pyroelectric infrared detector", that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.

Notice: There exist 2 seconds delay

Product Feature:

• Detecting Range: 150cm
• Delay time: 2s
• Induction Angle: < 100°
• IDDQ : < 60uA
• Op.T: -20 - 80 °C

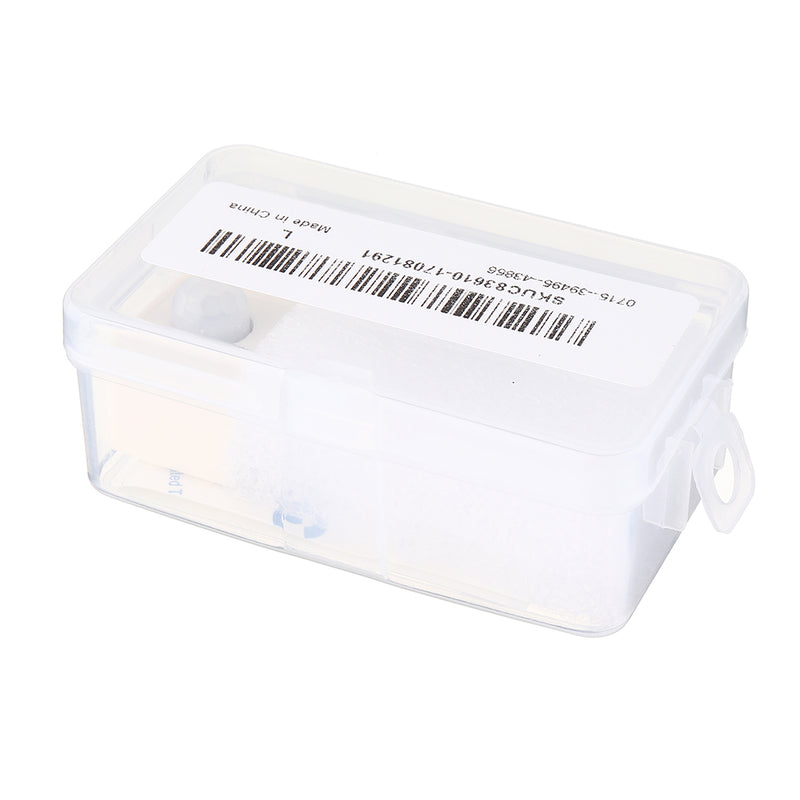

package Includes:

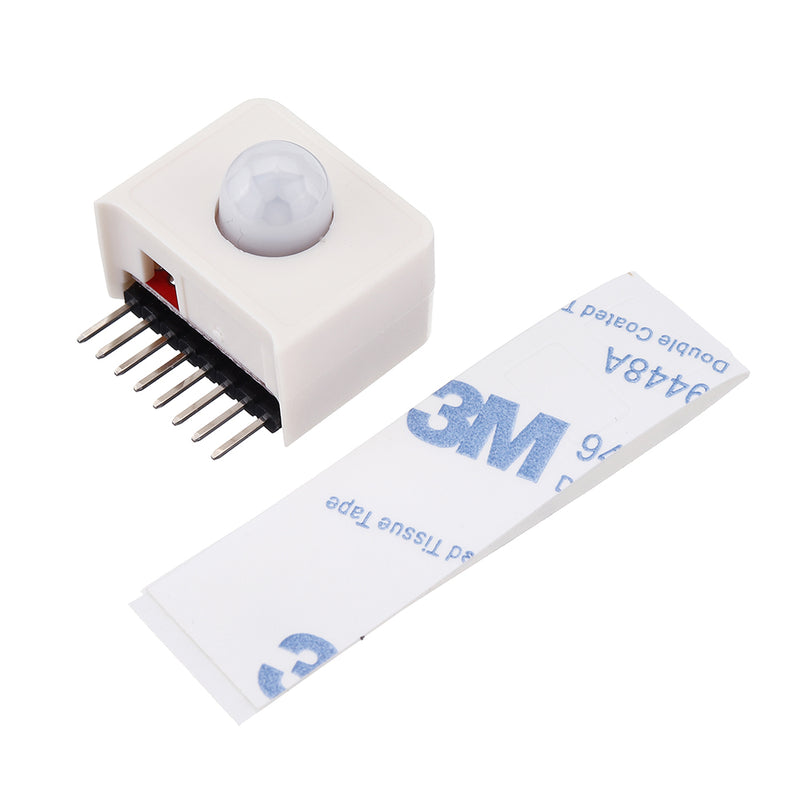

• 1x PIR Hat

Application:

• Hunman body induction lamp
• Security product
• Auto-induction

Schematic:

Links:

• Official channle

• Official forum

EasyLoader

click to download EasyLoader

"Burn"
Example:

• for

Pin Map:

M5StickC	GPIO36	5V	GND
HAT PIR	OUT	5V	GND
