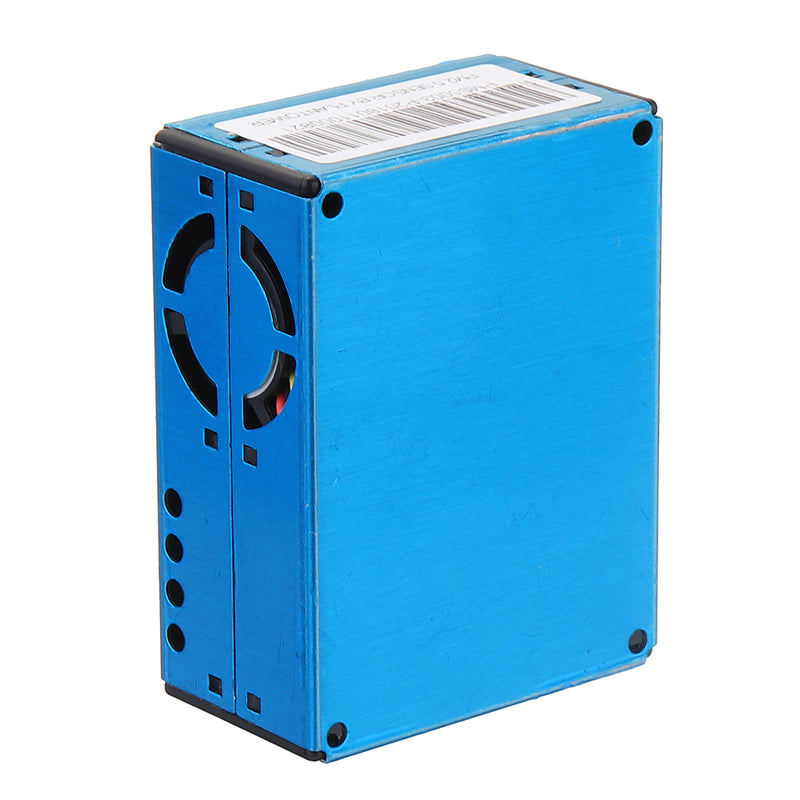

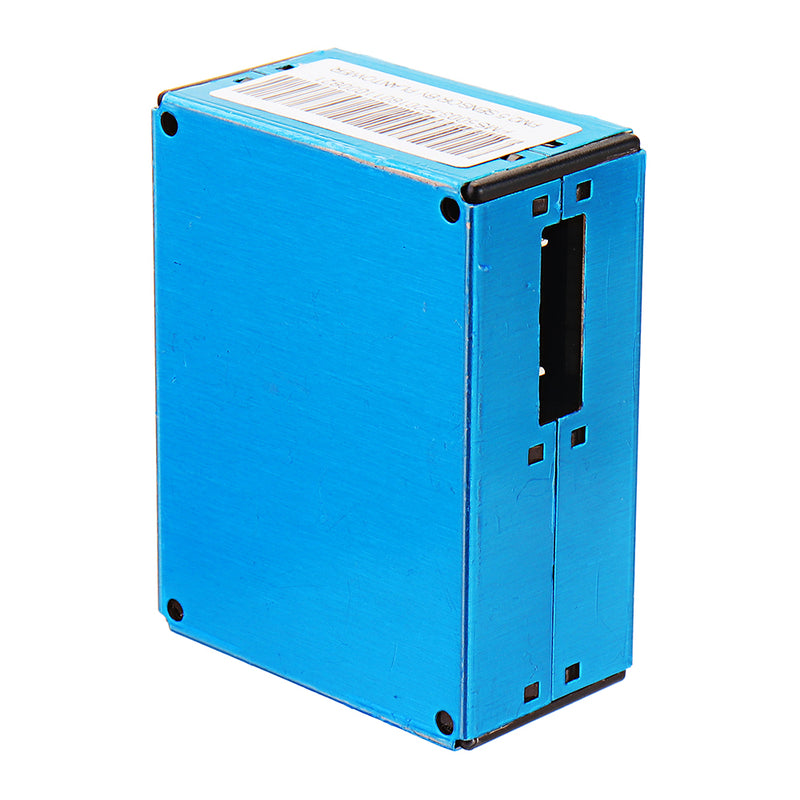

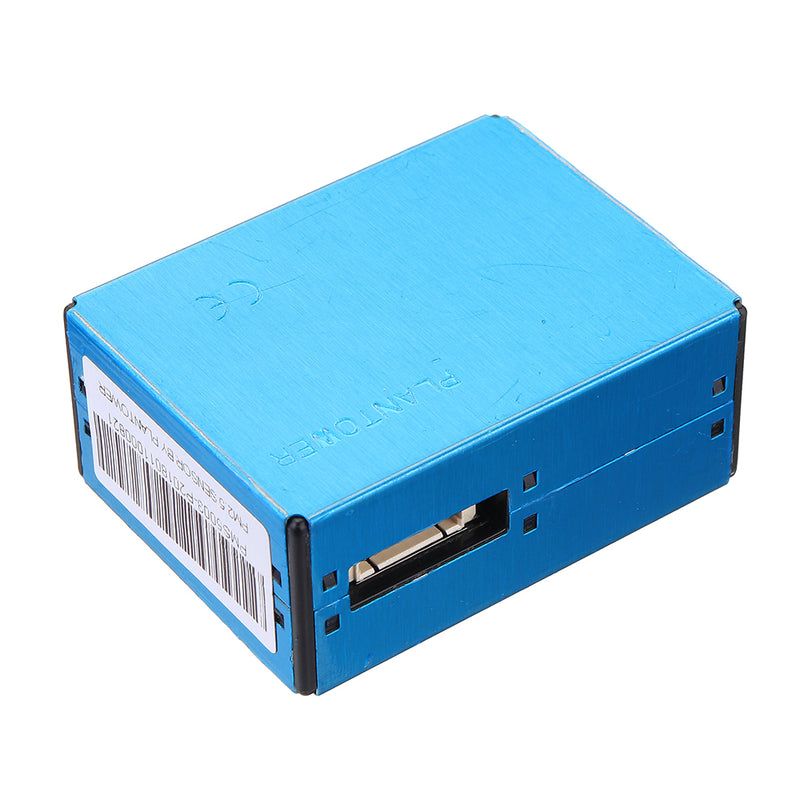

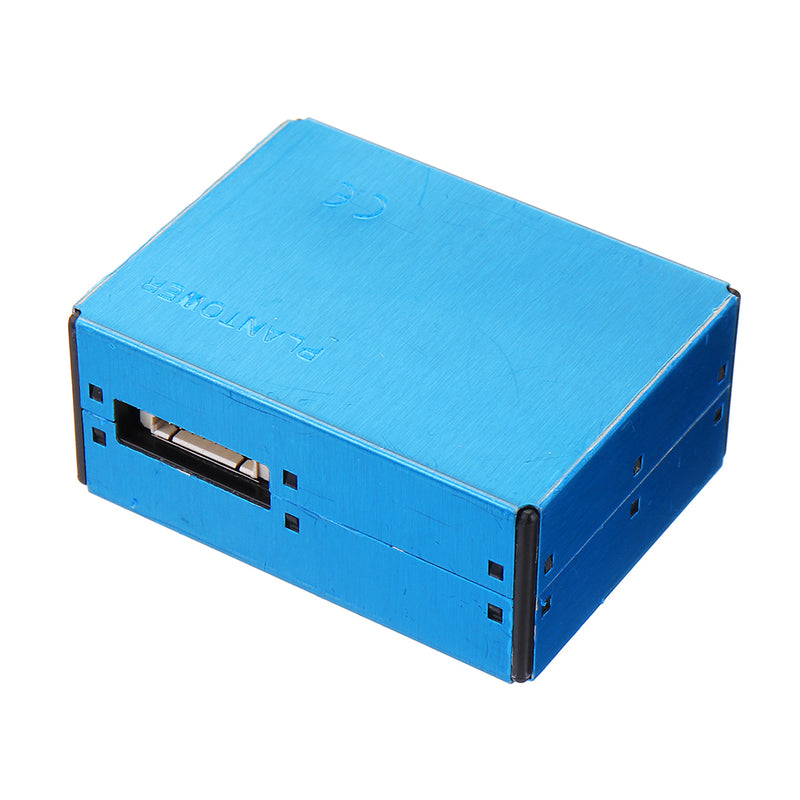

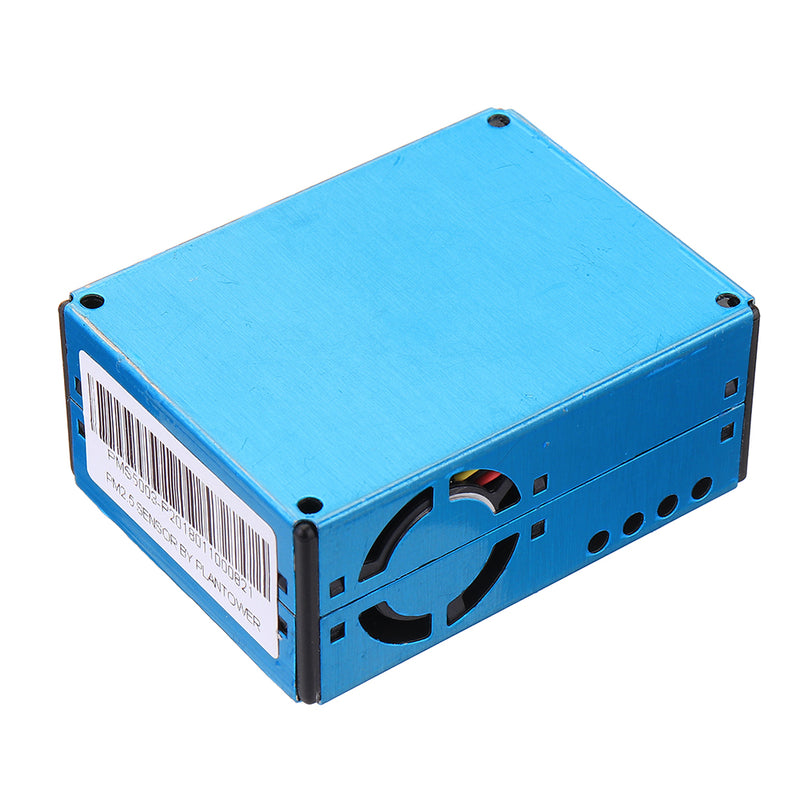

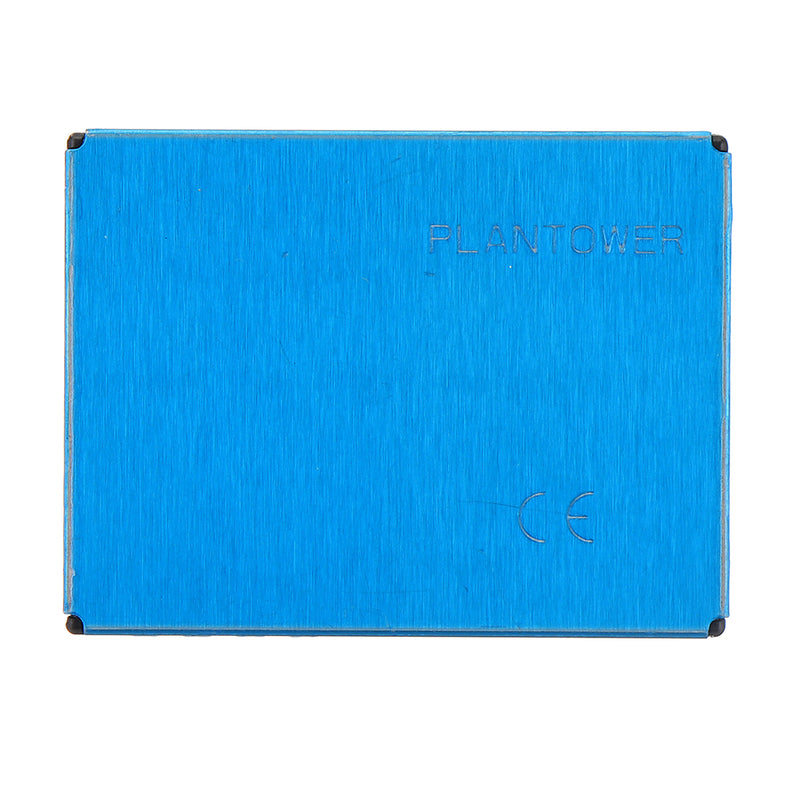

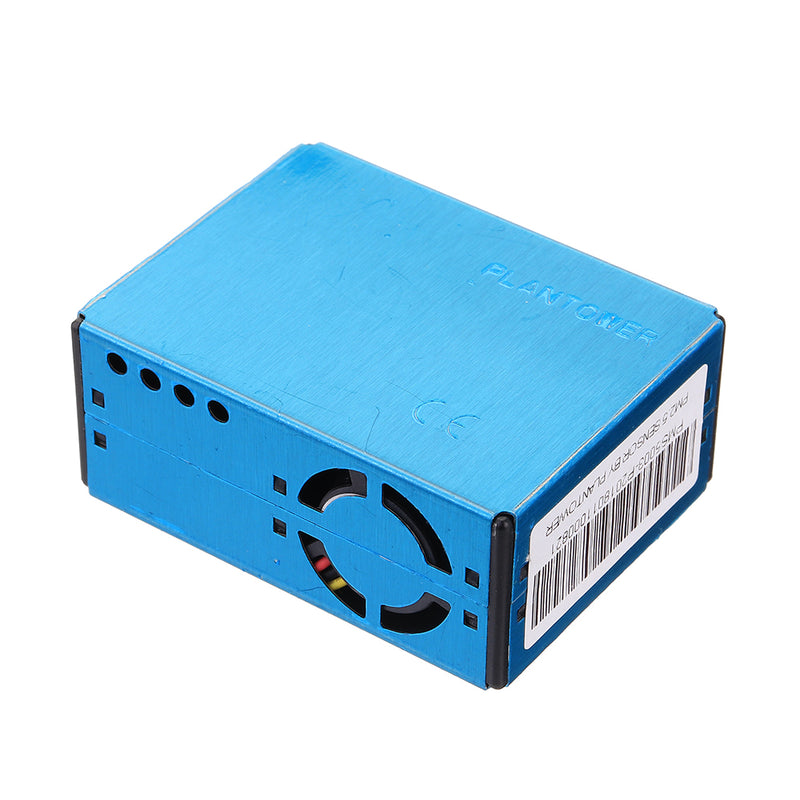

Plantower G5 PMS5003 Laser PM2.5 Sensor Accurately Detector Smog Serial Port High Precision
Save 0
SKU: U2I-BG-1602897
Share this product
Description
Feature:
This sensor uses the principle of laser light scattering. That is, the laser illuminates the suspended particles in the air to generate scattering, and at the same time, the scattered light is collected at a certain angle to obtain a curve of the scattered light intensity with time. Furthermore, the microprocessor uses an algorithm based on the MIE theory to obtain the equivalent particle size of the particles and the number of particles of different particle sizes per unit volume.
Parameter
Index
Unit
Particle measurement range
0.3~1.0, 1.0~2.5, 2.5~10
Micron
Particle count efficiency
50%@0.3 micron 98%@>=0.5 micron
Particle mass concentration effective range (PM2.5 standard value)
0-500
Microgram/cubic meter
Particle mass concentration resolution
1
Microgram/cubic meter
Particle mass concentration consistency
±10%@100-500 μg/m3
(PM2.5 standard value)
±10 μg/m3 @0-100 μg/cubic
Weighing volume
0.1
L
Single response time
<1
S
Comprehensive response time
<=10
S
DC supply voltage
Typ.5.0, Min.4.5, Max.5.5
V
Working current
<=100
mA
Stand-by current
<=200
uA
Data interface level
L<0.8@3.3, H>2.7@3.3
V
Working temperature
-10~+60
°C
Operating humidity range
0-99%
Storage temperature range
-40~+80
°C
Mean time between failures
>=3
Y
Biggest size
50 x 38 x 21
mm
Pin Description:
VCC
Power +5V
GND
Power supply-
SET
Set the pin/TTL level @3.3V high or floating to normal operation, low level to sleep state
RXD
Serial receiver pin / TTL Level @3.3V
TXD
Serial transmit pin / TTL level @3.3V
RESET
Module reset signal / TTL level @3.3V, low reset
NC
Package includes:

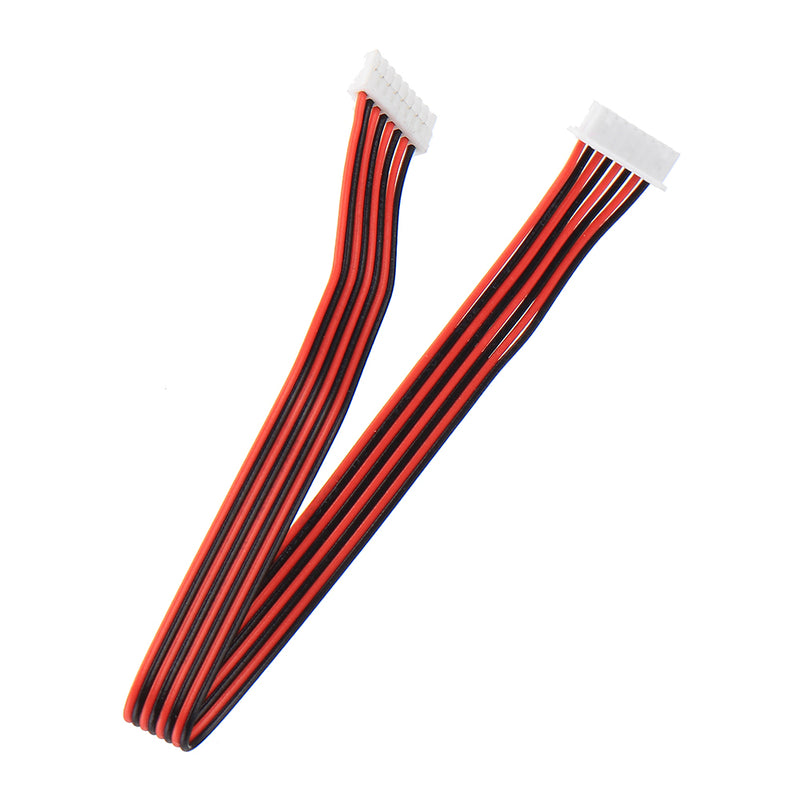

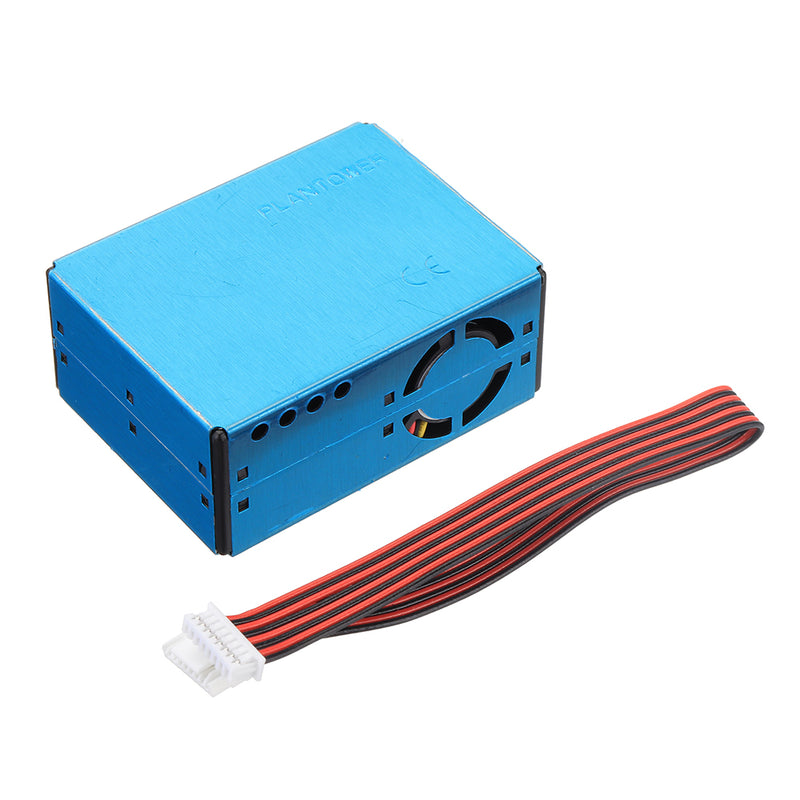

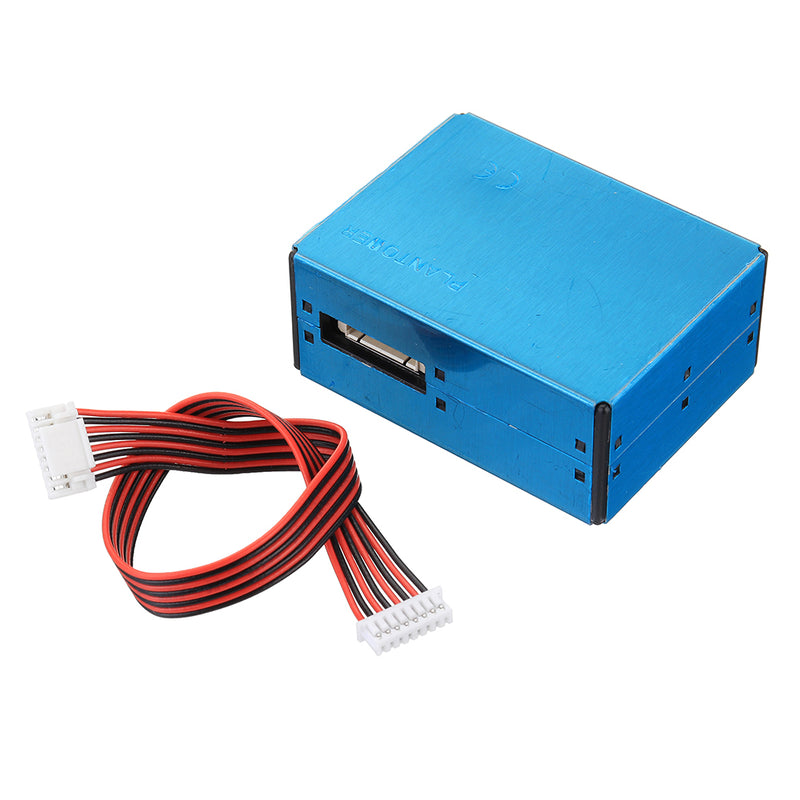

1 x Laser PM2.5 Sensor 1 x Cable
