Feature:

Parameter	Index	Unit
Particulate matter measurement range	0.3 ~ 1.0; 1.0 ~ 2.5; 2.5 ~ 10	Micrometer (um)
Particle counting efficiency	50% @ 0,3 microns 98% @> = 0.5 microns
Effective range of particulate matter concentration (PM2.5 standard value)	0-500	Μg / m3
Particulate matter concentration resolution	1	Μg / m3
Particulate matter concentration consistency (PM2.5 standard value) *	± 10% @ 100 ~ 500μg / m3 ± 10 μg / m3 @ 0 ~ 100 μg / m3
Quasi-volume	0.1	Liter (L)
Single response time	<1	Second (S)
Comprehensive response time	<= 10	Second (S)
DC supply voltage	Typ: 5.0 Min: 4.5 Max: 5.5	Volt (V)
Working current	<= 100	Milliamp (mA)
Stand-by current	<= 200	Microampere (uA)
Data interface level	L <0.8 @ 3.3 H> 2.7@3.3	Volt (V)
Working temperature	-10 to +60	Photography (° C)
Operating humidity range	0-99%
Storage temperature range	-40 ~ + 80	Photography (° C)
MTBF	> = 3	Year (Y)
Size	38x35x12	Millimeter (mm)

Pin Function:

PIN1	VCC	Power + 5V
PIN2	VCC	Power + 5V
PIN3	GND	power supply-
PIN4	GND	power supply-
PIN5	RESET	Module reset signal / TTL level @ 3.3V, low reset
PIN6	NC	/
PIN7	RX	Serial receive pin / TTL level@3.3V
PIN8	NC	/
PIN9	TX	Serial transmit pin / TTL level@3.3V
PIN10	SET	Set pin / TTL level @ 3.3V, high level or floating for normal working state, low level for sleep state

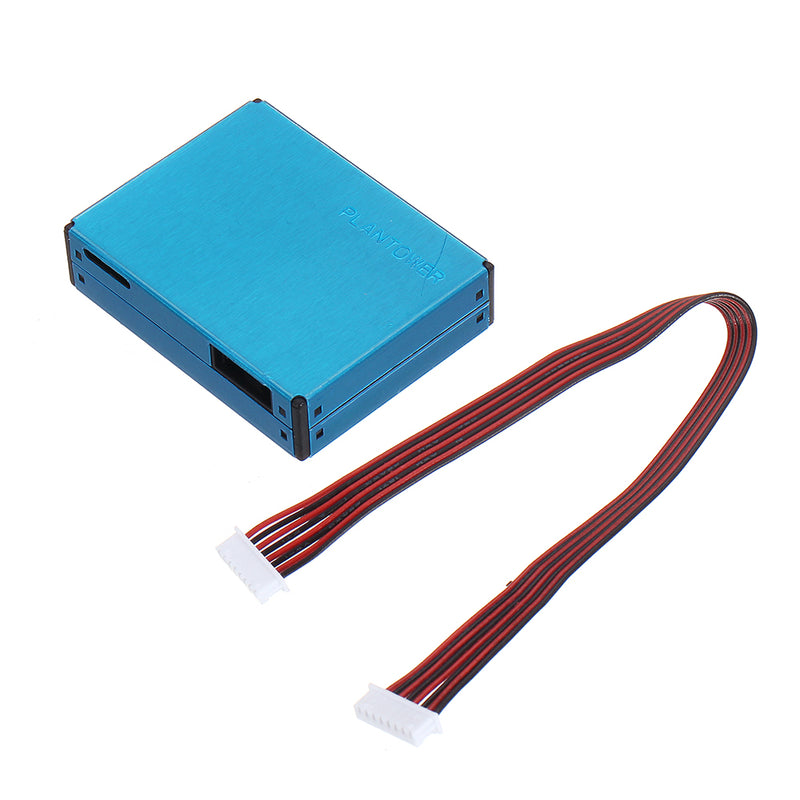

Package includes:

1 x Air Quality Tester

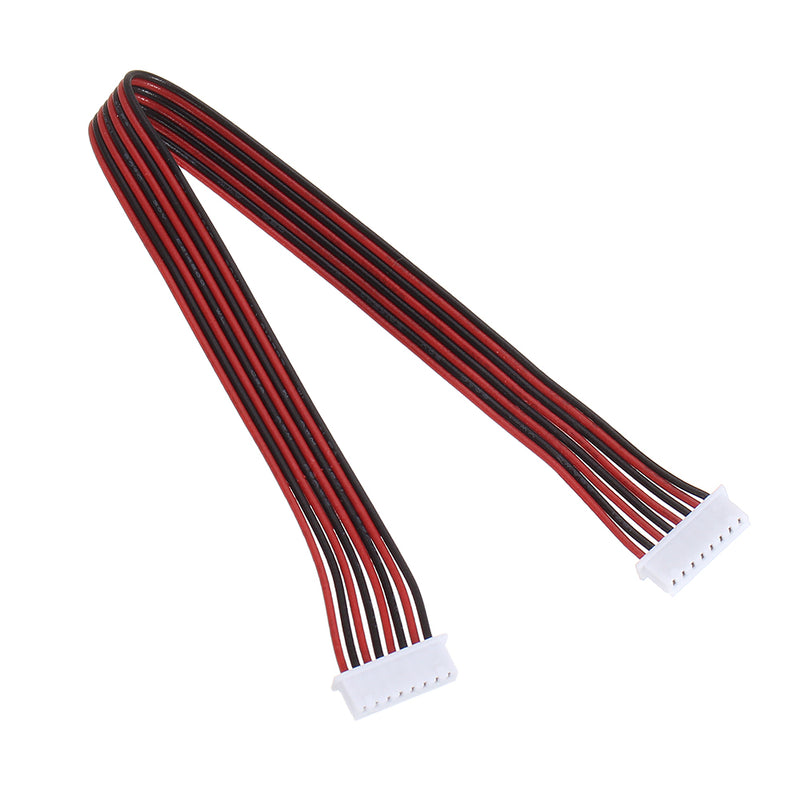

1 x Cable
