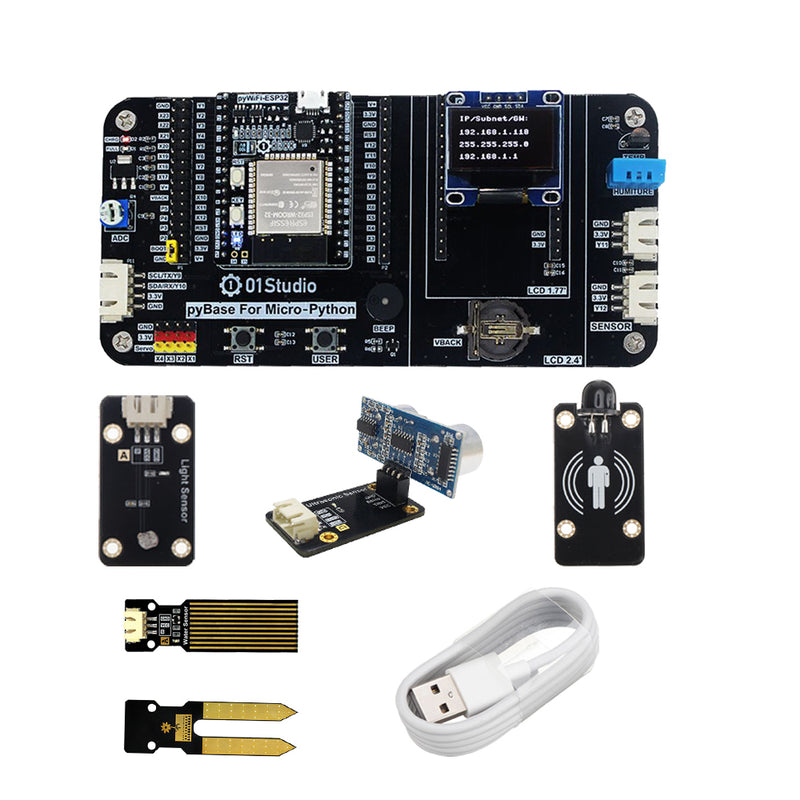

PyWIFI-ESP32 Development BoardMore document click to open:http://docs.micropython.01studio.org/zh_CN/latest/esp32/quickref.htmlPyBase Development BaseboardOverview:

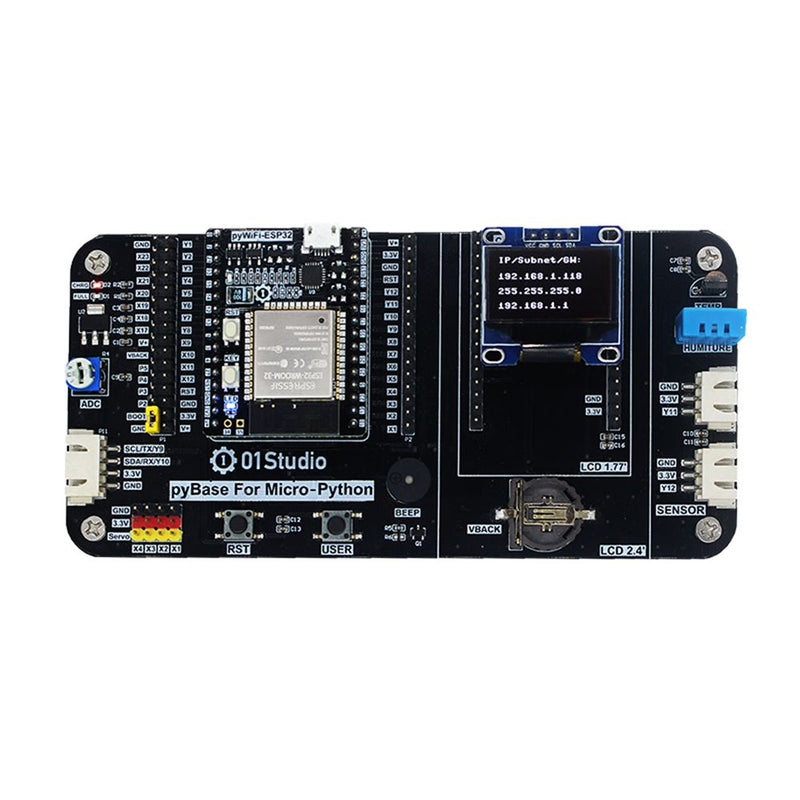

pyBase is a customized baseboard for pyBoard. You can use it to do more Micro-Python experiments. pyBase also has an external interface and is highly scalable.
PIN Description:
pyboard interface: support pyboard, pyWiFi-ESP32, pypyWiFi-ESP8266
2.54mm pin header: lead out all interfaces of pyboard
Button * 2: RST and USR buttons are brought out
Potentiometer: ADC input:
Passive buzzer: DAC output
Button battery holder: Install CR1220 button battery
Servo interface: servo interface * 1- * 4 (external isolation circuit is required to connect the servo)
OLED interface: 4P / 0.96inch / I2C / OLED Display
1.77 Inch LCD interface: suitable for 01Studio 1.77 inch LCD display
2.4 Inch LCD interface: suitable for 01Studio 2.4LCD display
Temperature sensor: DS18B2D
Temperature and humidity sensor: DHT11

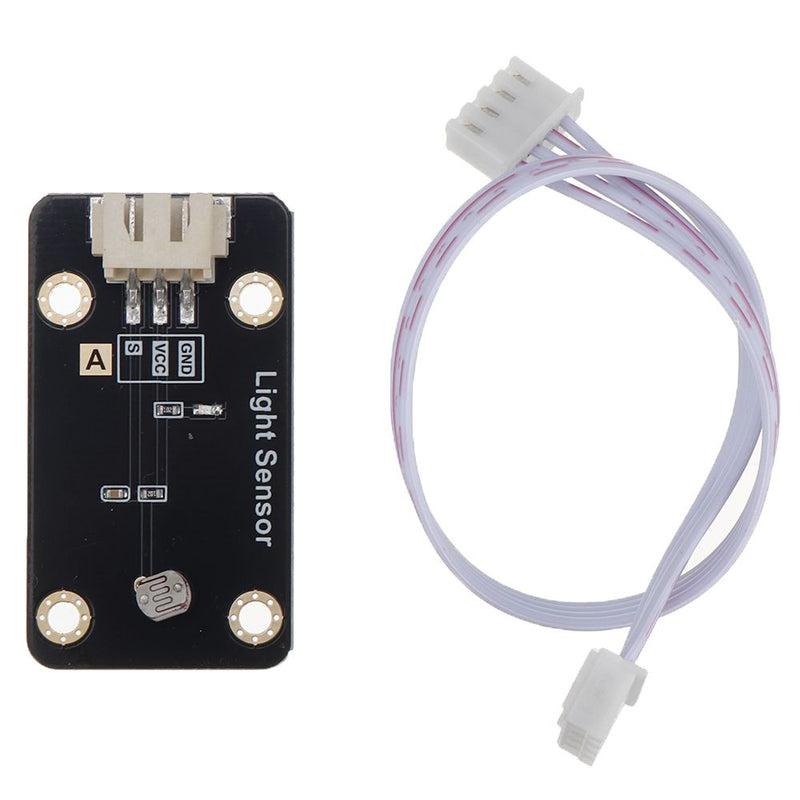

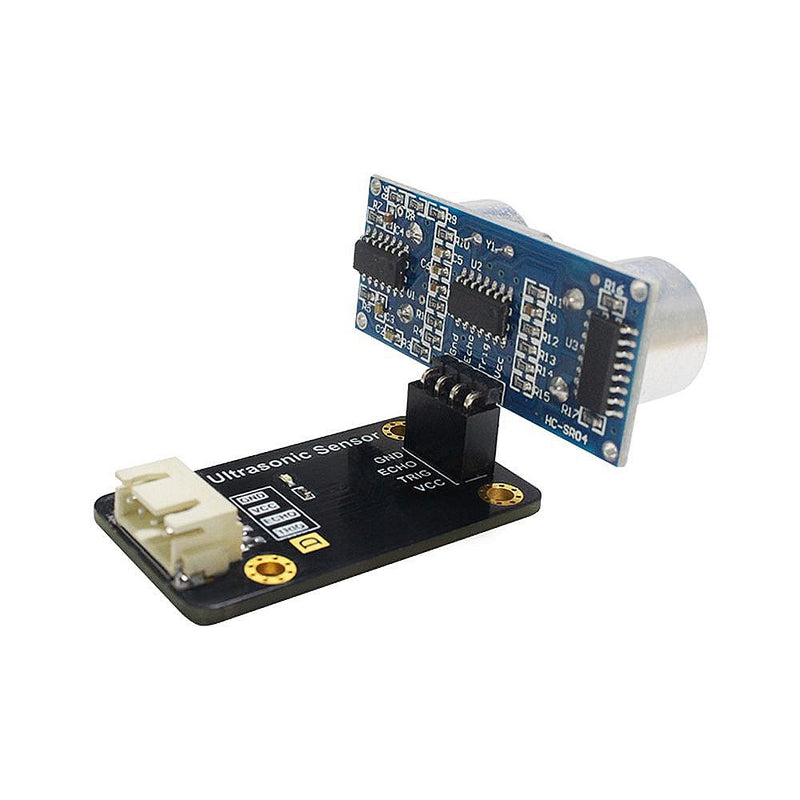

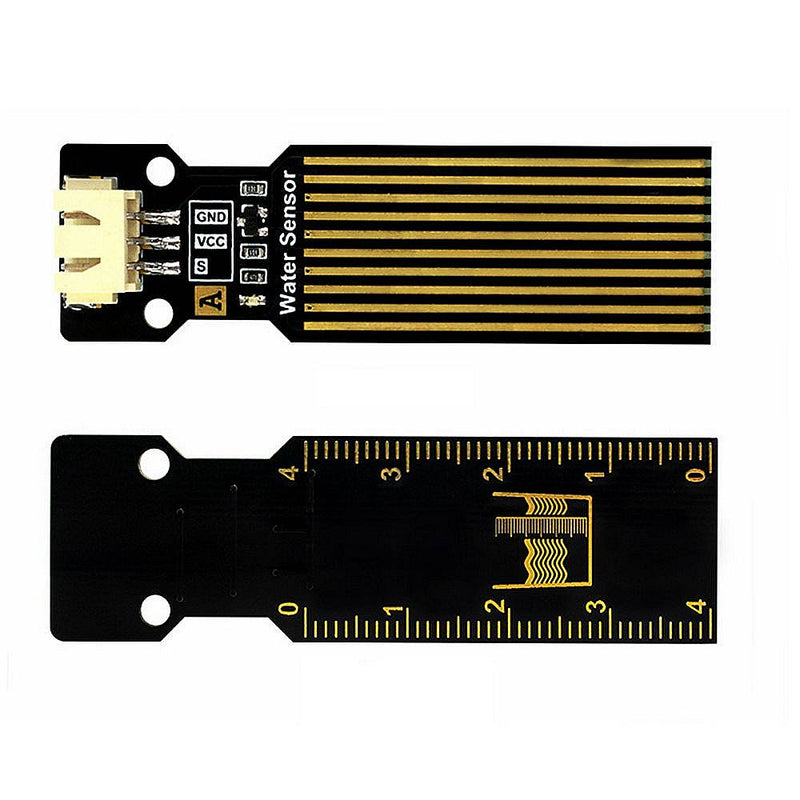

Sensor interface 1: 3P interface for external sensors
Sensor interface 2: 3P interface for external sensors
Communication interface: 4P interface for external UART / I2C equipment
Lithium battery charging circuit: charge the connected lithium battery (red light-charging, green light-full)

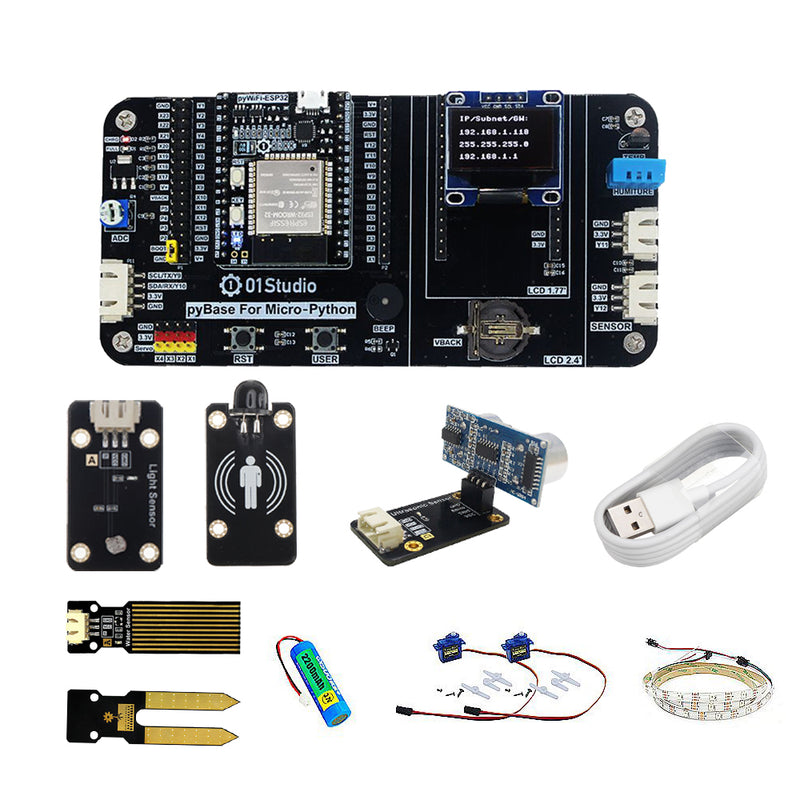

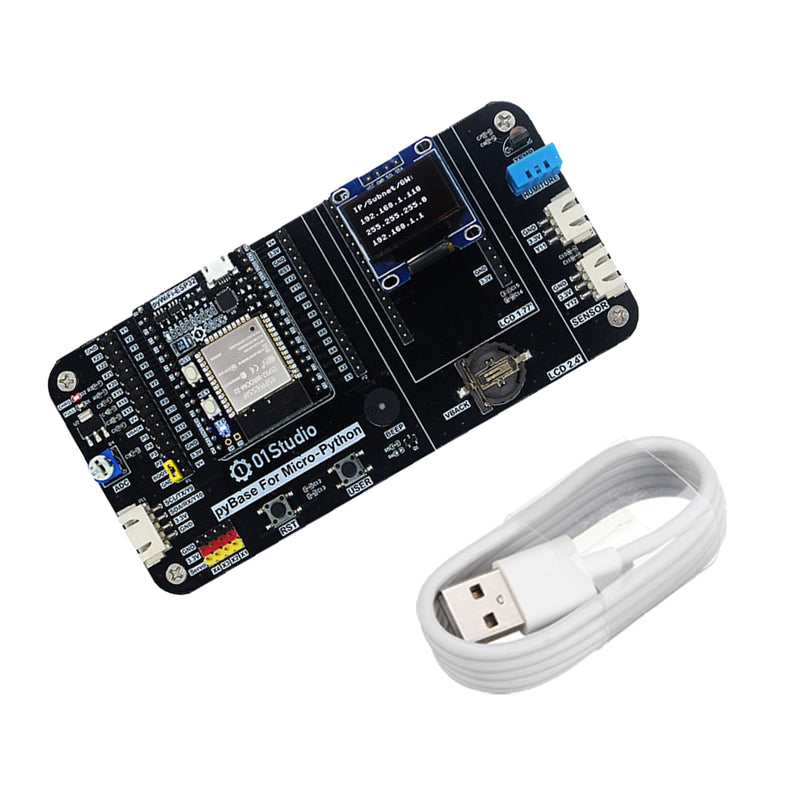

Package Included:
1 x Package1/Package2/Package3 Optional
