Overview:
1.We provide the software to connect it with the PC. If you want to connect it with other terminal device such as PLC, and so on, please prepare the fitable cable and write the program by yourself.
2. This document describes the specification of the PZEM-004T AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the TTL interface.

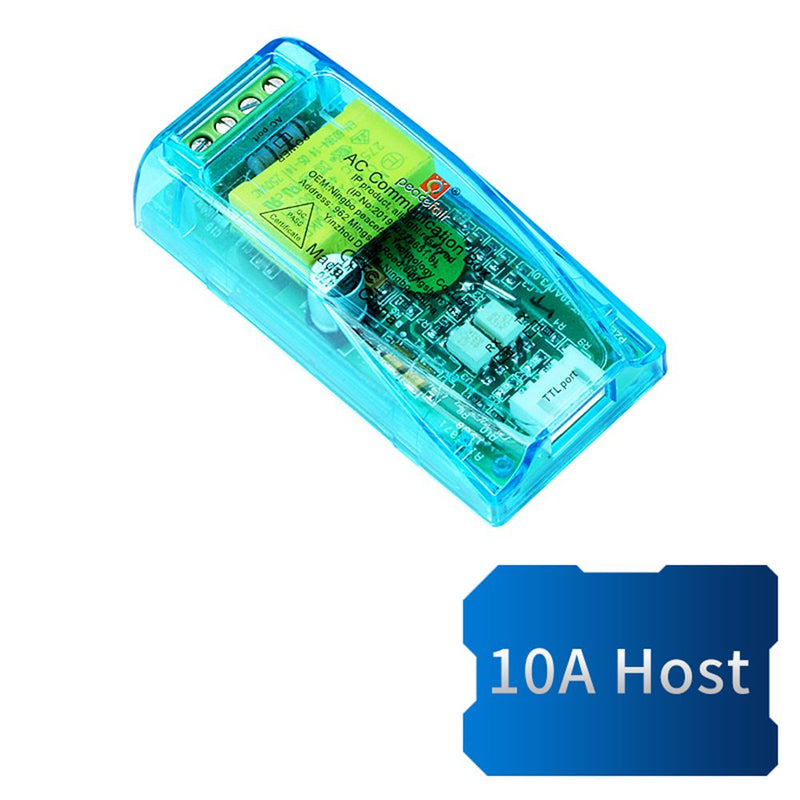

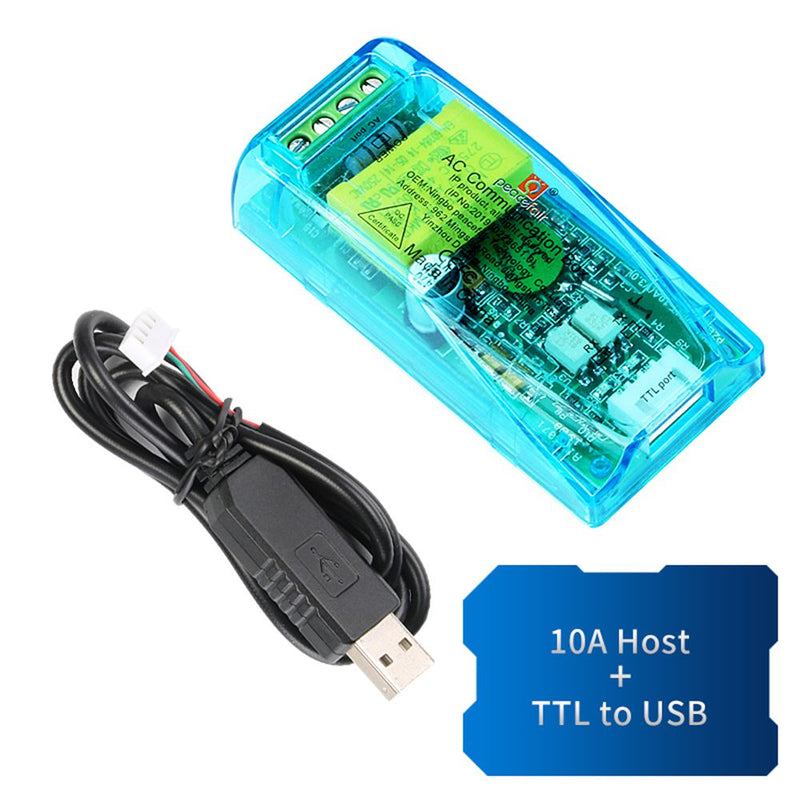

PZEM-004T-10A: Measuring Range 10A (Built-in Shunt)

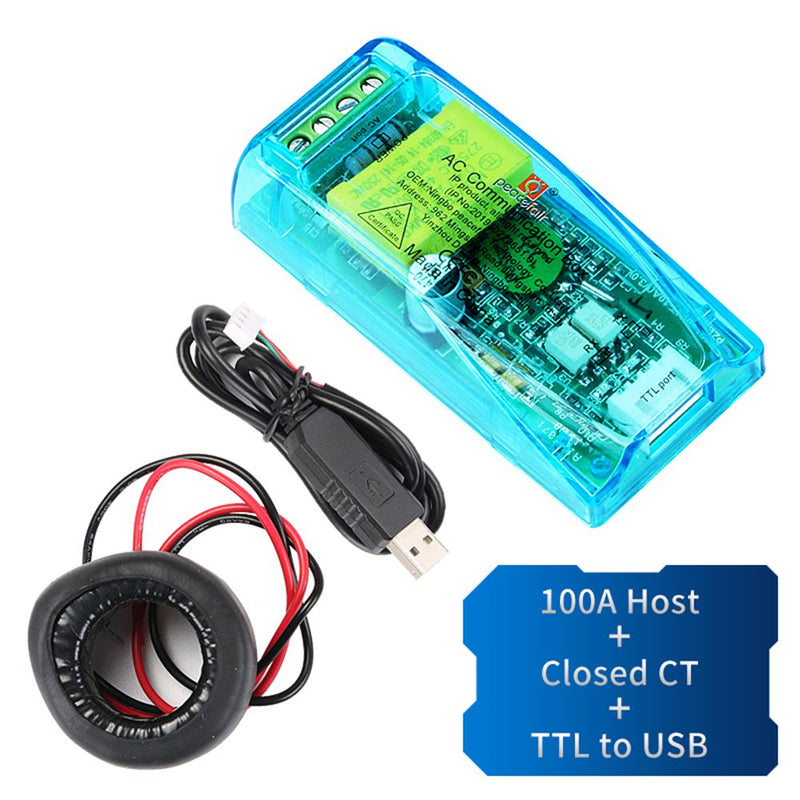

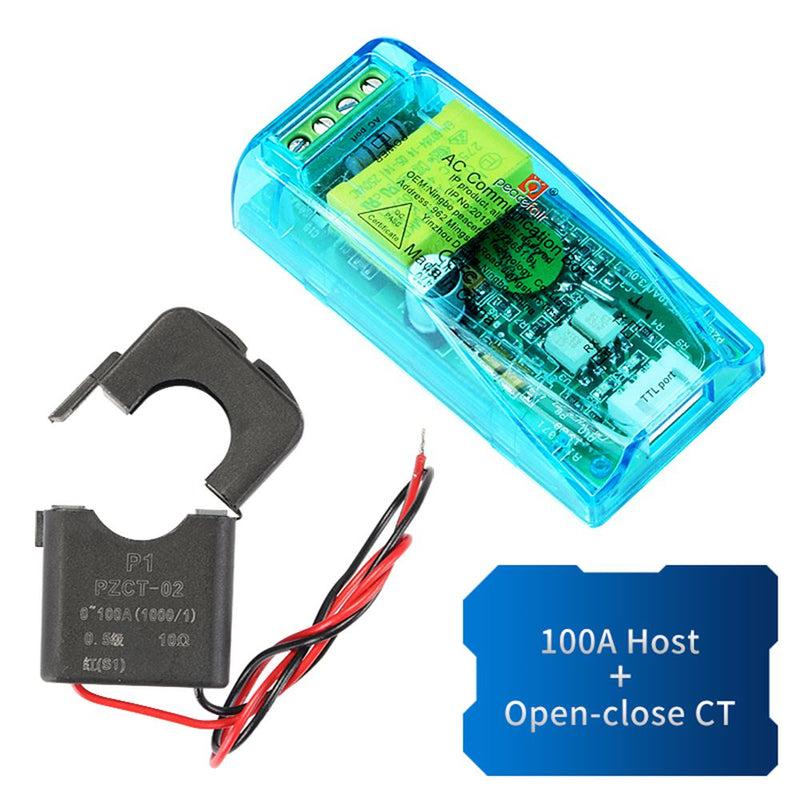

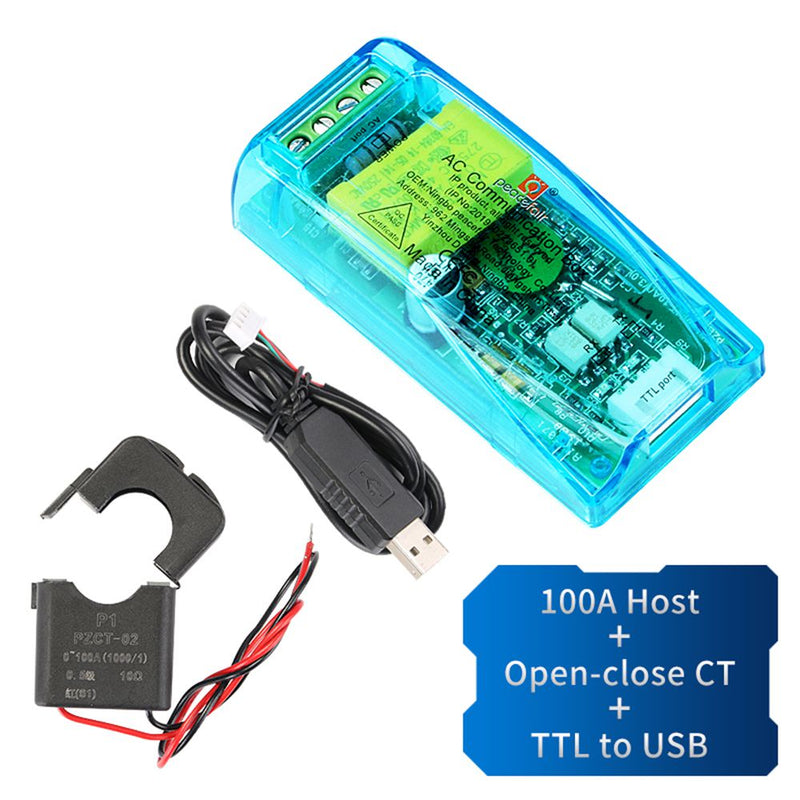

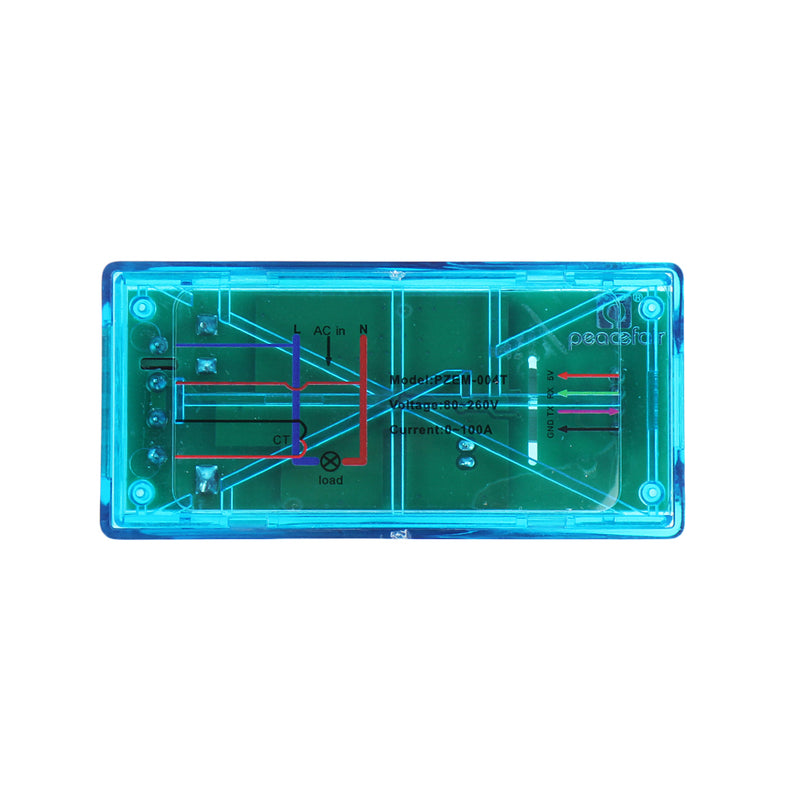

PZEM-004T-100A: Measuring Range 100A (external transformer)
If you need the software, please download it via this link:
Specifications:
Working voltage: 80 ~ 260VAC
Test voltage: 80 ~ 260VAC
Rated power: 100A/22000W
Operating frequency: 45-65Hz
Measurement accuracy: 1.0 grade
Function:
Voltage
1.1.1 Measuring range:80 - 260V
1.1.2 Resolution: 0.1V
1.1.3 Measurement accuracy: 0.5%
1.2 Current
1.2.1 Measuring range: 0 -10A(PZEM-004T-10A); 0-100A(PZEM-004T-100A)
1.2.2 Starting measure current: 0.01A(PZEM-004T-10A); 0.02A(PZEM-004T-100A)
1.2.3 Resolution: 0.001A
1.2.4 Measurement accuracy: 0.5%
1.3 Active power
1.3.1 Measuring range: 0-2.3kW(PZEM-004T-10A); 0-23kW(PZEM-004T-100A)
1.3.2 Starting measure power: 0.4W
1.3.3 Resolution: 0.1W
1.3.4 Display format:
<1000W, it display one decimal, such as: 999.9W
≥1000W, it display only integer, such as: 1000W
1.3.5 Measurement accuracy: 0.5%
1.4 Power factor
1.4.1 Measuring range: 0.00-1.00
1.4.2 Resolution: 0.01
1.4.3 Measurement accuracy: 1%
1.5 Frequency
1.5.1 Measuring range: 45Hz-65Hz
1.5.2 Resolution: 0.1Hz
1.5.3 Measurement accuracy: 0.5%
1.6 Active energy
1.6.1 Measuring range: 0-9999.99kWh
1.6.2 Resolution: 1Wh
1.6.3 Measurement accuracy: 0.5%
1.6.4 Display format:
<10kWh, the display unit is Wh(1kWh=1000Wh), such as: 9999Wh
≥10kWh, the display unit is kWh, such as: 9999.99kWh
1.6.5 Reset energy: use software to reset.
1.7 Over power alarm
Active power threshold can be set, when the measured active power exceeds the threshold, it can alarm
1.8 Communication interface
RS485 interface
Communication protocol
1.1 Physical layer protocol
Physical layer use UART to TTL communication interface
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
Package Included:

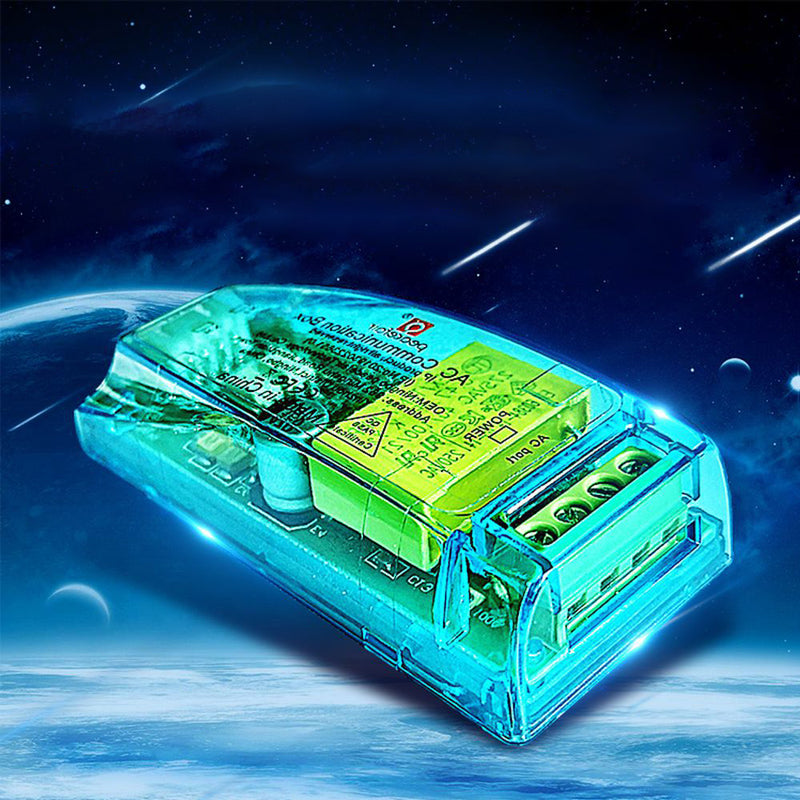

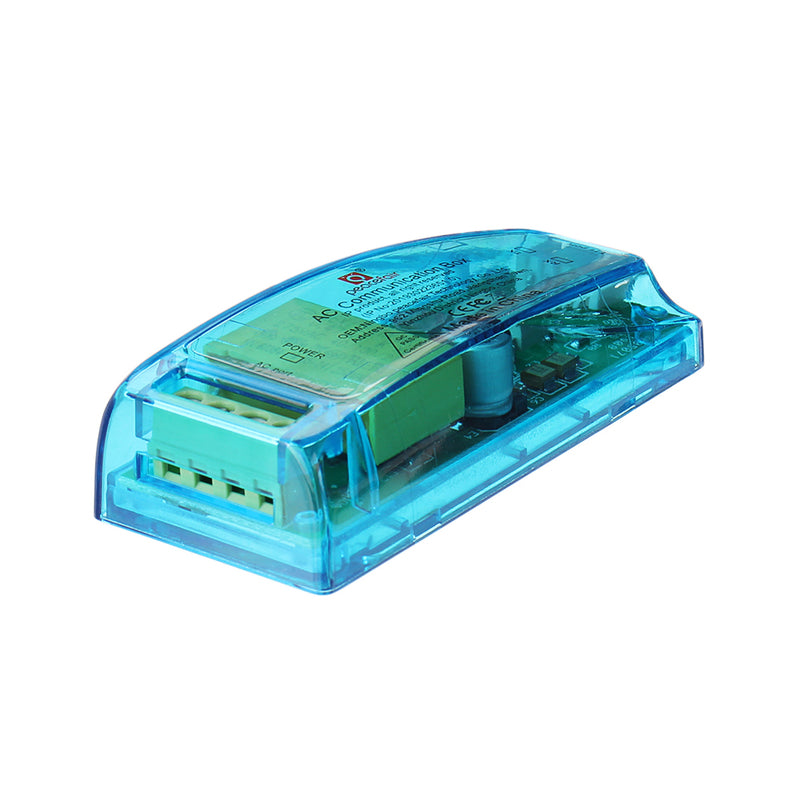

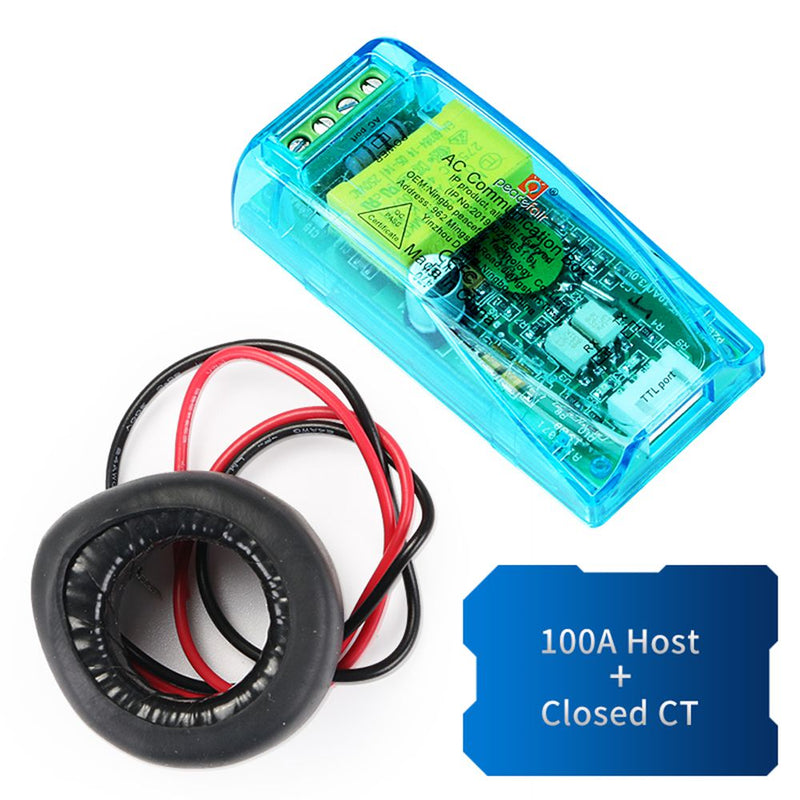

1 x PZEM-004T TTL Modbus-RTU Power Voltmeter Ammeter
