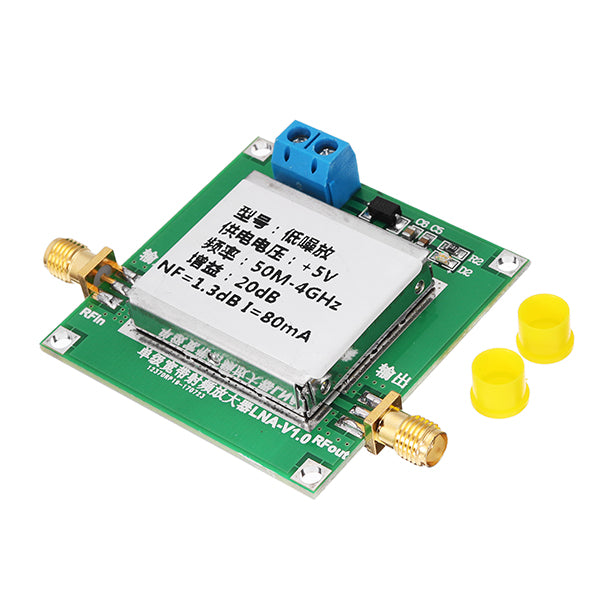

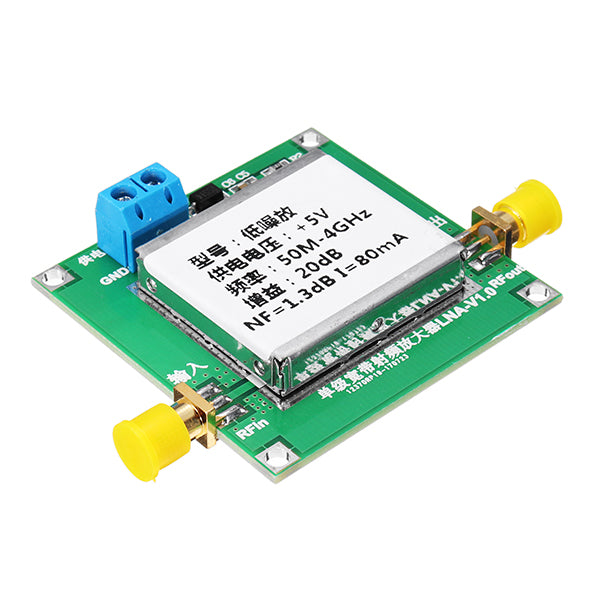

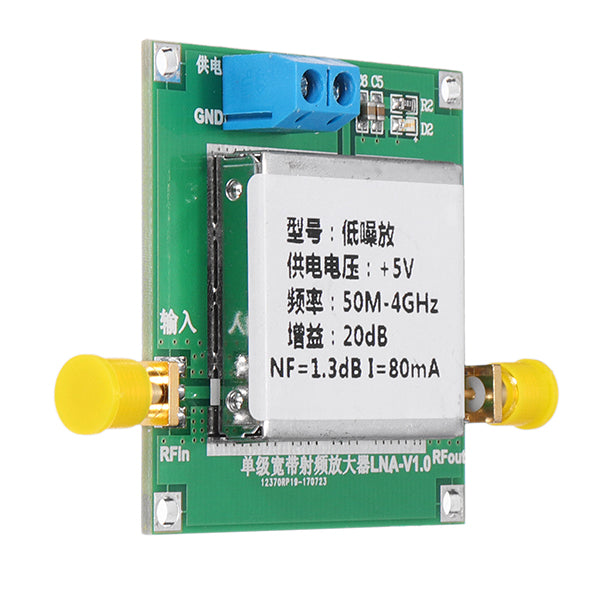

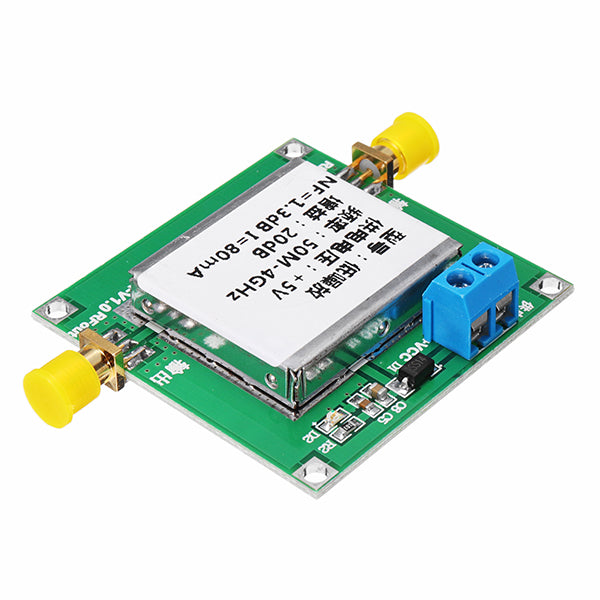

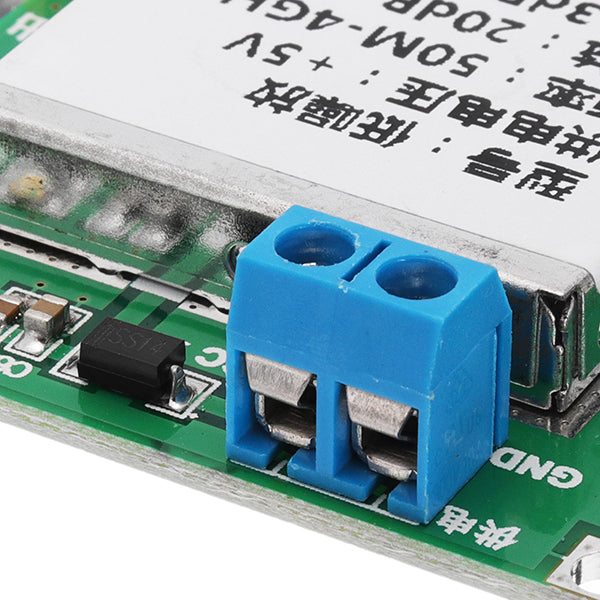

The amplifier has the advantages of wide frequency range, high gain, low noise coefficient, etc., and can be used for various radio frequency receiving front end to increase the communication distance! Wide range of short wave, FM radio, remote control receiver, cable TV signal amplifier and other low noise small signal RF amplifier! The amplifier is provided with a shielding shell, and is provided with an anti reverse protection diode.
Technical indicators:
1. Power supply voltage: 5VDirect(Typical current value 85MA) 2. Gain: 20DBInput / output impedance: 50Ohm 3. Maximum output power: 10dBm(2VPPUnder 50 ohm load) 4. Input signal: less than0dBm (greater than0dBmInput output signal has been distorted) 5. Bandwidth, bandwidth: 50MHzreach(4GHzDifferent frequency gain is different, specific please refer to S21Curve index) 6. Noise coefficient: 1.3dB (2GHzCase measurement) 7. Shield with metal enclosure 8. Other: the need for different gain values, you can reduce the supply voltage.
Package included:
1 x RF low noise amplifier
