Feature:
Model Number: MEGA-PROMINI-ATmega2560
Is_customized: Yes
Form-factor: Mega PROMINI
Microcontoller: ATmega2560 (16Mhz)
Vout/Iout: 5V(800mA)
Vin (normal)/ Vin (peack): 6-9V/ peack 18V
Description:

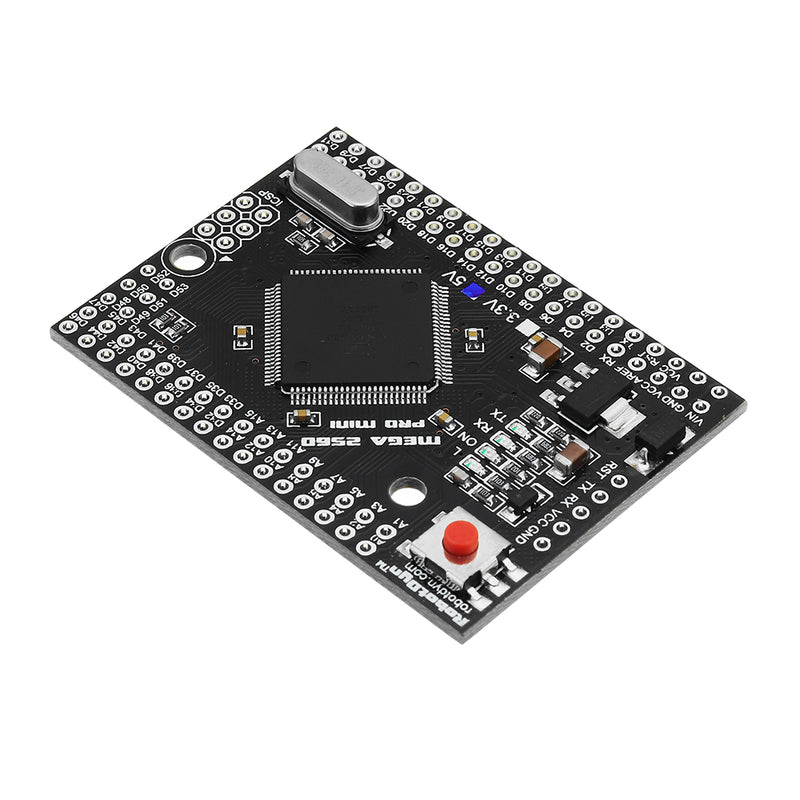

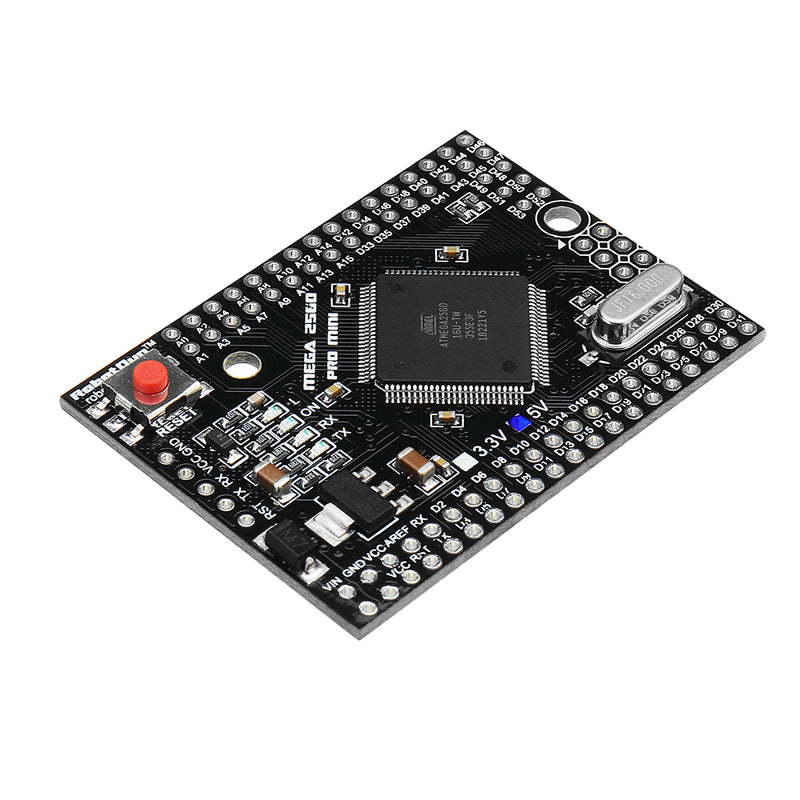

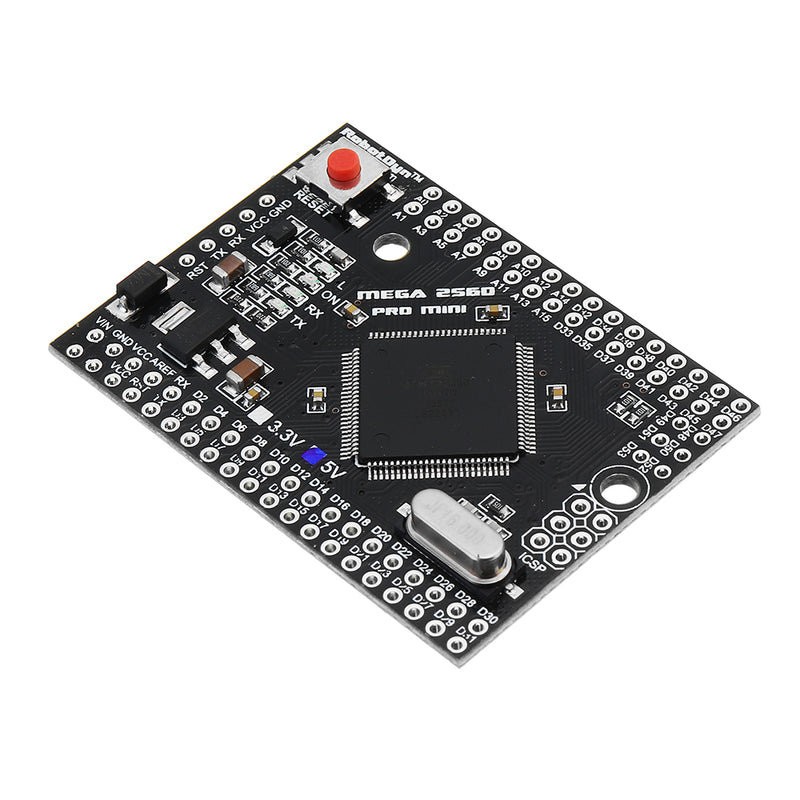

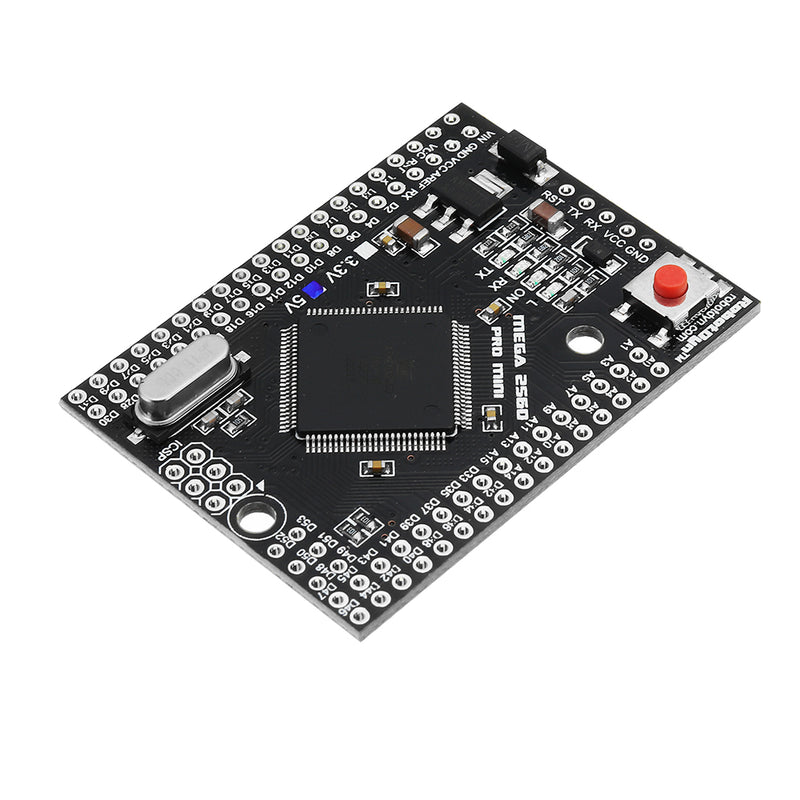

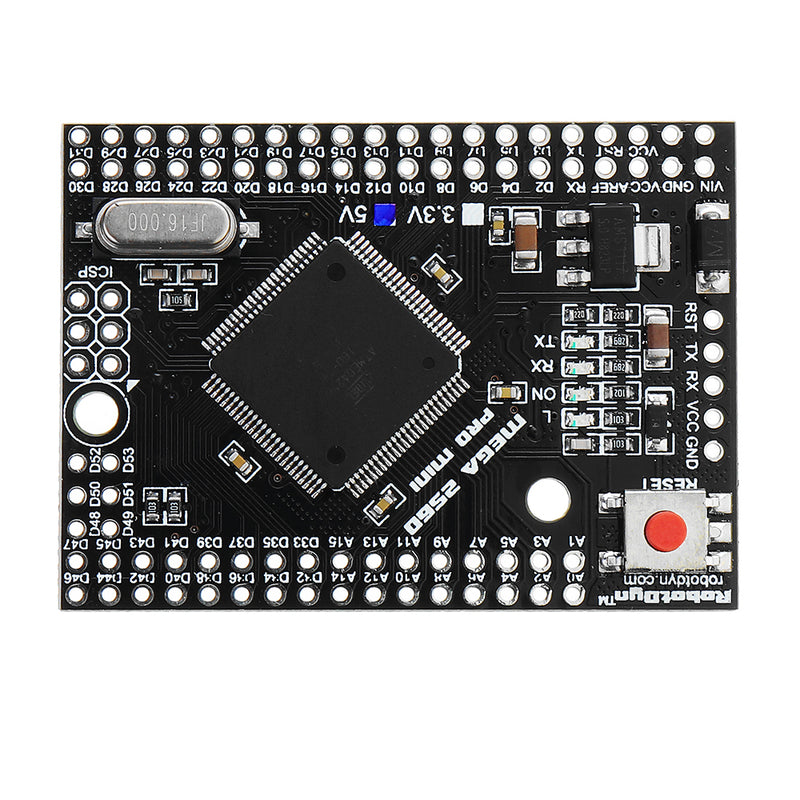

PRO MINI version of Mega 2560. Built on the At mel ATmega2560 microcontroller.
The board has compact size 38x52mm. It is a good solution, to make your final project on solder proto-board.
Board for functionality similar to the Mega 2560. It is an embedded MINI board, but the same stable, and uses the original chips ATmega2560 (16 MHz).
The board doesn't have USB interface. For connecting to PC, pls use the USB-TTL converter.
You can supply power to board through the power pin headers. Output current for 5V version - about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.
On the picture, you can see the real size of this board, compare with the size of Mega Rev3.

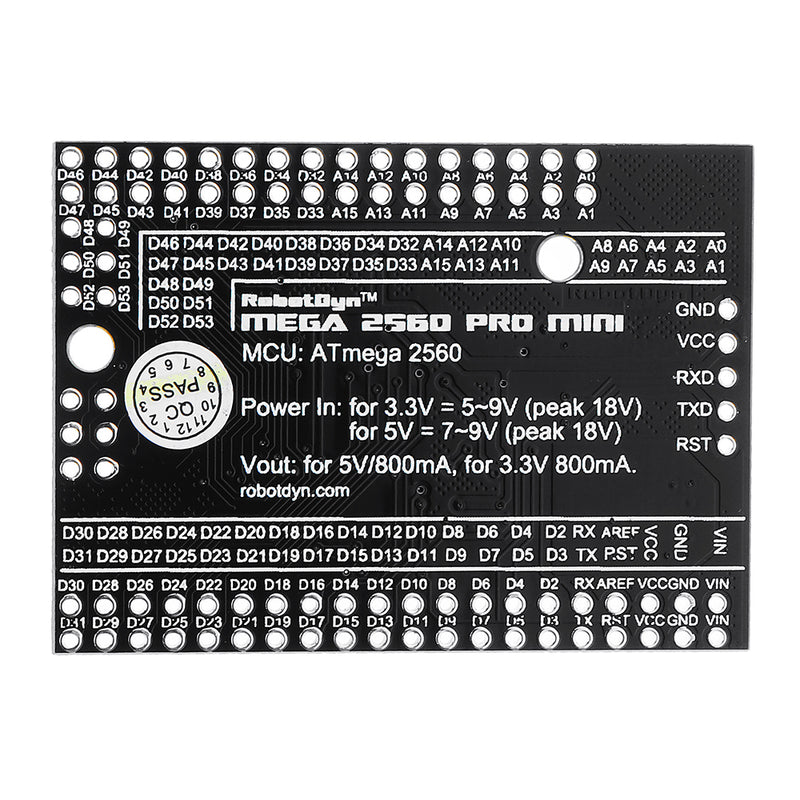

Technical details:
70 digital I/O
16 analog inputs
14 PWM
4 bus of UART
Package includes:

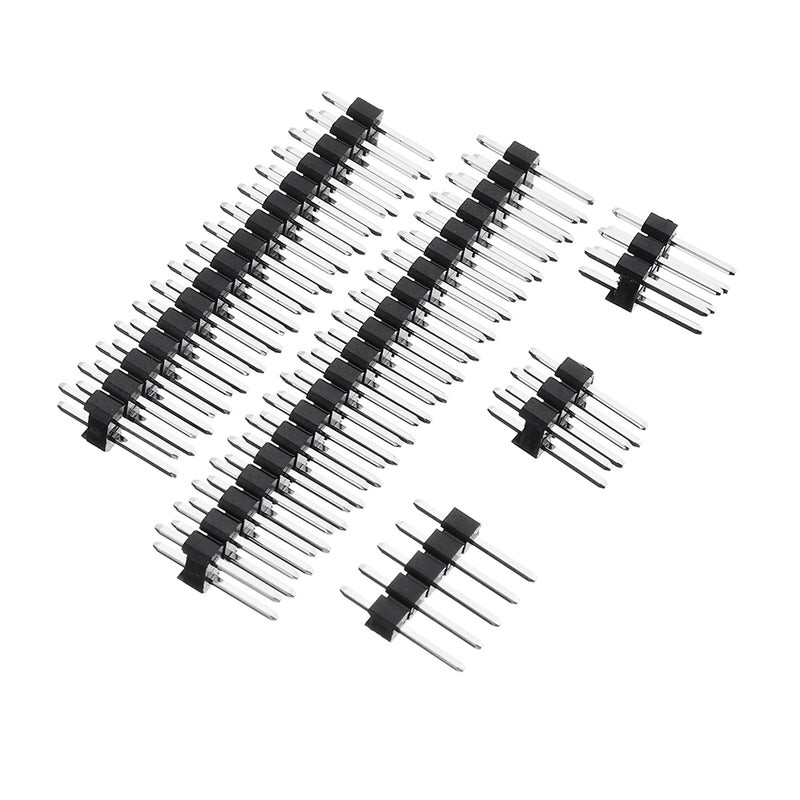

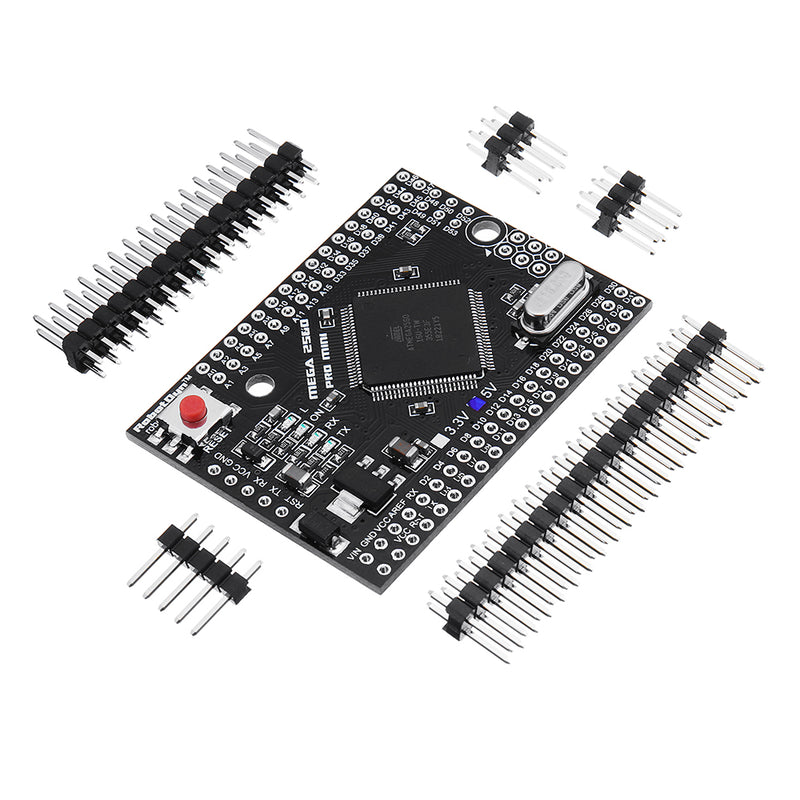

1 x Mega2560 PRO MINI Module With Pin Headers
