RobotDyn Nano V3.0 CH340/ATmega328P 16MHz Assembled Version Module For
Save 0
SKU: U2I-BG-1128921
Share this product
Description
Introdution:

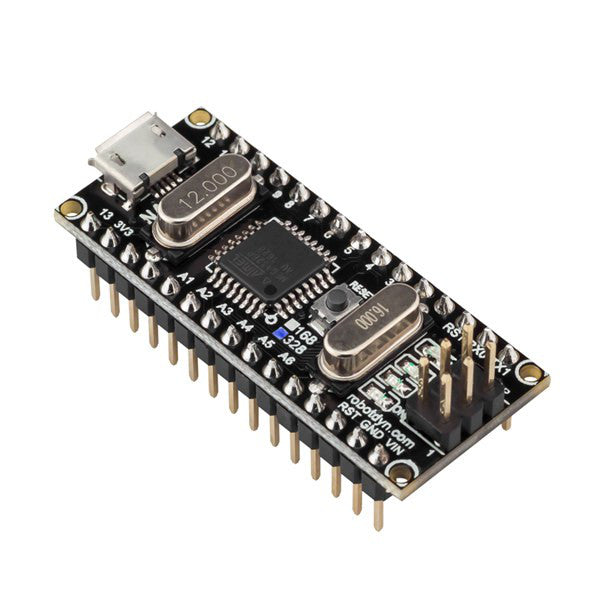

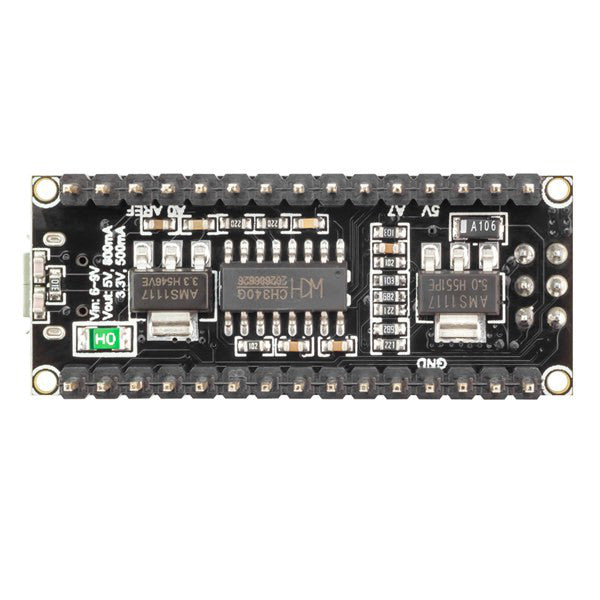

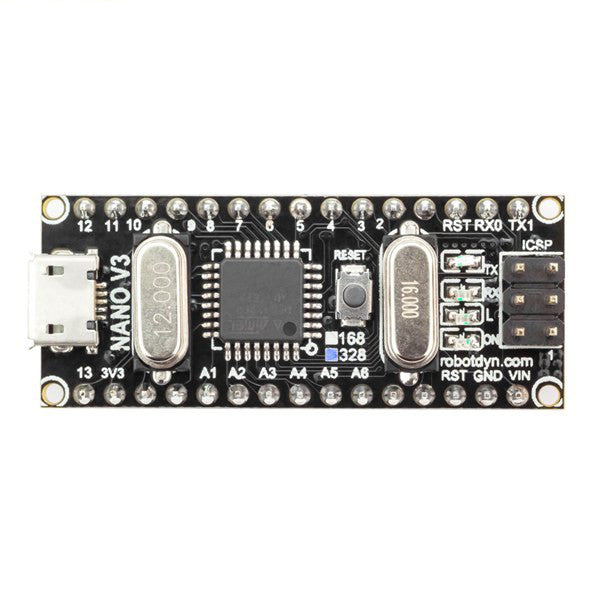

Nano V3 constructed on the ATmega328 microcontroller (16MHz) has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB. The board uses a chip CH340G as converter UART-USB. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers on the computer follow the instruction). Nano V3, can be powered via microUSB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.
Technische details:
Nano V3 form-fuctor ATmega328 (16Mhz) microcontroller CH340G - USB-UART interface Input voltage: 6-12V Output voltage: 5V/800mA, 3.3V/800mA Micro USB - connection socket 500mA resetable Fuse on USB port
Package includes:
1 x Nano v3 board
