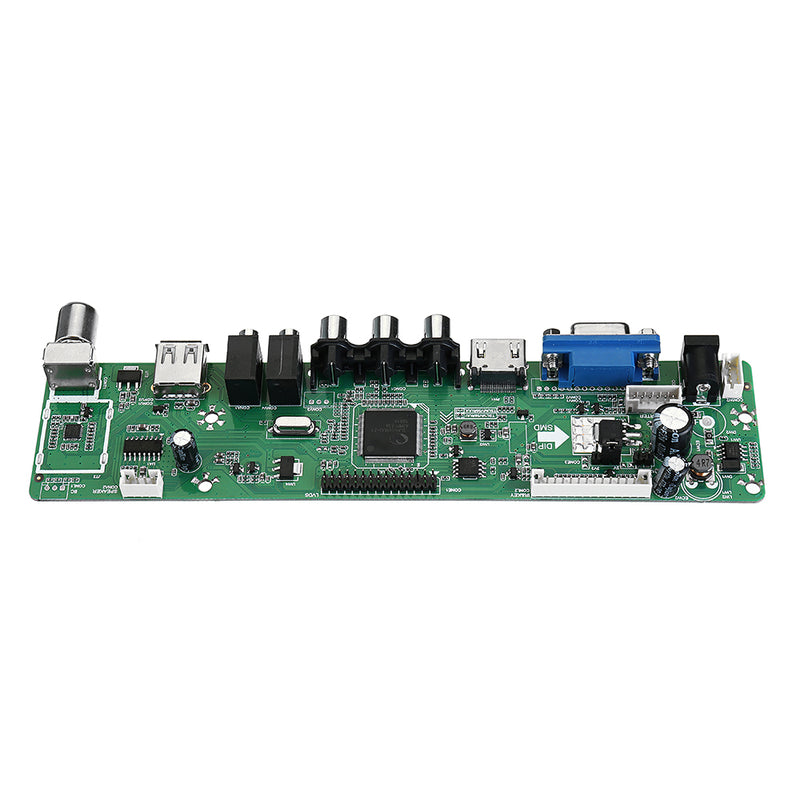

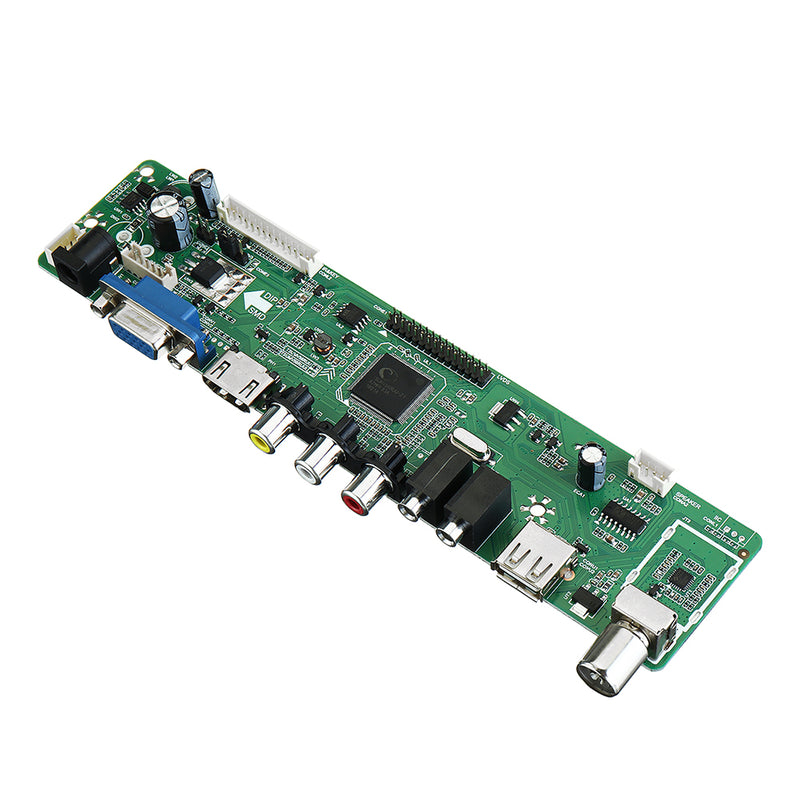

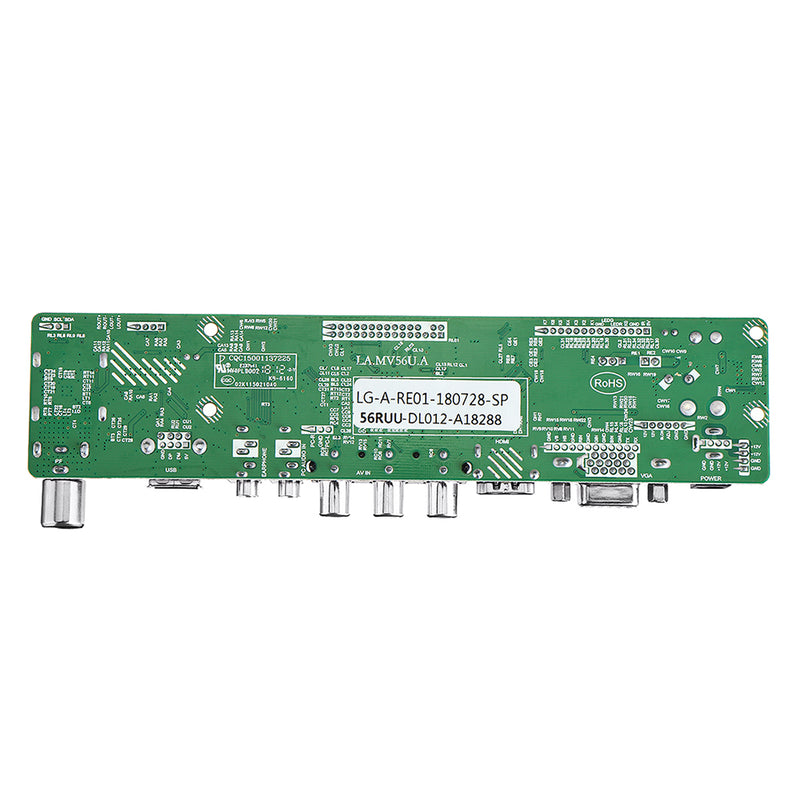

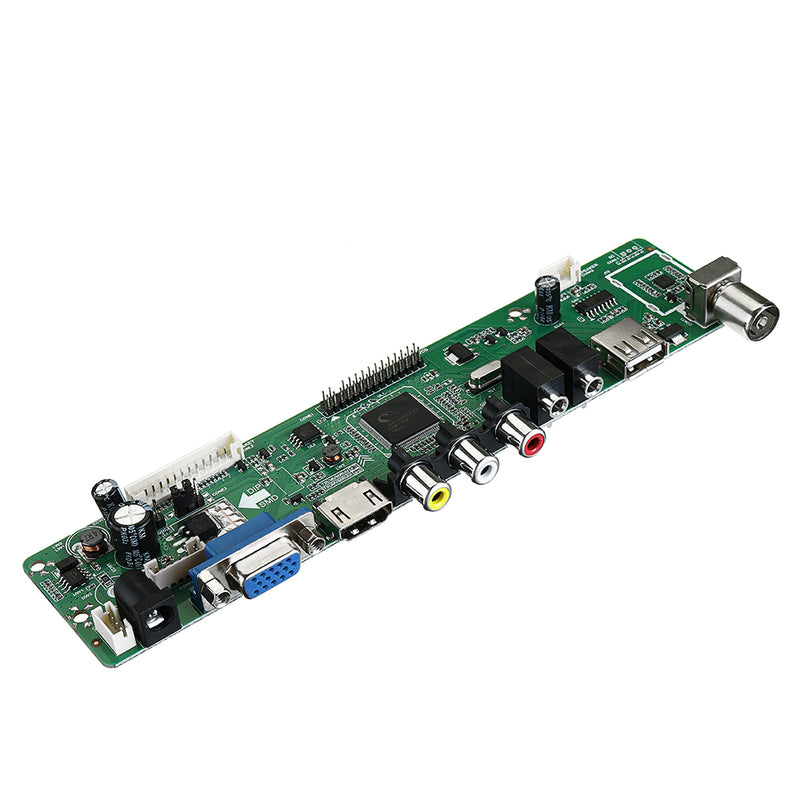

RR83.03D supports analog TV front-end (PAL/SECAM/NTSC) demodulator. HDMI,USB,PC-RGB, Earphone output, AV video and audio input , an audio amplifier which supports 2*3W(4ohm)/ 2*1.5W(8ohm) outputs is built in.
RR83.03D Software upgrade and multimedia playback function are applicable with the USB slot.
Description:
Support Language: Russian, English, Chinese, French, German, Italian, Burmese
Scheme of the chip: 8503C
Input Interface: PC / HDMI / TV / USB multimedia playing
Voltage: DC 12 V 3-5A, 4A is the best
Screen interface: LVDS Single 6 / 8 , Double 6 / 8
Screen voltage: 3.3V / 5V / 12V
Resolution: Support high screen 1920 * 1080, 7-55 inch LVDS screen
| Chipset |
RDA8503 |
| OSD Language |
English/Chinese/ French/Spanish/Portuguese |
| LCD Panel |
Type |
TFT-LCD, LED backlight LCD |
| Resolution |
up to 1920*1080 |
| Interface |
single/dual 8bit LVDS |
| Panel power |
3.3V,5V,12V optional |
| FR input |
ATV |
Receiving Range |
48.25MHz~865.25MHz |
| Input Impedance |
75 ohm |
| Video System |
PAL,SECAM,NTSC |
| Sound System |
BG,DK,M,N,L/L’ |
| Max Storage |
200 |
| channels |
| Video input |
AV |
Video System |
PAL/NTSC/SECAM |
| Video Level |
1.0 Vp-p +- 5% |
| Component |
480i,480p,576i,576p,720p,1080i,1080p |
| HDMI |
480i,480p,576i,576p,720p,1080i,1080p |
| PC-RGB |
up to 1920*1080@60Hz |
| USB2.0 |
Multimedia playback and software upgrade |
| Audio Input |
PC-RGB |
Earphone Input |
0.2 - 2.0 Vrms
|
| AV |
L/R RCA Input |
0.2 - 2.0 Vrms
|
| Audio Output |
Max Output Power |
2*3W(4ohm) |
| EARPHONE |
2*10mW(32ohm)(max) |
| Key Function |
POWER,INPUT,MENU,CH+,CH-,VOL+,VOL- |
| Power |
Input |
DC12V |
| Power Management |
Standby Power Consumption <0.5W(board only) |
| Terminal |
Input |
TV |
1 IEC type, 75
|
| AV |
1 RCA Terminal(yellow) |
| AV Audio |
2 RCA Terminal(RED/WHITE) |
| PC-RGB |
1 D-Sub Terminal(15PIN) |
| PC-RGB Audio |
1 Earphone Terminal |
| HDMI |
1 HDMI Terminal |
| USB |
1 USB Terminal |
| 12V_DC IN |
1 DC Terminal |
| Output |
EARPHONE |
1 Earphone Terminal |

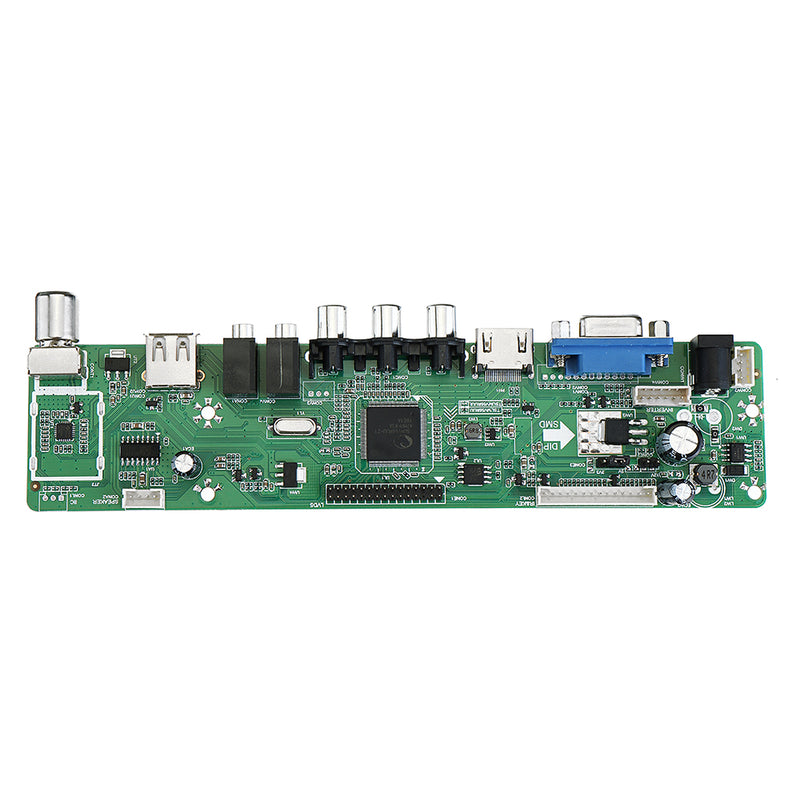

Function Layout:
Functions: 12V IN, VGA, HDMI, CVBS /AUDIO IN,PC AUDIO IN, EARPHONE OUT, USB, ATV
| No. |
Position |
Description |
| 1 |
CN12 |
DC12V |
| 2 |
CN13 |
INVERTER |
| 3 |
JP32 |
12V PANEL SEL |
| 4 |
JP31 |
3.3/5.0V PANEL SEL |
| 5 |
CNP1 |
LVDS |
| 6 |
CN32 |
IR&Key |
| 7 |
CNA3 |
SPEAKER |
Package included:1 x Driver Board
