Specifications:
- Working voltage: 5V version: DC 3.7-5.5V; 12V version: 6-25V
- Working current: 8-13mA
- MODBUS RTU protocol, 03 read command, 06 write command.
- Serial port baud rate: 9600 (default), N, 8, 1
- By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)
- Adapted sensor: B3950 10K 1% NTC thermistor Resistor
- Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.
- Temperature measurement accuracy (using our NTC sensor): 1%.
- Size: 30 x 15 x 6MM
NTC Sensor Specifications:
Product Name: 5*25mmNTC Waterproof Probe
Total length : 50CM
Resistance value: 10K
Resistance accuracy: ±1%
Resistance B value: 3950 ± 1%
Temperature range: -20 ° C -125 ° C
Wire size: 2651 26# parallel line temperature 105 °C
Plug model: XH2.54-2P
NTC Probe: A version without mounting holes, B version with mounting holes (4MM/M4)
Application:
PLC control system
NTC thermistor sensor
Thermostatic Controls
Industrial Systems
Thermometers
Thermally Sensitive Systems
Indoor and outdoor temperature measurement
Temperature in vegetable garden
Weather forecasting, and monitoring
Temperature in Computer Room
Warehouse temperature
Package Included:

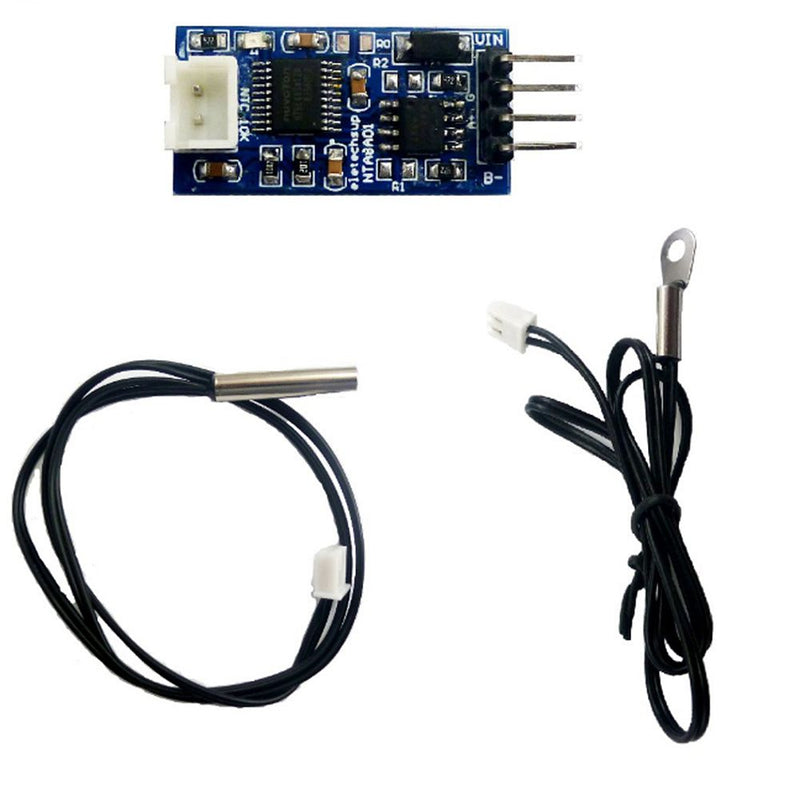

1 x RS485 TTL RS232 Temperature Sensor Converter Module
