Specifocations:
Operating voltage: Dual AC24-32V (recommended dual AC30V or dual AC32V) 200-400W toroidal transformer
Power amplifier chip: SanKen1494/3858
Channel type: stereo two-channel, mono
Mono output: 800W
Two-channel output: 450W+450W
Impedance: 4 ohm / 8 ohm / 16 ohm
Size: 22*14.5*8cm
Features:
1. The power amplifier board is thickened with heat sink on the basis of the old model. It adopts circuit design, high power, good sound quality and minimal distortion!
2. The parameters of the power amplifier board are strictly tested. The two channels only need to be connected according to the wiring diagram.
3. The board comes with filter rectification, with heat sink, only need to connect the power supply, transformer and preamp!
4.Mono wiring: only need to connect the included red plug-in to the board K1, K2 to be mono.
Package Included:

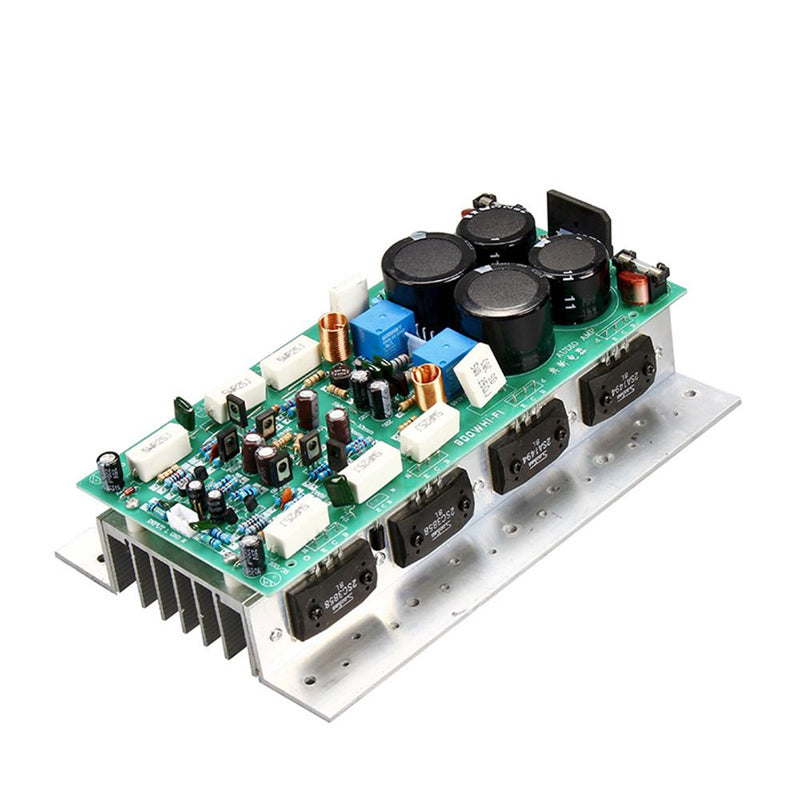

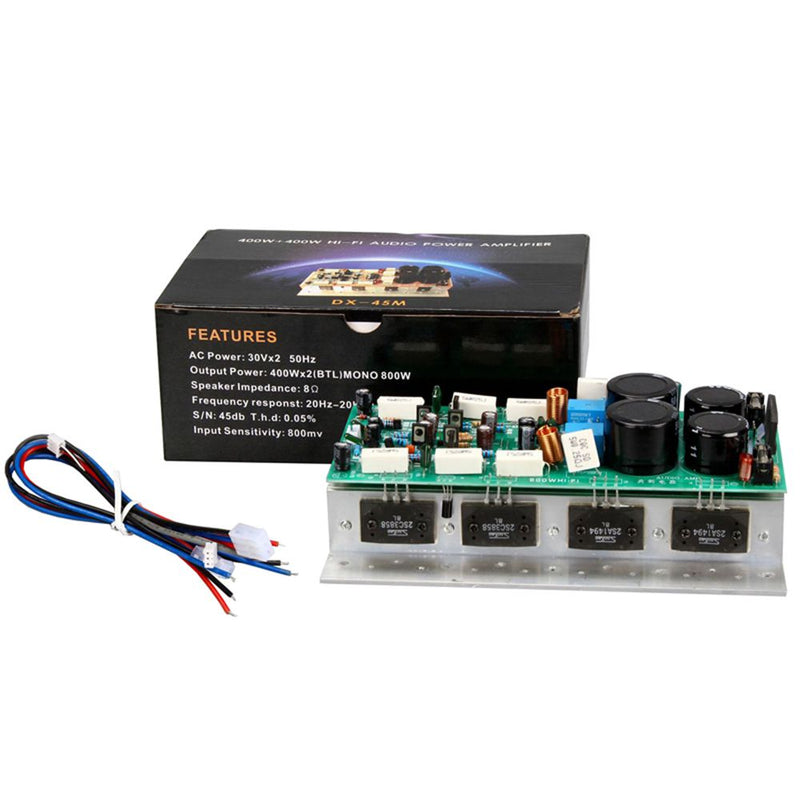

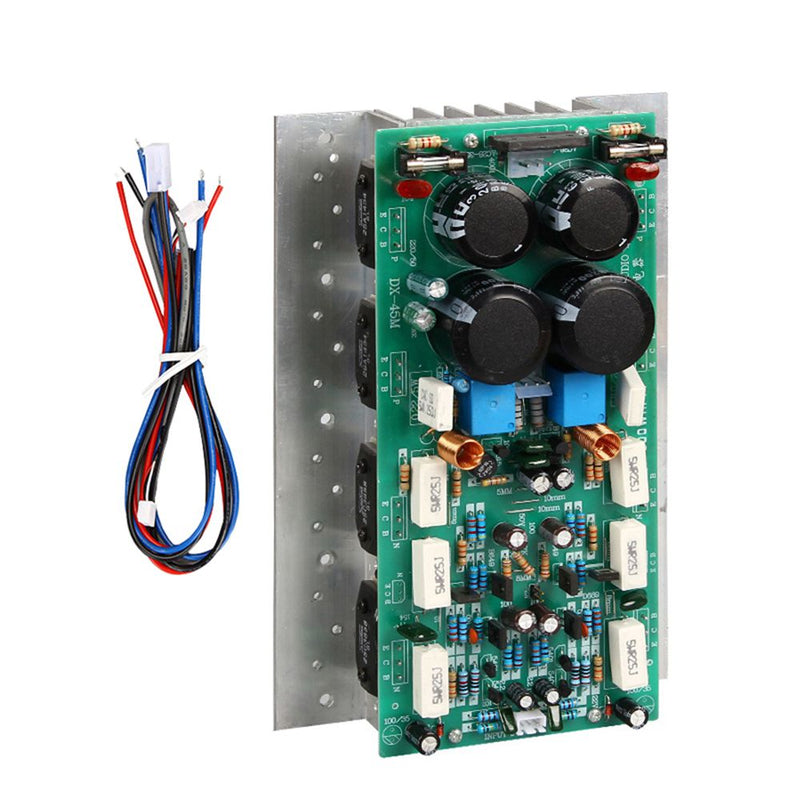

1 x 1494/3858 High Power HIFI Audio Amplifier Board
