Description:

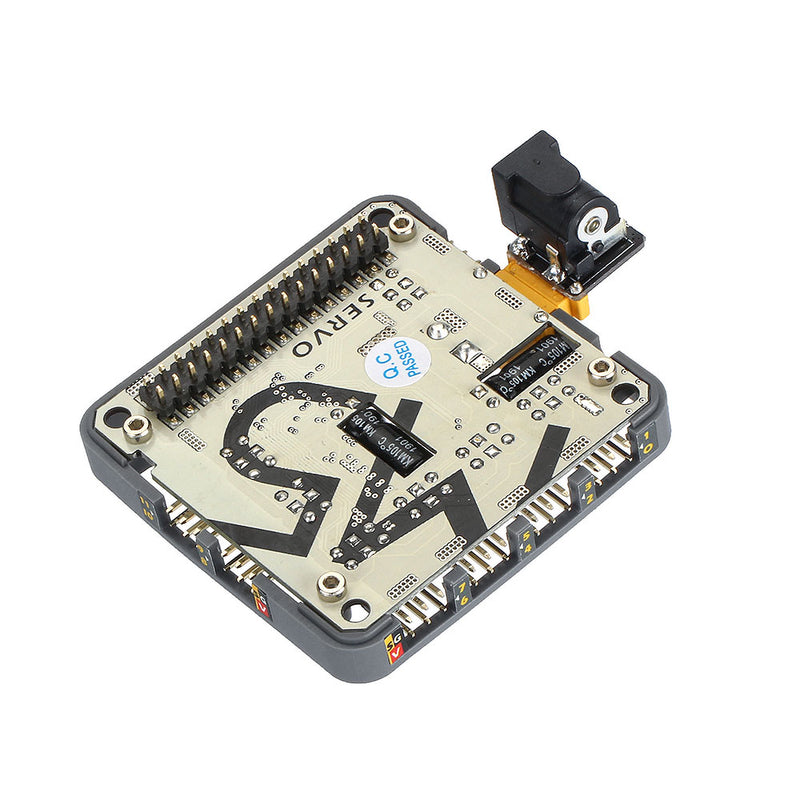

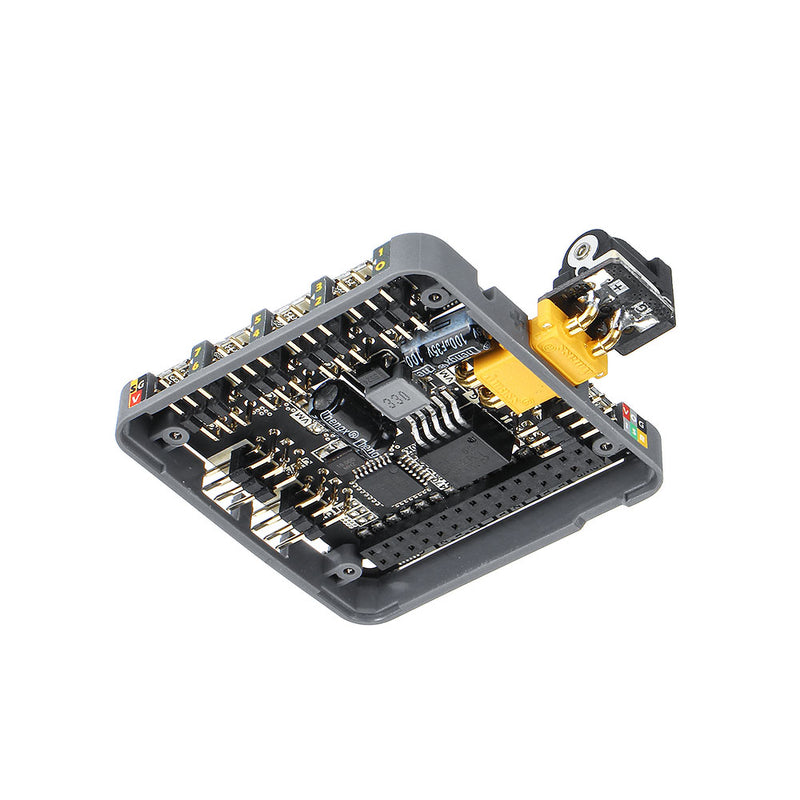

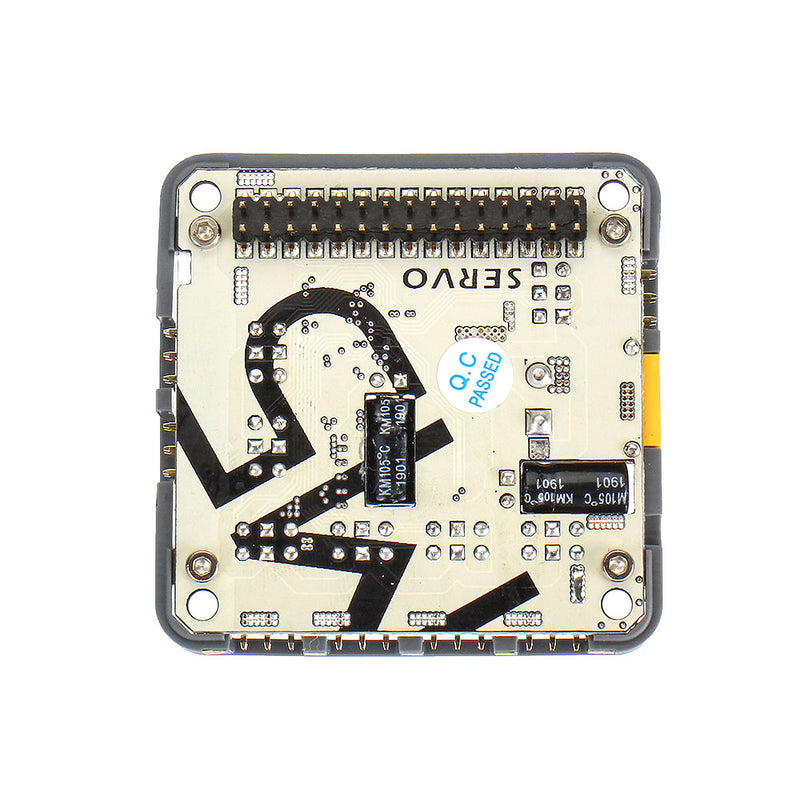

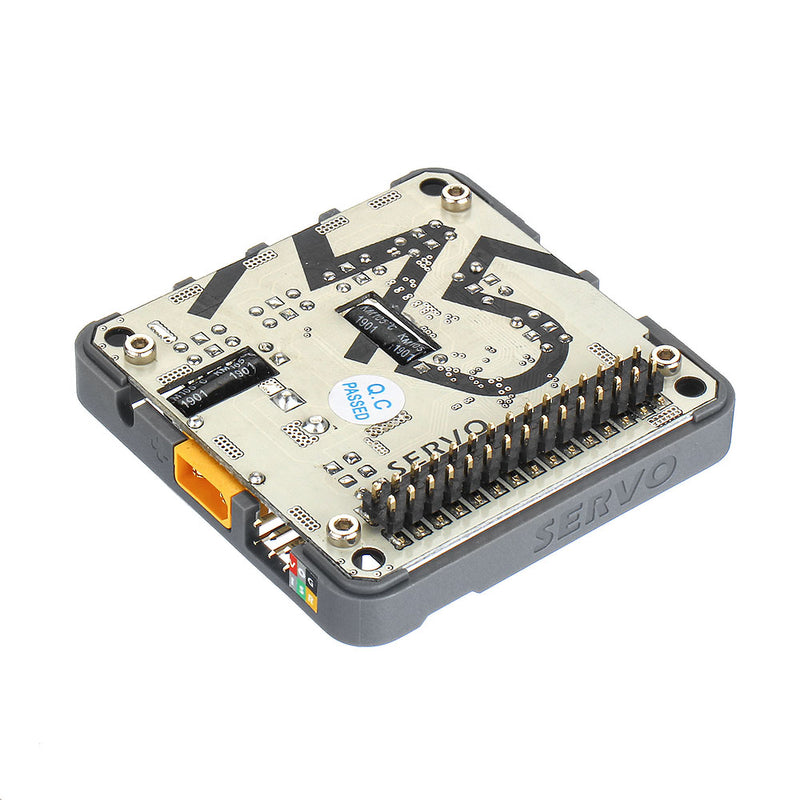

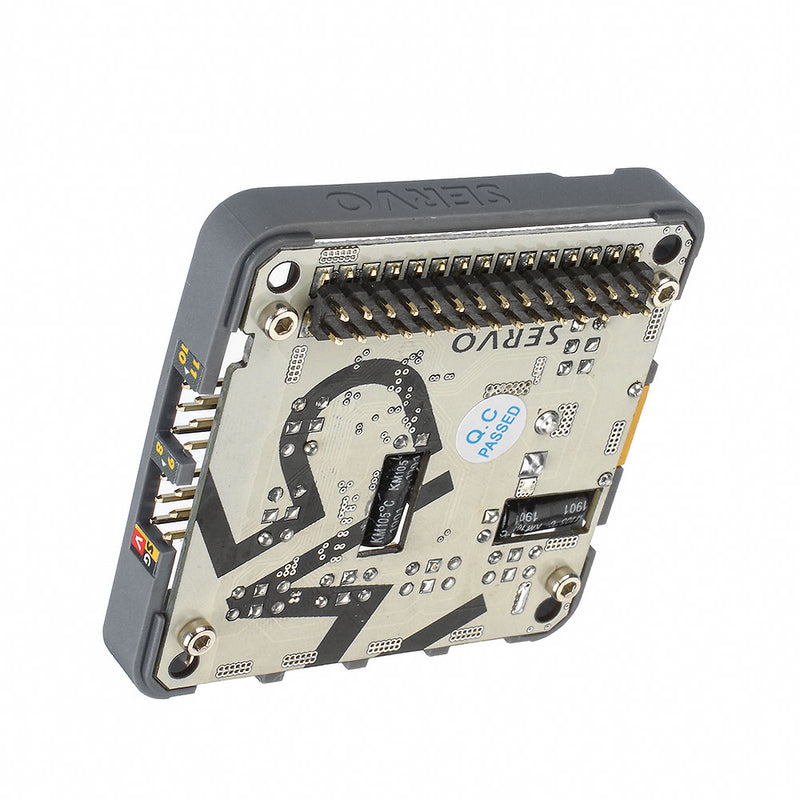

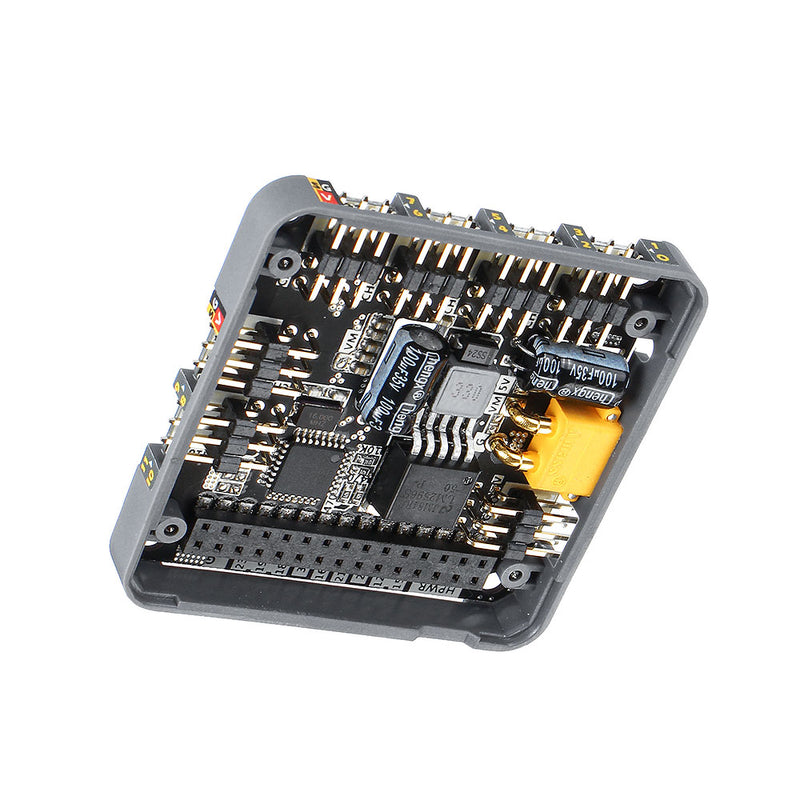

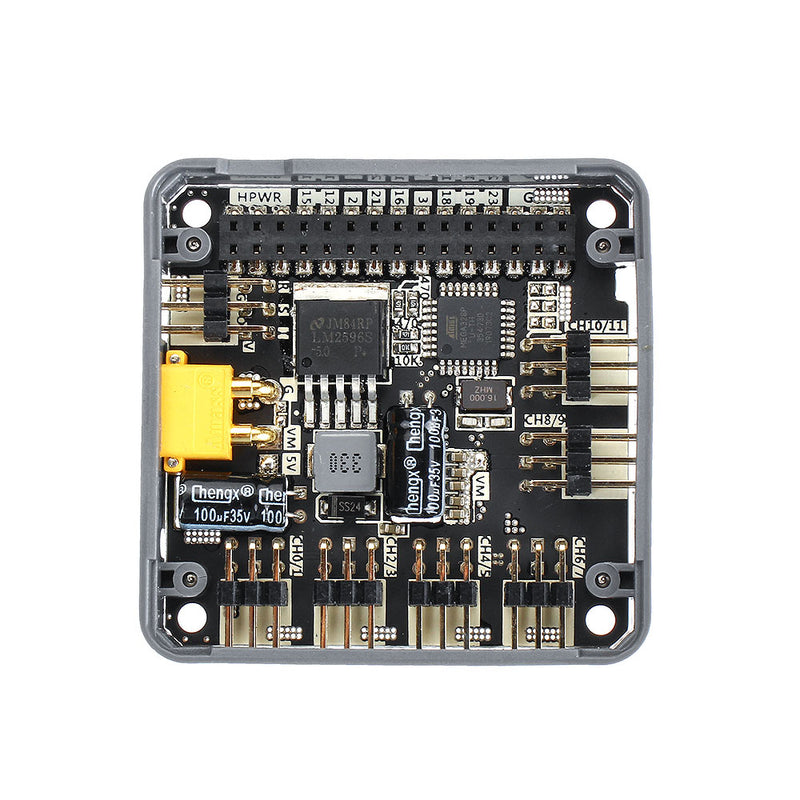

SERVO is made to implement the bestest, easiest way to drive Servo motors. This M5 module will make quick work of your next Servo project! It is able to drive mutiple Servo motors, up to 12 channals. We also added an DC input for power supplement. Through M-BUS the DC in can automatically power the M5 core at top.
Servo is powered by MEGA328 communicate via IIC(0x53).
Product Features:
- 12x servo ports
- DC power input: 6-24V 5.5*2.1mm
- DC Connector Type: XT60 (female)
Package Included:
- 1x M5Stack Servo Module

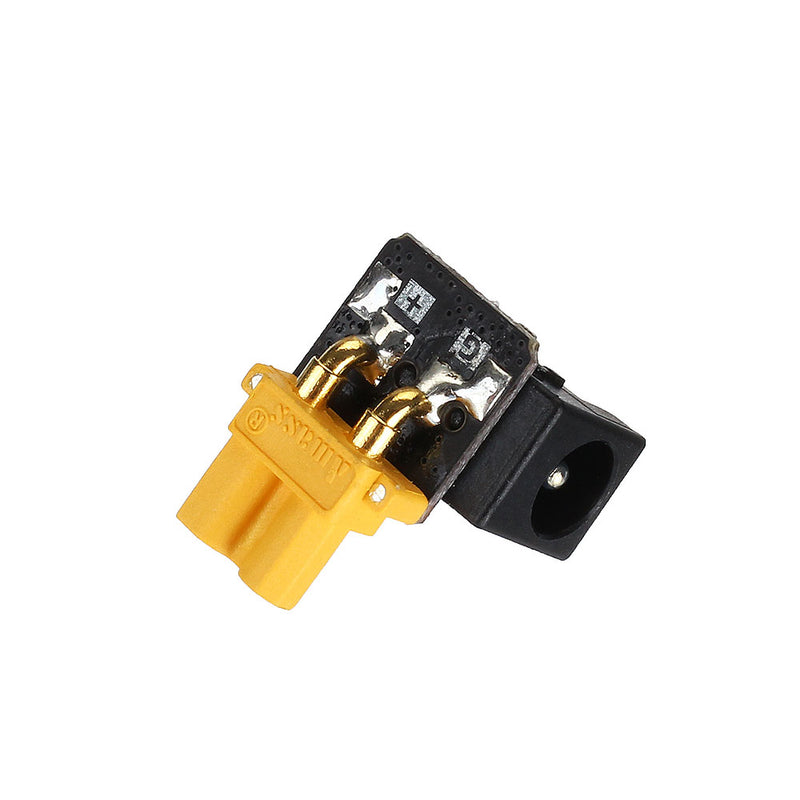

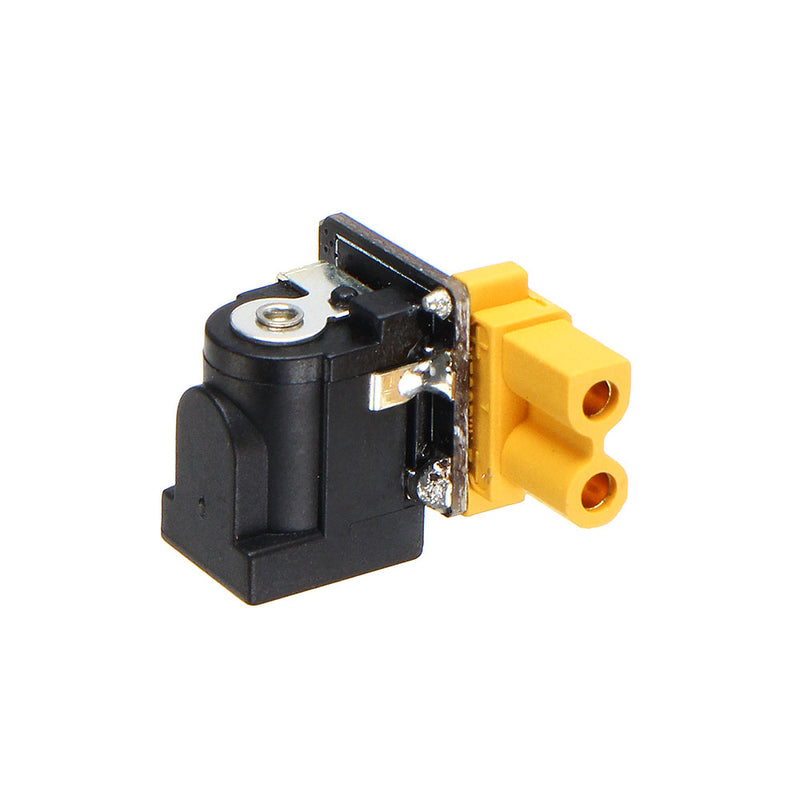

- 1x Common Male to XT60 Male DC convertor
Applications:
- Humanoid robot
- for Bionic multi-joint robot
- Triaxial Camera Cradle
1.EasyLoader is a simple and fast program burner, and each product page has a product-related case program for EasyLoader.
2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click “Burn” to start burning.
3.The CP210X (USB driver) needs to be installed before the EasyLoader is burned.
Click here to view the driver installation tutorial Example:
1. for IDE
The below code is incomplete(just for usage). If you want the complete code, please click here.
2. UIFlow
Wanna explore the easiest way of Servo programming?? Check out the Blockly Platform at UIFlow.
TO get the complete code, please click here.
