Upgrade SITIME crystal version:
XMOS USB interface supports SACD's DSD, DTS data stream playback! The sound quality is much higher than that of traditional CDs.
Driver link:
Xmos gold plated PCB interface definition support Amanero Italy interface
The sampling rate supported by each output interface:
PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz (In which I2S out supports all sampling rates, S/PDIF supports up to 192KHz)
DSD: 2.8MHz (DSD64) - DoP, native
5.6 MHz (DSD128) - DoP, native
11.2 MHz (DSD256) - DoP, native
(where I2S out supports all DSD formats, S/PDIF supports DSD64 DOP mode)
Bit width: up to 32 bit over I2S output
Up to 24 bit over S/PDIF
System compatibility:
1. Windows 7, Windows 8, Windows 10; 32/64 bit, need to install the dedicated driver
2. Native Mac 10.6 and later, using the system comes with the driver
3. Native Linux with UAC2 compliant kernel, using the system's own driver (tested on Ubuntu and Daphile systems, based on INTEL X86 platform)
4. Android OS 4.2 and above, need the device to support OTG function. Generally speaking, Android 5.0 system is the default support, and the following 5.0 is recommended to use with a special player.
Features:
1. Use XMOS latest series xU208 as the core processing USB to IIS/DSD
2. The crystal is very close to the XMOS, reducing the interference of the external clock signal, double gold-plated PCB, PCB thickness and the original Italian thickness
3. With sampling instruction output indication
4. Provide DSD_ON and MUTE output
5.XMOS chip 3.3V power supply using ultra-low noise ADP150 regulator chip
6. This product uses MCLL as decoupling, each channel is decoupled by LC filter, HIFI design
7. Compatible with the size of Italian Amanero usb module, I2S/DSD output pin one-to-one correspondence.
Package Included:

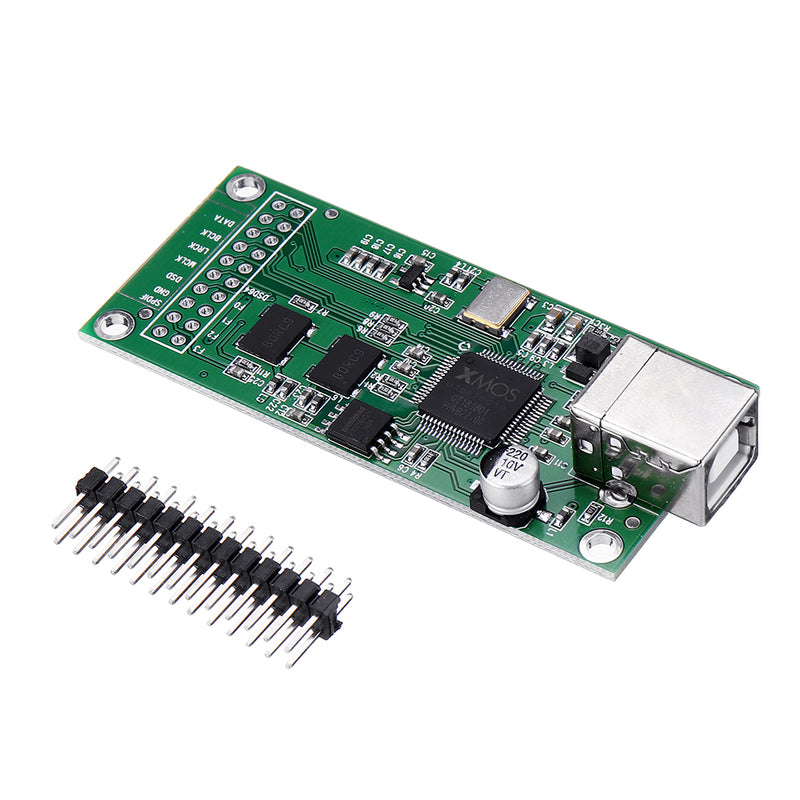

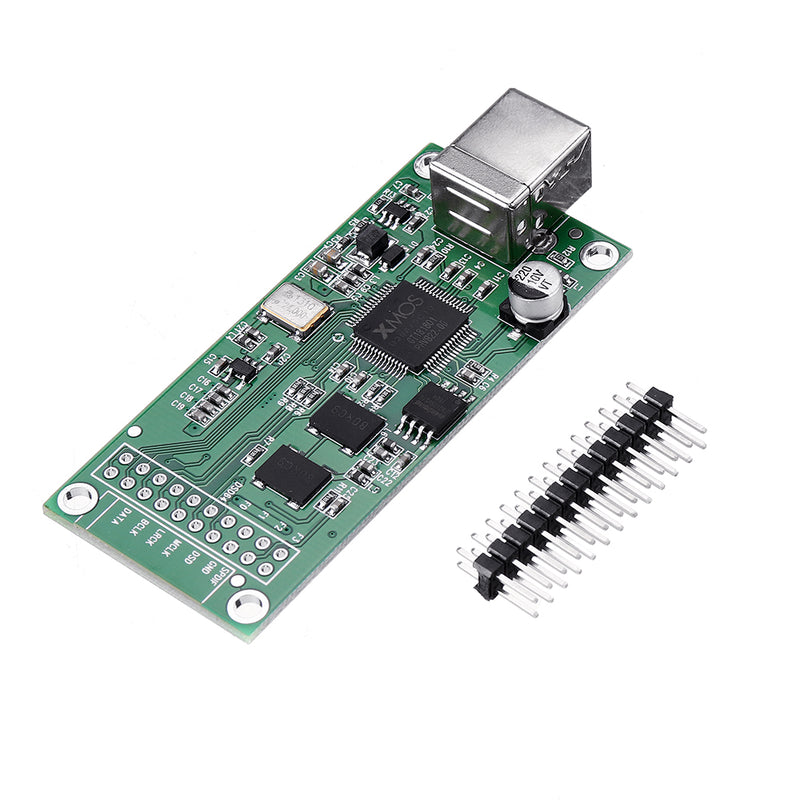

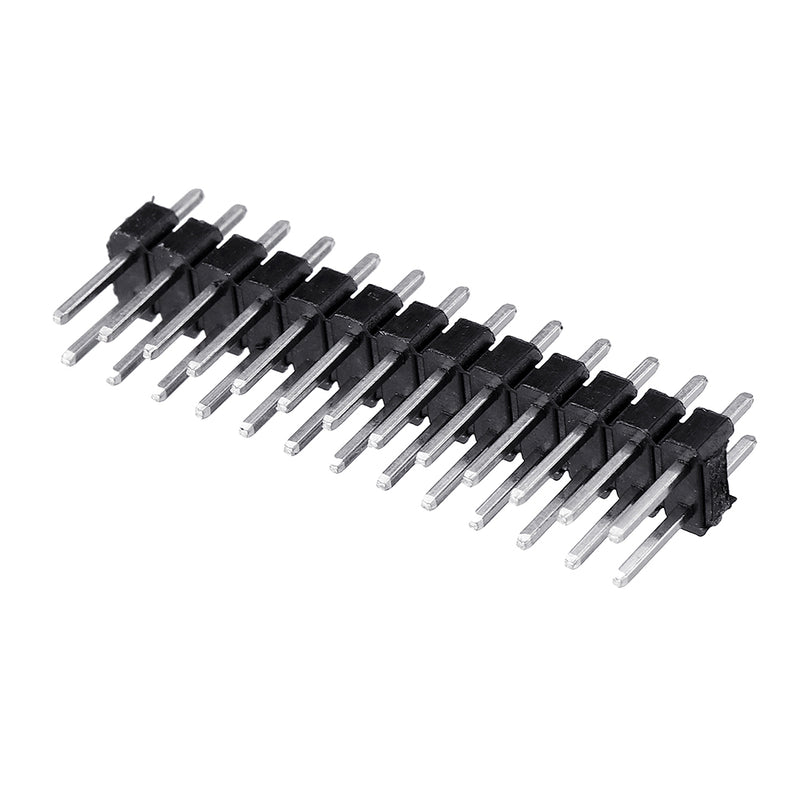

1 x U208 xmos USB board with Pin
