Features:
-Switch the modes between cool and heat.
-Control temperature by setting the temperature set value and the difference value.
-Suitable for Laboratories use and other temperature-controlled systems.
-Three digital tube temperature display and status indicator
-With water level detection function
-Mini and light weight design, easy to install.
Specifications:
Work Voltage: 12V / 24V DC
Resolution: 0.1 °.
Power consumption: <3W.
Relay output: compressor output relay 16A / 250VAV; solenoid valve relay 10A / 250VAV

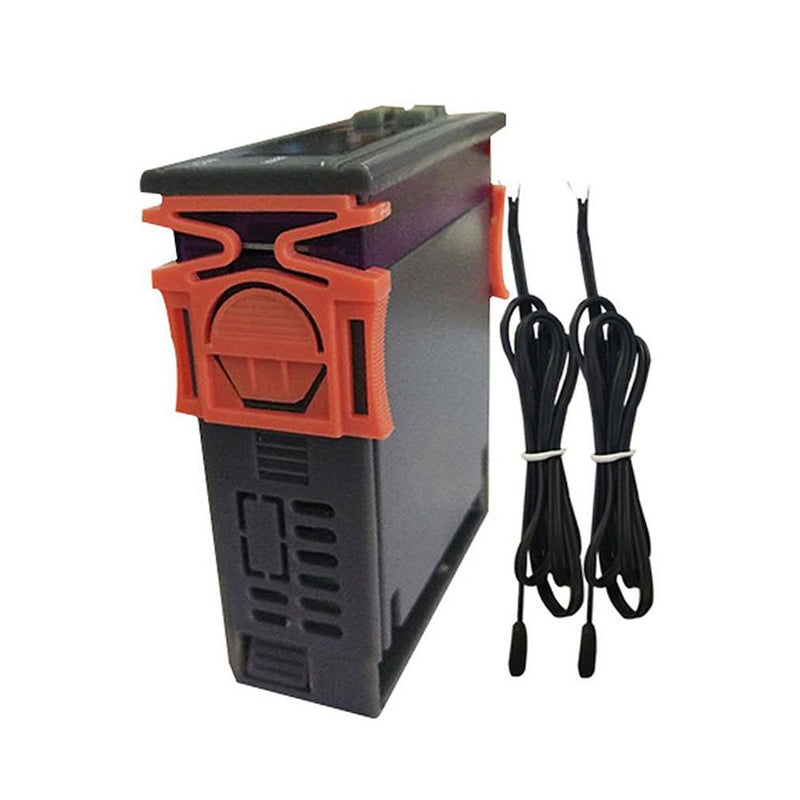

Input: 2 x NTC sensor, resistance is 10KΩ at 25 ℃
Sound: button sound and buzzer alarm sound
Housing material: ABS flame retardant plastic
Size: 75x34.5x85mm
Usage Manual:
Quickly restore the factory settings: Press and hold the up and down keys simultaneously, rE will be displayed after three seconds, and all settings will be restored to the factory settings
Check room temperature: In the non-set state, press the key to display the detection value of room temperature sensor. After 6 seconds, the water temperature will be displayed again (D1 flashes, indicating that room temperature is displayed)
Quick adjustment: Press the ST key when the thermostat is working normally. If the thermostat is in the constant temperature mode, the panel will display the parameter value of F0 (set temperature), and the intelligent mode will display the parameter value of F1 (temperature difference value). D1 flashes, indicating that the controller is now in the parameter setting state).
Code Description:
Water temperature alarm: H1
Low water temperature alarm: L1
High temperature alarm: H2
Water flow switch 1 alarm: P1
Water flow switch 2 alarm: P1
Water flow switch 1 and 2 alarm at the same time: PP
Package Included:

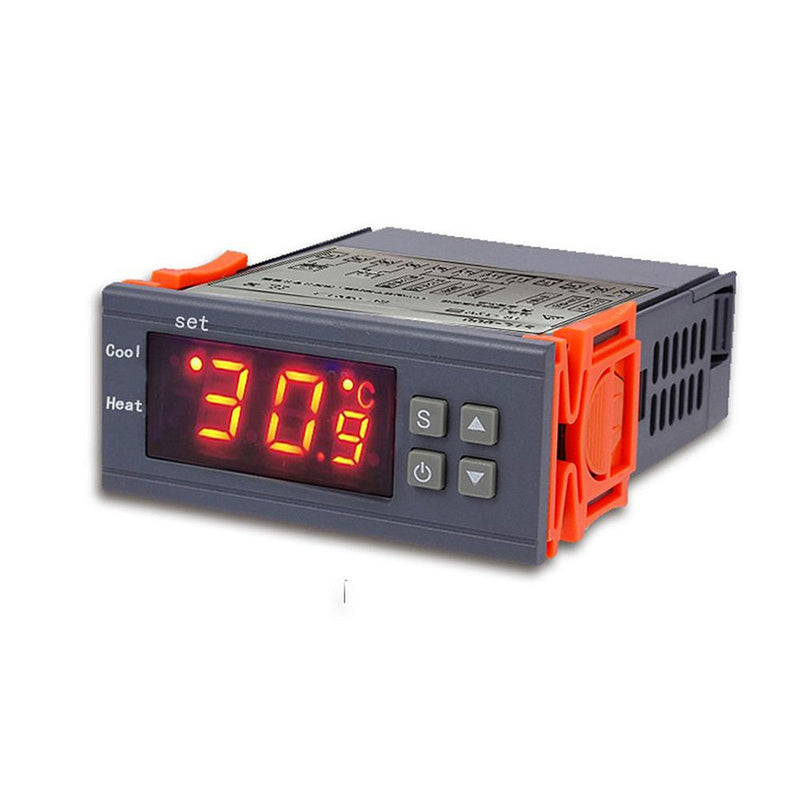

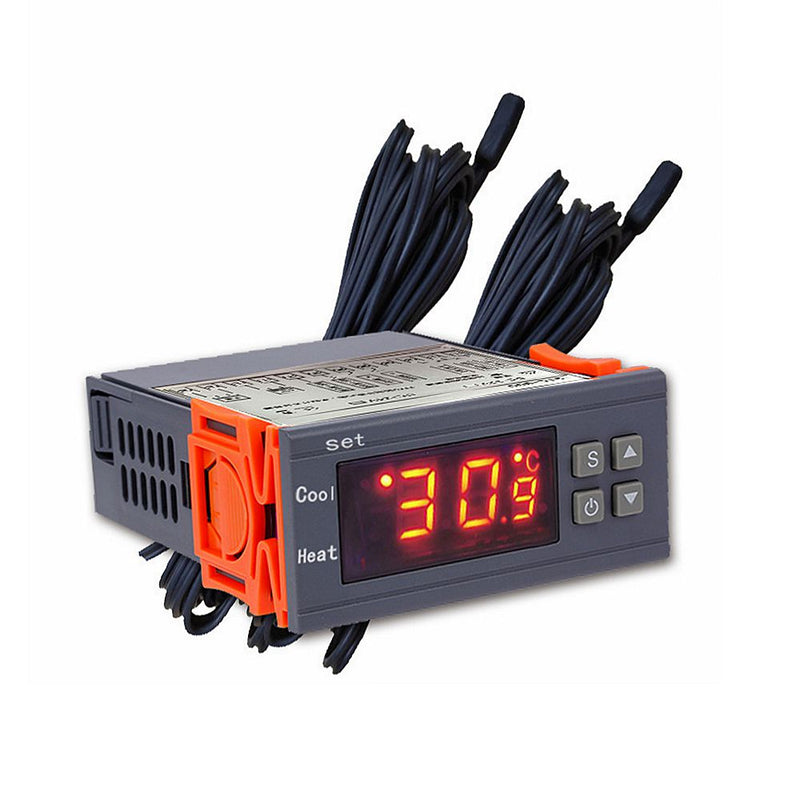

1 x Digital Thermostat Temperature Controller Thermometer
