Description:
- Onboard the most basic circuits based on MCU, such as crystal oscillator circuit, power conversion circuit and USB interface, etc.

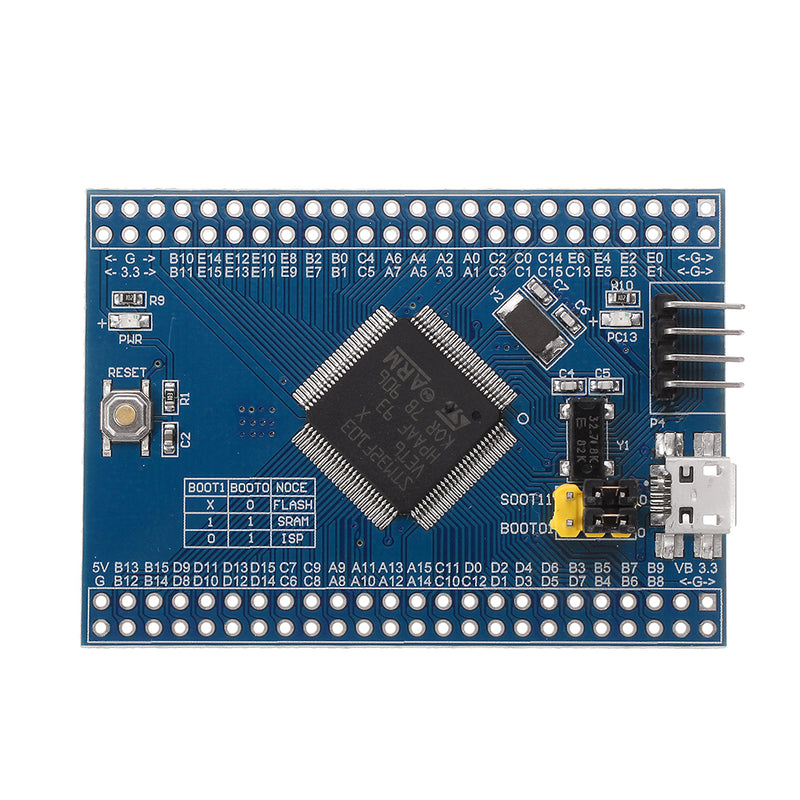

- The core board brings out the common I/O port resources.
- Added EEPROM peripherals to expand the memory circuit.

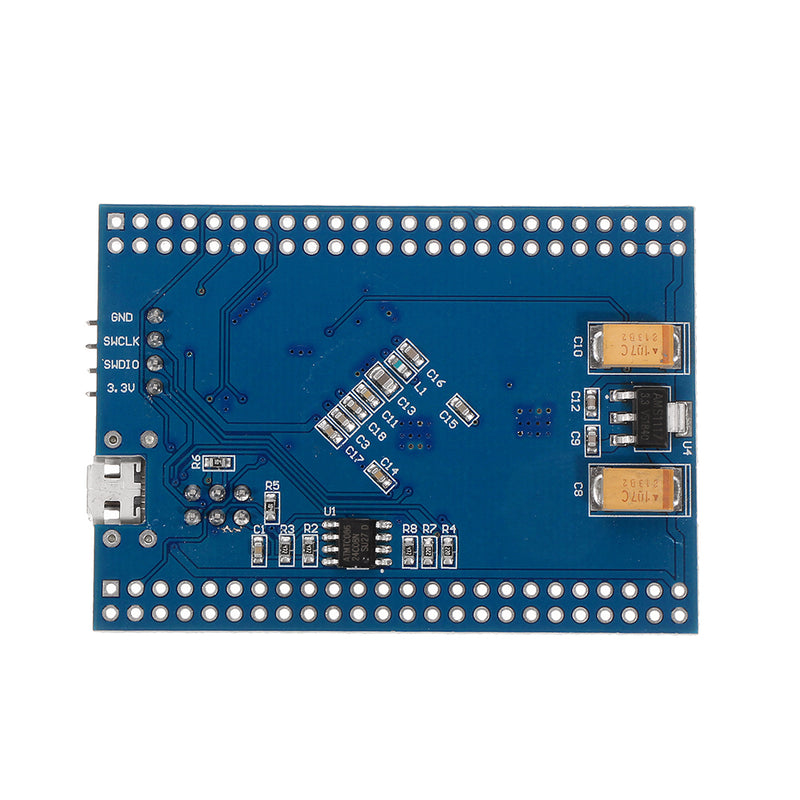

- The SWD simulation debug download interface is introduced.

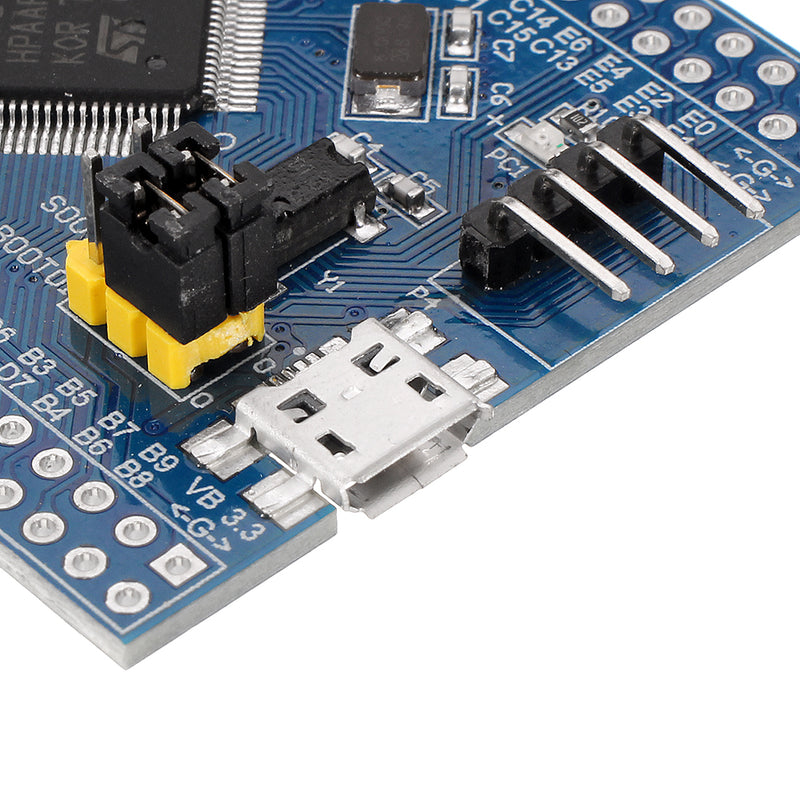

- It uses the Mirco USB interface that is commonly used in smartphones today. It is easy to use and can do USB communication and power supply.

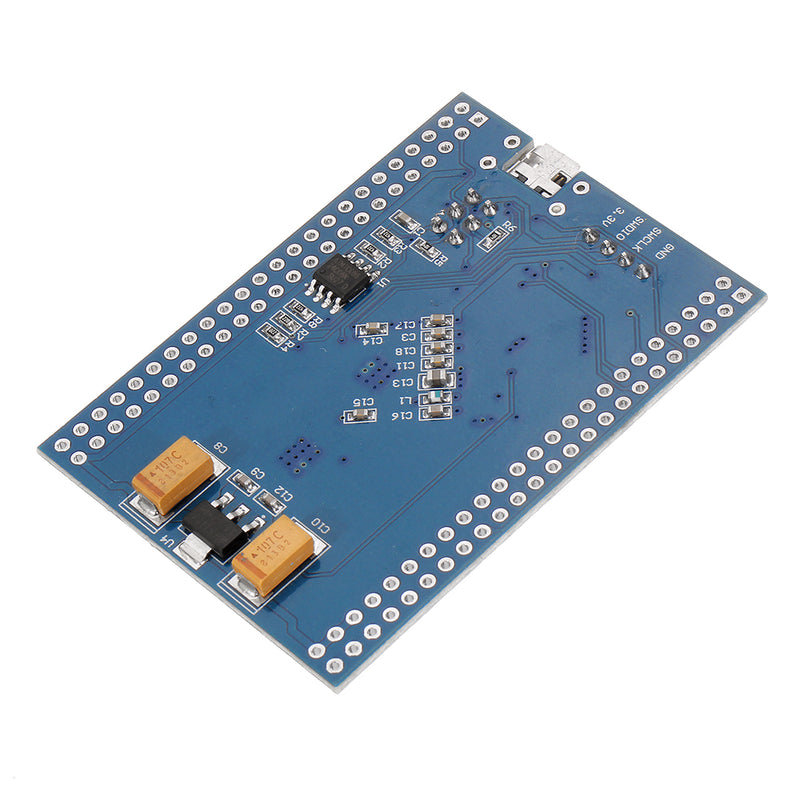

- With its own power supply voltage regulator chip, the power inlet/outlet is equipped with a tantalum capacitor, which has an extraordinary effect in filtering and voltage regulation.

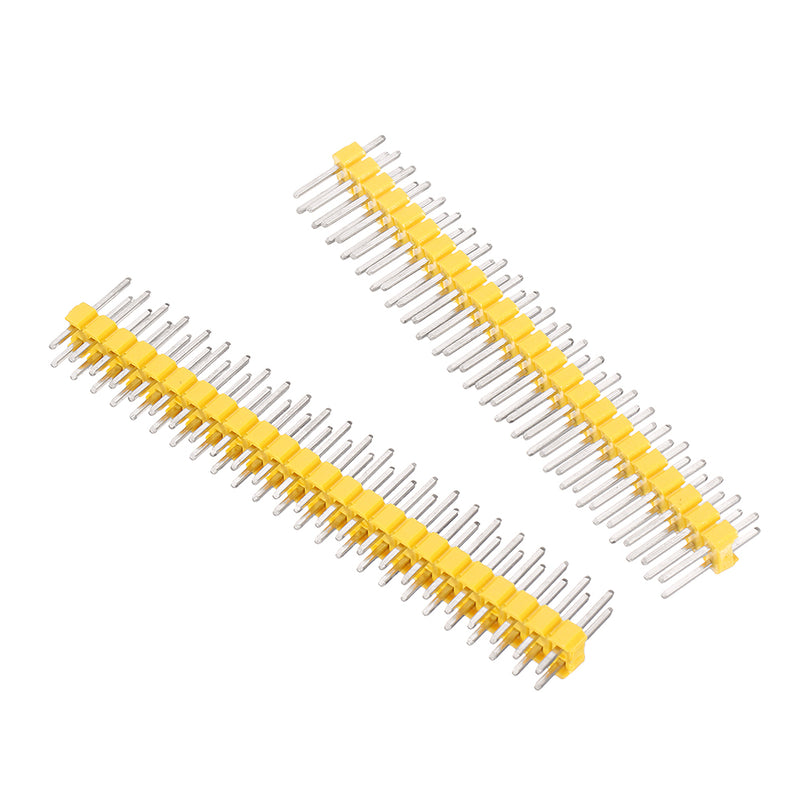

- Equipped with high quality 2.54mm spacing of single rows of pins, ensuring excellent conductivecontact.
Specification:
Model: STM32F103VET6
Core: ARM 32-bit Cortex-M3
Work Frequency: 72MHz
Flash Memory: 512K Byte Flash,64KByte RAM
Working Voltage: 2.0~3.6V
Power supply: 3.3V regulator chip, maximum output 1000mA
Size: 62.48x44.7mm/2.46x1.76 inch
Color: Blue
Package Included:

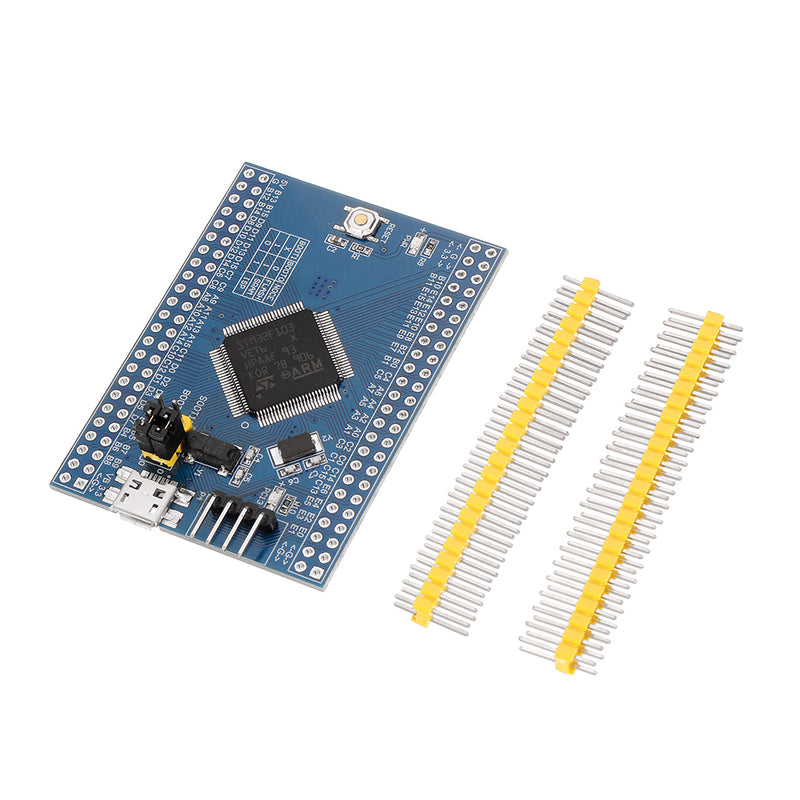

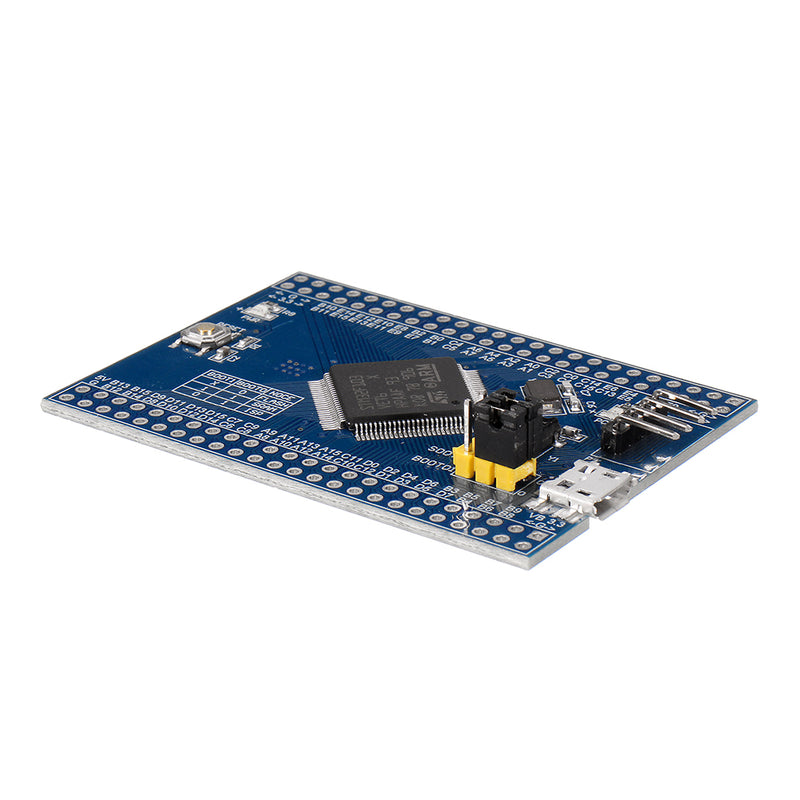

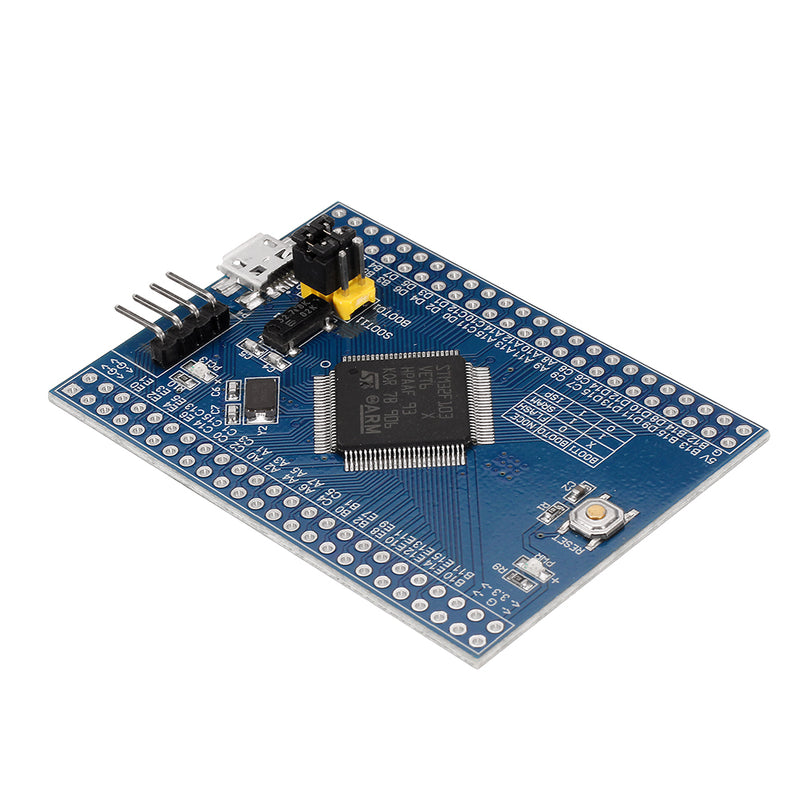

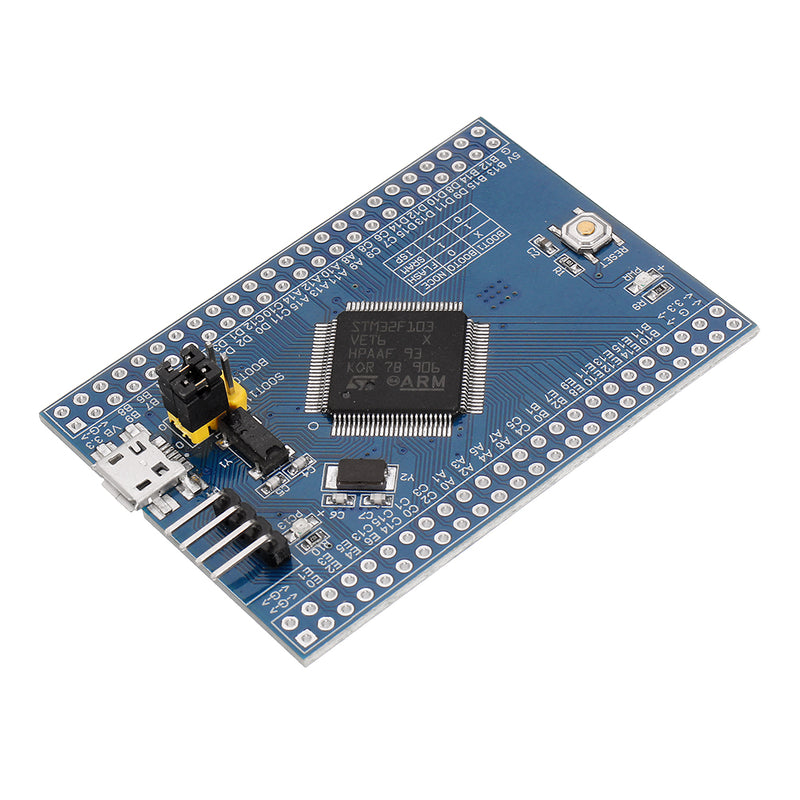

1 x STM32F103VET6 ARM STM32 Minimum System Development Board
