Description:
Onboard: STM32F767IGT6 chip
Core: Cortex-M7 32-bit RISC
Features: Single-cycle DSP instructions;
Operating frequency: up to 216MHz;
Working voltage: 1.8V-3.6V;
Packing: LQFP176;
Storage resources: 1024kB Flash, 320kB SRAM;
Resources: 6xSPI, 4xUSART, 4xUART, 3xl2S, 1xSAI, 3xl2C; 1xFMC, IxSDIO, 2xCAN;
1 x USB 2.0 FS/HS controller (with dedicated DMA);
1 x USB HS ULP丨 (for external USB HS PHY);
1 x 10/100 Ethernet M AC;
3xAD (12bit, 1us, 24), 2xDA (12 bit);
TIM timer: 10X general-purpose timer, 2X advanced timer, 2X basic timer, 1X low-power timer.
Data access FLASH: W25Q128/16MB.
The basic circuit of on-board MCU includes 25MHz, 32.768KHz crystal oscillator circuit, USB power management circuit and USB interface.
Except for on-board SDRAM and GPIO occupied by SPI FLASH, all the pins of the I/O peripheral devices are in the form of 2.54mm pin arrays. All the resources of the chip can be freely used.
With JTAG/SWD debugging and downloading interface.
Four-ply process, stable performance.
Working frequency: up to 180 MHz, 225 DMIPS/1.25 DMIPS/MHZ
Working voltage: 1.8V-3.6V
SDRAM: IS42S16400J-7TLI/8MB

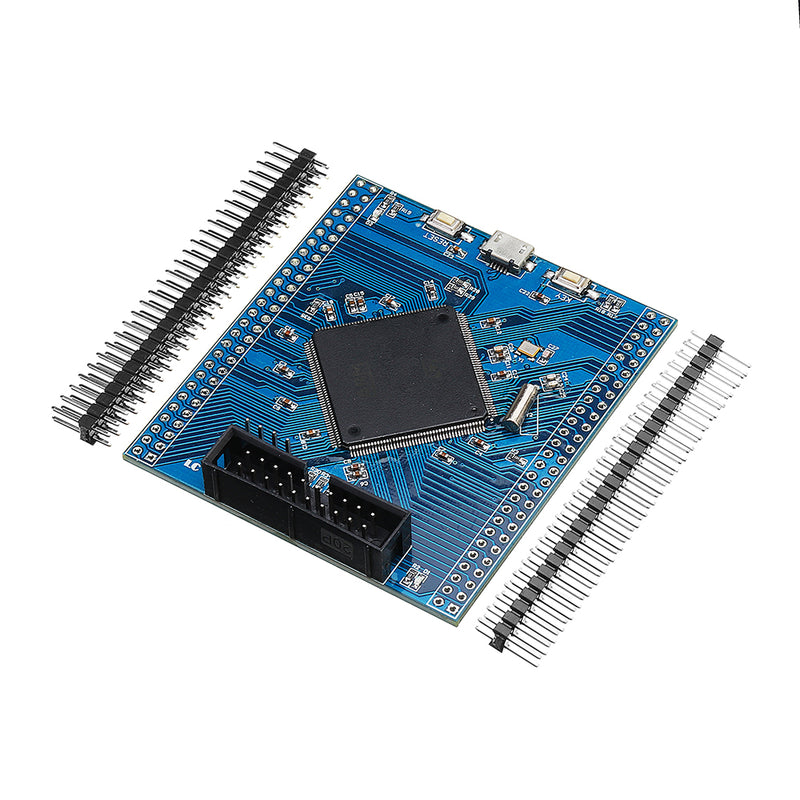

Package included:1 x STM32F767 Development Board

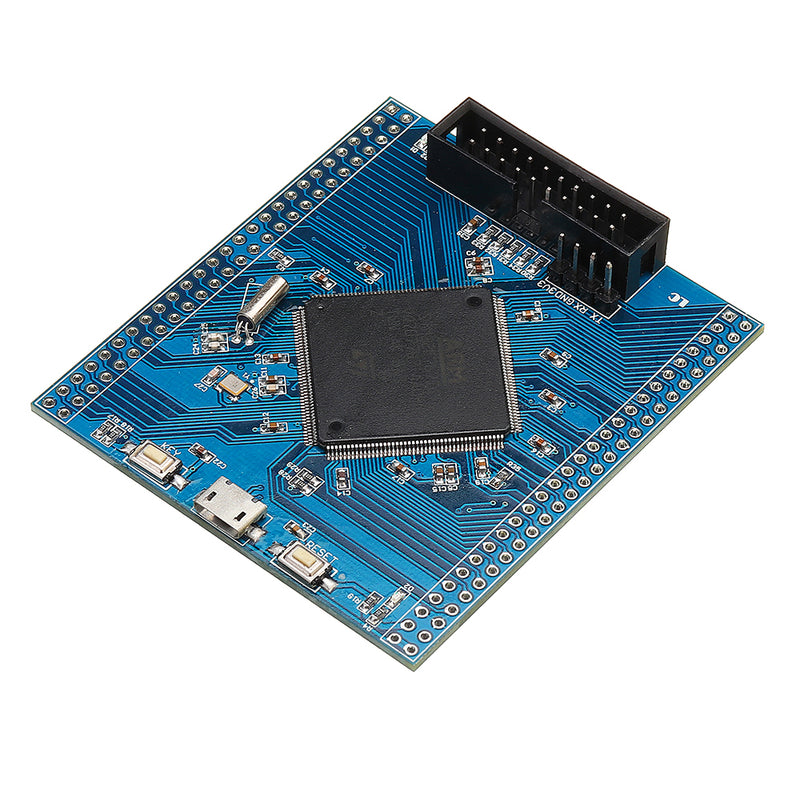

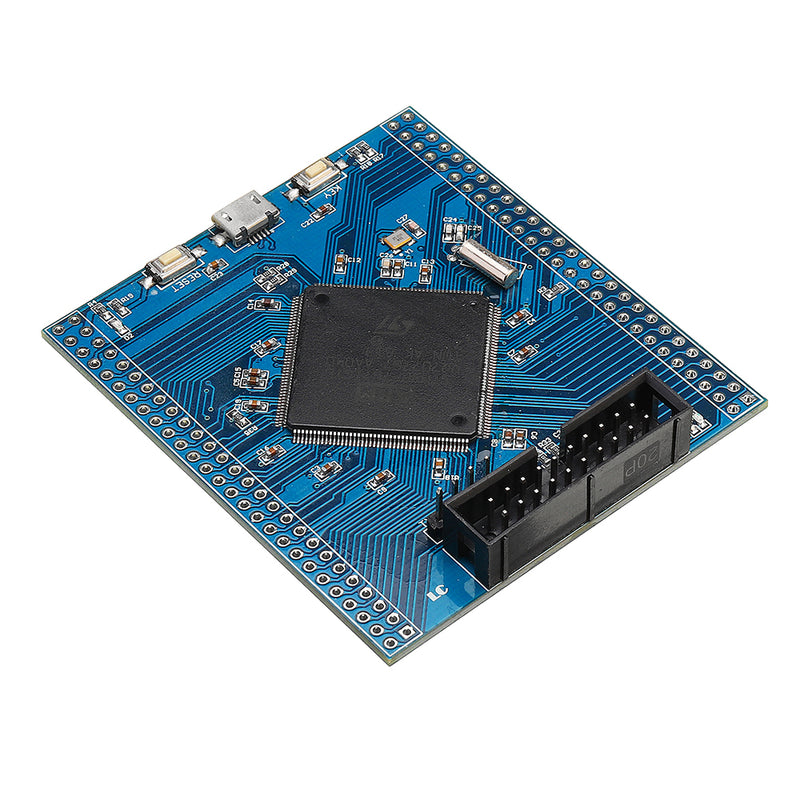

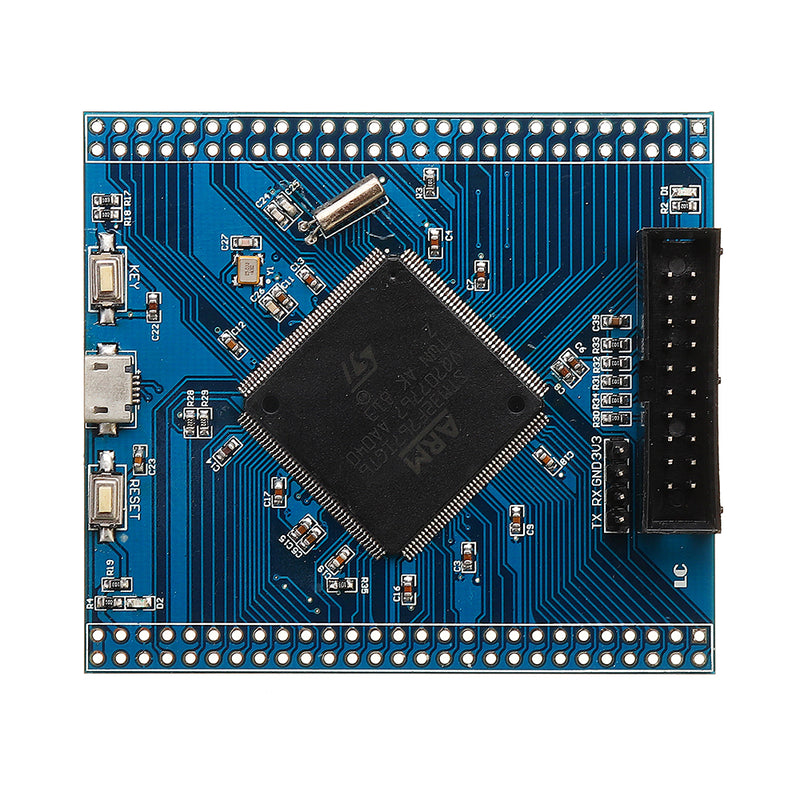

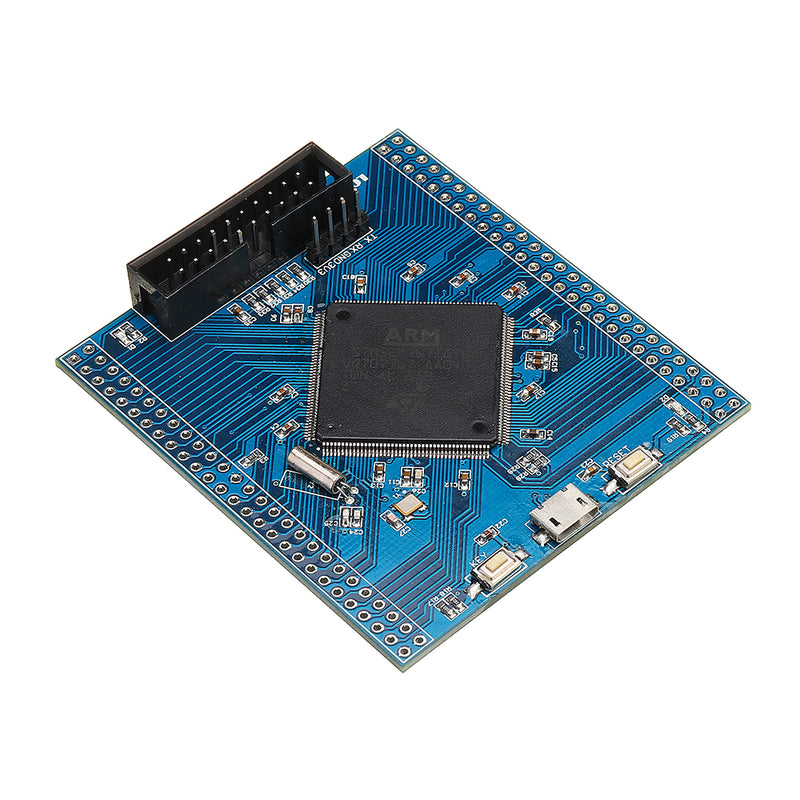

Pin Descriptions:1. D2: Power indicator
2. RESET: Reset button
3. J6: USB interface
4. KEY: User button
5. 25MHz x 32.768MHz crystal
6. 3.3V regulator device
7. Flash: W25Q12816MB

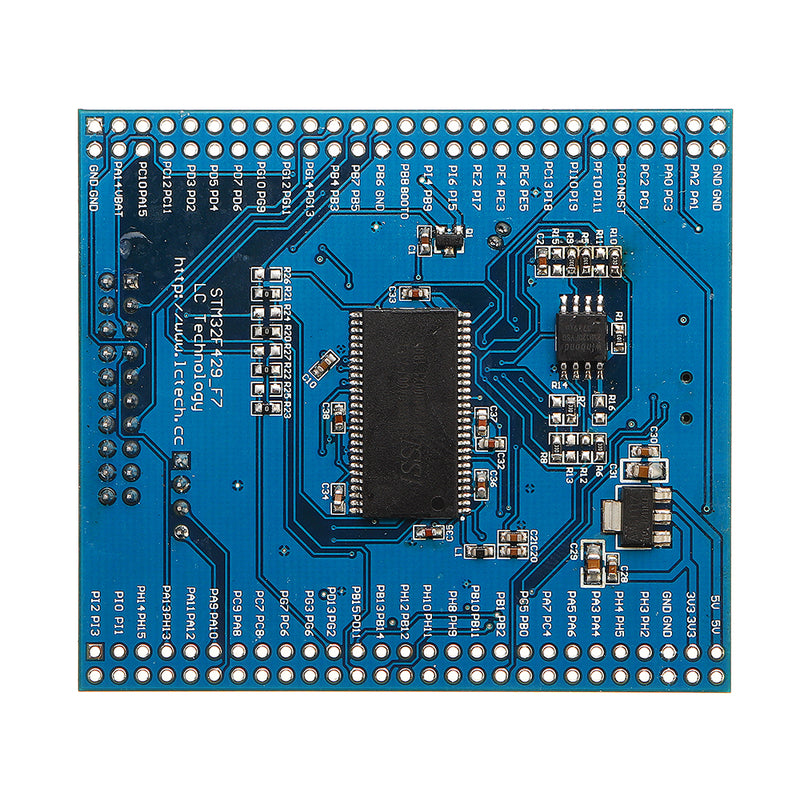

8. 2x27 pin headers in two rows, a total of 108 pins: GPIO97, power supply and GND11
9. STM32F767IGT6 chip
10. ISP interface:
- 3V3: working voltage positive
- GND: Operating voltage negative
- TX: module serial port send pin (ie PA9)
- RX: module serial port receiving pin (ie PA10)
11: JTAG/SWD debug interface
12: D1 User LED
13: SDRAM: IS42S16400J-7TL18M
