Features:
- Definitely use the new chips imported from Japan TB6560

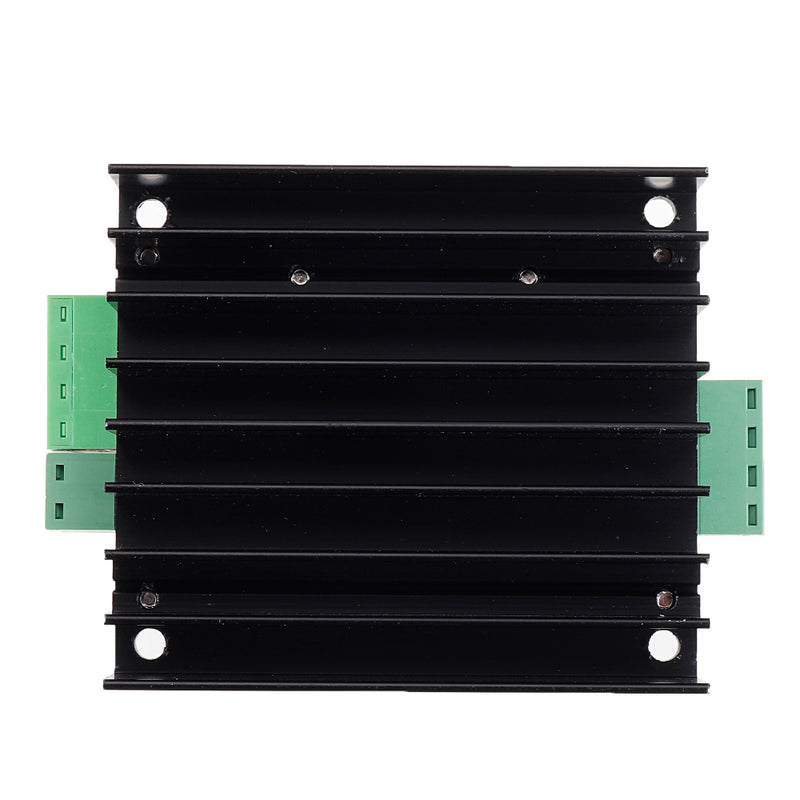

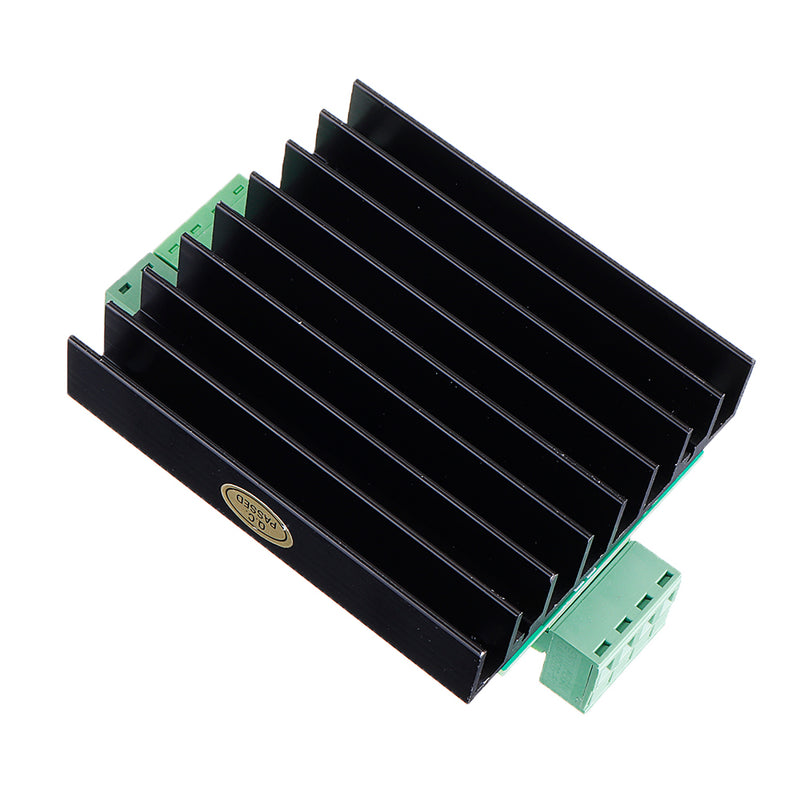

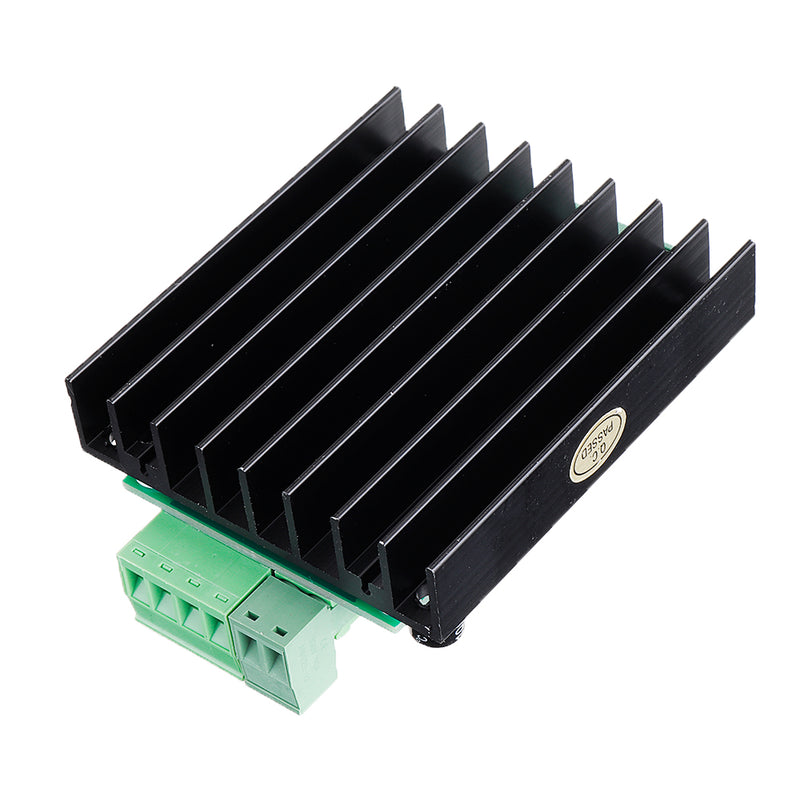

- With large heat sink to ensure good heat dissipation
- Input signal high-speed optocoupler isolation, guarantee not losing steps
- Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
- Attenuation model adjusted for all the motors can be locked when no noise

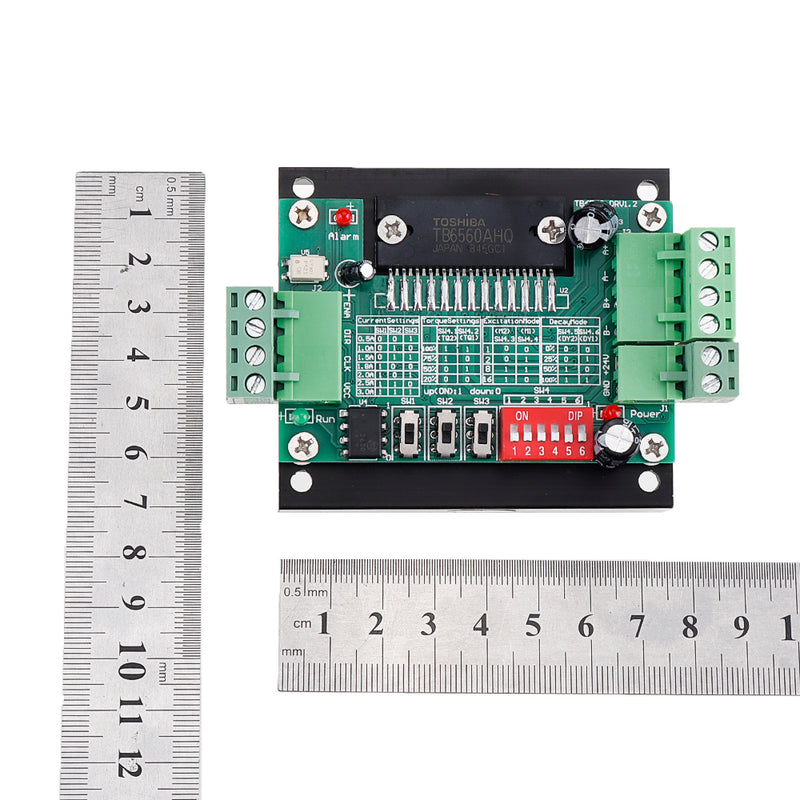

- Ultra-small, the overall size: 62mm * 75mm, installation of four mechanical positioning hole size: 65mm * 55, hole size Φ3mm
- The form of stud-type connectors and an optional plug-in.
Specifications:
Rated voltage: DC 12V-24V
Maximum current: 3.5A
Current adjustable (Current Settings): 0.5A, 1A, 1.5A, 1.8A, 2A.2.5A, 3A
Subdivision adjustable (Excitation Mode): 1,2,8,16
Attenuation adjustable (Decay Mode):
0 %---- no decay mode
--- 25% of the slow decay mode
--- 50% of the normal mode
100% - Fast Decay mode
----- Decay mode of regulation by different motors to match impedance, thereby eliminating the noise when locked stepper motor and motor movement in the shake.
Automatic half current setting (Torque Settings):
%---- No pulse when the current 20 to normal operating current of 20%
50 %---- no pulse current 50% to normal operating current
75 %---- no pulse current 75% to normal operating current
100% --- no pulse when the current 100% to normal operating current
Package Included:

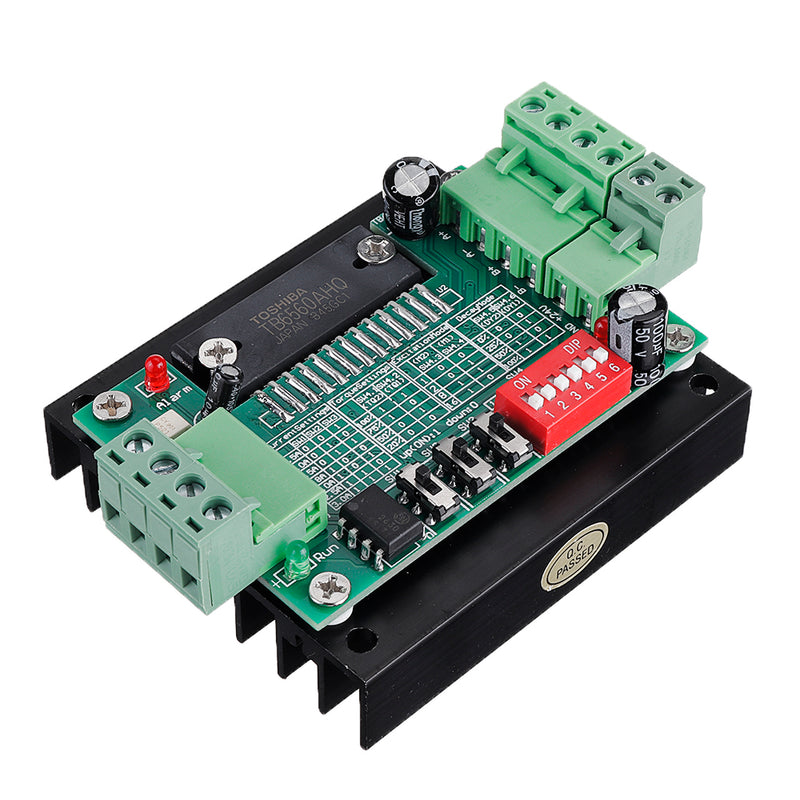

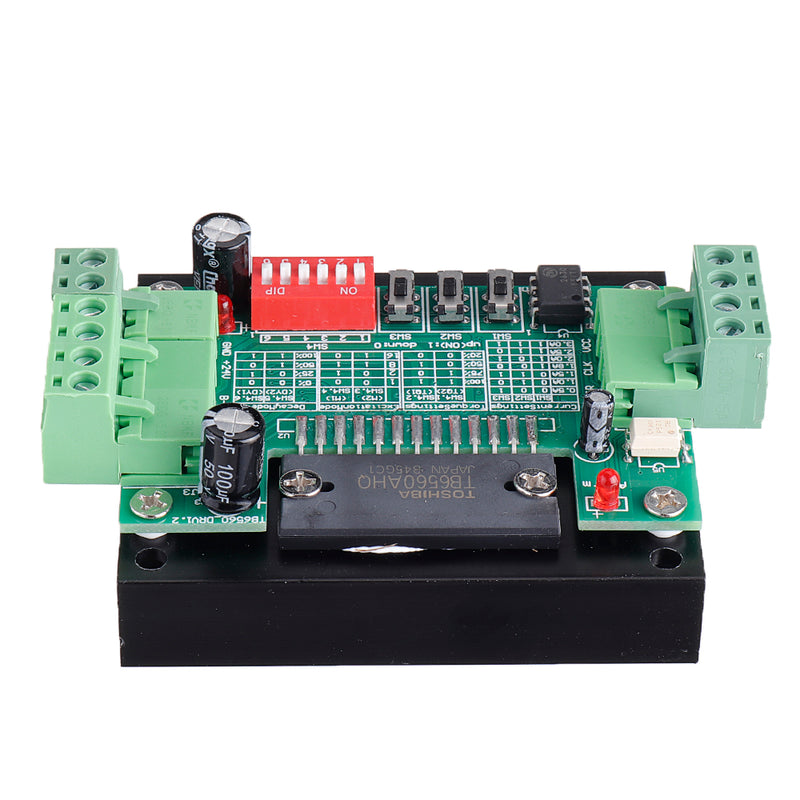

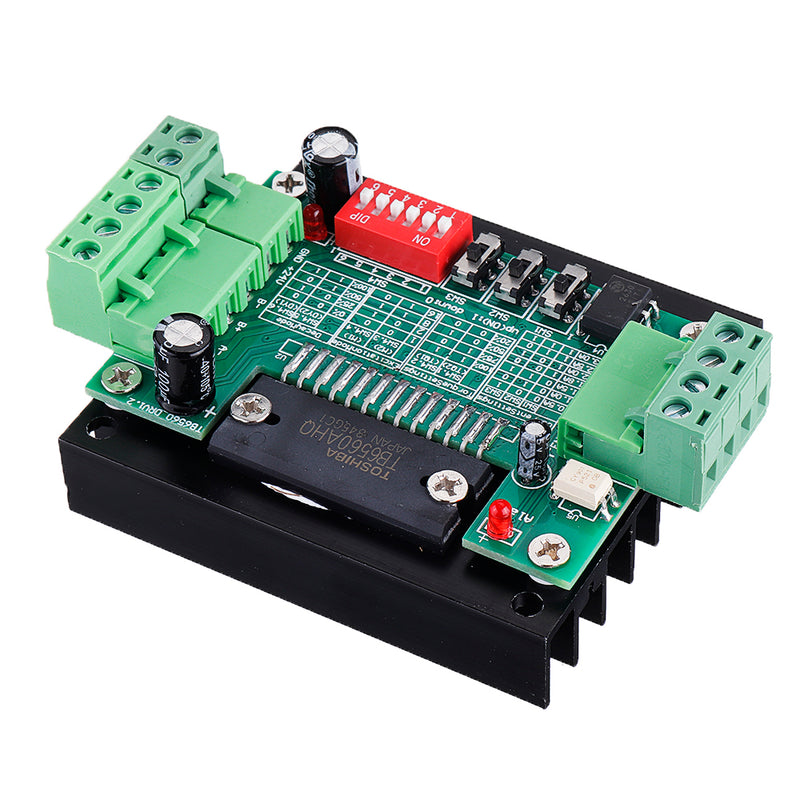

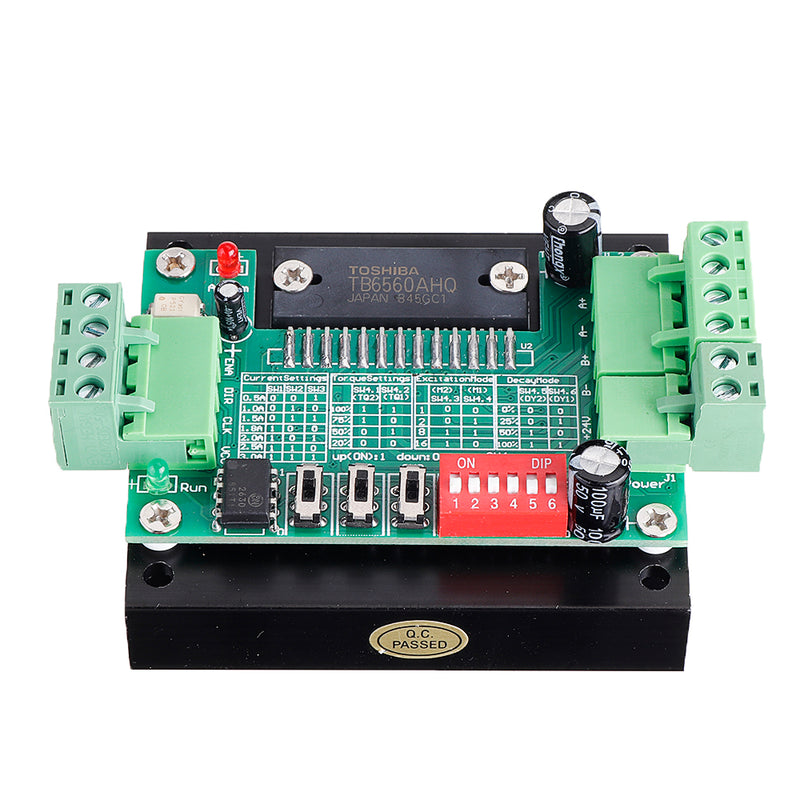

1 x 3A CNC Router Single Axis TB6560 Stepper Stepping Motor Driver Controller Board
