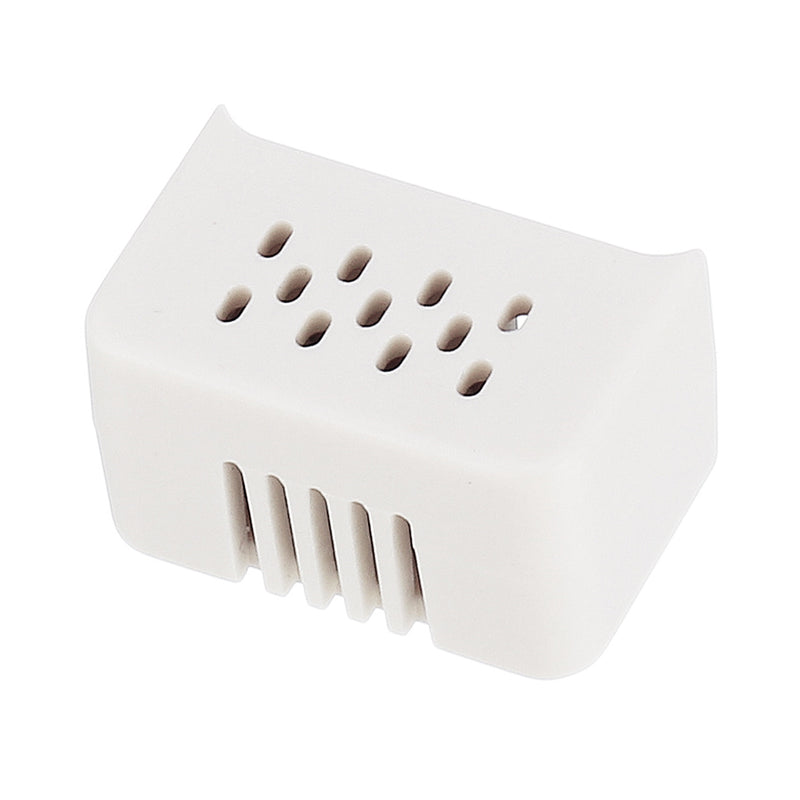

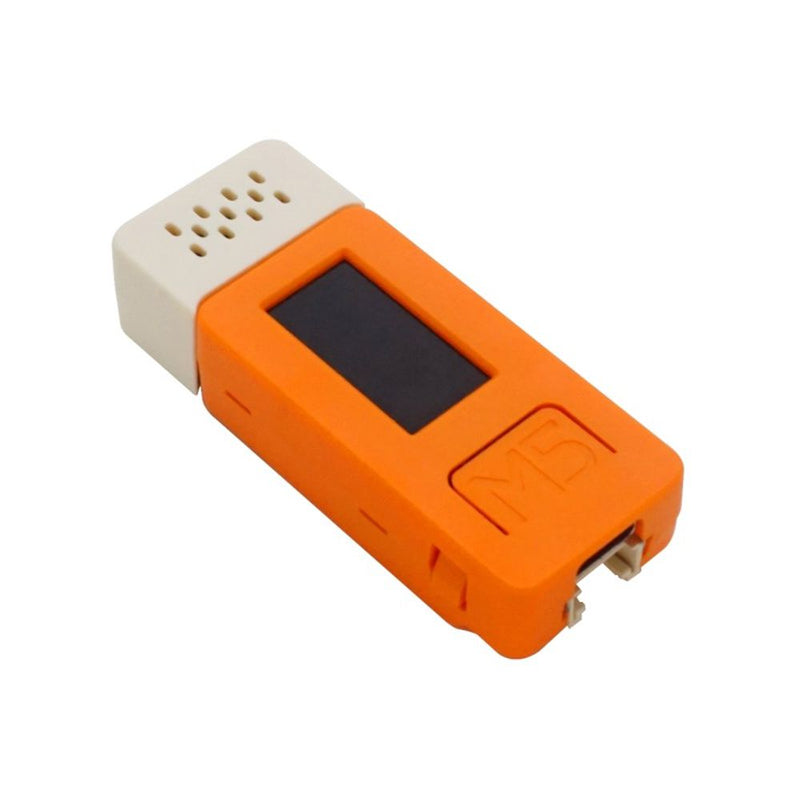

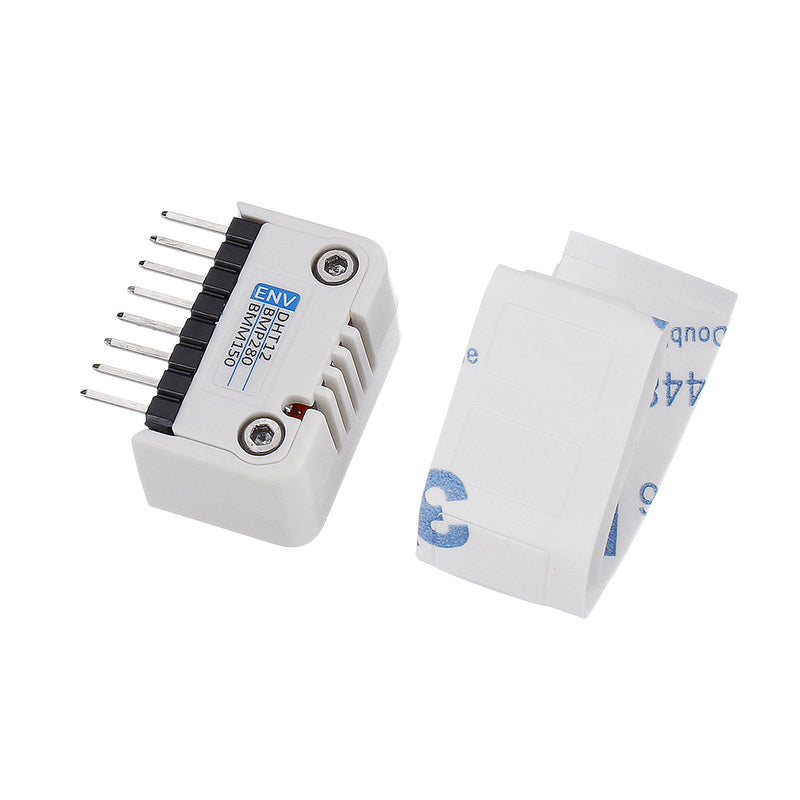

Temperature Humidity Sensor ENV Weather Station and Compass Compatible M5Stick

Description:

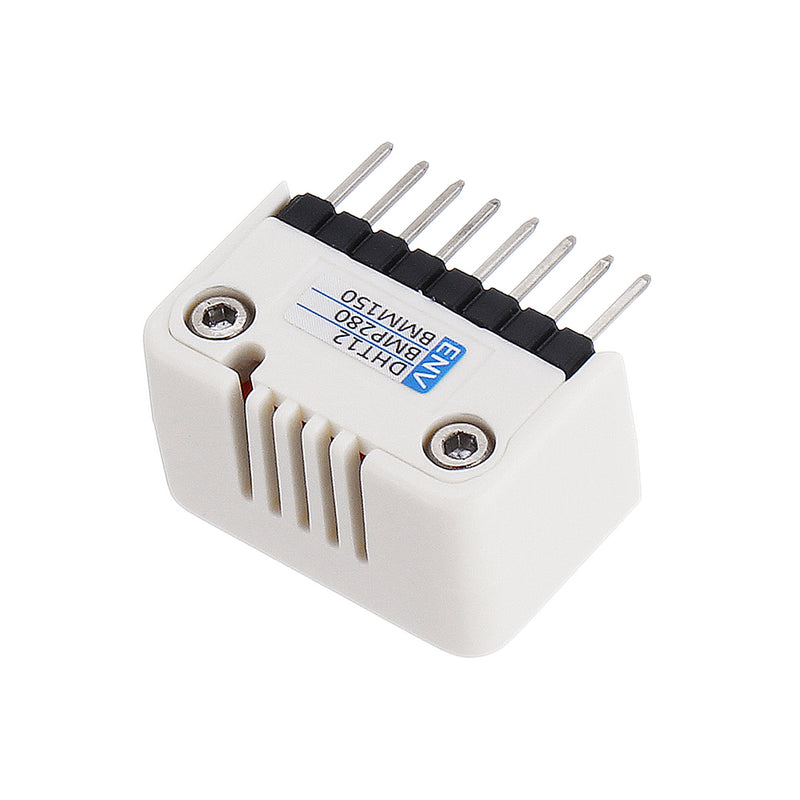

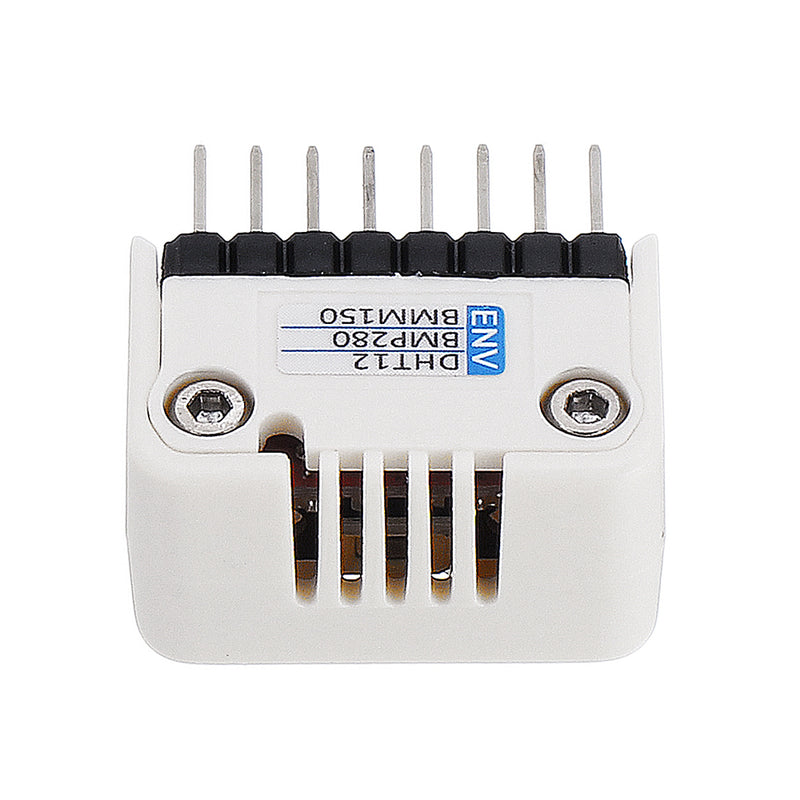

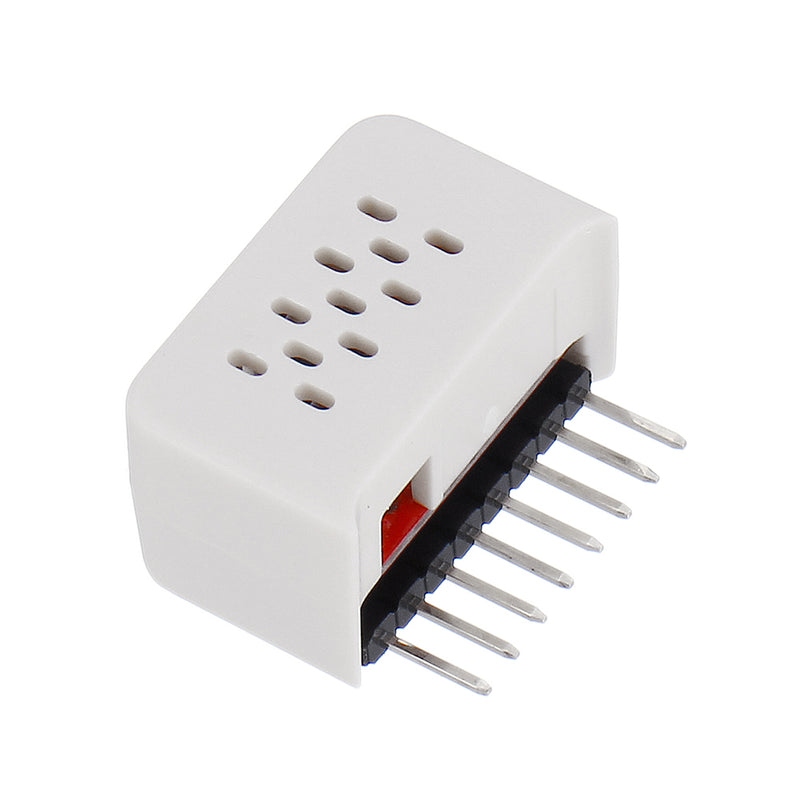

Hat ENV It is able to detect the temperature, humidity, air pressure and magnetic field. This product relates via I2C protocol which allows you to obtain 4 types of environment data thru just 2pins, together with the tiny body, makes it a powerful application for envitonment data collecting.

Product Feature:

• temperature:
  • Range: -20 ~ 60 ℃
  • Error: ±0.2℃
• Humidity:
  • Range: 20 ~ 95 %RH
  • Error: 0.1%
• Air pressure:
  • Range: 300 ~ 1100hPa
  • Error: ±1hPa

Typical Magnetic Field:

  - ±1300μT(x,y-axis),±2500μT(z-axis)  - magnetic field resolution: 0.3μTCopy to clipboardErrorCopied

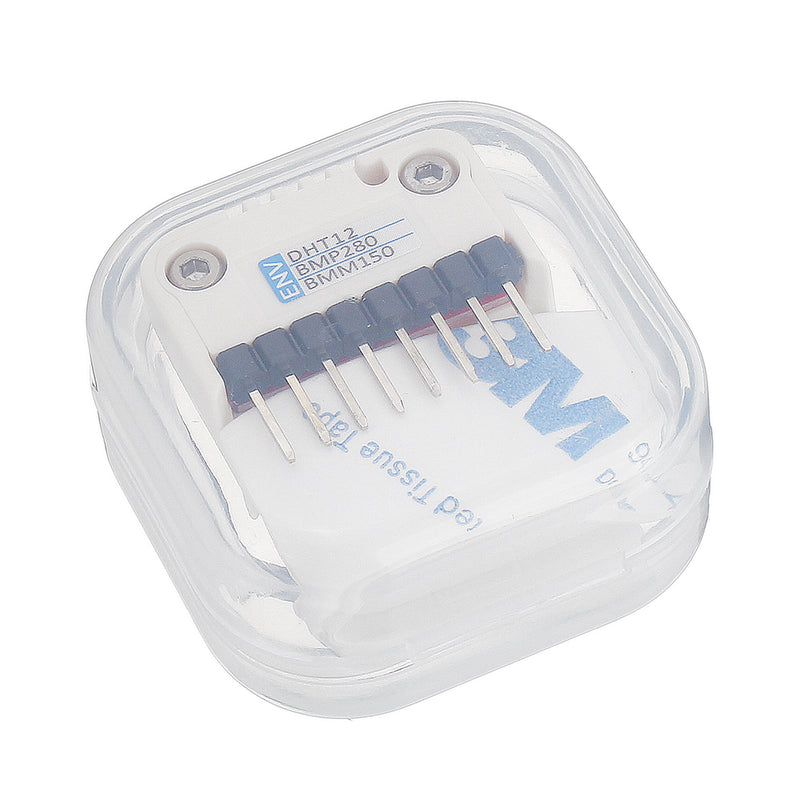

Package Includes:

• 1x ENV Hat

Application:

• Weather Station
• Compass

Schematic:

Links:

• Official Channel

• Official forum

• BMP280 library

• BMM150 Datasheet

EasyLoader

click to download EasyLoader

2.After downloading the software, double-click to run the application, connect the M5 device to the computer via the data cable, select the port parameters, and click "Burn" to start burning.

Example:

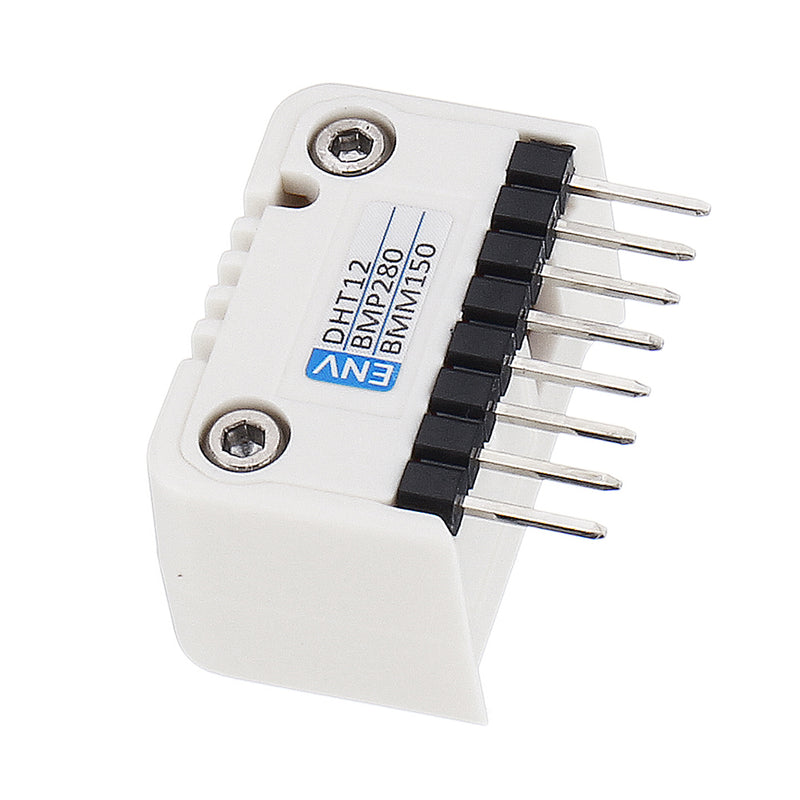

Pin Map:

M5StickC	GPIO0	GPIO26	5V	GND
HAT ENV	SDA	SCL	5V	GND
