Driver:

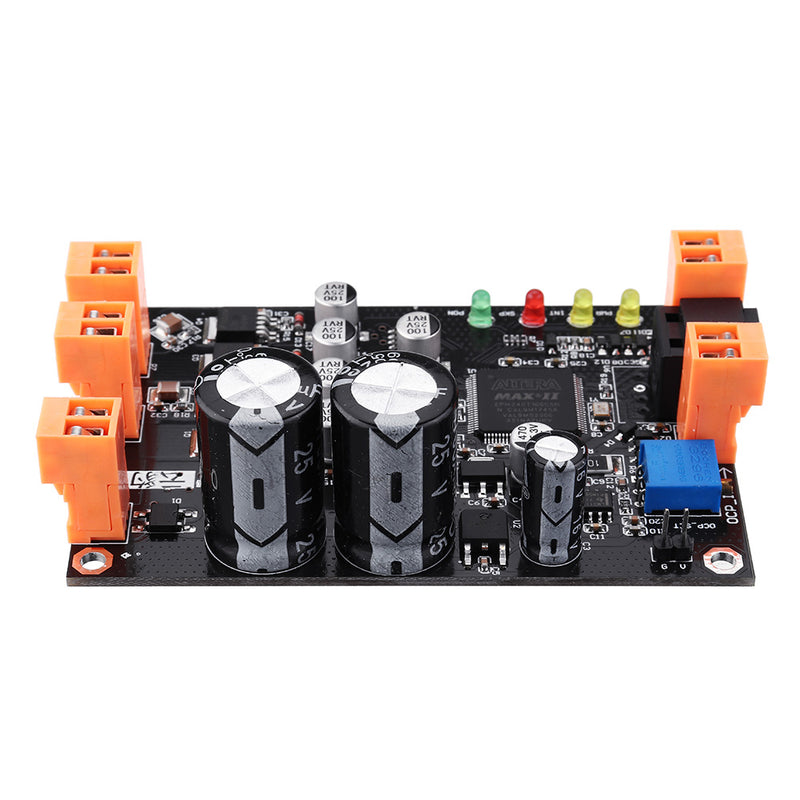

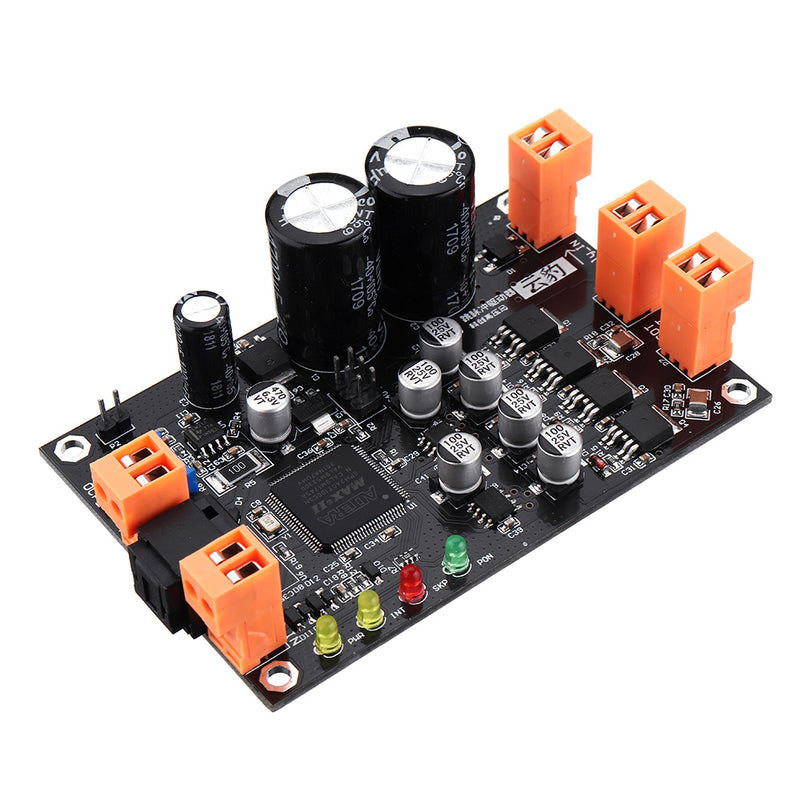

Dual GDT output, support for driving IGBT modules
Current feedback threshold setting, support DRSSTC and SKP mode
The latest development of firmware, support for a variety of fiber heads, using a modulated signal.
New DRSSTC/SKP dual mode Tesla coil arc extinguishing controller:
Switchable SKP/DR pulse control mode, maximum On Time up to 10ms in SKP mode
Support for One Shot - button one-shot function
Support for audio/external trigger input
Supports 2*5 batteries and external 12V DC power supply

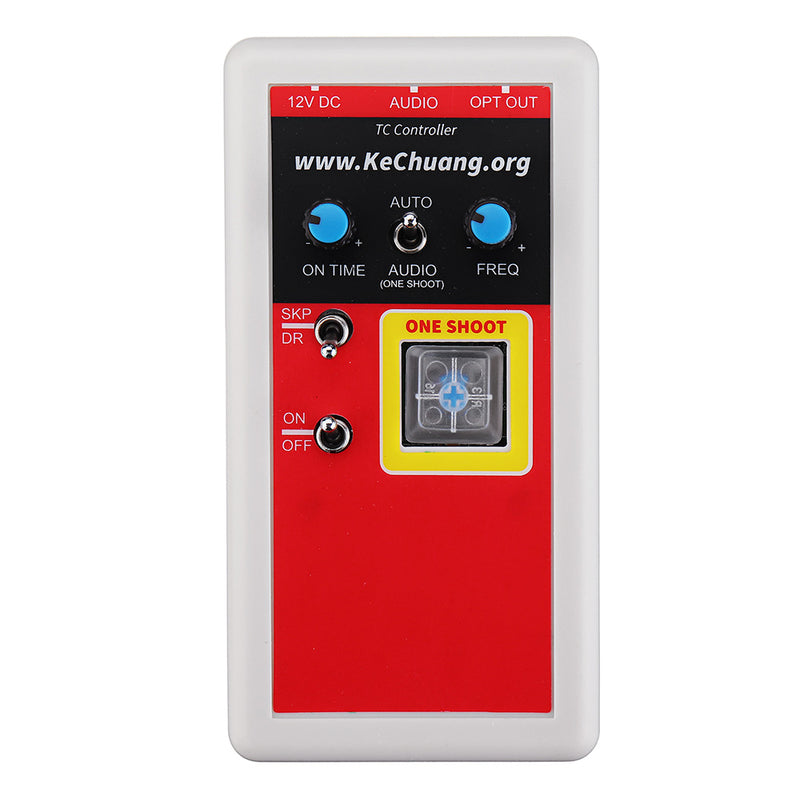

Arc extinguisher panel description:

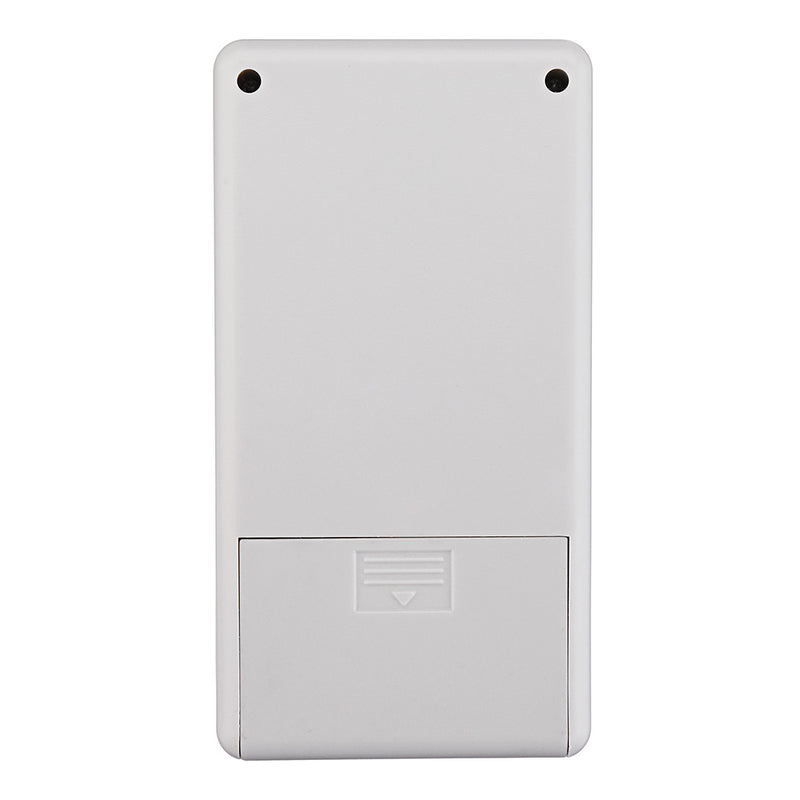

1. The power input is 12V (inside and outside negative), and the internal battery is AA (No. 5) battery.
2. Audio input is only allowed in DR mode.
3. The fiber specification is SPDIF fiber.
4. Trigger mode switch: The AUTO file automatically sends the trigger pulse continuously, and the AUDIO file is triggered by the audio, or it is triggered once when the trigger button is pressed.
5. Trigger button: In Audio mode, an arc extinguishing pulse is triggered when the trigger button is pressed.
6. Arcing pulse width knob: adjust the pulse width of the Ontime signal.
7. Frequency knob: In Auto mode, the arc extinguishing pulse frequency knob is used to adjust the Ontime pulse frequency.
8. Arc-extinguishing mode switch: The SKP output pulse width is wider than the DR mode, and the output frequency is lower than the DR mode under the AUTO trigger.
9. Power switch: Turn to the ON arc extinguisher to start, turn to the OFF arc extinguisher to stop working. (The arc extinguisher does not have an automatic shutdown function)

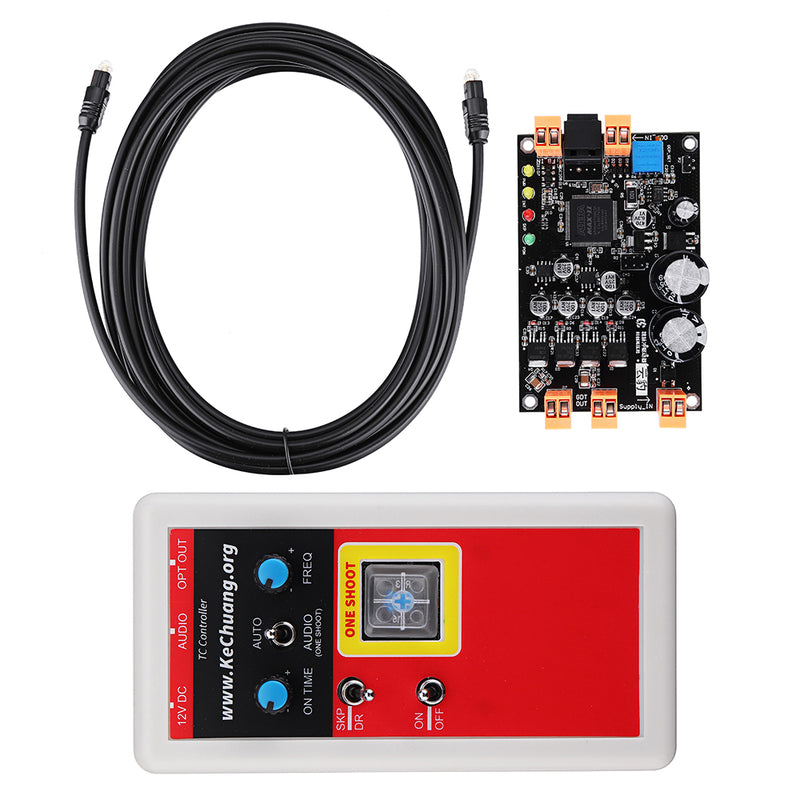

Package includes: Type 1: 1 x Driver boardType 2: 1 x Arc extinguishing controller
1 x WireType 3: 1 x Driver board
1 x Arc extinguishing controller
