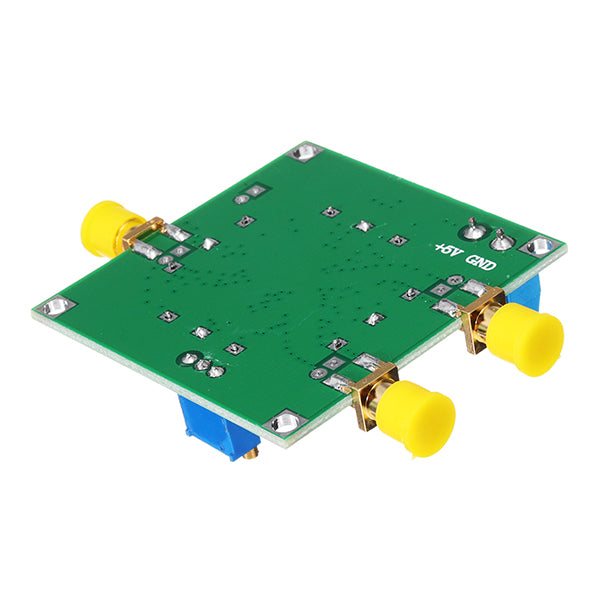

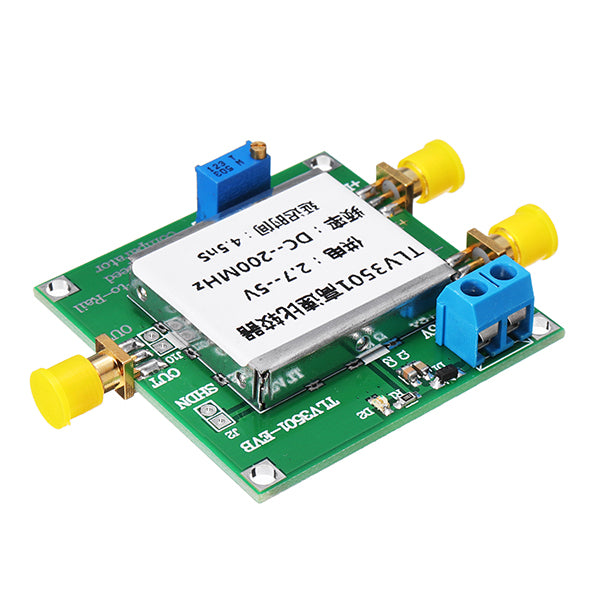

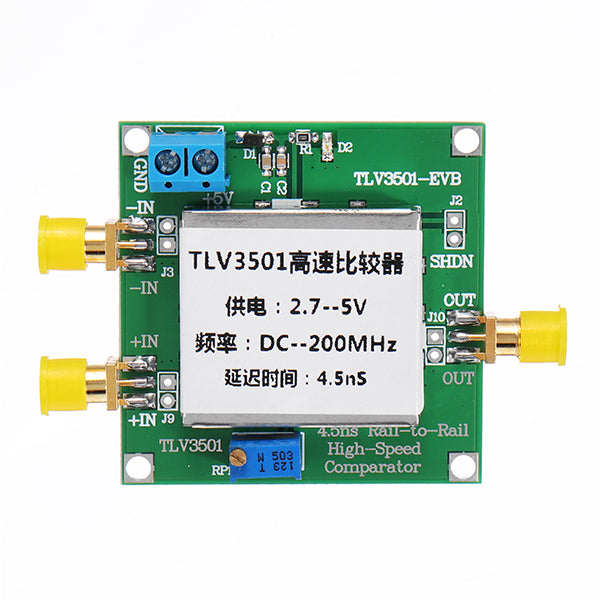

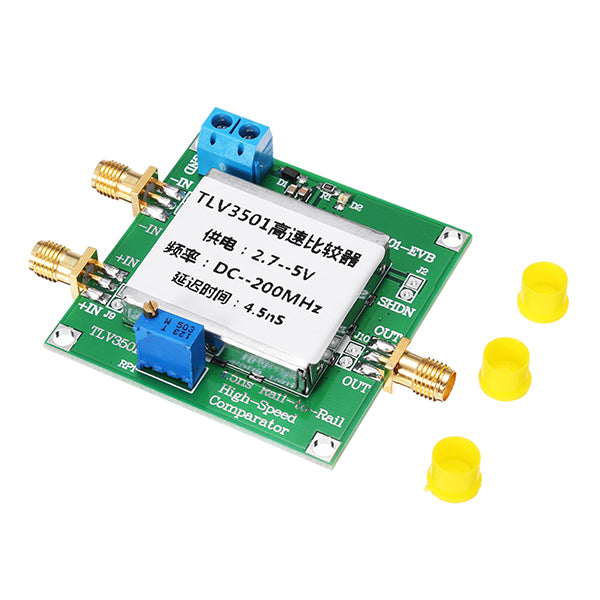

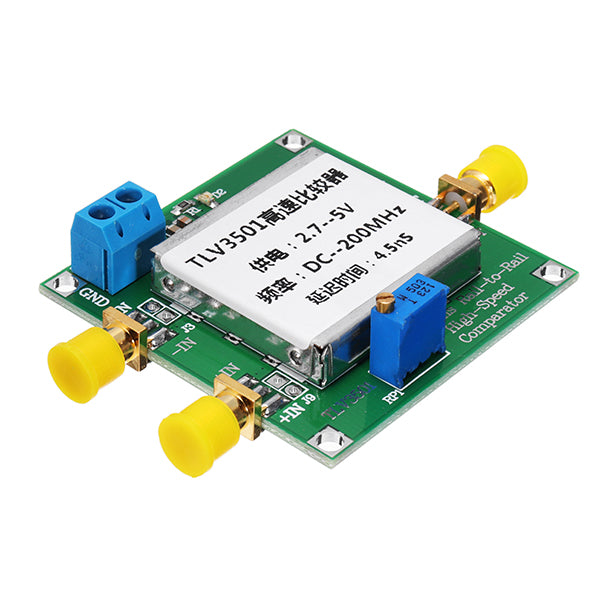

Product application:
The TLV3501 is a single channel high speed push-pull output comparator with a delay time of 4.5ns, supply voltage: + 2.7V to +5.5V, and an excellent range of input common mode range beyond the swing input, making it ideal for low voltage applications. Rail to rail outputs can be directly driven by CMOS or TTL logic. The module can be used for shaping the wide voltage range and periodic signals, and it is used as the front-end conditioning module in time domain measurement such as frequency and phase difference.
Application:
1. sine wave to Fang Bo
2. zero over comparator
3. general comparator
Technical indicators:
1. Supply voltage: 2.7-5VDC
2. Input voltage: 10-1000mV(valid value)
3. Output level: rail to rail output,Direct driveTTL/CMOSlevel
4. Input frequency: DC--200MHz

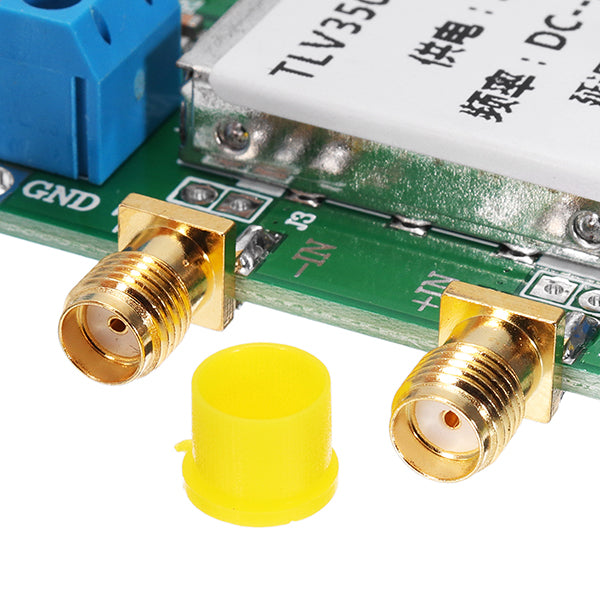

5. Interface form: SMA Header (outside screw hole)
6. Input impedance: 50 Ohm
7. Case with shieldMeasured waveform:1, 1MHZ (1VPP sine wave input, output waveform after comparator)
2, 10MHZ (1VPP sine wave input, output waveform after comparator)
3, 50MHZ (1VPP sine wave input, output waveform after comparator)
4, 100MHZ (1VPP sine wave input, output waveform after comparator)
5, 150MHZ (1VPP sine wave input, output waveform after comparator)
6, 200MHZ (1VPP sine wave input, output waveform after comparator)
Package included:
1 x TLV3501 High Speed Comparator
